2AAWE-SM1Ultra High-Definition Wireless Speaker System

238mm228mm 5mm 5mm 190mm 180mm 238mm228mm 5mm 5mm 190mm 180mm

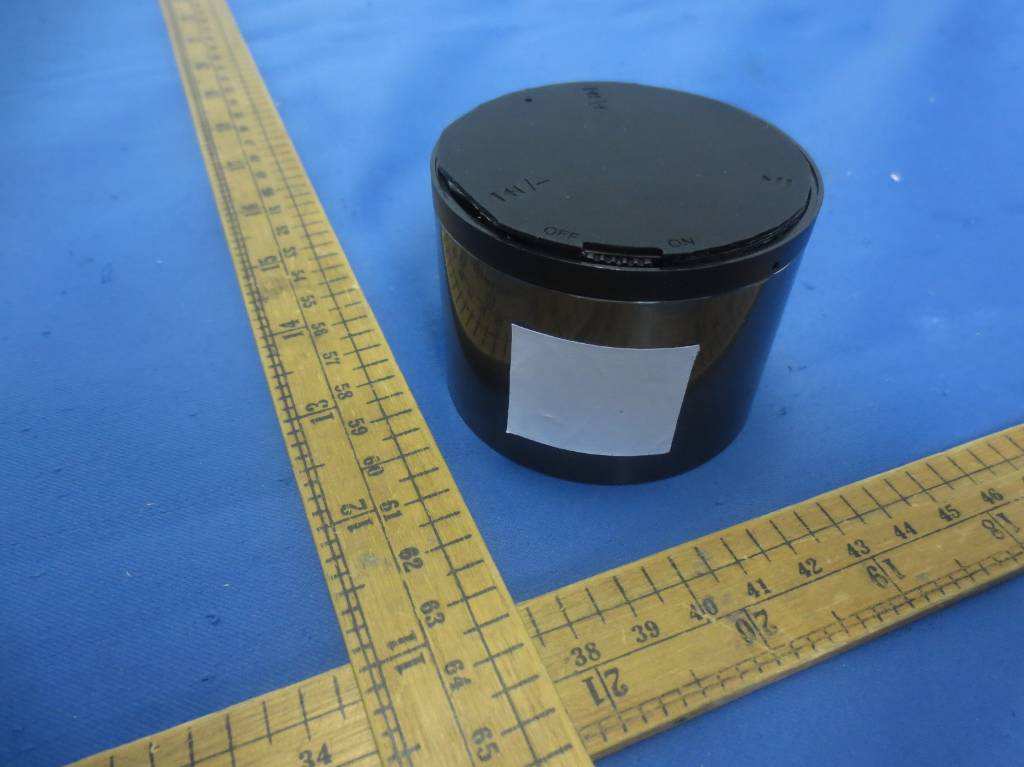

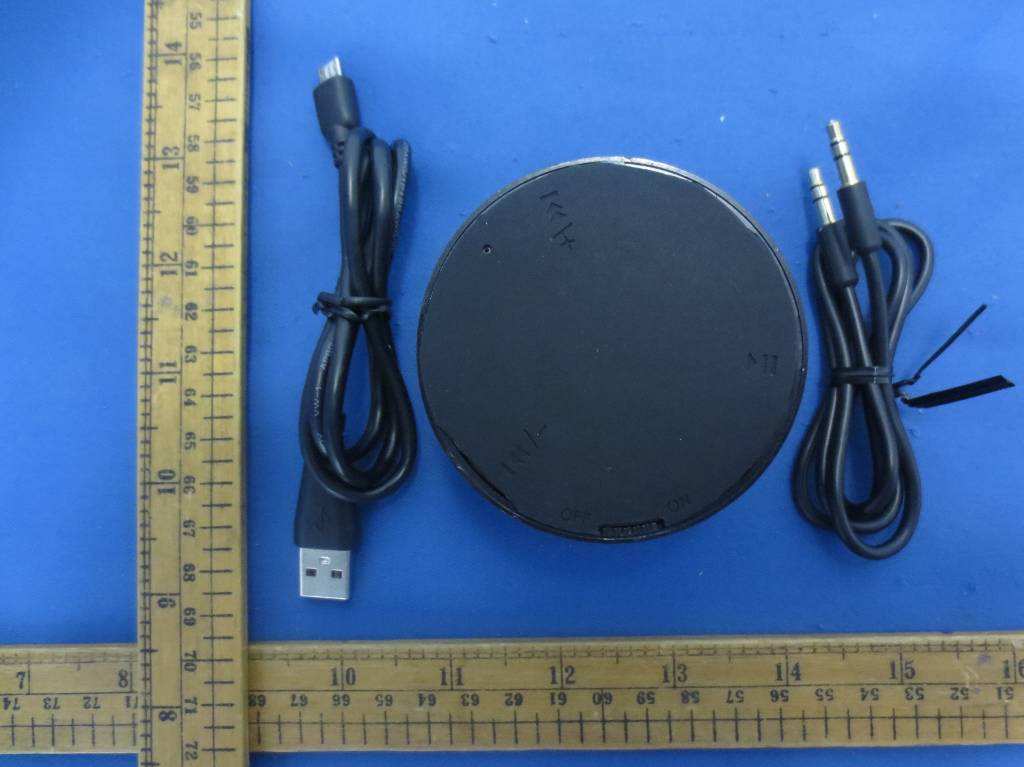

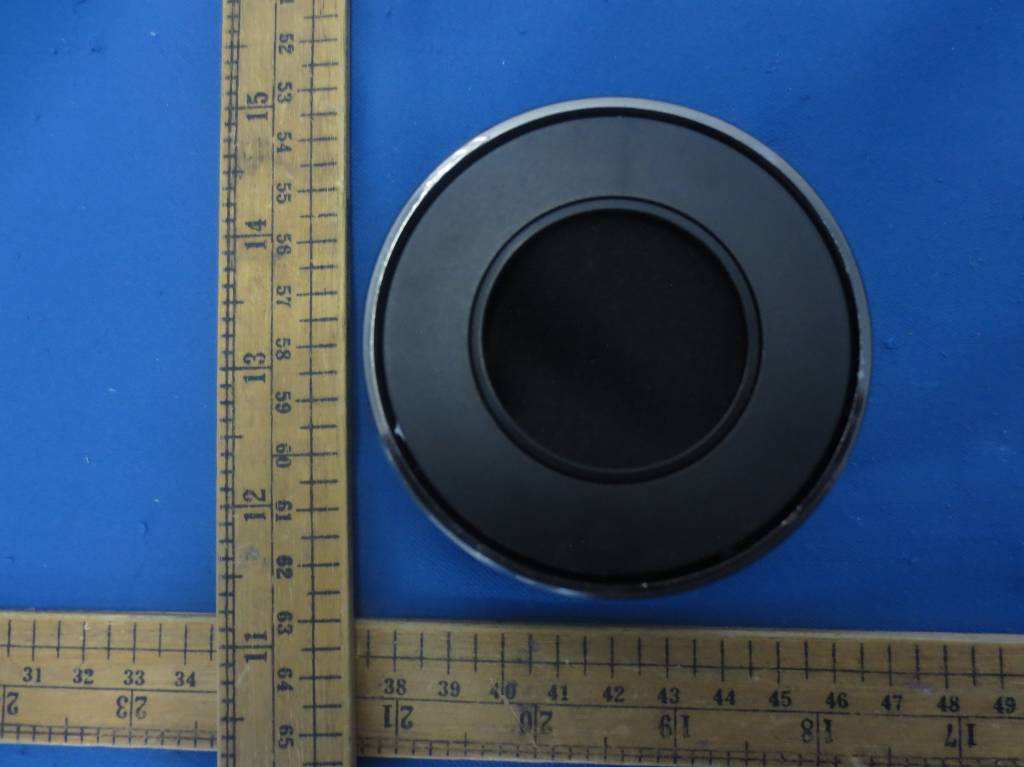

External Photo

Label Artwork and Location 35 mm 25 mm

Internal Photo

1 I NTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Ultra High-Definition Wireless Speaker. The EUT was powered by 3.7V from internal rechargeable battery and can be charged by PC via USB cable. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The nominal conducted output power specified: -5dBm (+/- 3dB) The nominal radiated output power (e.i.r.p) specified: -5dBm (+/- 3dB) Modulation Type: GFSK, π/4 –DQPSK and 8-DPSK. According to the KDB 447498: Th e maximun peak radiated emission for the EUT is 89.4dBμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -5.8dBm which is within the production variation. The minimum peak radiated emission for the EUT is 89.1 dBμV/m at 3m in the frequency 2441MHz The EIRP = [(FS*D) ^2 / 30] mW = -6.1dBm which is within the production variation. The maximun conducted output power specified is -2dBm = 0.6mW The source- based time-averaging conducted output power = 0.6 * Duty Cycle mW= 0.5 mW The SAR Exclusion Threshold Level: = 3 .0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 3.0 + EDR), the duty cycle is dependent of packet type (DH1, DH3 and DH5).For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hop set consists of 5 TX slot and 1 RX slot. Duty cycle = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02 FCC ID: 2AAWE-SM1

20dB BW Plot

Bandedge Plot
