2AAWQ-PS5SPEAKERphorus wifi / Bluetooth Speaker

1 Quick Start Guide / Guide de démarrage rapide / Guía de inicio rápido / Guida di avvio rapido / Quick Start Guide / Snel aan de slag That’s a sweet new speaker you’ve got there! Let’s get it set up. 1 Start here Make sure you have an Android, iOS or Windows 7+ PC and an Internet-connected wireless network. EN 2EN Unpack and place your speaker Remove your PS5 Speaker from the packaging. Place the speaker anywhere in the normal range of your Wi-Fi router. 3 Choose your plug Select appropriate plug for your area and attach it to the power adapter. EN 4EN Power on to enter set up mode Plug the power cable into the speaker and a power outlet. The speaker will power on automatically. After a short period of time the Wi-Fi light will begin pulsing slowly indicating the speaker is in set-up mode. 5 Use the app to complete set up Download the Phorus App from the Google Play Store, Amazon App Store, or the Apple App Store, or download the PC driver from Phorus.com. If you need any help with set-up visit the following website to view troubleshooting or contact our customer support. http://support.phorus.com EN 6EN Hit Play and Enjoy! Choose from a world of music options. Control music playback. Add more rooms and speakers. Customize your settings and more. 7 Connecting with Bluetooth • Hold down the Bluetooth button until the Bluetooth light begins pulsing (about 3 seconds). • Go to the Bluetooth settings of your device and select the Play-Fi device name. • When the connection is successful the PS5 Speaker will make a sound and the Bluetooth light will turn solid. • There’s no need to press the Bluetooth button after this initial security pairing. You will be able to connect and disconnect using with your device’s Bluetooth Settings. Connecting with Apple’s AirPlay Once your PS5 Speaker has been set-up on your network with the you should be able to connect to AirPlay audio streams. Just go to your Apple device’s speaker settings and select your PS5 Speaker’s name. EN 8EN Solution: Go to the Phorus app speaker settings and select your PS5 Speaker. Put the device into set-up mode by holding the Wi-Fi button for 8 seconds (release after a second chime is heard). Exit WPS set-up mode by pressing the Wi-Fi button once (a mode exit sound will play). Solution: Move speaker closer to the router. Troubleshooting Wi-Fi light is not pulsing during set-up Wi-Fi light is solid: device is already connected to a Wi-Fi network . Wi-Fi light is blinking: device is trying to connect to the Wi-Fi network. Wi-Fi light is double blinking then it is in WPS set- up mode. Set-Up fails If set-up fails multiple times then the speaker may be too far from the router. Go to http://support.phorus.com for more troubleshooting help or to contact customer support. 9 Declarations of Conformity Phorus Inc hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive requirements. The complete declaration of conformity can be found at the following website: phorus.com/compliance. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person’s body). EN FR10EN C’est un beau haut-parleur neuf que …

Text truncated - open the document above for the full version.

Phorus, Inc. Date:20I4lIIl13 To: SlEMlC, lNC, 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative We, Phorus, Inc. hereby authorize SlEMlC, lNC. to act certifying for the following project(s): Product description: Model Number: PS5 FCC ID: 2AAWQ-PSSSPEAKER il.1:: tult4 Matt Carroll / Senior Director, Program Development Phorus, Inc. SC S-F 1 8 : Proj ect and Product Certification Representative Authorization Page I of I Rev 3.0 orization Letter a Certification Body for

A ll phorus Phorus, Inc. Date:20I4l1ll13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AAWQ-PSSSPEAKER We hereby request confidential treatment of information application as outlined below: - Block Diagram - Schematics - Operational Description (Antenna Information) ccompanying this The above materials contain trade secrets and proprieta customarily released to the public. The public disclosure be harmful to the applicant and provide unjustified The applicant understands that pursuant to Section 0.45 & 0.459 of the Rules, disclosure of this application and all accompanying ion will not be made before the date of the Grant for this application. Sincerely, Signature: Matt Carroll / Senior Director, Phorus, lnc. ram Development information not these materials may to its competitors. SCS-F I 9: Confidentiality Request Letter Page I of 1 Rev 3,0

Date:2014/ To whom it We have dt Device FCC (1) DF (2) (3) (4) A 1l phorus tut3 UNll Device Declaration Le r it may concern: declared below featured for FCC equipment authorization, ]C ID: 2AAWQ-PS5SPEAKER DFS Device -- ! Master , tr Client with Radar detection capability , X Client without radar detection capability, tr run Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no orobes) Ad Hoc Mode capability Access point - capability 2.412-2.462 NoYes No Yes , No ( YesNo 5.1 5-5.25 Yes , No \ Yes No Yes,No Yes,No 5.25-5.35 Yes,NoYes NO Yes , No Yes ,A No 5.470-5.725 Yes , No No NoYes,No 5.725-5.850 YesNo Yes,No No Yes,No Country code selection ability - n yes , X No lf no, pls explain how it was implemented: We implement it base on initial file (tiwlan.lNl), we would set up what channel used on our initial file. We would modify it base on different country. Meet 15.202 requirement - X Ves, n llo, ols check below : [A master device is defined as a device operating in a mode in which it has receiving an enabling signal. In this mode it is able to select a channel and ini signals to other devices [A client device rs defined as a device operating in a mode in which the trar of the master. A device in client mode is not able to initiate a network. disable and what channel should capability to transmit without a network by sending enabling ssions of the device are under control (5) For client devices that have software confiquration control to ooerate in di passive scanning in others) in different bands (devices with multiple equipmen DFS frequencies) or modular devices which configure the modes of operations provide software and operations description on how the software and / or proper operations modes can not be modified by end user or an installer. XAppVn No Apply, (lf apply, pls help to provide explanation on it was implement, and This mechanism apply on Tl firmware and WLAN driver, we don't provide API end user or an installer (6) Operation on the 5.15-5.25 GHz frequency band is restricted to indoor use 5,15-5.25 GHz band to reduce the potential for harmful interference to it will only transmit on the 5.25-5.35 GHz, 5.47-5.725 GHz and 5.725-5.850 point (AP). The Above statement is presented in Safety-Regulatory-Guide. modes (active scanning in some and classes or those that operate on non- through software, the application must is implemented to ensure that software was controlled) Application. lt can not be modified by . The FCC reouires indoor use for the Mobile Satellite Systems. Therefore, band when associated with an access

1l phorus Brand: Phorus ModelNumber: PS5 Date:2014111113 FCC lD: 2AAWQ-PSSSPEAKER Phorus, Inc. rd, Suite 3lorEncino, United States,9L436 L: 818.666.3995 x5L7 Attestation for FGC Declaration of C Please be notified that we, Phorus, Inc. declares that the product would like to declare that the composite portion categorized as computer peripheral has been under the Declaration of Conformity procedures. The test report numbers supporting the DoC this reportwas done by A Test Lab Techno Corp., located in No.l40-1 1410FE33. Testing in regards to Str., Bade Gity Taoyuan County Taiwan, which has been accredited in accordance to all of the and (e) of the FCG rules and KDB349827. uirements of 47 CFR 2.948 (d) Matt Garroll / Senior Director, Program Development Phorus, Inc. Ventura Bou

fl Phorus, Inc. phorus Date:2014/IIl13 Federal Communications Commission 7435 OaKand Mills Road Columbia MD 21046 c.c. SIEMIC,INC. 7 7 5 Montague Expressway Milpitas, CA 95035 To whom it may concem: [, the undersigned, hereby authorize Murphy Wang, Director of A TLab Techno Corp. and hereafter referred to as ATL. to act on our behalf in all manners ing to application for equipment authorization, including signing of all documents relatingto these matters. Any and all acts carried out by Murphy Wang, Director of A Test Lab Techno the same effect as acts of our own. make all necessary arrangements for the conduct of provision for examining documentation and access I, the undersigned, hereby certify that we are not subject to a denial f federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act 1988,21 U.S.C. 853(a). In authorizing ATL as our agent, we still recognize that we are a) comply with the relevant provisions of the certifi evaluation, including b) on our behalf shall have all areas, records (including of evaluation (e.g. testing, c) d) internal audit reports) and personnel for the inspection, assessment, surveillance, reassessment) make claims regarding certification only in respect certification has been granted; resolution of complaints; f the scope for which do not use our product certification in such a as to brins the Certification Division into disrepute and not make any sta regarding our product certification which the Cerlification Division may unauthorized; ider misleadins or e)upon suspension or cancellation of certification, di matter that contains any reference thereto and as required by the Certification Division; use certification only to indicate the products are with specified standards; endeavor to ensure that no certificate or repoft nor misleading manner; ensure that any reference to our product certificati such as documents, brochures or advertising, compl the Certification Division; i) keep a record of all complaints made known to the compliance with requirements of the relevant sta available to the Certification Division when take appropriate action with respect to such comp in products or services that affect compliance with certification; k) document the actions taken. This authorizationis valid until further written notice from the appli Sincerely Yours, Matt Carroll / Senior Phorus.Inc. REMARK: , Program Development 1. This authorization letter will be sent along with your Certification Divi sion. Please follow the format and type it on company letterhead 0 s) h) i) 2. a J. Authorized signature must be in agreement with grantee contact in FCC database. the ntinue use of all advertisins any certifi cation documents ified as being in conformity part thereofis used in a in communication media with the requirements of relating to the product's and to make these records and any defrciencies found requirements for ion when filing with send orisinal to us.

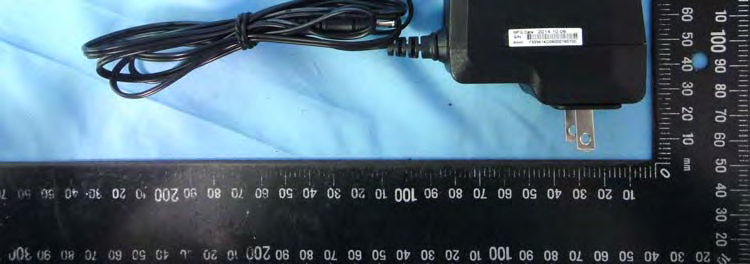

1 of 5 External Photos Model Number: PS5 SPEAKER FCC ID: 2AAWQ-PS5SPEAKER 2 of 5 EUT Photo 1 ) EUT Photo 2 ) 3 of 5 EUT Photo 3 ) EUT Photo 4 ) 4 of 5 EUT Photo 5 ) EUT Photo 6 ) 5 of 5 EUT Photo 7 ) EUT Photo 8 )

ID Label info & Label Location FCC ID : 2AAWQ-PS5SPEAKER IC : 11138A-PS5SPEAKER

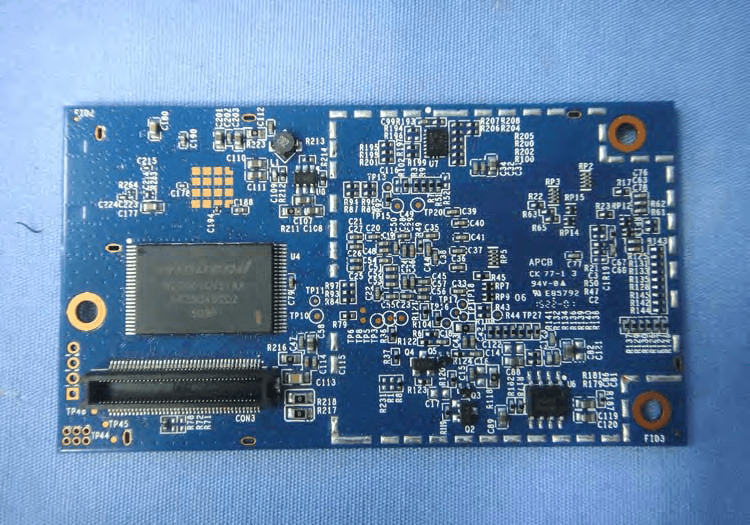

1 of 10 Internal Photos Model Number: PS5 SPEAKER FCC ID: 2AAWQ-PS5SPEAKER 2 of 10 EUT Photo 1 ) EUT Photo 2 ) 3 of 10 EUT Photo 3 ) EUT Photo 4 ) 4 of 10 EUT Photo 5 ) EUT Photo 6 ) 5 of 10 EUT Photo 7 ) EUT Photo 8 ) Bluetooth ANT. 6 of 10 EUT Photo 9 ) EUT Photo 10 ) 7 of 10 EUT Photo 11 ) EUT Photo 12 ) WLAN ANT. 8 of 10 EUT Photo 13 ) EUT Photo 14 ) 9 of 10 EUT Photo 15 ) EUT Photo 16 ) 10 of 10 EUT Photo 17 ) EUT Photo 18 )

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 MPE Report Test Report No. ： 1411FS11 Applicant ： Phorus, Inc. Manufacturer ： Fugang Electronic(Dongguan) Co., LTD Product Type ： phorus wifi / Bluetooth Speaker Trade Name ： phorus Model Number ： PS5 SPEAKER Date of Received ： Oct. 22, 2014 Test Period ： Nov. 03 ~ Nov. 04, 2014 Date of Issued ： Dec. 05, 2014 Test Specification ： 47 CFR § 2.1091 47 CFR §1.1310 ANSI / IEEE Std.C95.1-1992 Location of Test Lab. ： Chang-an Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Bill Hu) (Sky Chou) Report Number: 1411FS11Page 1 of 13 ©2014 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT)............................................................... 3 2. Human Exposure Assessment .................................................................................... 5 3. RF Output Power........................................................................................................... 6 4. Test Result................................................................................................................... 13 Report Number: 1411FS11Page 2 of 13 ©2014 A Test Lab Techno Corp. 1. Description of Equipment under Test (EUT) Applicant Phorus, Inc. Applicant Address 16255 Ventura Boulevard, Encino, California, 91436, United States Manufacturer Fugang Electronic(Dongguan) Co., LTD Manufacturer Address Industry Street, Dong-Keng, Dong-Guan, Guang-Dong, China Product Type phorus wifi / Bluetooth Speaker Trade Name phorus Model Number PS5 SPEAKER FCC ID 2AAWQ-PS5SPEAKER Frequency Range 2412 - 2462 MHz IEEE 802.11b / IEEE 802.11g 2412 - 2462 MHz IEEE 802.11n (2.4GHz) 20MHz 2422 - 2452 MHz IEEE 802.11n (2.4GHz) 40MHz 5180 - 5825 MHz IEEE 802.11a 5180 - 5825 MHz IEEE 802.11n (5GHz) 20MHz 5190 - 5795 MHz IEEE 802.11n (5GHz) 40MHz 2402 - 2480 MHz Bluetooth Transmit Power IEEE 802.11b: 0.028 W / 14.40 dBm (conducted power) IEEE 802.11g: 0.024 W / 13.73 dBm IEEE 802.11n (2.4GHz) 20MHz: 0.018 W / 12.47 dBm IEEE 802.11n (2.4GHz) 40MHz: 0.015 W / 11.88 dBm IEEE 802.11a: 0.024 W / 13.79 dBm IEEE 802.11n (5GHz) 20MHz: 0.016 W / 12.16 dBm IEEE 802.11n (5GHz) 40MHz: 0.014 W / 11.47 dBm Bluetooth: 0.002 W / 3.25 dBm Report Number: 1411FS11Page 3 of 13 ©2014 A Test Lab Techno Corp. Antenna Specification Antenna Port Model Number Type Band Max. Gain IEEE 802.11b / IEEE 802.11g IEEE 802.11n (2.4GHz) 20MHz / 40MHz 3.37 dBi IEEE 802.11a IEEE 802.11n (5GHz) 20MHz / 40MHz U-NII Band I/II-A/II-C 5.38 dBi ANT 0 MSA-3510- 25GC4-A1 PIFA IEEE 802.11a IEEE 802.11n (5GHz) 20MHz / 40MHz U-NII Band III 5.36 dBi IEEE 802.11b / IEEE 802.11g IEEE 802.11n (2.4GHz) 20MHz / 40MHz 2.78 dBi IEEE 802.11a IEEE 802.11n (5GHz) 20MHz / 40MHz U-NII Band I/II-A/II-C 4.07 dBi ANT 1 MSA-3310- 25GC4-A1 PIFA IEEE 802.11a IEEE 802.11n (5GHz) 20MHz / 40MHz U-NII Band III 3.69 dBi --- S11 PrintingBluetooth v2.1 2.52 dBi RF Evaluation 0.17 W/m 2 The above equipment was tested by A Test Lab Techno Corp. For compliance with the requirements set forth in 47 CFR § 2.1091 & 47 CFR § 1.1310. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties Report Number: 1411FS11Page 4 of 13 ©2014 A Test Lab Techno Corp. 2. Human Exposure Assessment Due to the design and installation of this product, it is not possible to conduct SAR evaluation. This is because client either manufactures or supplies the antenna(s) that will be used in the installation of this product. Therefore, this product will be evaluated as a mobile device per 47 CFR §1.1310 titled “Radiofrequency radiation exposure limits”, generally referred to as MPE limits. In 47 CFR § 2.1091, paragraph (b) defines a mobile device as “a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. ” This product is intended to be installed into a vehicle such that the unit is physically secured at one location. In the installation guide supplied with the product, Client has made the following statement: “IMPORTANT: To meet the FCC’s RF Exposure Guidelines, the antenna should be installed so there is at least 20 cm of separation between the body of the user and nearby persons and the antenna”. Based on the installation of the transceiver and the antenna, the transmitters radiating structure is more than 20 cm from the user. Thus, this product is a “mobile device” as defined in section § 2.1091 paragraph (b). Exposure evaluation 2 4R PG S π = Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna. Report Number: 1411FS11Page 5 of 13 ©2014 A Test Lab Techno Corp. 3. RF Output Power Average Conducted power (dBm) Band Date Rate CH Frequency (MHz) ANT 0 ANT 1 1 2412.0 14.40 14.30 6 2437.0 13.71 13.61 1M 11 2462.0 13.75 13.65 2M 6 2437.0 13.6…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART E Product Type ： phorus wifi / Bluetooth Speaker Applicant ： Phorus, Inc. Address ： 16255 Ventura Boulevard, Encino, California, 91436, United States Trade Name ： phorus Model Number ： PS5 SPEAKER Test Specification ： FCC 47 CFR PART 15 SUBPART E: Oct., 2013 ANSI C63.10-2009 ANSI C63.4-2009 Application Purpose ： Original Receive Date ： Oct. 22, 2014 Test Period ： Oct. 30, 2014 Issue Date ： Dec. 05, 2014 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+86-3-2710188 / Fax：+86-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 FCC Test Firm Information: 510205 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1411FR12 1 of 49 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Dec. 05, 2014 Initial Issue Report Number: 1411FR12 2 of 49 A Test Lab Techno Corp. Verification of Compliance Issued Date: 12/05/2014 Product Type : phorus wifi / Bluetooth Speaker Applicant : Phorus, Inc. Address : 16255 Ventura Boulevard, Encino, California, 91436, United States Trade Name : phorus Model Number : PS5 SPEAKER FCC ID : 2AAWQ-PS5SPEAKER EUT Rated Voltage : DC 12V, 2A Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART E: Oct., 2013 ANSI C63.10-2009 ANSI C63.4-2009 Test Result : Complied Application Purpose : Original Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+86-3-2710188 / Fax：+86-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 FCC Test Firm Information: 510205 http://www.atl-lab.com.tw/e-index.htm A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： Reviewed By ： (Manager) (Fly Lu) (Testing Engineer) (Eric Ou Yang) Report Number: 1411FR12 3 of 49 A Test Lab Techno Corp. TABLE OF CONTENTS 1 EUT Description .......................................................................................................................................... 5 2 Test Methodology ....................................................................................................................................... 5 3 Dynamic Frequency Selection................................................................................................................... 6 3.1. Limits ............................................................................................................................................ 6 3.2. Test and Measurement System .................................................................................................. 10 3.3. Test Instruments ..........................................................................................................................11 4 Test Methodology ..................................................................................................................................... 12 4.1. Mode of Operation ...................................................................................................................... 12 4.2. EUT Exercise Software............................................................................................................... 13 4.3. Test Site Environment................................................................................................................. 13 5 Results for 20 MHz Bandwidth ................................................................................................................ 14 5.1. Radar Waveforms and Traffic ..................................................................................................... 14 5.2. Channel Availability Check Time ................................................................................................ 24 5.3. Overlapping Channel Tests......................................................................................................... 24 5.4. Move and Closing Time .............................................................................................................. 25 5.5. Non-Occupancy Period .............................................................................................................. 30 5.6. Detection Bandwidth................................................................................................................... 31 5.7. In-Service Monitoring.................................................................................................................. 31 6 Results for 40 MHz Bandwidth ................................................................................................................ 32 6.1. Radar Waveforms and Traffic ..................................................................................................... 32 6.2. Channel Availability Check Time ................................................................................................ 42 6.3. Overlapping Channel Tests......................................................................................................... 42 6.4. Move and Closing Time .....................................................................…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART E Product Type ： phorus wifi / Bluetooth Speaker Applicant ： Phorus, Inc. Address ： 16255 Ventura Boulevard, Encino, California, 91436, United States Trade Name ： phorus Model Number ： PS5 SPEAKER Test Specification ： FCC 47 CFR PART 15 SUBPART E: Oct., 2013 ANSI C63.10-2009 ANSI C63.4-2009 Application Purpose ： Original Receive Date ： Oct. 22, 2014 Test Period ： Oct. 24 ~ Oct. 29, 2014 Issue Date ： Dec. 05, 2014 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+86-3-2710188 / Fax：+86-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 FCC Test Firm Information: 510205 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1411FR11 1 of 93 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Dec. 05, 2014 Initial Issue Report Number: 1411FR11 2 of 93 A Test Lab Techno Corp. Verification of Compliance Issued Date: 12/05/2014 Product Type : phorus wifi / Bluetooth Speaker Applicant : Phorus, Inc. Address : 16255 Ventura Boulevard, Encino, California, 91436, United States Trade Name : phorus Model Number : PS5 SPEAKER FCC ID : 2AAWQ-PS5SPEAKER EUT Rated Voltage : DC 12V, 2A Test Voltage : 120 Vac / 60 Hz Applicable Standard : FCC 47 CFR PART 15 SUBPART E: Oct., 2013 ANSI C63.10-2009 ANSI C63.4-2009 Test Result : Complied Application Purpose : Original Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+86-3-2710188 / Fax：+86-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 FCC Test Firm Information: 510205 http://www.atl-lab.com.tw/e-index.htm A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： Reviewed By ： (Manager) (Fly Lu) (Testing Engineer) (Eric Ou Yang) Report Number: 1411FR11 3 of 93 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information.................................................................................................... 6 1.1. Summary of Test Result ..................................................................................... 6 1.2. Measurement Uncertainty .................................................................................. 6 2 EUT Description.......................................................................................................... 7 3 Test Methodology .........................................…

Text truncated - open the document above for the full version.
