2AAXO-ISM9011WIFI TOUCH SCREEN KARAOKE SYSTEM

TM ISM9011 INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. — E1 — Important Safety Information 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the Manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. (Not applicable to UK and Europe Model) 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place objects filled with water, such as a vase, on the apparatus. 16. The AC mains plug is used as the power disconnect device and it should remain readily accessible and operable during intended use. In order to completely disconnect the apparatus from power, the mains plug should be completely removed from the AC outlet socket. 17. CAUTION: To reduce the risk of fire or explosion, do not expose batteries to excessive heat such as sunshine, fire or other heat sources. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVIC- ING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral tri- angle is intended to alert the user to the presence of impor- tant operating and maintenance (servicing) instructions in the literature accompanying this product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DRIPPING WARNING: This product shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the product. VENTILATION WARNING: The normal ventilation of the product shall not be impeded for intended use. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The rating information is located at the rear of the unit. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. The symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at t…

Text truncated - open the document above for the full version.

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: The Singing Machine Company, Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Product Name: WIFI TOUCH SCREEN KARAOKE SYSTEM FCC ID: 2AAXO-ISM9011 Model(s): ISM9011, ISM9022, ISM9023, ISM9027, ISM9022XX, ISM9023XX, ISM9027XX (XX means unit color, it can be A to Z or N/A), ISM9011XX 2.911(d)(5)(i) Equipment Type We, The Singing Machine Company, Inc. (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Date: July 6, 2024 Name: Gary Atkinson Title: / Company: The Singing Machine Company, Inc. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: The Singing Machine Company, Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Product Name: WIFI TOUCH SCREEN KARAOKE SYSTEM FCC ID: 2AAXO-ISM9011 Model(s): ISM9011, ISM9022, ISM9023, ISM9027, ISM9022XX, ISM9023XX, ISM9027XX (XX means unit color, it can be A to Z or N/A), ISM9011XX 2.911(d)(5)(ii) Applicant filing We, The Singing Machine Company, Inc. (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified on the “Covered List” NOTE 1 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Signature: Date: 2024/7/5 Name: Gary Atkinson Title: / Company: The Singing Machine Company, Inc. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- communications-supply-chain-through-the

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: The Singing Machine Company, Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Product Name: WIFI TOUCH SCREEN KARAOKE SYSTEM FCC ID: 2AAXO-ISM9011 Model(s): ISM9011, ISM9022, ISM9023, ISM9027, ISM9022XX, ISM9023XX, ISM9027XX (XX means unit color, it can be A to Z or N/A), ISM9011XX Product Description: WIFI TOUCH SCREEN KARAOKE SYSTEM 2.911(d)(7) USA Designated Agent for Service of Process We, The Singing Machine Company, Inc. (“the applicant”) designate The Singing Machine Company, Inc. NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: The Singing Machine Company, Inc. USA Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States FRN Number: 0022947477 Contact Name: Gary Atkinson Telephone No: +1 954-596-1000 Applicant Company name: The Singing Machine Company, Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Grantee FRN Number: 0022947477 FCC Grantee Code: 2AAXO Contact Name: Gary Atkinson The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States 2.911 (d)(7)USA Agent v1.5 Email: [email protected] Telephone No: +1 954-596-1000 Email: [email protected] Signature: Title:/ Signature: Title:/ Date:2024/7/5 Date:2024/7/5 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Date: 2024/7/5 Dear Sir/Madam, We, The Singing Machine Company, Inc., Hereby declares the following statement, PCB board, circuit, structure and internal of these model(s) are the same, Only model number and color are different for these model: Product name: WIFI TOUCH SCREEN KARAOKE SYSTEM Model no.: ISM9011, ISM9022, ISM9023, ISM9027, ISM9022XX, ISM9023XX, ISM9027XX (XX means unit color, it can be A to Z or N/A), ISM9011XX Sincerely, Name/Title： Gary Atkinson Company: The Singing Machine Company, Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Phone: +1 954-596-1000 Fax: +1 954-596-2000 E-Mail: [email protected]

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024/7/5 Subject; Request for Confidentiality FCC ID: 2AAXO-ISM9011 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Gary Atkinson Title: /

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Letter of Authorization Company name: The Singing Machine Company, Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, 33309, United States Product Name: WIFI TOUCH SCREEN KARAOKE SYSTEM FCC ID: 2AAXO-ISM9011 Model(s): ISM9011, ISM9022, ISM9023, ISM9027, ISM9022XX, ISM9023XX, ISM9027XX (XX means unit color, it can be A to Z or N/A), ISM9011XX Product Description: WIFI TOUCH SCREEN KARAOKE SYSTEM We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024/7/5 Name: Gary Atkinson Title: / Company: The Singing Machine Company, Inc.

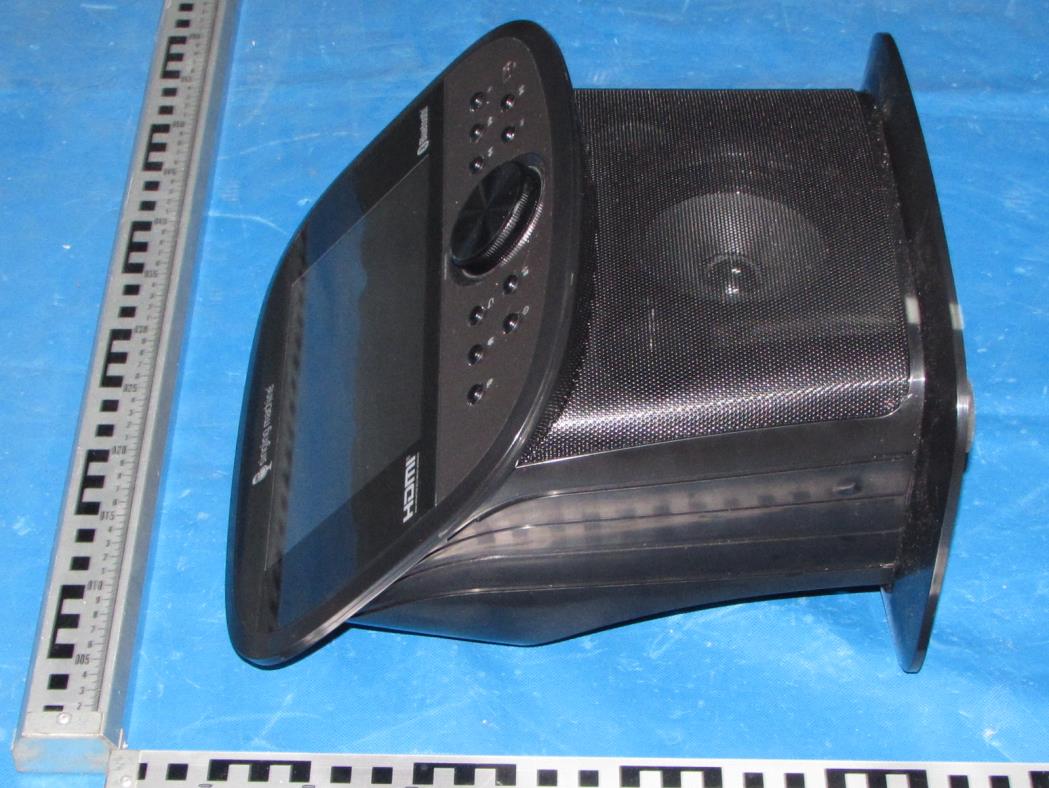

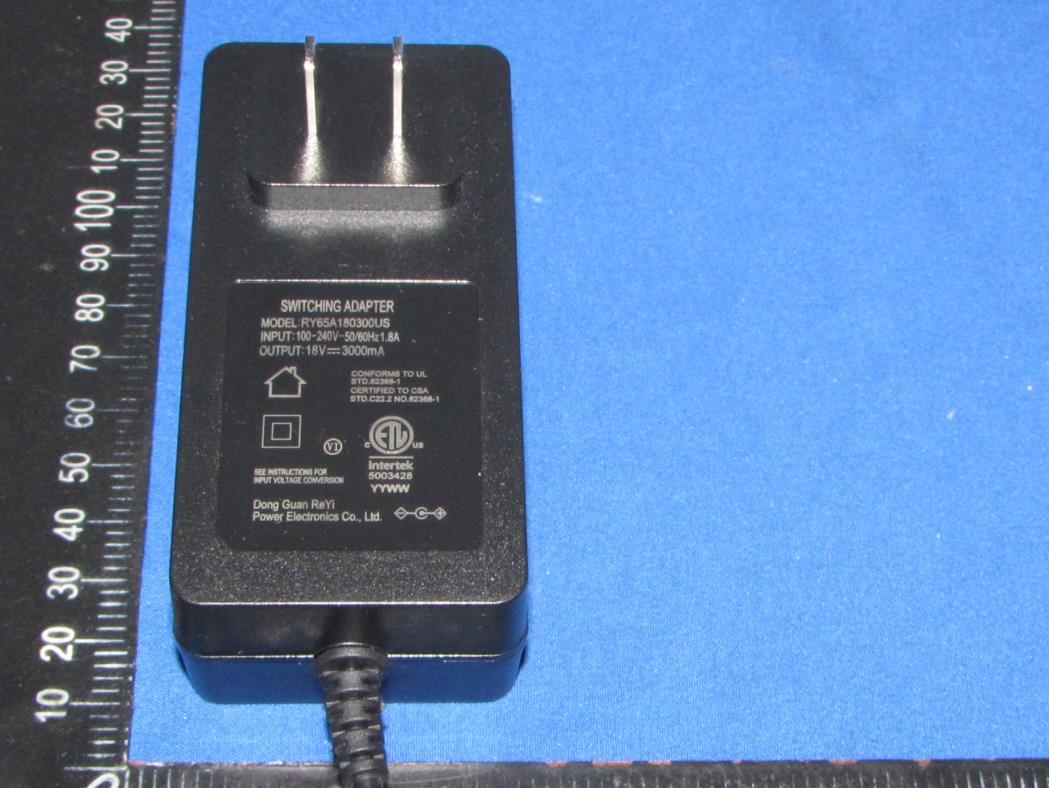

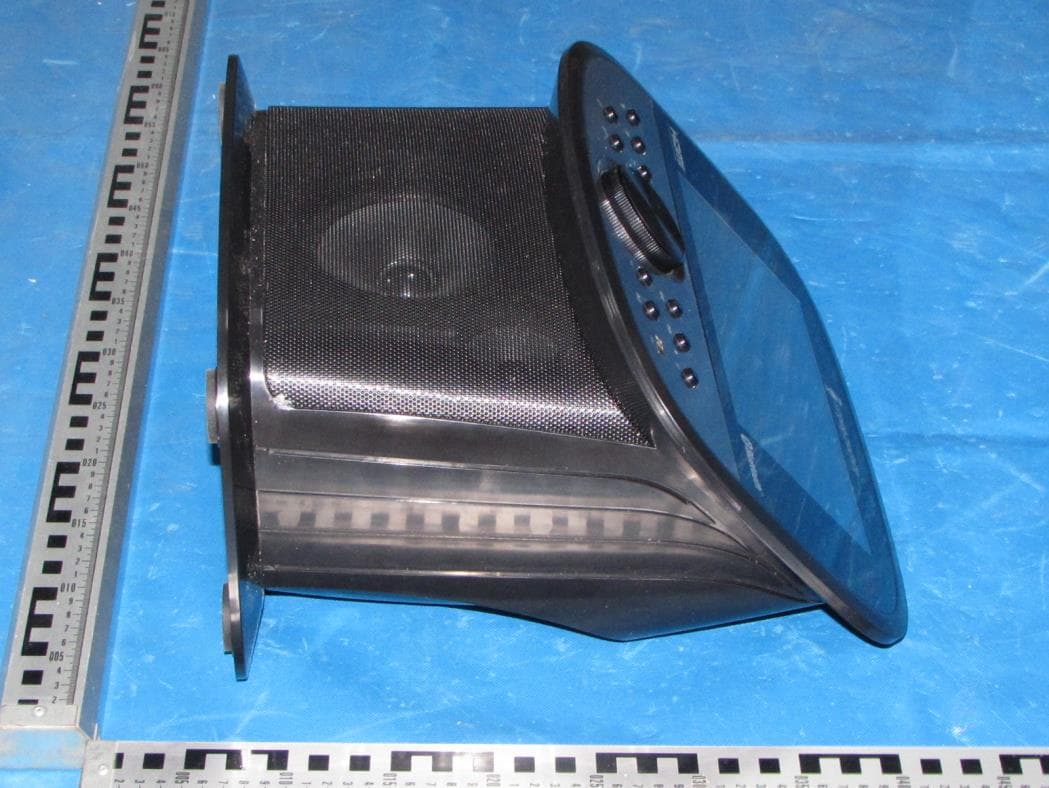

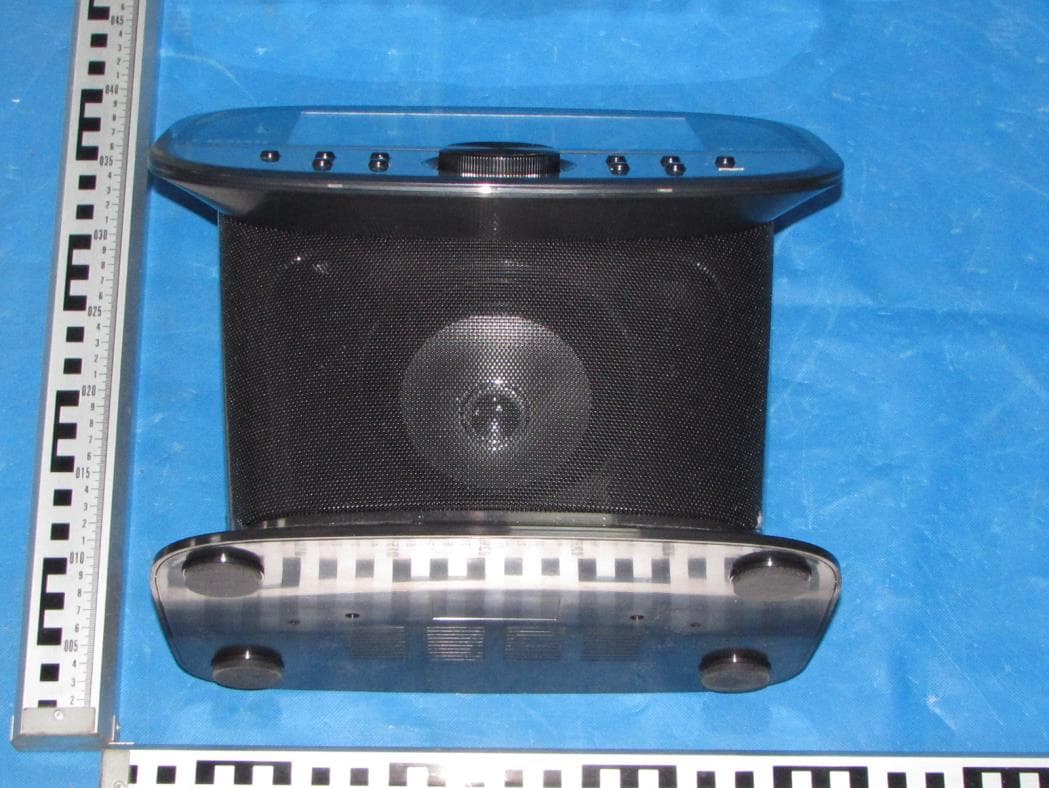

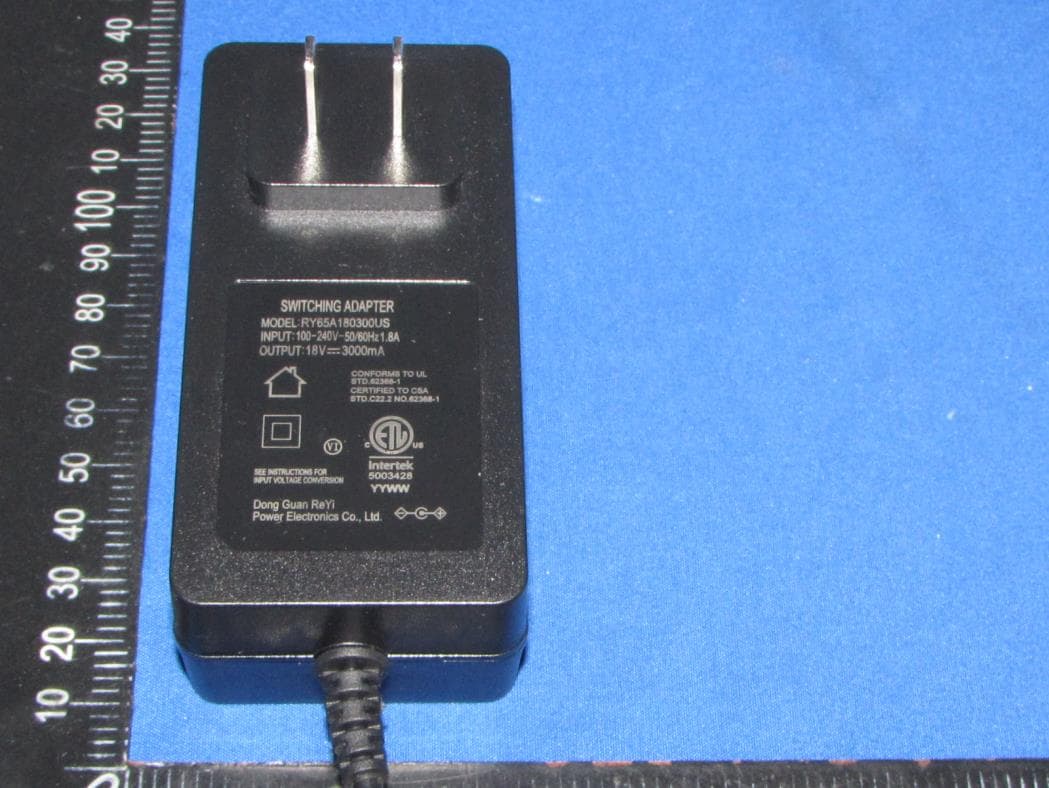

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9

Label Location Model/HVIN: ISM9011 FCC ID: 2AAXO-ISM9011 IC: 11387A-ISM9011

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 8 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 8 Fig.3 Fig.4 Wifi antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 8 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 8 Fig.7 Fig.8 Bluetooth antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 8 Fig.9 Fig.10 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 6 of 8 Fig.11 Fig.12 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 7 of 8 Fig.13 Fig.14 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 8 of 8 Fig.15

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 1 of 7 Maximum Permissible Exposure Report Product Information EUT : WIFI TOUCH SCREEN KARAOKE SYSTEM Model Number : ISM9011, ISM9022, ISM9023, ISM9027, ISM9022XX, ISM9023XX, ISM9027XX (XX means unit color, it can be A to Z or N/A), ISM9011XX Model Declaration : All the same except for the model name and color Test Model : ISM9011 Power Supply : AC 100-240V 50/60Hz by adapter Hardware version : SMC9010_V21 Software version : V1.0 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 2 of 7 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Antenna Gain and type refer to Antenna specification Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 3 of 7 6. Conducted Power Bluetooth(BDR+EDR) Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -1.50 DH5 Ant1 2441 -0.94 DH5 Ant1 2480 -1.12 2DH5 Ant1 2402 -1.27 2DH5 Ant1 2441 -0.61 2DH5 Ant1 2480 -0.95 3DH5 Ant1 2402 -0.65 3DH5 Ant1 2441 -0.17 3DH5 Ant1 2480 -0.32 WiFi 2.4GHz Band Test Mode Antenna Frequency[MHz] Result [dBm] 11B Ant1 2412 9.78 11B Ant1 2437 8.44 11B Ant1 2462 10.76 11G Ant1 2412 12.37 11G Ant1 2437 11.55 11G Ant1 2462 11.92 11N20SISO Ant1 2412 11.12 11N20SISO Ant1 2437 10.35 11N20SISO Ant1 2462 10.66 5G Band UNII-1 Band TestMode Antenna Frequency[MHz] Conducted Power[dBm] 11A Ant1 5180 9.02 11A Ant1 5200 8.84 11A Ant1 5240 10.16 11N20SISO Ant1 5180 8.99 11N20SISO Ant1 5200 8.78 11N20SISO Ant1 5240 12.51 11AC20SISO Ant1 5180 11.57 11AC20SISO Ant1 5200 11.07 11AC20SISO Ant1 5240 11.18 UNII-3 Band TestMode Antenna Frequency[MHz] Conducted Power[dBm] 11A Ant1 5745 12.57 11A Ant1 5785 11.30 11A Ant1 5825 10.14 11N20SISO Ant1 5745 9.78 11N20SISO Ant1 5785 11.14 11N20SISO Ant1 5825 9.90 11AC20SISO Ant1 5745 10.24 11AC20SISO Ant1 5785 9.30 11AC20SISO Ant1 5825 8.64 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 4 of 7 7. Manufacturing Tolerance Bluetooth(BDR+EDR) GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -1.5 -1.5 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2 -1 -1.5 Tolerance ±(dB) 1 1 1 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1 -0.5 -1 Tolerance ±(dB) 1 1 1 WiFi 2.4GHz Band IEEE 802.11b(Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 9.5 8 10.5 Tolerance ±(…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 1 of 46 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: WIFI TOUCH SCREEN KARAOKE SYSTEM Trade Mark: Singing Machine Test Model: ISM9011 FCC ID: 2AAXO-ISM9011 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.966 2401.544 2402.510 --- --- DH5 Ant1 2441 0.966 2440.544 2441.510 --- --- DH5 Ant1 2480 0.960 2479.544 2480.504 --- --- 2DH5 Ant1 2402 1.314 2401.358 2402.672 --- --- 2DH5 Ant1 2441 1.287 2440.382 2441.669 --- --- 2DH5 Ant1 2480 1.284 2479.382 2480.666 --- --- 3DH5 Ant1 2402 1.308 2401.364 2402.672 --- --- 3DH5 Ant1 2441 1.317 2440.361 2441.678 --- --- 3DH5 Ant1 2480 1.302 2479.370 2480.672 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 2 of 46 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 3 of 46 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 4 of 46 2DH5-Ant1-2480 3DH5-Ant1-2402 3DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 5 of 46 3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 6 of 46 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87913 2401.5771 2402.4562 --- --- DH5 Ant1 2441 0.88065 2440.5799 2441.4605 --- --- DH5 Ant1 2480 0.88967 2479.5737 2480.4634 --- --- 2DH5 Ant1 2402 1.1748 2401.4280 2402.6028 --- --- 2DH5 Ant1 2441 1.1885 2440.4193 2441.6078 --- --- 2DH5 Ant1 2480 1.1777 2479.4247 2480.6024 --- --- 3DH5 Ant1 2402 1.1980 2401.4149 2402.6129 --- --- 3DH5 Ant1 2441 1.2027 2440.4138 2441.6165 --- --- 3DH5 Ant1 2480 1.1754 2479.4349 2480.6103 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 7 of 46 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 8 of 46 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 9 of 46 2DH5-Ant1-2480 3DH5-Ant1-2402 3DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 10 of 46 3DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 11 of 46 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -1.50 ≤30 PASS DH5 Ant1 2441 -0.94 ≤30 PASS DH5 Ant1 2480 -1.12 ≤30 PASS 2DH5 Ant1 2402 -1.27 ≤20.97 PASS 2DH5 Ant1 2441 -0.61 ≤20.97 PASS 2DH5 Ant1 2480 -0.95 ≤20.97 PASS 3DH5 Ant1 2402 -0.65 ≤20.97 PASS 3DH5 Ant1 2441 -0.17 ≤20.97 PASS 3DH5 Ant1 2480 -0.32 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 12 of 46 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 13 of 46 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 14 of 46 2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 15 of 46 3DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 16 of 46 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.142 ≥0.966 PASS 2DH5 Ant1 Hop 1.266 ≥0.876 PASS 3DH5 Ant1 Hop 1 ≥0.878 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 17 of 46 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 18 of 46 3DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9011 Report No.: TZ240605866-BT Page 19 of 46 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.885 100 0.289 ≤0.4 PASS 2DH5 Ant1 Hop 2.89…
