2AAXO-MIC722WIRELESS MICROPHONE

The Singing Machine Company, Inc.
WIRELESS MICROPHONE - FCC ID 2AAXO-MIC722 - The Singing Machine Company, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 30, 2026
Application Purpose
Original Equipment
Equipment Note
WIRELESS MICROPHONE
Frequency Range
2402.00000000 - 2480.00000000
Company
The Singing Machine Company, Inc.
Country
United States

Documents & Files

Select a file to view

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: Apr. 27, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2AAXO-MIC722 The Singing Machine Company, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Gary Atkinson Title: CEO Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States Tel.: 954-596-1000 Email: [email protected]

Attestation Statements

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States 1 | P a g e Attestation Statements To: Federal Communications Commission Date: Apr. 27, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: 2AAXO-MIC722 Product Name: WIRELESS MICROPHONE This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Gary Atkinson Title: CEO Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States Tel.: 954-596-1000 Email: [email protected] The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ The Memory used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. Compliance ☒ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Compliance Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

Attestation Statements

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: The Singing Machine Company, Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States Product Name: WIRELESS MICROPHONE FCC ID: 2AAXO-MIC722 2.911(d)(7) USA Designated Agent for Service of Process We, [The Singing Machine Company, Inc.] (“the applicant”) designate [The Singing Machine Company, Inc.] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: The Singing Machine Company, Inc. USA Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States FRN Number: 0022947477 Contact Name: Gary Atkinson Telephone No: 954-596-1000 Email: [email protected] Applicant Company name: The Singing Machine Company, Inc. Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States Grantee FRN Number: 0022947477 FCC Grantee Code: 2AAXO Contact Name: Gary Atkinson Telephone No: 954-596-1000 The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States 2.911 (d)(7)USA Agent v1.5 Email: [email protected] Signature: Title: Signature: Title: Date: 2026/4/27 Date: 2026/4/27 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Cover Letter(s)

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States April 27, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2AAXO-MIC722 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Pursuant to DA 04-1705, the applicant also requests temporary confidential treatment of the exhibits outlined below for a period of 45 days from the date of equipment authorization and prior to marketing in the United States to prevent the premature release of any sensitive information. Applicant is aware of their responsibility to notify DERYCOM in the event information regarding the product or the product is made available to the public before the requested period has expired. ⎯ User Manual ⎯ Internal Photos Sincerely, Title: CEO Address: 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States Tel.: 954-596-1000 Email: [email protected]

Cover Letter(s)

The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States April 27, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2AAXO-MIC722 I, the undersigned, hereby authorize Shenzhen Tongzhou Testing Co.,Ltd. to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by Shenzhen Tongzhou Testing Co.,Ltd. shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with The Singing Machine Company, Inc.. We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Gary Atkinson CEO Tel: 954-596-1000 Fax: 954-596-2000 Email: [email protected]

External Photos

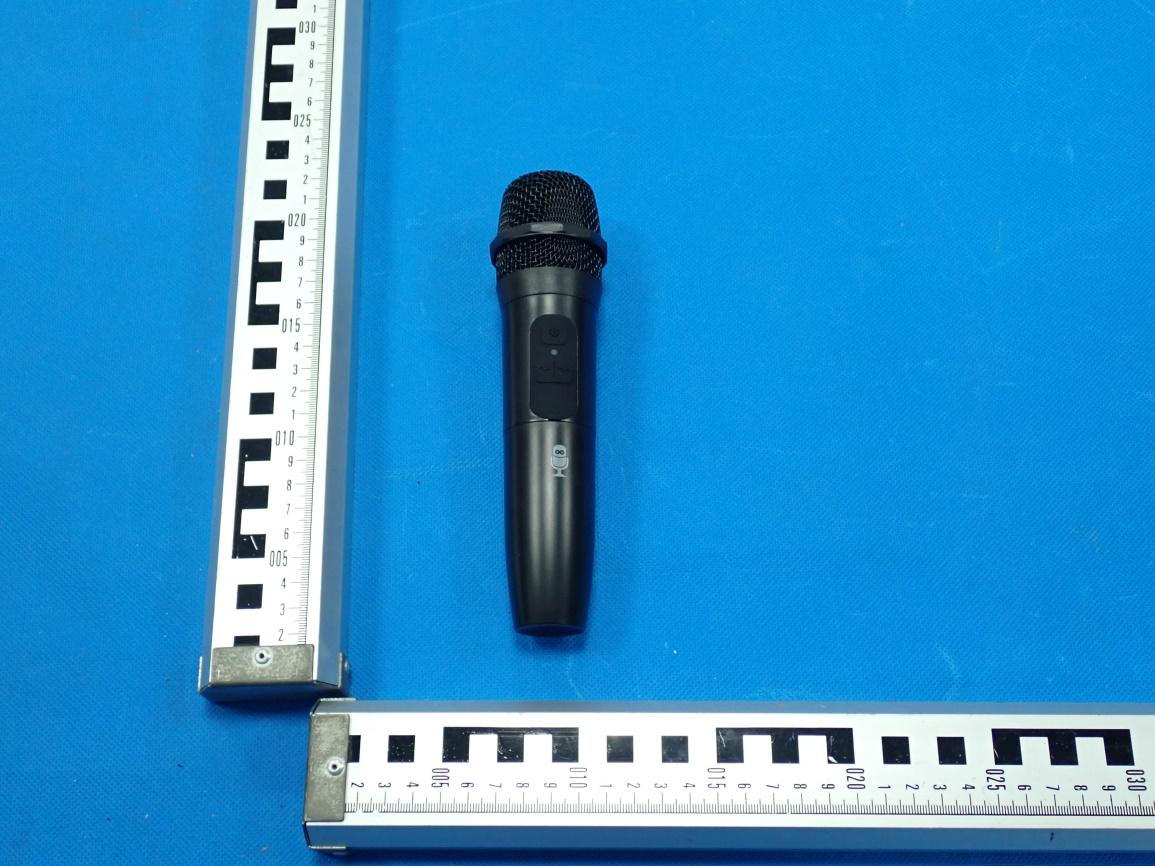

Report No.: TZ0029260107PH02 Page 1 of 3 Exterior Photographs of EUT Fig.1 Fig.2 Report No.: TZ0029260107PH02 Page 2 of 3 Fig.3 Fig.4 Report No.: TZ0029260107PH02 Page 3 of 3 Fig.5 Fig.6

ID Label/Location Info

Label Location The size of the logo is 5mm*5mm FCC ID: 2AAXO-MIC722

RF Exposure Info

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-MIC722 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-MIC722 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR-based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] SRD_1M Ant1 2402 -1.94 -2.5 1 -0.58 -1.5 0.71 2.79 SRD_1M Ant1 2440 -1.38 -2 1 -0.58 -1 0.79 2.75 SRD_1M Ant1 2480 -1.27 -2 1 -0.58 -1 0.79 2.72 SRD_2M Ant1 2402 -1.89 -2.5 1 -0.58 -1.5 0.71 2.79 SRD_2M Ant1 2440 -1.4 -2 1 -0.58 -1 0.79 2.75 SRD_2M Ant1 2480 -1.28 -2 1 -0.58 -1 0.79 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Test Report

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs:Attestation of Global Compliance Co., Ltd.

Test Report

Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 1 of 33 Appendix Test Data for SRD (Conducted Measurement) Product Name: WIRELESS MICROPHONE Trade Mark: singing machine Test Model: MIC722 FCC ID: 2AAXO-MIC722 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD_1M Ant1 2402 0.712 2401.664 2402.376 0.5 PASS SRD_1M Ant1 2440 0.724 2439.644 2440.368 0.5 PASS SRD_1M Ant1 2480 0.720 2479.664 2480.384 0.5 PASS SRD_2M Ant1 2402 1.064 2401.456 2402.520 0.5 PASS SRD_2M Ant1 2440 1.100 2439.452 2440.552 0.5 PASS SRD_2M Ant1 2480 1.084 2479.476 2480.560 0.5 PASS Note: offset(dB) = caSRD loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 2 of 33 Test Graphs SRD_1M-Ant1-2402-PASS SRD_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 3 of 33 SRD_1M-Ant1-2480-PASS SRD_2M-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 4 of 33 SRD_2M-Ant1-2440-PASS SRD_2M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 5 of 33 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD_1M Ant1 2402 1.0053 2401.5085 2402.5138 --- --- SRD_1M Ant1 2440 0.98032 2439.5196 2440.4999 --- --- SRD_1M Ant1 2480 0.95978 2479.5295 2480.4892 --- --- SRD_2M Ant1 2402 1.9681 2401.0266 2402.9947 --- --- SRD_2M Ant1 2440 1.9558 2439.0262 2440.9820 --- --- SRD_2M Ant1 2480 1.8972 2479.0685 2480.9657 --- --- Note: offset(dB) = caSRD loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 6 of 33 Test Graphs SRD_1M-Ant1-2402 SRD_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 7 of 33 SRD_1M-Ant1-2480 SRD_2M-Ant1-2402 Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 8 of 33 SRD_2M-Ant1-2440 SRD_2M-Ant1-2480 Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 9 of 33 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict SRD_1M Ant1 2402 -1.94 ≤30 PASS SRD_1M Ant1 2440 -1.38 ≤30 PASS SRD_1M Ant1 2480 -1.27 ≤30 PASS SRD_2M Ant1 2402 -1.89 ≤30 PASS SRD_2M Ant1 2440 -1.40 ≤30 PASS SRD_2M Ant1 2480 -1.28 ≤30 PASS Note: offset(dB) = caSRD loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 10 of 33 Test Graphs Peak SRD_1M-Ant1-2402-PASS SRD_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 11 of 33 SRD_1M-Ant1-2480-PASS SRD_2M-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 12 of 33 SRD_2M-Ant1-2440-PASS SRD_2M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 13 of 33 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict SRD_1M Ant1 2402 -14.72 ≤8.00 PASS SRD_1M Ant1 2440 -14.18 ≤8.00 PASS SRD_1M Ant1 2480 -14.09 ≤8.00 PASS SRD_2M Ant1 2402 -16.13 ≤8.00 PASS SRD_2M Ant1 2440 -15.61 ≤8.00 PASS SRD_2M Ant1 2480 -15.50 ≤8.00 PASS Note: offset(dB) = caSRD loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 14 of 33 Test Graphs SRD_1M-Ant1-2402-PASS SRD_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 15 of 33 SRD_1M-Ant1-2480-PASS SRD_2M-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 16 of 33 SRD_2M-Ant1-2440-PASS SRD_2M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 17 of 33 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict SRD_1M Ant1 Low 2402 -2.53 -40.83 ≤-22.53 PASS SRD_1M Ant1 High 2480 -2.06 -42.9 ≤-22.06 PASS SRD_2M Ant1 Low 2402 -2.39 -36.67 ≤-22.39 PASS SRD_2M Ant1 High 2480 -2.04 -44.64 ≤-22.04 PASS Note: offset(dB) = caSRD loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 18 of 33 Test Graphs SRD_1M-Ant1-2402-PASS SRD_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 19 of 33 SRD_2M-Ant1-2402-PASS SRD_2M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 20 of 33 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict SRD_1M Ant1 2402 0~Reference -3.09 -3.09 --- PASS SRD_1M Ant1 2402 30~1000 -3.09 -51.52 ≤-23.09 PASS SRD_1M Ant1 2402 1000~26500 -3.09 -28.03 ≤-23.09 PASS SRD_1M Ant1 2440 0~Reference -2.53 -2.53 --- PASS SRD_1M Ant1 2440 30~1000 -2.53 -52.64 ≤-22.53 PASS SRD_1M Ant1 2440 1000~26500 -2.53 -27.76 ≤-22.53 PASS SRD_1M Ant1 2480 0~Reference -2.04 -2.04 --- PASS SRD_1M Ant1 2480 30~1000 -2.04 -51.71 ≤-22.04 PASS SRD_1M Ant1 2480 1000~26500 -2.04 -27.62 ≤-22.04 PASS SRD_2M Ant1 2402 0~Reference -2.47 -2.47 --- PASS SRD_2M Ant1 2402 30~1000 -2.47 -52.86 ≤-22.47 PASS SRD_2M Ant1 2402 1000~26500 -2.47 -27.47 ≤-22.47 PASS SRD_2M Ant1 2440 0~Reference -1.97 -1.97 --- PASS SRD_2M Ant1 2440 30~1000 -1.97 -52.16 ≤-21.97 PASS SRD_2M Ant1 2440 1000~26500 -1.97 -27.31 ≤-21.97 PASS SRD_2M Ant1 2480 0~Reference -1.83 -1.83 --- PASS SRD_2M Ant1 2480 30~1000 -1.83 -53.23 ≤-21.83 PASS SRD_2M Ant1 2480 1000~26500 -1.83 -27.38 ≤-21.83 PASS Note: offset(dB) in Reference test plots = caSRD loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 26.5GHz, the caSRD loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.: TZ0029260107FRF02 Page 21 of 33 Test Graphs SRD_1M-Ant1-2402-0~Reference-PASS SRD_1M-Ant1-240…

Text truncated - open the document above for the full version.

Test Report

Report No.: TZ0029260107FRF02 Page 1 of 31 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0029260107FRF02 Product Name : WIRELESS MICROPHONE Model/Type reference : MIC722 FCC ID : 2AAXO-MIC722 Prepared for : The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida 33309, United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor 1-2023 Date of Test : 2026-04-23 ~ 2026-04-26 Date of Issue : 2026-04-26 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0029260107FRF02 Page 2 of 31 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-04-26 Valid Initial release Report No.: TZ0029260107FRF02 Page 3 of 31 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 7 2.1. EUT Configuration .................................................................................................................. 7 2.2. EUT Exercise ........................................................................................................................... 7 2.3. Test Sample ............................................................................................................................. 7 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 8 3.1. Justification ............................................................................................................................. 8 3.2. EUT Exercise Software ........................................................................................................... 8 3.3. Special Accessories ............................................................................................................... 8 3.4. Block Diagram/Schematics .................................................................................................... 8 3.5. Equipment Modifications ....................................................................................................... 8 3.6. Test Setup ................................................................................................................................ 8 4. S U M M A R Y O F T E S T R E S U L T S ................................................. 9 5. T E S T R E S U L T ..................................................................... 10 5.1. On Time and Duty Cycle ....................................................................................................... 10 5.2. Maximum Peak Conducted Output Power Measurement ................................................. 11 5.3. Power Spectral Density Measurement ................................................................................ 12 5.4. 6 dB Spectrum Bandwidth and Occupied Channel Bandwidth Measurement ............... 13 5.5. Radiated Emissions Measurement ...................................................................................... 14 5.6. Conducted Spurious Emissions and Band Edges Test .................................................... 22 5.7. AC Power line conducted emissions .................................................................................. 23 5.8. Band-edge measurements for radiated emissions ........................................................... 26 5.9. Antenna Requirements ......................................................................................................... 29 6. L I S T O F M E A S U R I N G E Q U I P M E N T .......................................... 30 7. T E S T S E T U P P H O T O G R A P H S O F E U T ...................................... 31 8. E X T E R I O R P H O T O G R A P H S O F E U T ......................................... 31 9. I N T E R I O R P H O T O G R A P H S O F E U T .......................................... 31 Report No.: TZ0029260107FRF02 Page 4 of 31 1. G E N E R A L I N F O R M A T…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: TZ0029260107PH01 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0029260107PH01 Page 2 of 2 Conducted Emission

Contact Information

Applicant

Gary Atkinson
[email protected]Fax: 954-596-2000

Technical Contact

The Singing Machine Company, Inc.Gary Atkinson
[email protected]

6301 NW 5th Way, Suite 2900 · Fort Lauderdale, Florida, 33309 · United States

Test Firm

Shenzhen Tongzhou Testing Co., Ltd.Matte He
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz900.00 µW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted power.
