2AAXO-ISM9015WIFI TOUCH SCREEN KARAOKE SYSTEM

TM ISM9015 INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. — E1 — Important Safety Information 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the Manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place objects filled with water, such as a vase, on the apparatus. 16. The AC mains plug is used as the power disconnect device and it should remain readily accessible and operable during intended use. In order to completely disconnect the apparatus from power, the mains plug should be completely removed from the AC outlet socket. 17. CAUTION: To reduce the risk of fire or explosion, do not expose batteries to excessive heat such as sunshine, fire or other heat sources. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DRIPPING WARNING: This product shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the product. VENTILATION WARNING: The normal ventilation of the product shall not be impeded for intended use. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure Warning Statements: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. The symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life. The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/ EU) has been put in place to encourage the recycling of products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increase of landfill. When you have no further use for this product, please dispose of it using your local authority’s recycling processes. For more information please contact your local authority or the retailer where the product was purchased. Product Disposal Instructions — E2 — Included Please make sure that the following items are included. Main Unit AC Adapter Wireless Microphone x2 AA batteries x4 — E3 — Location of Controls (Top) u v x w y U V W X at ak al am an 1. Touch Screen 2. (LIGHTS) Button 3. (BACK) Button 4. (HOME) Button 5. Bluetooth indicator 6. (ON/STANDBY) Button 7. RECORD Button 8. Speaker 9. SKIP Button 10. SKIP Button 11. USB Port 12. (PLAY/PAUSE/ENTER) button 13. (VOICE EFFECTS) Button 14. VOLUME/ EFFECTS Control — E4 — Location of Controls 1. Mic 1 Jack 2. Mic 2 Jack 3. Aux In Jack 4. Line Out Jack 5. * Reset hole 6. HDMI Jack (Video only) 7. DC IN Jack 8. Wireless Mic holders 9. Handles 10. Power indicator 11. Power Button 12. Battery compartment at ak al X W v w x y U Vu * If this device doesn't work, you can reset the device using the pin. — E5 — Connections 1 Insert the DC plug of the adapter into the DC IN Jack located on the main unit. 2 Insert the AC adapter into a conveniently located AC outlet having 230-240V AC, 50Hz. Connecting to AC Power Connecting the Unit to a TV HDMI Cable HDMI Jack (Out) Rear of External TV HDMI Jack (In) HDMI IN12 The video and lyrics will be displayed on the built-in screen. You may also want to co…

Text truncated - open the document above for the full version.

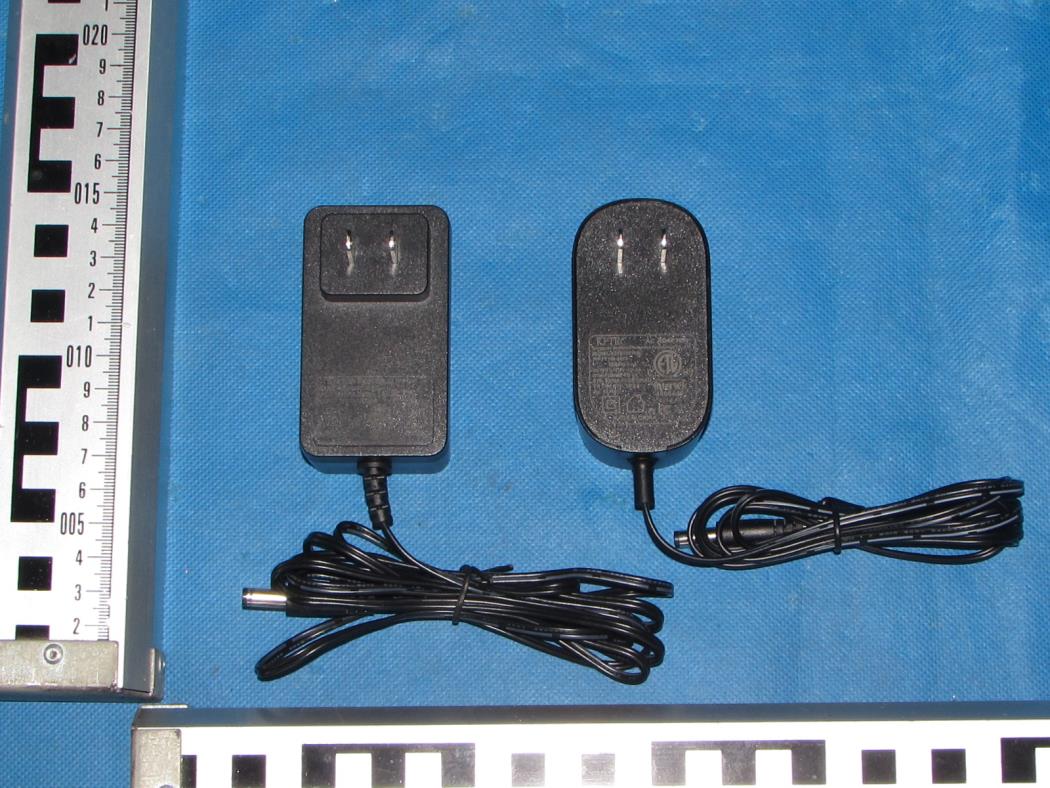

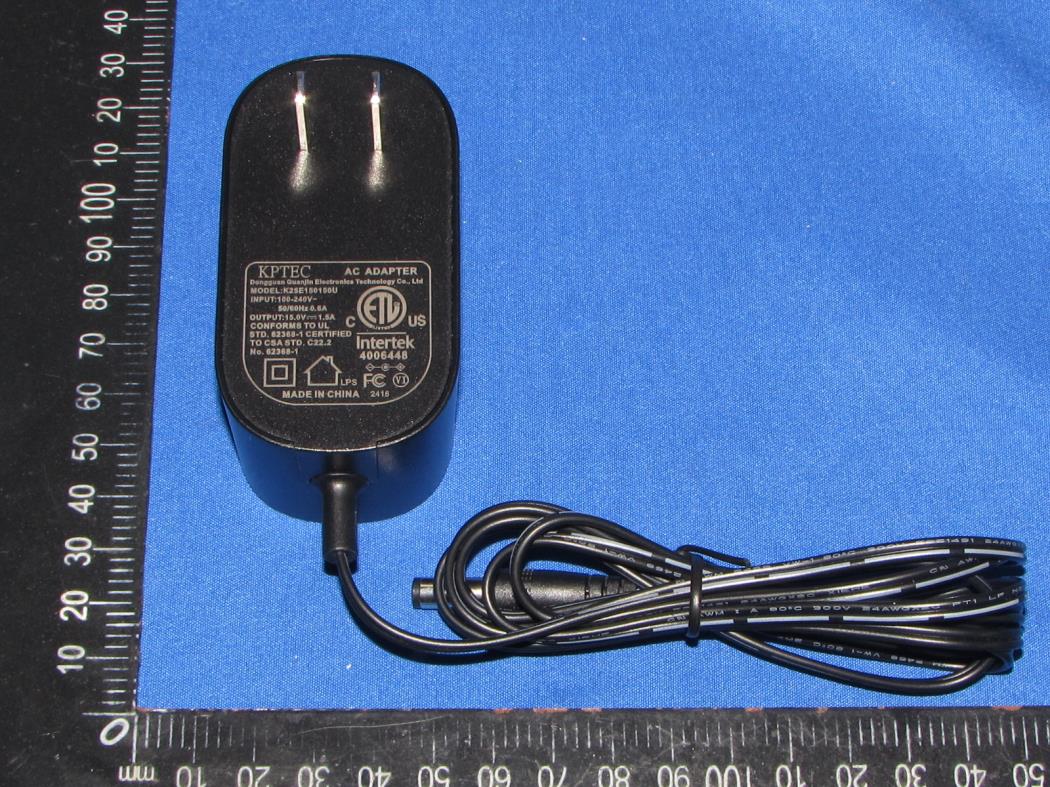

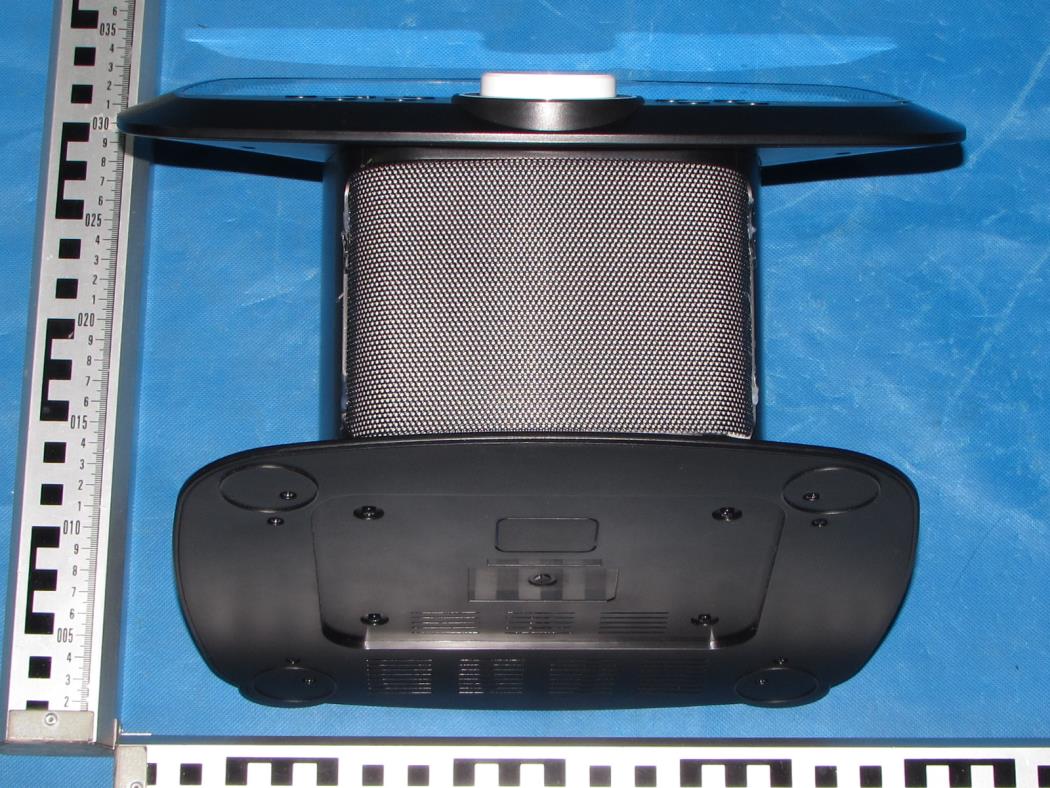

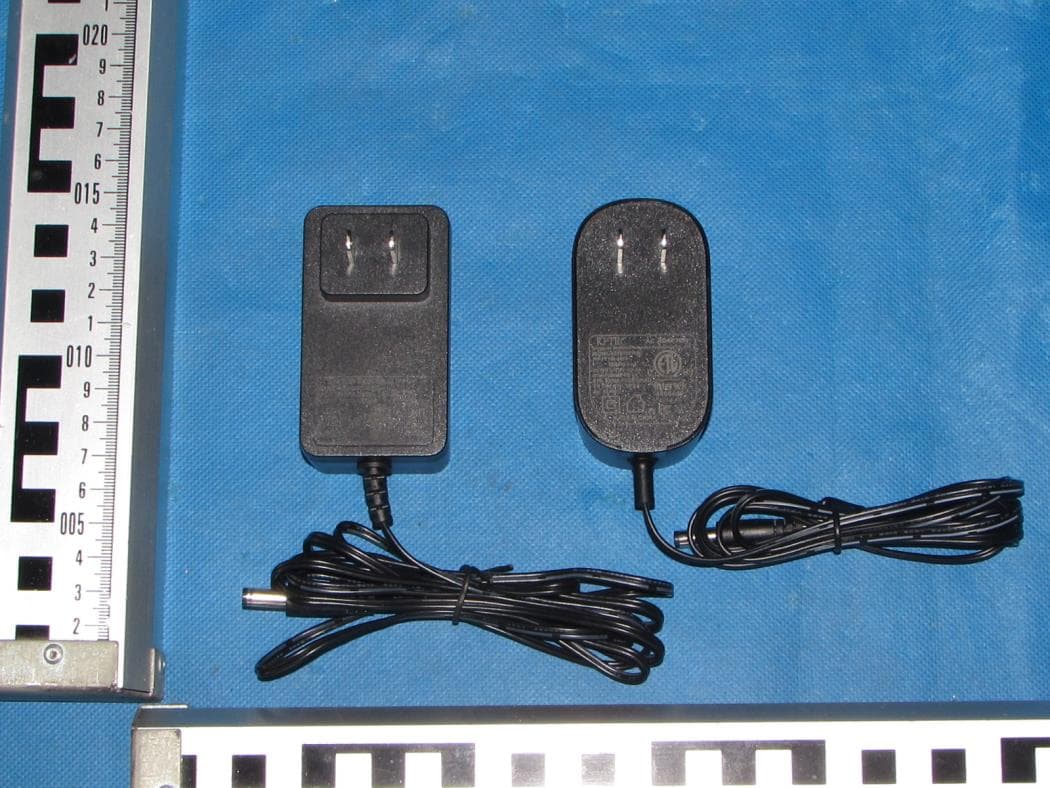

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9

Label Location FCC ID: 2AAXO-ISM9015

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 8 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 8 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 8 Fig.5 Fig.6 WiFi antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 8 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 8 Fig.9 Fig.10 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 6 of 8 Fig.11 Fig.12 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 7 of 8 Fig.13 Fig.14 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 8 of 8 Fig.15

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 1 of 7 Maximum Permissible Exposure Report Product Information EUT : WIFI TOUCH SCREEN KARAOKE SYSTEM Model Number : ISM9015, ISM9010, ISM9012, ISM9020, ISM9010XX, ISM9012XX, ISM9015XX, ISM9020XX (XX means unit color, it can be A to Z or N/A) Model Declaration : All the same except for the model name. Test Model : ISM9015 Power Supply : AC 100-240V Hardware version : V1.0 Software version : V1.0 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 2 of 7 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Antenna Gain and type refer to Antenna specification Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 3 of 7 6. Conducted Power Bluetooth(BDR+EDR) Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -2.16 DH5 Ant1 2441 -2.75 DH5 Ant1 2480 -3.71 2DH5 Ant1 2402 -2.57 2DH5 Ant1 2441 -3.02 2DH5 Ant1 2480 -3.86 3DH5 Ant1 2402 -2.05 3DH5 Ant1 2441 -2.82 3DH5 Ant1 2480 -3.81 WiFi 2.4GHz Band Test Mode Antenna Frequency[MHz] Result [dBm] 11B Ant1 2412 11.66 11B Ant1 2437 10.66 11B Ant1 2462 10.50 11G Ant1 2412 13.27 11G Ant1 2437 12.61 11G Ant1 2462 13.07 11N20SISO Ant1 2412 10.89 11N20SISO Ant1 2437 10.32 11N20SISO Ant1 2462 10.51 5G Band UNII-1 Band Test Mode Antenna Frequency[MHz] Result [dBm] 11A Ant1 5180 9.36 11A Ant1 5200 8.90 11A Ant1 5240 10.15 11N20SISO Ant1 5180 9.05 11N20SISO Ant1 5200 8.79 11N20SISO Ant1 5240 9.93 11AC20SISO Ant1 5180 9.25 11AC20SISO Ant1 5200 7.26 11AC20SISO Ant1 5240 8.89 UNII-3 Band Test Mode Antenna Frequency[MHz] Result [dBm] 11A Ant1 5745 12.04 11A Ant1 5785 10.89 11A Ant1 5825 9.69 11N20SISO Ant1 5745 9.48 11N20SISO Ant1 5785 8.56 11N20SISO Ant1 5825 7.42 11AC20SISO Ant1 5745 10.47 11AC20SISO Ant1 5785 9.91 11AC20SISO Ant1 5825 8.69 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shzhen Tongzhou Testing Co.,Ltd Page 4 of 7 7. Manufacturing Tolerance Bluetooth(BDR+EDR) GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -3.0 -4.0 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -3 -3.5 -4.5 Tolerance ±(dB) 1 1 1 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.5 -3.5 -4.5 Tolerance ±(dB) 1 1 1 WiFi 2.4GHz Band IEEE 802.11b(Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 11 10 10 Tolerance ±(dB) 1 1 1 IEEE 802.11g(Average) Channel Channel 1…

Text truncated - open the document above for the full version.

深圳市中科无线技术有限公司 Shenzhen zhongke wireless technology Co.Ltd 电话：0755-33118958 网址：www.zkant.com 1 测试报告 客户名称 Customer Name: 宇通联发科技 项目名称 Project Name： SMC9010 规格 描述 Product Spec： 铜管+一代端子 版 本 REV： V1.0 日 期 Date： 2024/4/22 制 作 drawing 审 核 check 批 准 approved 温勇鹏 高红 蒋振华 深圳市中科无线技术有限公司 Shenzhen zhongke wireless technology Co.Ltd 电话：0755-33118958 网址：www.zkant.com 2 目录 Index 一、项目图 Project Chart -----------------------page3 二、天线匹配 Antenna Matching ------------------page3 三、电性能指标 Electrical Performance Index----page4/7 四、测试设备及原理 Testing Equipment&Principle--page8/9 五、环境处理 Environmentaltreatment-------------Page10 深圳市中科无线技术有限公司 Shenzhen zhongke wireless technology Co.Ltd 电话：0755-33118958 网址：www.zkant.com 3 1. Project Chart 2. Antenna Matching SMC9010 Antenna matching remains unchanged 深圳市中科无线技术有限公司 Shenzhen zhongke wireless technology Co.Ltd 电话：0755-33118958 网址：www.zkant.com 4 3. Electrical Performance Index VSWR One. Efficiency Benefit Diagram: efficiency gain 深圳市中科无线技术有限公司 Shenzhen zhongke wireless technology Co.Ltd 电话：0755-33118958 网址：www.zkant.com 5 Two. Apple Chart Pattern: 2500MHZ 2400MHZ 2450MHZ 深圳市中科无线技术有限公司 Shenzhen zhongke wireless technology Co.Ltd 电话：0755-33118958 网址：www.zkant.com 6 Z-X Z-Y X-Y 5150MHZ 5500MHZ 5850MHZ 深圳市中科无线技术有限公司 Shenzhen zhongke wireless technology Co.Ltd 电话：0755-33118958 网址：www.zkant.com 7 -70.0 Active Test_WIFI_B Channel Frequency MAX Drawing) Check check Approved Wen Yongpeng High red 17.7 -77.0 6 2437 17.7 -76.2 11 2462 17.3 -78.7 Active Test_WIFI_A Channel Frequency MAX TRP(54bPS) MIN TIS(54MbPS) 36 5180 15.7 -70.1 64 5320 15.5 -73.5 165 5825 16.9 -70.0 深圳市中科无线技术有限公司 Shenzhen zhongke wireless technology Co.Ltd 电话：0755-33118958 网址：www.zkant.com 9

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 1 of 36 Appendix Test Data for WLAN(2.4G) (Conducted Measurement) Product Name: WIFI TOUCH SCREEN KARAOKE SYSTEM Trade Mark: Singing Machine Test Model: ISM9015 FCC ID: 2AAXO-ISM9015 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.080 2406.960 2417.040 0.5 PASS 11B Ant1 2437 10.120 2431.920 2442.040 0.5 PASS 11B Ant1 2462 10.120 2456.920 2467.040 0.5 PASS 11G Ant1 2412 16.040 2404.080 2420.120 0.5 PASS 11G Ant1 2437 16.320 2428.840 2445.160 0.5 PASS 11G Ant1 2462 15.760 2454.120 2469.880 0.5 PASS 11N20SISO Ant1 2412 16.320 2403.840 2420.160 0.5 PASS 11N20SISO Ant1 2437 15.280 2429.240 2444.520 0.5 PASS 11N20SISO Ant1 2462 16.040 2454.120 2470.160 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 2 of 36 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 3 of 36 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 4 of 36 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 5 of 36 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 14.777 2404.6529 2419.4299 --- --- 11B Ant1 2437 14.843 2429.5575 2444.4005 --- --- 11B Ant1 2462 14.737 2454.6390 2469.3760 --- --- 11G Ant1 2412 16.716 2403.6922 2420.4082 --- --- 11G Ant1 2437 16.734 2428.6602 2445.3942 --- --- 11G Ant1 2462 16.695 2453.7060 2470.4010 --- --- 11N20SISO Ant1 2412 17.897 2403.0808 2420.9778 --- --- 11N20SISO Ant1 2437 17.844 2428.0729 2445.9169 --- --- 11N20SISO Ant1 2462 17.830 2453.1139 2470.9439 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 6 of 36 Test Graphs 11B-Ant1-2412 11B-Ant1-2437 11B-Ant1-2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 7 of 36 11G-Ant1-2412 11G-Ant1-2437 11G-Ant1-2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 8 of 36 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 11N20SISO-Ant1-2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 9 of 36 Appendix C: Maximum Average conducted output power Test Result TestMode Antenna Frequency[MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict 11B Ant1 2412 11.66 ≤30.00 PASS 11B Ant1 2437 10.66 ≤30.00 PASS 11B Ant1 2462 10.50 ≤30.00 PASS 11G Ant1 2412 13.27 ≤30.00 PASS 11G Ant1 2437 12.61 ≤30.00 PASS 11G Ant1 2462 13.07 ≤30.00 PASS 11N20SISO Ant1 2412 10.89 ≤30.00 PASS 11N20SISO Ant1 2437 10.32 ≤30.00 PASS 11N20SISO Ant1 2462 10.51 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 10 of 36 Appendix D: Maximum Average power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -18.48 ≤8.00 PASS 11B Ant1 2437 -19.13 ≤8.00 PASS 11B Ant1 2462 -19.54 ≤8.00 PASS 11G Ant1 2412 -17.08 ≤8.00 PASS 11G Ant1 2437 -16.71 ≤8.00 PASS 11G Ant1 2462 -16.83 ≤8.00 PASS 11N20SISO Ant1 2412 -19.10 ≤8.00 PASS 11N20SISO Ant1 2437 -19.87 ≤8.00 PASS 11N20SISO Ant1 2462 -19.67 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 11 of 36 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS 11B-Ant1-2462-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 12 of 36 11G-Ant1-2412-PASS 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 13 of 36 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS 11N20SISO-Ant1-2462-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 14 of 36 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 2.00 -44.8 ≤-28 PASS 11B Ant1 High 2462 1.01 -49.29 ≤-28.99 PASS 11G Ant1 Low 2412 2.74 -36.16 ≤-27.27 PASS 11G Ant1 High 2462 2.02 -48.62 ≤-27.98 PASS 11N20SIS O Ant1 Low 2412 -0.54 -38.04 ≤-30.54 PASS 11N20SIS O Ant1 High 2462 -0.83 -49.19 ≤-30.83 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 15 of 36 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 16 of 36 11G-Ant1-2462-PASS 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2462-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 Report No.: TZ240405609-WiFi2G4 Page 17 of 36 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 0~Reference 1.13 1.13 --- PASS 11B Ant1 2412 30~1000 1.13 -62.22 ≤-28.87 PASS 11B Ant1 2412 1000~26500 1.13 -50.24 ≤-28.87 PASS 11B Ant1 2437 0~Reference 0.02 0.02 --- PASS 11B Ant1 2437 30~1000 0.02 -62.6 ≤-29.98 PASS 11B Ant1 2437 1000~26500 0.02 -50.13 ≤-29.98 PASS 11B Ant1 2462 0~Reference 0.54 0.54 --- PASS 11B Ant1 2462 30~1000 0.54 -62.79 ≤-29.46 PASS 11B Ant1 2462 1000~26500 0.54 -50.25 ≤-29.46 PASS 11G Ant1 2412 0~Reference 1.89 1.89 --- PASS 11G Ant1 2412 30~1000 1.89 -62.64 ≤-28.11 PASS 11G Ant1 2412 1000~26500 1.89 -50.7 ≤-28.11 PASS 11G A…

Text truncated - open the document above for the full version.

Report No.: TZ240405609-WiFi2G4 Page 1 of 38 FCC TEST REPORT Test report On Behalf of The Singing Machine Company, Inc. For WIFI TOUCH SCREEN KARAOKE SYSTEM Model No.: ISM9015, ISM9010, ISM9012, ISM9020, ISM9010XX, ISM9012XX, ISM9015XX, ISM9020XX (XX means unit color, it can be A to Z or N/A) FCC ID: 2AAXO-ISM9015 Prepared for : The Singing Machine Company, Inc. 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, United States, 33309 Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/4/26 ~ 2024/5/5 Date of Report: 2024/5/6 Report Number: TZ240405609-WiFi2G4 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ240405609-WiFi2G4 Page 2 of 38 TEST RESULT CERTIFICATION Applicant’s name .................. : The Singing Machine Company, Inc. Address .................................. : 6301 NW 5th Way, Suite 2900, Fort Lauderdale, Florida, United States, 33309 Manufacture's Name ............ : ZHUHAI FULLWING ELECTRONIC CO.,LTD ZHONGSHAN BRANCH Address .................................. : 4/F & 5/F, No 10, Xingye Road, Xinxu, San Xiang, Zhongshan, Guangdong, China Product description Trade Mark ................................ : Singing Machine Product name............................ : WIFI TOUCH SCREEN KARAOKE SYSTEM Model and/or type reference .. : ISM9015, ISM9010, ISM9012, ISM9020, ISM9010XX, ISM9012XX, ISM9015XX, ISM9020XX (XX means unit color, it can be A to Z or N/A) Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : 2024/4/26 ~ 2024/5/5 Date of Issue ........................................... : 2024/5/6 Test Result .............................................. : Pass Testing Engineer : (Allen Lai) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ240405609-WiFi2G4 Page 3 of 38 Revision History Revision Issue Date Revisions Revised By 000 2024/5/6 Initial Issue Andy Zhang Report No.: TZ240405609-WiFi2G4 Page 4 of 38 TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................................................ 5 1.1 DESCRIPTION OF DEVICE (EUT) ......................................................................................................................................... 5 1.2 WIRELESS FUNCTION TESTED IN THIS REPORT ...................................................................................................................... 5 1.3 EUT CONFIGURATION ...................................................................................................................................................... 6 1.4 DESCRIPTION OF TEST FACILITY .......................................................................................................................................... 6 1.5 STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 1.6 MEASUREMENT UNCERTAINTY .......................................................................................................................................... 6 1.7 DESCRIPTION OF TEST MODES .......................................................................................................................................... 7 1.8 FREQUENCY OF CHANNELS ............................................................................................................................................... 7 2 TEST METHODOLOGY .............................................................................................................................................. 8 2.1 EUT CONFIGURATION ..................................................................................................................................................... 8 2.2 EUT EXERCISE ............................................................................................................................................................... 8 2.3 TEST SAMPLE ................................................................................................................................................................. 8 3 SYSTEM TEST CONFIGURATION ............................................................................................................................... 9 3.1 JUSTIFICATION ................................................................................................................................................................ 9 3.2 EUT EXERCISE SOFTWARE ................................................................................................................................................ 9 3.3 SPECIAL ACCESSORIES ...................................................................................................................................................... 9 3.4 BLOCK DIAGRAM/SCHEMATICS ......................................................................................................................................... 9 3.5 EQUIPMENT MODIFICATIONS .................................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AAXO-ISM9015 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Radiated Emission Above 1GHz
