2AB7K-98AN02BAAnker Wireless Mouse Black NO.2

2.4G user manual Before use: 1. Find the wireless mouse and Nano receiver in package 2. Plug Nano receiver to USB port on PC 3. 1PCS AA battery into Mouse body Properly 4. LED indicator will keep flash for few seconds, the Mouse is ready to work. Advanced function 1. CPI adjustable function With 4 adjustable CPI 800/1200/1600, factory setting is 1200CPI. Press the switch button on top of Mouse can easy to adjust CPI. LED indicator will flash one time while it converting to 800CPI, LED will flash twice while it converting to 1200CPI, LED will flash three times while it converting to 1600CPI. 2. Saving power mode and power switch off If mouse is stay out of work for 8 minutes, it will turn to power saving mode, press any button to restart it. If you turn off PC or take out Nano receiver from USB port, press any button or move the mouse to enter the power saving mode, 3, Nano receiver A very small size design for Nano receiver, it can be plug and stay on USB port of PC/Notebook without interference. Portable design for travel, Nano receiver can be plug in the slot on bottom of mouse Reconnection Both of mouse and Nano receiver has a built-in code, It can be setting one mouse to one receiver, or few of mouse to one receiver. Mouse and receiver need to reconnect under the condition of High temperature, high magnetic, strongvibrate. 1. Plug off nano receiver from USB port, and plug it on 2. Reinstall the battery 3. You can use it by reconnection Remark Design by approval IR motion detect technology Data transfer by 2.4G wireless connection in 10 meters operating range, working rangewilllessthan10metersifthereisphysicsbothered. Caution Any amendment unauthorized is not allowing. The manual of Japanese version will be supplied in Japanese as well at the time of use. FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate theequipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there isno guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouragedto try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (obsolete)2.03.0Jan-31-2012 Updated letter information (obsolete)3.04.0May-23-2014 Added FCC ID field (current)4.05.0Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 (Anker Technology Co., Limited) (2015-12-01) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____Anker Technology Co., Limited_____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description:Anker Wireless Mouse Black NO.2 Model name:98ANWSM-02BA FCC ID:2AB7K-98AN02BA Sincerely, Client’s signature Simon Zhang / Product Manager Company Name: Anker Technology Co., Limited Address: Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Email: [email protected]

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (obsolete) 2.03.0Jan-31-2012 Added IC confidentiality letter form (obsolete)3.04.0March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.05.0Nov 19 2015 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 5.0 (Anker Technology Co., Limited) (2015-12-01) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Requestfor FCC ID:2AB7K-98AN02BA Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: -BlockDia gram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Simon Zhang / Product Manager Company Name: Anker Technology Co., Limited Address: Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Email: [email protected]

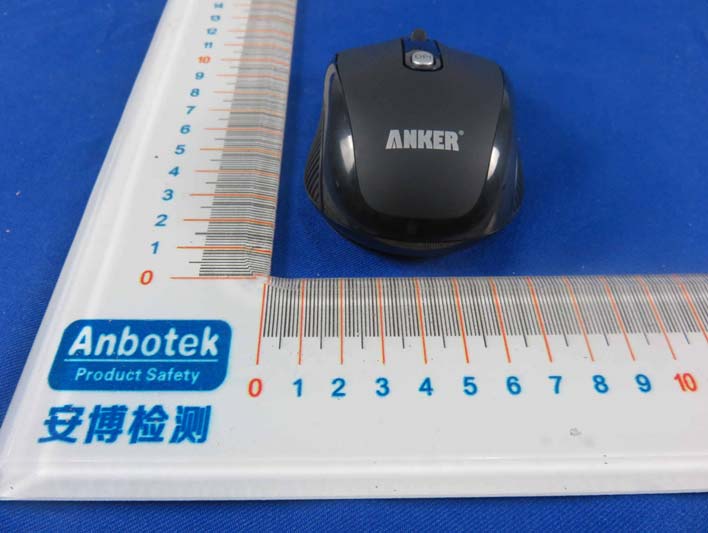

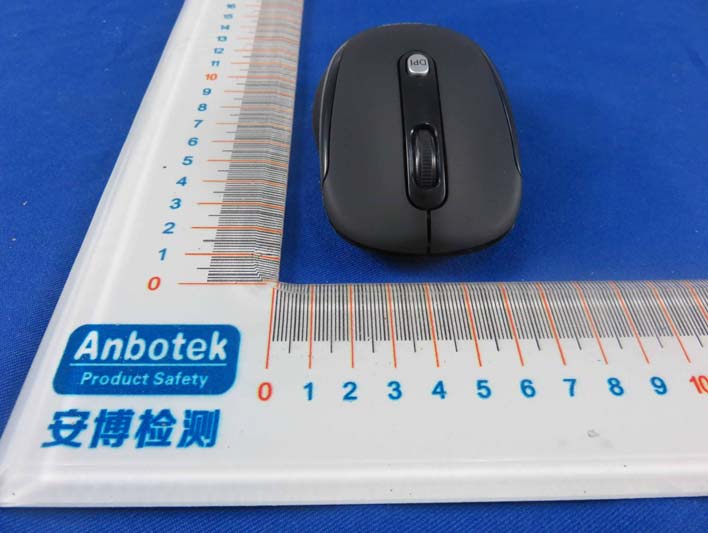

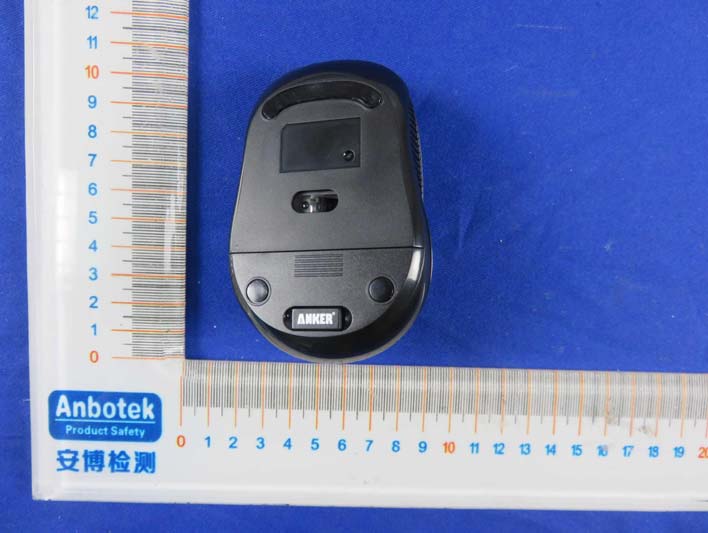

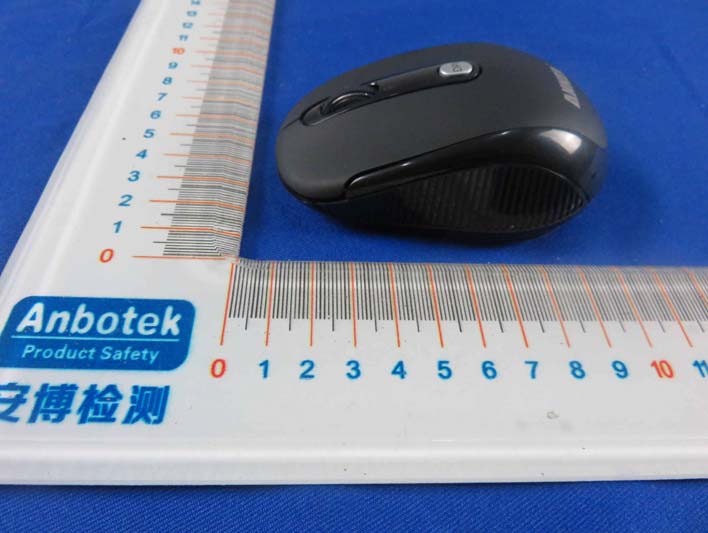

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure 3 The EUT-Front View Figure 4 The EUT-Back View Figure 5 The EUT-Right View Figure 6 The EUT-Left View

Product Name: Anker Wireless Mouse Black NO.2 Model No.: 98ANWSM-02BA FCC ID: 2AB7K-98AN02BA

Label Location On EUT

Figure 7 The EUT-Inside View Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the EUT-Front View Figure 11 PCB of the EUT-Back View Antenna

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-98AN02BA Page 1 of 34 Report No.: R011510368I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Anker Technology Co., Limited Anker Wireless Mouse Black NO.2 Model No.: 98ANWSM-02BA Report Number:R011510368I Date of Test:Oct. 24~Nov. 27, 2015 Date of Report:Nov. 30, 2015 Preparedfor:AnkerTechnology Co., Limited Address:Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hongkong Prepare dBy:Shenzhen Anbotek Compliance Laboratory Limited Address:1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-98AN02BA Page 2 of 34 Report No.: R011510368I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION ...................................................................................................... 4 1.1. Description of Device (EUT) ................................................................................................................ 4 1.2. Auxiliary Equipment Used during Test ................................................................................................ 5 1.3. Description of Test Facility .................................................................................................................. 5 1.4. Measurement Uncertainty ..................................................................................................................... 5 2. TEST PROCEDURE .................................................................................................................... 6 3. RADIATION INTERFERENCE ................................................................................................ 7 3.1. Requirements (15.249, 15.209): ............................................................................................................ 7 3.2. Test Procedure ...................................................................................................................................... 7 3.3 Test Equipment ...................................................................................................................................... 8 3.4. Test Results ........................................................................................................................................... 8 4. BANDEDGE ................................................................................................................................ 14 4.1. Requirements (15.249): ....................................................................................................................... 14 4.2. Test Procedure .................................................................................................................................... 14 4.3. Test Configuration: ............................................................................................................................. 14 4.4. Test Results ......................................................................................................................................... 15 5. OCCUPIED BANDWIDTH ...................................................................................................... 24 5.1. Requirements : .................................................................................................................................... 24 5.2. Test SET-UP ....................................................................................................................................... 24 5.3 Test Equipment .................................................................................................................................... 24 5.4. Test Results ......................................................................................................................................... 24 6. ANTENNA APPLICATION ..................................................................................................... 27 6.1. Antenna requirement ........................................................................................................................... 27 6.2. Result .................................................................................................................................................. 27 7. PHOTOGRAPH ......................................................................................................................... 28 7.1. Photo of Radiation Emission Test ....................................................................................................... 28 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-98AN02BA Page 3 of 34 Report No.: R011510368I Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Anker Technology Co., Limited Manufacturer: Anker Technology Co., Limited EUT: Anker Wireless Mouse Black NO.2 Model No.: 98ANWSM-02BA Serial No.: N.A. Trade Mark: Rating: DC 1.5V, 6.5mA Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in …

Text truncated - open the document above for the full version.

1. Photo of Radiation Emission Test
