NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving an tenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

FCC INFORMATION (additional):

Anker Technology Co., Limited FCC Confidentiality Request Number:CF303 Version:V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameAnker Technology Co., Limited AddressRM703 KOWLOON BUILDING 555 NATHAN RD CityKL CountryHONG KONG request for this certification filing under: Grantee CodeProduct Number FCC ID:2AB7K-98AP9804A to maintainpermanent confidentialityfor the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription √ Operational DescriptionOperational Descriptionexplaining the functioning of the block diagram √ Block DiagramsBlock Diagramsshowing the systematic building blocks of the EUT √ Schematics DiagramsSchematicsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) KL HONG KONG2014-10-24 Simon ZhangProduct Manager

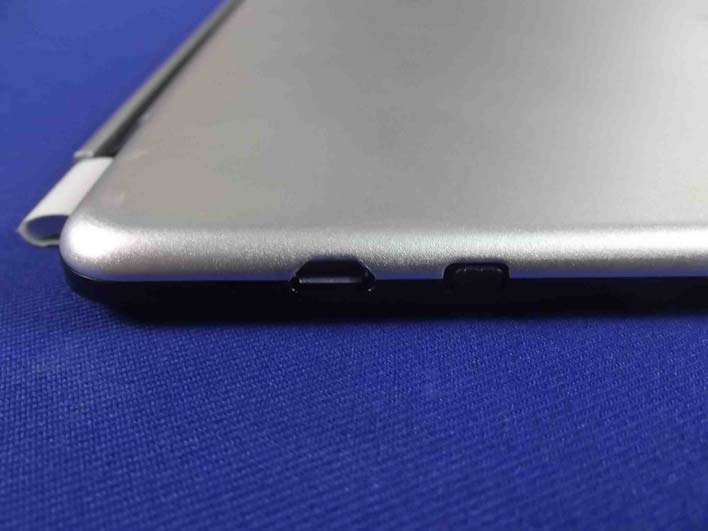

Figure 1 The EUT- Front View Figure 2 The EUT- Back View Figure 3 The EUT- Port View

Label Location On EUT

Product Name:Bluetooth Keyboard Model No.:98AP9804A-BTA FCC ID:2AB7K-98AP9804A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Figure 4 The EUT-Inside View Figure 5 PCB of the EUT-Front View Figure 6 PCB of the EUT-Back View Figure 7 PCB of the EUT-Front View Figure 8 PCB of the EUT-Back View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-98AP9804A Page 1 of 29 Report No.: R011409072E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Anker Technology Co., Limited Bluetooth Keyboard Model No.: 98AP9804A-BTA, A7707, TC930 Report Number:R011409072E Date of Test:Sept. 09 ~24, 2014 Date of Report:Oct. 20, 2014 Prepared for:Anker TechnologyCo., Limited Address:RM703 KOWLOON BUILDING 555 NATHAN RD KL HONG KONG Prepared By:Shenzhen Anbotek Compliance Laboratory Limite d Address:1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-98AP9804A Page 2 of 29 Report No.: R011409072E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST PROCEDURE....................................................................................................................6 3. CONDUCTED LIMITS...............................................................................................................7 3.1. Block Diagram of Test Setup................................................................................................................7 3.2. Power Line Conducted Emission Measurement Limits (15.207).........................................................7 3.3. Configuration of EUT on Measurement............................................................................................... 7 3.4. Operating Condition of EUT................................................................................................................ 7 3.5. Test Procedure...................................................................................................................................... 8 3.6. Power Line Conducted Emission Measurement Results...................................................................... 8 4. RADIATION INTERFERENCE.............................................................................................. 11 4.1. Requirements (15.249, 15.209):..........................................................................................................11 4.2. Test Procedure.................................................................................................................................... 11 4.3. Test Configuration:............................................................................................................................. 12 4.4. Test Results.........................................................................................................................................13 5. OCCUPIED BANDWIDTH...................................................................................................... 19 5.1. Requirements (15.249):.......................................................................................................................19 5.2. Test Procedure.................................................................................................................................... 19 5.3. Test Configuration:............................................................................................................................. 19 5.4. Test Results.........................................................................................................................................19 6. PHOTOGRAPH......................................................................................................................... 23 6.1. Photo of Conducted Emission Test.....................................................................................................23 6.2. Photo of Radiation Emission Test.......................................................................................................23 APPENDIX I (EXTERNAL PHOTOS)........................................................................................25 APPENDIX II(INTERNAL PHOTOS)........................................................................................27 Appendix I (2 Pages) Appendix II (3 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-98AP9804A Page 3 of 29 Report No.: R011409072E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Anker Technology Co., Limited Manufacturer: Anker Technology Co., Limited EUT: Bluetooth Keyboard Model No.: 98AP9804A-BTA, A7707, TC930 Serial No.: N.A. Trade Mark: Anker Rating: DC 5V, 350mA Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant…

Text truncated - open the document above for the full version.

1. Photo of Conducted Emission Test 2. Photo of Radiation Emission Test
