2AB7K-A78112.4GHz Wireless Mouse

Model:SM-608AG The RF2.4GHz optical mouse use two AA alkaline batteries. Nano receiver *This mouse is equipped with Traveling-Power-Save function. When you are traveling with this mouse, the LED of the mouse will be switched off automatically for the purpose of power-save, but the pre-condition is that the receiver is disconnected with your notebook or PC. * when your mouse no any clik or scroll or moving, the mouse will come to sleep state for the economize after about 8 minutes, for the wake up, you can click any button for this Your optical 6 button mouse is provide 800&1200&1600 dpi switch. 1:when you want use the mouse ,you can take out the receiver to computer by the list step; 2:when you need stop the work or to travel, you can store the receiver on the mouse for the moving by the list step. DPI Switch 1.Connect the USB plug nano to USB port of the computer FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (obsolete)2.03.0Jan-31-2012 Updated letter information (obsolete)3.04.0May-23-2014 Added FCC ID field (current)4.05.0Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 (Anker Technology Co., Limited) (2015-01-08) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____Anker Technology Co., Limited_____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description:2.4GHz Wireless Mouse Model name:A7811 FCC ID:2AB7K-A7811 Sincerely, Client’s signature Simon Zhang / Product Manager Company Name: Anker Technology Co., Limited Address: Room 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, Kowloon, Hongkong Email: [email protected]

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (current) 2.03.0Jan-31-2012 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 3.0 (Anker Technology Co., Limited) (2015-01-08) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Requestfor FCC ID:2AB7K-A7811 We hereby request confidential treatment of information accompanying this application as outlined below: -Block Diagram -Schematics -Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Simon Zhang / Product Manager Company Name: Anker Technology Co., Limited Address: Room 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, Kowloon, Hongkong Email: [email protected]

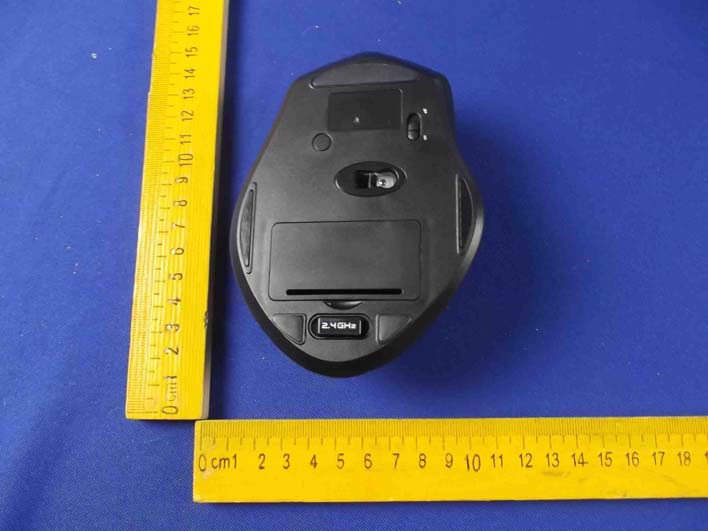

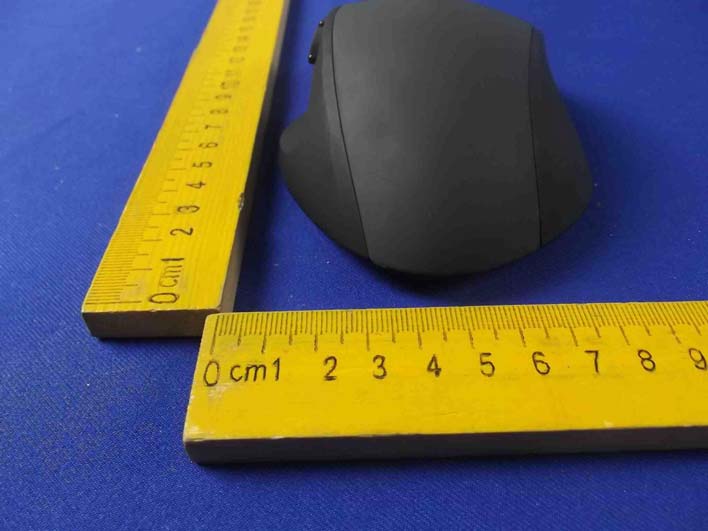

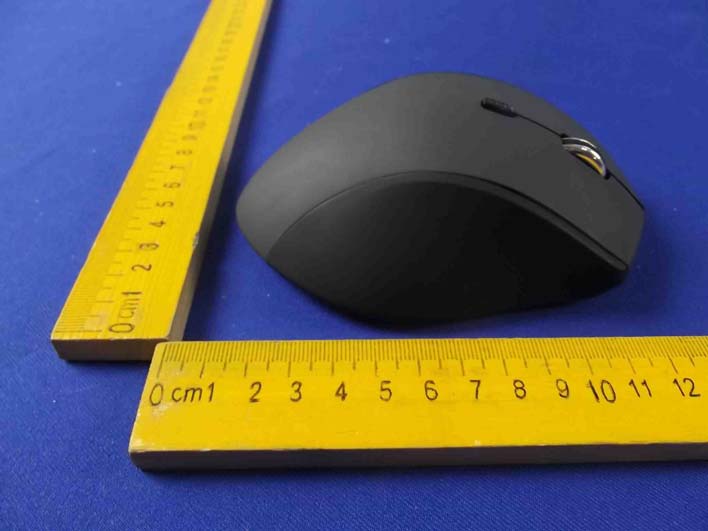

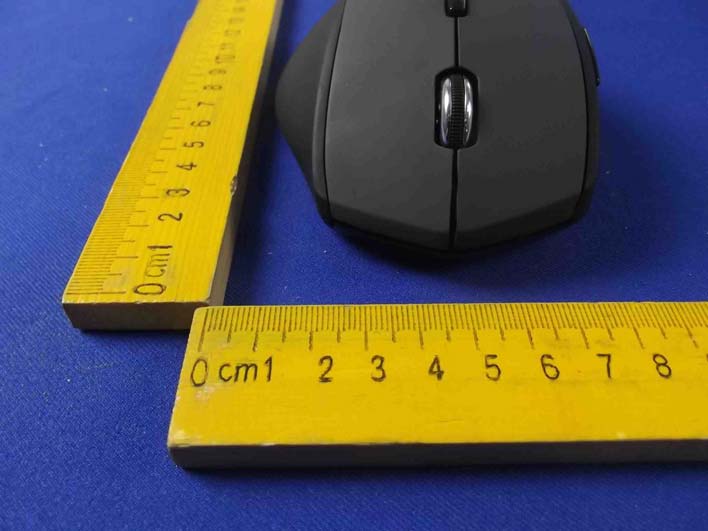

Figure 1 The EUT-Top View Figure 2 The EUT-Bottom View Figure 3 The EUT-Front View Figure 4 The EUT-Back View Figure 5 The EUT-Right View Figure 6 The EUT-Left View

Product Name:2.4GHz Wireless Mouse Model No.:A7811 FCC ID:2AB7K-A7811

Label Location On EUT

Figure 7 The EUT-Inside View Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the EUT-Front View Antenna Figure 11 PCB of the EUT-Back View Figure 12 PCB of the EUT-Module View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7811 Page 1 of 32 Report No.: R011412335E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Anker Technology Co., Limited 2.4GHz Wireless Mouse Model No.: A7811 Report Number:R011412335E Date of Test:Dec. 17, 2014~Jan. 11, 2015 Date of Report:Jan. 12, 2015 Prepared fo r:Anker TechnologyCo., Limited Address:Room 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, Kowloon, Hongkong Prepared By:Shenzhen Anbotek Compliance LaboratoryLimited Address:1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7811 Page 2 of 32 Report No.: R011412335E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST PROCEDURE....................................................................................................................6 3. RADIATION INTERFERENCE................................................................................................ 7 3.1. Requirements (15.249, 15.209):............................................................................................................7 3.2. Test Procedure...................................................................................................................................... 7 3.3. Test Results...........................................................................................................................................7 4. BANDEDGE................................................................................................................................13 4.1. Requirements (15.249):.......................................................................................................................13 4.2. Test Procedure.................................................................................................................................... 13 4.3. Test Configuration:............................................................................................................................. 13 4.4. Test Results.........................................................................................................................................13 5. OCCUPIED BANDWIDTH...................................................................................................... 22 5.1. Requirements :.................................................................................................................................... 22 5.2. Test SET-UP.......................................................................................................................................22 5.3 Test Equipment.................................................................................................................................... 22 5.4. Test Results.........................................................................................................................................22 6. ANTENNA APPLICATION......................................................................................................25 6.1. Antenna requirement...........................................................................................................................25 6.2. Result.................................................................................................................................................. 25 7. PHOTOGRAPH......................................................................................................................... 26 7.1. Photo of Radiation Emission Test.......................................................................................................26 APPENDIX I (External Photos) (3 Pages) APPENDIX II (Internal Photos) (3 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7811 Page 3 of 32 Report No.: R011412335E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Anker Technology Co., Limited Manufacturer: Anker Technology Co., Limited EUT: 2.4GHz Wireless Mouse Model No.: A7811 Serial No.: N.A. Trade Mark: Anker Rating: DC 3V, 10mA Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen AnbotekCompliance Laboratory Limited. Date of Test :Dec. 17, 2014~Jan. 11, 2015 Prepare dby: (Tes…

Text truncated - open the document above for the full version.

1. Photo of Radiation Emission Test
