2AB7K-A7909Bluetooth Speaker

Anker Portable Stereo Bluetooth Speaker Package Contents Anker Portable Stereo Bluetooth Speaker Micro USB cable (2.3 ft) 3.5mm audio cable (2.3 ft) Welcome Guide Product Features ●Impressively clear and full sound powered by 2 powerful 5 watt audio drivers. ●Advanced audio performance delivers a full-range sound, while the built-in bass port g enerates impressive bass, all to provide extraordinary listening experience. ●At 80% volume, the speakerlasts for 18 hours, significantly outperforming otherstereo B luetooth speakers. ●Non-Bluetooth devices enjoyunhampered experience with the provided 3.5mm audio cable. Specifications Product ModelA7909 Bluetooth Standard 3.0, backward compatible with all s tandards. Product Weight280 ± 10 g / 9.9 ± 0.4oz Product Size162 × 65 × 65mm/ 6.4 × 2.6 × 2.6in Play Time18 hours Charge Time4 hours (with a 1.5A output adapter) 6 hours (with a 1A output adapter) Input5V / 1.5A Operating Range10m / 33ft Speaker Output Power5W × 2 Audio Cable Type3.5mm audio cable SupportedBluetooth Profiles A2DP and AVRCP Product Overview Volume up Volume down Battery indicator Micro USB charging port 3.5mm audio input Status indicator Power button / Pause & Play How to Turn the Speaker On / Off Press the power button for 3 seconds to turn on or off the speaker. How to Pair with Your Device 1. Press the power button for 3 seconds. The speaker will turn on and automatically enter pairing mode displayed by the flashing blue indicator. 2. Activate your device’s Bluetooth function and search for the device. 3. Once the Bluetooth speaker has been detected, select the product name “Anker A7909” to connect. (For devices with Bluetooth versions below 3.0, press “Yes” to confirm pairing. Enter a passkey or PIN code “0000” (4 zeros), then press the “Yes” or “OK” key to finish pairing.) 4. When the Bluetooth speaker and your device are successfully paired, the blue indicator will go on and remain on while connected. How to Recharge When the speaker’s battery is low, the red battery indicator will flash for about 10 minutes. 1. Plug the Micro USB cable into the input port of the speaker. 2. Insert the remaining end of the USB power wire into (a) a USB AC adapter (not included) connected to a wall socket, or (b) a charging computer USB port. A steady red battery indicator will show that it is charging. 3. The red battery indicator will go off when the speaker is fully charged. LED Indicator Instructions LED indicatorMeaning Blue status indicator rapidly flashingPairing mode Blue status indicator slowly flashingConnected to a device Red battery indicator flashingLow battery Steady red battery indicatorCharging Red battery indicator goes offFully charged Usage Tips 1. Power off the speaker when not in use and before storing. 2. The operational range of the speakers may be influenced by obstructions, such as walls, pillars, etc. To ensure a stable connection, we recommend avoiding such obstructions whenever possible and/or shortening the distance during use. 3. To protect the long-term performance of the battery, please do not place the speaker in high temperatures above 140°F/60°C, such as in a hot vehicle or under direct sunlight. 4. Do not expose the speaker or any of its supplied parts to rain or other liquids. FAQ and Solutions 1. Why can’t the speaker connect to my device? a. Check to ensure your device’s Bluetooth function is enabled. b. Make sure your device is within 3ft/1m of the speaker. c. Delete the pairing record(s) on the speaker or your device. When the speaker is in standby mode, press the “Volume Down” and “Volume Up” buttons for 2 seconds to delete pairing records or reset (when the speaker is not working normally). 2. Can I use the speaker to play music while charging? To protect the long-term performance of the battery, it is better to charge when the speaker is turned off, especially when the battery is low. 3. Can I make or answer phone calls through the speaker? No. The speaker does not feature a built-in microphone. 4. Will all buttons function normally when connected to a 3.5mm audio cable? The pause/play function (the power button) will not work. FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Anker Technology Co., Limited FCC Confidentiality Request Number:CF303 Version:V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameAnker Technology Co., Limited AddressRoom 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, CityKowloon CountryHongkong request for this certification filing under: Grantee CodeProduct Number FCC ID:2AB7K-A7909 to maintainpermanent confidentialityfor the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription √ Operational DescriptionOperational Descriptionexplaining the functioning of the block diagram √ Block DiagramsBlock Diagramsshowing the systematic building blocks of the EUT √ Schematics DiagramsSchematicsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Kowloon, Hongkong 2014-11-26 Simon ZhangProduct Manager

Anker Technology Co., Limited FCC Authorization Letter Number:CF304 Version:V03 Date: 01-08-2011 We, (the approval holder) Company nameAnker Technology Co., Limited AddressRoom 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, CityKowloon CountryHongkong declare that the following representative (agent): Name (person)Tom Chen Company nameShenzhen Anbotek Compliance Laboratory Limited Addresss1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, CityShenzhen CountryChina is hereby authorized to apply the following equipment for certification on our behalf: Product DescriptionBluetooth Speaker Type or Model(s)A7909 Tradename or Brand(s)Anker We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Kowloon, Hongkong 2014-11-26Simon ZhangProduct Manager

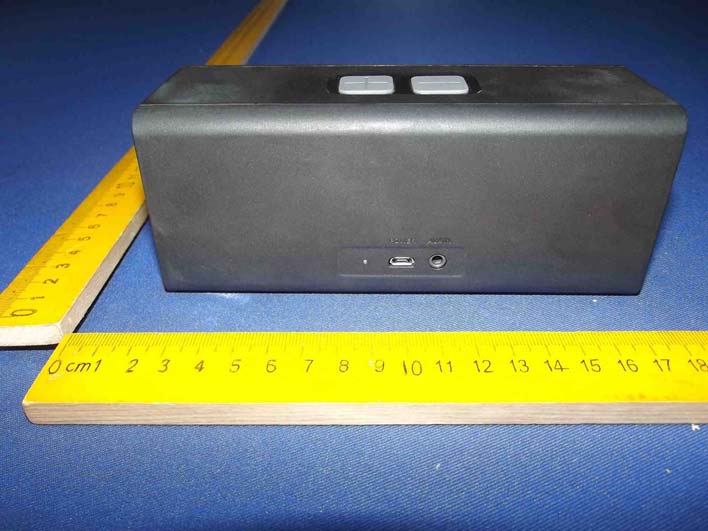

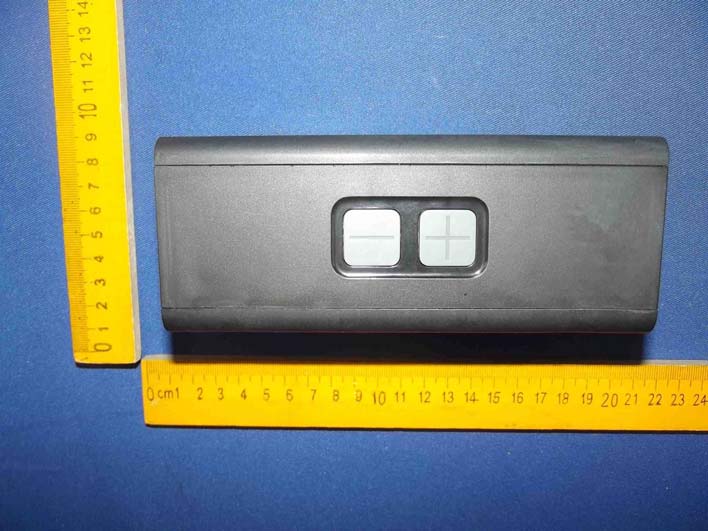

Figure 1 The EUT- Top View Figure 2 The EUT- Bottom View Figure 3 The EUT- Front View Figure 4 The EUT- Back View Figure 5 The EUT- Right View Figure 6 The EUT- LeftView

Label Location:

Product Name:Bluetooth Speaker Model No.:A7909 FCC ID: 2AB7K-A7909 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Figure 7 The EUT-Inside View Figure 8 The EUT-Inside View Figure 9 The EUT-Inside View Figure 10 The EUT-Inside View Figure 11 PCB of the EUT-Front View Figure 12 PCB of the EUT-Back View Figure 13 PCB of the EUT-Front View Figure 14 PCB of the EUT-Back View Antenna Figure 15 PCB of the EUT-Front View Figure 16 PCB of the EUT-Back View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7909 Page 1 of 32 Report No.: R011409054E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Anker Technology Co., Limited Bluetooth Speaker Model No.: A7909 Report Number:R011409054E Date of Test:Oct. 13 ~Nov. 11, 2014 Date of Report:Nov. 18, 2014 Prepared for:Anker TechnologyCo., Limited Address:Room 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, Kowloon, Hongkong Prepared By:Shenzhen Anbotek Compliance Laboratory Limite d Address:1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7909 Page 2 of 32 Report No.: R011409054E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST PROCEDURE....................................................................................................................6 3. CONDUCTED LIMITS...............................................................................................................7 3.1. Block Diagram of Test Setup................................................................................................................7 3.2. Power Line Conducted Emission Measurement Limits (15.207).........................................................7 3.3. Configuration of EUT on Measurement............................................................................................... 7 3.4. Operating Condition of EUT................................................................................................................ 7 3.5. Test Procedure...................................................................................................................................... 8 3.6. Power Line Conducted Emission Measurement Results...................................................................... 8 4. RADIATION INTERFERENCE.............................................................................................. 11 4.1. Requirements (15.249, 15.209):..........................................................................................................11 4.2. Test Procedure.................................................................................................................................... 11 4.3. Test Configuration:............................................................................................................................. 12 4.4. Test Results.........................................................................................................................................13 5. OCCUPIED BANDWIDTH...................................................................................................... 19 5.1. Requirements (15.249):.......................................................................................................................19 5.2. Test Procedure.................................................................................................................................... 19 5.3. Test Configuration:............................................................................................................................. 19 5.4. Test Results.........................................................................................................................................19 6. PHOTOGRAPH......................................................................................................................... 23 6.1. Photo of Conducted Emission Test.....................................................................................................23 6.2. Photo of Radiation Emission Test.......................................................................................................23 APPENDIX I (EXTERNAL PHOTOS)........................................................................................25 APPENDIX II(INTERNAL PHOTOS)........................................................................................28 Appendix I (3 Pages) Appendix II (5 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7909 Page 3 of 32 Report No.: R011409054E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Anker Technology Co., Limited Manufacturer: Anker Technology Co., Limited EUT: Bluetooth Speaker Model No.: A7909 Serial No.: N.A. Trade Mark: Anker Rating: DC 5V, 1.7A Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part…

Text truncated - open the document above for the full version.

1. Photo of Conducted Emission Test 2. Photo of Radiation Emission Test
