2AB7K-A7911Bluetooth Speaker

Anker Aluminum Bluetooth Speaker Package Contents AnkerAluminumBluetoothSpeaker 3ft Micro USB charging cable 1ft auxiliary cable 0.5ft lanyard Travel pouch Welcome guide Product Features ●8 hour non-stop play time lets you listen to your music through the day. ●Premium aluminum casing gives your speaker a sleek and polished look. ●Connects automatically to the last connected Bluetooth device whenever powered on. ●Non-Bluetooth devices can be linked using the the provided auxiliary cable. ●Micro SD card reader lets you play your music without using your phone. ●Previous / Next Song, Volume, and Play / Pause buttons provide device-free control. Specifications ModelA7911 Bluetooth Standard3.0 Product Weight368g / 11.0oz Product Size180 × 28.3 × 46.4mm / 7.1 × 1.1 × 1.8in Play Time8 hours Charge Time6 hours Input 5V/500mA Operating Range10m / 33ft Speaker Output Power 3.5W × 2 Audio Cable Type3.5mm auxiliary cable Supported Bluetooth Profiles HSP, HFP, A2DP, AVRCP Product Overview 1. Volume Down / Previous Song 2. Play / Pause 3. Volume Up / Next Song 4. Auxiliary Input Port 5. Micro SD Card Slot 6. Micro USB Charging Port 7. Battery Indicator 8. On / Off Switch 9. Bluetooth Indicator 10. Power Indicator 11.Microphone HowtoPairwithYourDevice 1. Push the on / off switch to turn on the speaker. The speaker will automatically enter pairing mode as indicated by a flashing Bluetooth Indicator. 2. Activate your device’s Bluetooth function and search for the device. 3. Once the Bluetooth speaker has been detected, select the model name “Anker A7911” to connect. (For devices with Bluetooth 3.0 and earlier, press “Yes” to begin pairing. Enter a passkey or PIN code “0000” (4 zeros) and press “Yes” or “OK” to complete pairing.) 4. Once the speaker and your device have been successfully paired, the speaker will beep once and the Bluetooth Indicator willcomeon. When turning on the speaker, it will automatically connect to the last connected device as long as Bluetooth is still enabled. Before pairing with another device, disable the Bluetooth function on the previous device and the speakerwill automatically return to pairing mode. Note: To switch to SD card or Aux Line-In modes, simply insert your Micro SD card or the auxiliary cable and its connected device when in standby or Bluetooth mode. The speaker enters Bluetooth mode by default when turning on the speaker, or when Micro SD card or Auxiliary cable being not connected. Button Functions FunctionsButton Turn the Speaker On / Off On / Off Answer / End a CallPlay / Pause Turn Volume Up / Down Press “-” or “+” Play Previous / Next Song Hold “-” or “+” Delete Pairing Record Hold “-” and “+” HowtoRechargeYourSpeaker When the battery is low, the speaker will beep once and the red indicator will flash for about 10 minutes. 1. Plug the Micro USB cable into the speaker’s Micro USB charging port. 2. Insert the remaining end of the USB charging cable into (a) a USB AC adapter (not included) connected to a wall socket, or (b) a charging computer USB port. A steady red battery indicator will show that it is charging. 3. When fully charged, the red battery indicator will go off. LEDIndicators IndicatorStatus Bluetooth Indicator Flashing blueIn pairing mode BlueConnected to a device Flashing redLow battery OffMicro SD Card / Aux Line-In Mode Battery Indicator RedCharging OffFully charged Power Indicator WhitePowered on OffPowered off Usage Tips 1. Power off the speaker when not in use and before storing. 2. The operational range of the speakers may be influenced by obstructions such as walls and pillars. To ensure a stable connection, we recommend avoiding such obstructions whenever possible and/or shortening the distance during use. 3. To protect the long term performance of the battery, avoid placing the speaker in temperatures exceeding 140°F/60°C such as in a hot vehicle or under direct sunlight. 4. Do not expose the speaker or its accessories to water or liquids. FAQ and Solutions 1. What should I do if the speaker doesn’t connect to my device? Check to ensure your device’s Bluetooth function is enabled and is within 3ft/1m of the speaker. Delete the pairing record(s) on the speaker or your device and try again. 2. Can I use the speaker to play music while charging? To protect the long-term performance of the battery, it is better to charge while the speaker is turned off, especially when the battery is low. FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications not expresslyapproved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can be determinedby turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general R…

Text truncated - open the document above for the full version.

Anker Technology Co., Limited FCC Confidentiality Request Number:CF303 Version:V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameAnker Technology Co., Limited AddressRoom 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, CityKowloon CountryHongkong request for this certification filing under: Grantee CodeProduct Number FCC ID:2AB7K-A7911 to maintainpermanent confidentialityfor the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription √ Operational DescriptionOperational Descriptionexplaining the functioning of the block diagram √ Block DiagramsBlock Diagramsshowing the systematic building blocks of the EUT √ Schematics DiagramsSchematicsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Kowloon, Hongkong 2015-01-13 Simon ZhangProduct Manager

Anker Technology Co., Limited FCC Authorization Letter Number:CF304 Version:V03 Date: 01-08-2011 We, (the approval holder) Company nameAnker Technology Co., Limited AddressRoom 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, CityKowloon CountryHongkong declare that the following representative (agent): Name (person)Tom Chen Company nameShenzhen Anbotek Compliance Laboratory Limited Addresss1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, CityShenzhen CountryChina is hereby authorized to apply the following equipment for certification on our behalf: Product DescriptionBluetooth Speaker Type or Model(s)A7911 Tradename or Brand(s)Anker We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Kowloon, Hongkong 2015-01-13Simon ZhangProduct Manager

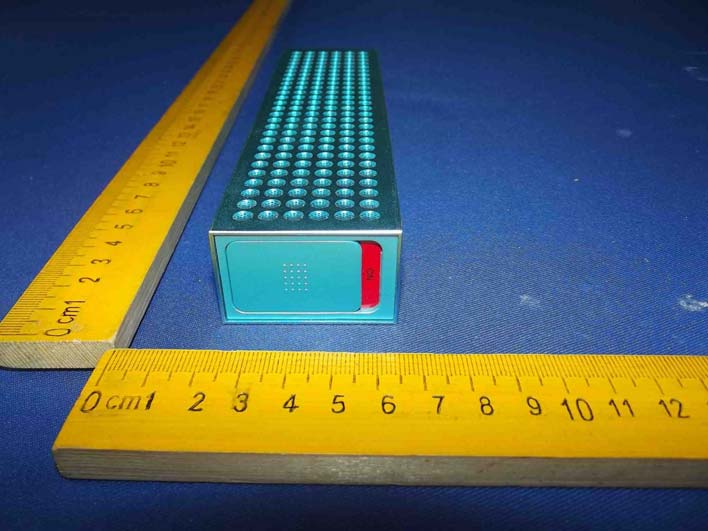

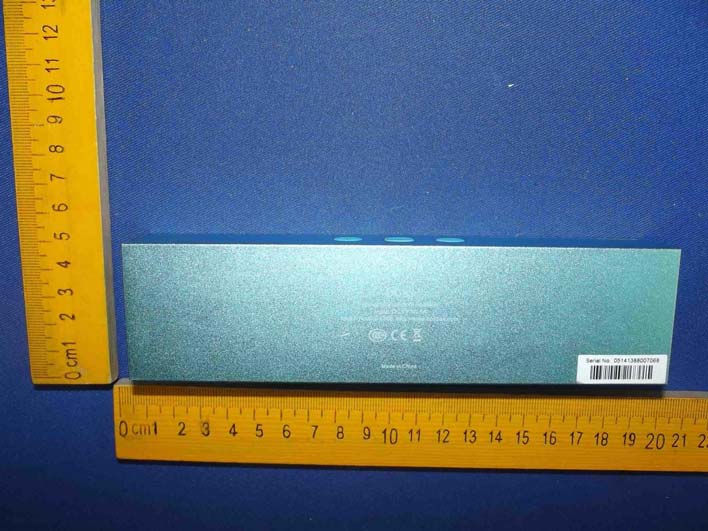

Figure 1 The EUT- Front View Figure 2 The EUT- Back View Figure 3 The EUT- Top View Figure 4 The EUT- Bottom View Figure 5 The EUT- Right View Figure 6 The EUT- Left View

Label Location:

Product Name: Bluetooth Speaker Model No.: A7911 FCC ID: 2AB7K-A7911 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Figure 7 The EUT-Inside View Figure 8 The EUT-Inside View Figure 9 The EUT-Inside View Figure 10 PCB of the EUT-Front View Antenna Figure 11 PCB of the EUT-Back View Figure 12 PCB of the EUT-Front View Figure 13 PCB of the EUT-Back View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7911 Page 1 of 31 Report No.: R011410451E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Anker Technology Co., Limited Bluetooth Speaker Model No.: A7911 Report Number:R011410451E Date of Test:Oct. 30 ~Nov. 28, 2014 Date of Report:Jan. 05, 2014 Prepared for:Anker TechnologyCo., Limited Address:Room 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, Kowloon, Hongkong Prepared By:Shenzhen Anbotek Compliance Laboratory Limite d Address:1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7911 Page 2 of 31 Report No.: R011410451E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST PROCEDURE....................................................................................................................6 3. CONDUCTED LIMITS...............................................................................................................7 3.1. Block Diagram of Test Setup................................................................................................................7 3.2. Power Line Conducted Emission Measurement Limits (15.207).........................................................7 3.3. Configuration of EUT on Measurement............................................................................................... 7 3.4. Operating Condition of EUT................................................................................................................ 7 3.5. Test Procedure...................................................................................................................................... 8 3.6. Power Line Conducted Emission Measurement Results...................................................................... 8 4. RADIATION INTERFERENCE.............................................................................................. 11 4.1. Requirements (15.249, 15.209):..........................................................................................................11 4.2. Test Procedure.................................................................................................................................... 11 4.3. Test Configuration:............................................................................................................................. 12 4.4. Test Results.........................................................................................................................................13 5. OCCUPIED BANDWIDTH...................................................................................................... 19 5.1. Requirements (15.249):.......................................................................................................................19 5.2. Test Procedure.................................................................................................................................... 19 5.3. Test Configuration:............................................................................................................................. 19 5.4. Test Results.........................................................................................................................................19 6. PHOTOGRAPH......................................................................................................................... 23 6.1. Photo of Conducted Emission Test.....................................................................................................23 6.2. Photo of Radiation Emission Test.......................................................................................................23 APPENDIX I (EXTERNAL PHOTOS)........................................................................................25 APPENDIX II(INTERNAL PHOTOS)........................................................................................28 Appendix I (3 Pages) Appendix II (4 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A7911 Page 3 of 31 Report No.: R011410451E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Anker Technology Co., Limited Manufacturer: Anker Technology Co., Limited EUT: Bluetooth Speaker Model No.: A7911 Serial No.: N.A. Trade Mark: Anker Rating: DC 5V, 500mA Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Par…

Text truncated - open the document above for the full version.

1. Photo of Conducted Emission Test 2. Photo of Radiation Emission Test
