2AB7K-A9001Wi-Fi Camera

AnkerCam Welcome Guide This welcome guide is intended to 1. Introduce AnkerCam 2. Quickly show you how to set up your AnkerCam. 3. Provide basic information. What is AnkerCam？ AnkerCam is a high definition Wi-Fi video monitoring device with the following features：  Quick setup process  720P Wi-Fi live streaming  Two-way talk  Clip recording  Night vision  Web and mobile apps  Camera share All these functions work together to enable you to keep track of what’s going on at places, no matter where you are. What’s comes in the box with AnkerCam?  1 AC Power adapter  1 10-foot USB cable  5 wall clips  1 wall mounting base  6 wall mounting screws (including 3 setscrews)  4 wall mounting sticky pads (for glass or tile only)  1welcomeguide How do I set up AnkerCam? Step 1: Connect the camera to your computer's USB port.The camera's status light is solid yellow after connected. Step 2: Double click the "Setup AnkerCam" icon to start your setup flow. Step 3: Create your AnkerCam account or log into an existing account . Step 4: Select a Wi-Fi network and Click “connect”.The status light will blink yellow while connecting. Step 5. Complete setup. Name the camera and choose a time zone. You are ready to begin your live streaming!The status light be solid blue when connected. For more instructions on setup and the status light indications, visit www.ankercam.com/support/. Or Scan QR code to view the setup instruction video.. How do I mount my camera on a wall ？ Plaster Wall 1. Your camera comes with a wall mounting base. The camera snaps into its base effortlessly, and it's just as easy to remove. 2. Attach the wall mount to your wall or ceiling using the screws included in the box. 3. Mount your camera by fitting it into the wall mount. Glass or tile 1. Along with the camera, there are 4 Wall mounting sticky pads in the box. 2. SticktheonesideofthepadtotheroundgrooveatthebottomofAnkerCam 3. Stick the other side to the wall. Wait for seconds and the camera is mounted very tightly on the wall. 4. Notice：Please do not use the sticky pad on your plaster wall because it will damage the wall surface when you take it down. Product Specifications Product ModelA9001 Product Dimensions2.6’’x2.6’’x1.5’’ Product Weight 140g Field of view120° Video H.264 encoding,720p HD,1280X720 at 30 frames/ sec Night Vision High Power IR LEDs Warranty18-month parts Operating Temperature 0-35°C Usage Designed for indoor use Technical Requirements Setup deviceComputer High Speed InternetDSL, cable, FIOS Web Browser Internet Explorer 8+, Firefox 3+, Safari 3+, Google Chrome Mobile DevicesiPhone, iPad, and Android phones Wi-Fi 802.11b/g/n 2.4GHz Supported Wireless Security WEP (40bit, 128bit) WPA (TKIP, AES) WPA2 (TKIP, AES) FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Anker Technology Co., Limited FCC Confidentiality Request Number:CF303 Version:V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameAnker Technology Co., Limited AddressRM703 KOWLOON BUILDING 555 NATHAN RD CityKL CountryHONG KONG request for this certification filing under: Grantee CodeProduct Number FCC ID:2AB7K-A9001 to maintainpermanent confidentialityfor the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription √ Operational DescriptionOperational Descriptionexplaining the functioning of the block diagram √ Block DiagramsBlock Diagramsshowing the systematic building blocks of the EUT √ Schematics DiagramsSchematicsshowing components, their values and interconnection Bill of MaterialsList of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) KL HONG KONG2014-08-05 Ted DiaoProduct Manager

Anker Technology Co., We, (the approval holder) Company name At declare that the following representative (agent): Name (person) Company name Country is hereby authorized to apply the following equipment for certification on our behalf: Product Description Type or Modet(s) Tradename or Brand(s) An we also authorize Teleconformity (Mr M Koop, Manager certification, Address: Rietven 31, 7534NH Enschede, the |"",1,1o'"not, to apply and sign this application for certification, registration oi riting on ouroerrati 1al iepresentative agent or tion: City and Gountry: Date: Name: (this must be a person) Function: Signature: (or official company stamp) P uctknager

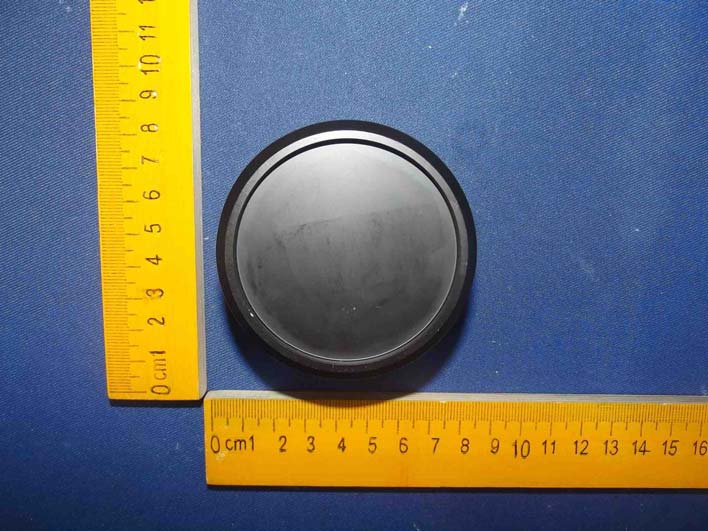

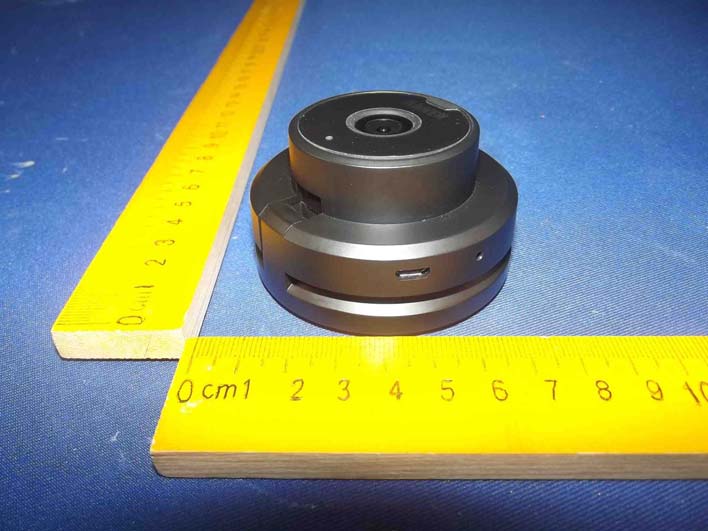

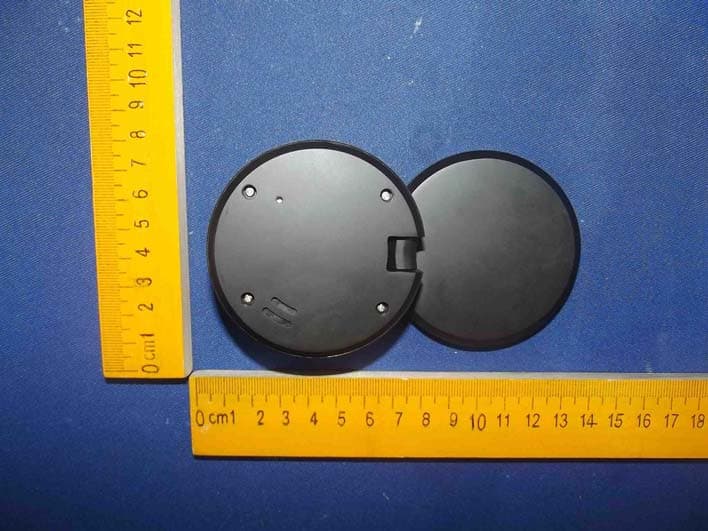

Figure 1 The EUT-Overall View Figure 2 The EUT-Front View Figure 3 The EUT- Back View Figure 4 The EUT- Back View Figure 5 TheEUT-SideView

Label Location On EUT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Figure 6 TheEUT-InsideView Figure 7 TheEUT-InsideView Figure 8 PCB of the EUT-Front View Figure 9 PCB of the EUT-Back View Figure 10 PCB of the EUT-Front View Figure 11 PCB of the EUT-Back View Figure 12 PCB of the EUT-Front View Figure 13 PCB of the EUT-Back View

MPE Calculation FCC ID: 2AB7K-A9001 Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation, including the highest gain of the antenna, without any compensation for directional antennas. Frequency range:2412-2462 MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =22.19dBm =165.58mW Antenna Gain: G = 2dBi =1.58on the linear scale Calculation: P radiated = P conducted + G linear =22.19dBm +2dBi =24.19dBm =262.42mW Power density S = (P radiated ) / (4π x d 2 ) =262.42/5026 =0.0522mW/cm 2 <1=> below limit

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A9001 Page 1 of 80 Report No.: R011406389E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Anker Technology Co., Limited Wi-Fi Camera Model No.: A9001 Report Number: R011406389E Date of Test:Jun. 19 ~Jul. 07, 2014 Date of Report:Au g. 01, 2014 Prepared fo r: Anker Technology Co., Limited Address: RM703 KOWLOON BUILDING 555 NATHAN RD KL HONG KONG Prepared By: Shenzhen AnbotekCompliance Laboratory Limite d Address: 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A9001 Page 2 of 80 Report No.: R011406389E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)................................................................................................................4 1.2. Auxiliary Equipment Used during Test................................................................................................ 5 1.3. Description of Test Facility.................................................................................................................. 5 1.4. Measurement Uncertainty.....................................................................................................................5 2. TEST METHODOLOGY............................................................................................................6 2.1. Summary of Test Results......................................................................................................................6 2.2. Description of Test Modes....................................................................................................................6 2.3. List of channels:....................................................................................................................................7 3. CONDUCTED EMISSION TEST.............................................................................................. 8 3.1. Block Diagram of Test Setup................................................................................................................8 3.2. Power Line Conducted Emission Measurement Limits (15.207).........................................................8 3.3. Configuration of EUT on Measurement............................................................................................... 8 3.4. Operating Condition of EUT................................................................................................................ 8 3.5. Test Procedure...................................................................................................................................... 9 3.6. Test equipment......................................................................................................................................9 3.7. Power Line Conducted Emission Measurement Results...................................................................... 9 4. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION................. 12 4.1 Test Setup.............................................................................................................................................12 4.2 6dB Bandwidth.................................................................................................................................... 12 4.3. Maximum Peak output power test...................................................................................................... 19 4.4. Band Edges Measurement...................................................................................................................26 4.5. Peak Power Spectral Density..............................................................................................................54 4.6. Radiated Emissions.............................................................................................................................61 5. PHOTOGRAPH......................................................................................................................... 72 5.1. Photo of Conducted Emission Measurement......................................................................................72 5.2. Photo of Radiation Emission Test.......................................................................................................72 APPENDIX I (EXTERNAL PHOTOS)........................................................................................74 APPENDIXII(INTERNAL PHOTOS)...................................................................................... 77 Appendix I (3 Pages) Appendix II (4 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-A9001 Page 3 of 80 Report No.: R011406389E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant: Anker Technology Co., Limited Manufacturer: Anker Technology Co., Limited EUT: Wi-Fi Camera Model No.: A9001 Serial No.: N.A. Trade Mark: Anker Rating: DC 5V, 2A Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emissionlevels emanating from the device and the severe levels of the device can endure and itsperformance criterion. The measurement results are contained in this test report andShenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compli…
