2AB7K-Z1151Bluetooth Keyboard

Detachable Keyboard Case for iPad Air Welcome Guide 1 Package Contents ■ Anker Detachable Keyboard Case for iPad Air ■ 2.3ft USB charging cable ■ Welcome Guide Features ■ Notebook design resembles a laptop and complements your iPad Air. ■ Detachable case with flexible, rubber-feel cutouts protects your device while keeping it fully functional and mobile. ■ Rotating stand creates both vertical and horizontal angles ideal for typing, media viewing and more. ■ Rechargeable, high capacity lithium battery lasts for over 6 months between charges (based on 2 hours of use per day). ■ Opening and closing the case automatically triggers your tablet’s sleep or wake modes and turns the keyboard on or off. ■ Once paired via Bluetooth, iPad Air connects to the keyboard automatically. ■ Molded key caps deliver whisper-quiet and comfortable typing. 2 Product Overview 1. Caps Lock indicator 2. Bluetooth indicator 3. Power indicator 4. Tablet case 5. Magnetic stand 6. Power switch 7. Micro USB charging port ①②③ ④ ⑤ ⑥ ⑦ 3 Shortcut Keys 1. Home 2. Brightness down 3. Brightness up 4. Display keyboard 5. Copy 6. Paste 7. Switch input language 8. Last track 9. Play / Pause 10. Next track 11. Mute 12. Volume down 13. Volume up 14. Screen lock / Unlock ①②③④⑤⑥⑦⑧⑨⑩ 4 Special Symbols (€, £, #) for UK Input € + £ + # + Technical Specifications Bluetooth StandardBluetooth 3.0 Product Dimensions244 × 183 × 19mm / 9.6 × 7.2 × 0.7in Product Weight700g / 24.5oz Operating RangeUp to 10m / 33ft Charge Time2.5 hours Uninterrupted Work Time360 hours Working Temperature-10 ~ +55 °C Lithium Battery Capacity800mAh Battery Lifespan 400 charge cycles Key Life5 million clicks 5 Pairing Instructions ■ Flick the power switch to the ON position to turn on the keyboard. ■ The keyboard will automatically enter pairing mode. The power indicator will turn on for 2 seconds and the Bluetooth indicator will start to flash. ■ Activate your device’s Bluetooth function and search for the keyboard. ■ Select the keyboard name to connect. ■ Once the Bluetooth keyboard has successfully connected to your device, the Bluetooth indicator will turn off. After pairing for the first time, your device will connect to the keyboard automatically when turning on the keyboard. To pair with a different device, simultaneously press the Fn and C keys to enter pairing mode, and repeat the above procedure. Note: In case of connection failure, delete the pairing record from your device and repeat the procedures above. 6 Power Saving Mode After being idle for 15 minutes, the keyboard will enter sleep mode. To wake it, press any key and wait for 2 seconds. Charging Instructions When battery power is low, the power indicator will flash red, indicating that it is time to recharge the keyboard. 1. Insert one end of the USB charging cable into the Micro USB port on the keyboard case. 2. Connect the other end of the cable to a power adapter or computer USB port. The power indicator will show a solid red light while the keyboard is charging. 3. Once fully charged, the power indicator will turn green. 7 Usage Tips ■ Do not place heavy objects on the keyboard. ■ Do not drop the product, bump it against hard surfaces, or dismantle it. ■ Keep the product away from oil, chemicals, and liquids. ■ Clean the keyboard by lightly wiping it with a slightly damp cloth. ■ Dispose of batteries according to local laws. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 8 Warranty Our company provides customers with a warranty of 18 MONTHS from the date of purchase. Contact Us For any inquiries or comments concerning our products, please send an email to [email protected], and we will respond to you as soon as possible. If there is any quality-related issue with the product, you may request a REPLACEMENT OR REFUND by submitting a request form at www.ianker.com/support. Statement ■ We’re only able to provide after-sales service for purchases made directly from Anker. If you purchased through a different retailer, please contact them for any exchange or refund requests. ■ Please note that unauthorized reselling of Anker products is prohibited. FCC STATEMENT : Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. 1-800-988-7973 (U.S.) Mon-Fri 9:00-5:00 (PS…

Text truncated - open the document above for the full version.

Agents letter (for TCB – TCB approval): Anker Technology Co., Limited Date (14/11/2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We,(Anker Technology Co., Limited),hereby authorize(Sally Zhang [Shenzhen Anbotek Compliance Laboratory Limited]) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on(13/11/2015). Sincerely, Simon Zhang / Product Manager Company Officer:Anker Technology Co., Limited Email:[email protected]

Anker Technology Co., Limited Date (14/11/2014) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AB7K-Z1151 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules,(Anker Technology Co., Limited)hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer:Simon Zhang/ Product Manager Email:[email protected]

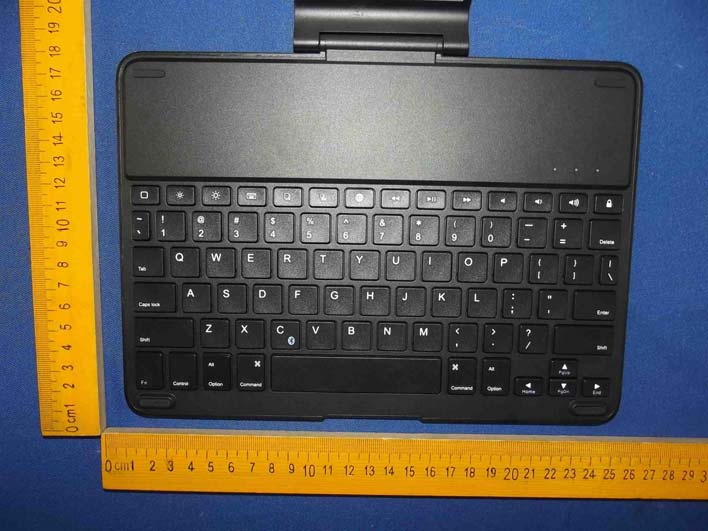

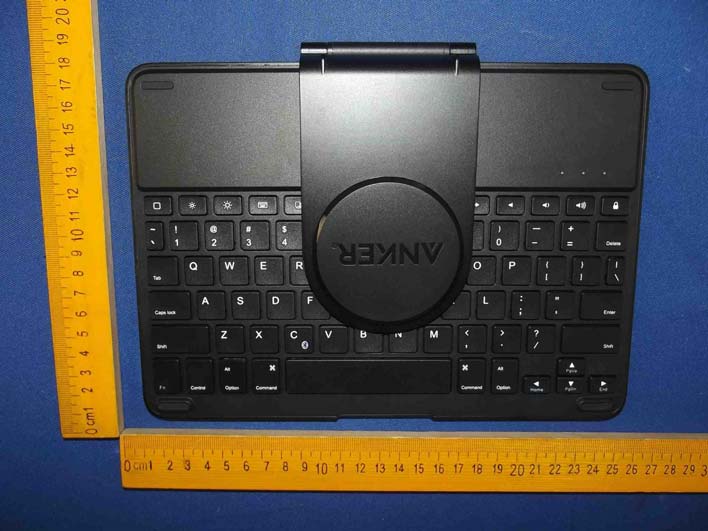

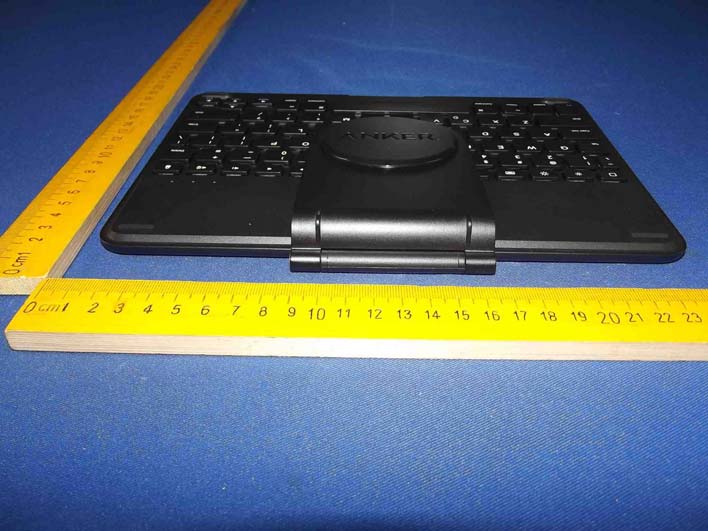

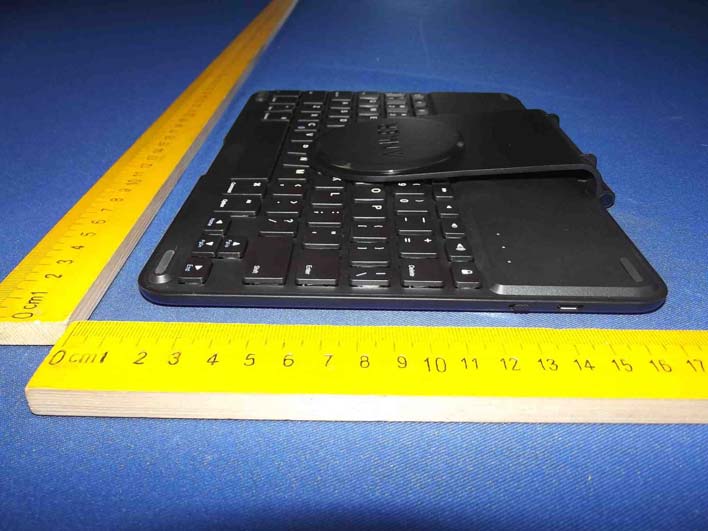

Figure 1 The EUT-Overall View Figure 2 The EUT-Top View Figure 3 The EUT- Bottom View Figure 4 The EUT- Front View Figure 5 The EUT- Back View Figure 6 The EUT- Right View Figure 7 The EUT- Left View

Product Name:Bluetooth Keyboard Model No.:Z1151 FCC ID: 2AB7K-Z1151 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Label Location On EUT

Figure 8 The EUT-Inside View Figure 9 PCB of the EUT-Front View Antenna Figure 10 PCB of the EUT-Back View Figure 11 PCB of the EUT-Front View Figure 12 PCB of the EUT-Back View

RF EXPOSURE EVALUATION FCC ID：2AB7K-Z1151 According to KDB 447498: Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. The maximum output power for low channel is: 0.98dBm= 1.25mW Tune up tolerance is: 0.98±1 dBm The Max. Tune up Power = 1.98dBm= 1.58mW The calculation results= 1.58/5*√2.402 =0.4898 ＜3 The maximum output power for middle channel is: 1.27dBm= 1.33mW Tune up tolerance is: 1.27±1 dBm The Max. Tune up Power = 2.27dBm= 1.69mW The calculation results= 1.69/5*√2.441 =0.5279 ＜3 The maximum output power for high channel is: 1.62dBm= 1.45mW Tune up tolerance is: 1.62±1 dBm The Max. Tune up Power = 2.62dBm= 1.83mW The calculation results= 1.83/5*√2.480 =0.5755 ＜3 Test Results: The EUT is not need to conduct SAR measurement. 2402MHz 2480MHz 2441MHz

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-Z1151 Page 1 of 40 Report No.: R011410556E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Anker Technology Co., Limited Bluetooth Keyboard Model No.: Z1151 Report Number : R011410556E Date of Test : Nov. 03~ 13, 2014 Date of Report : Nov. 14, 2014 Prepared for : Anker Technology Co., Limited Address : Room 1318-19, Hollywood Commercial Center, 610 Nathan Road, Mongkok, Kowloon, Hongkong Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2AB7K-Z1151 Page 2 of 40 Report No.: R011410556E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION ................................................................................................................ 4 1.1. Description of Device (EUT) ...................................................................................................................... 4 1.2. Auxiliary Equipment Used during Test ........................................................................................................ 5 1.3. Description of Test Facility ......................................................................................................................... 5 1.4. Measurement Uncertainty ........................................................................................................................... 5 2. TEST PROCEDURE ............................................................................................................................ 6 3. CONDUCTED LIMITS ........................................................................................................................ 7 3.1. Block Diagram of Test Setup ...................................................................................................................... 7 3.2. Power Line Conducted Emission Measurement Limits (15.207) .................................................................. 7 3.3. Configuration of EUT on Measurement ...................................................................................................... 7 3.4. Operating Condition of EUT ....................................................................................................................... 7 3.5. Test Procedure ............................................................................................................................................ 8 3.6. Power Line Conducted Emission Measurement Results .............................................................................. 8 4. RADIATION INTERFERENCE ......................................................................................................... 11 4.1. Requirements (15.249, 15.209): ................................................................................................................ 11 4.2. Test Procedure .......................................................................................................................................... 11 4.3. Test Configuration: ................................................................................................................................... 12 4.4. Test Results .............................................................................................................................................. 13 5. BANDEDGE ...................................................................................................................................... 19 5.1. Requirements (15.249): ............................................................................................................................ 19 5.2. Test Procedure .......................................................................................................................................... 19 5.3. Test Configuration: ................................................................................................................................... 20 5.4. Test Results .............................................................................................................................................. 20 6. OCCUPIED BANDWIDTH ................................................................................................................ 29 6.1. Requirements: .......................................................................................................................................... 29 6.2. Test SET-UP ............................................................................................................................................. 29 6.3 Test Equipment .......................................................................................................................................... 29 6.4. Test Results .............................................................................................................................................. 29 7. PHOTOGRAPH ................................................................................................................................. 32 7.1. Photo of Conducted Emission Test ............................................................................................................ 32 7.2. Photo of Radiation Emission Test ............................................................................................................. 32 APPENDIX I (EXTERNAL PHOTOS) ................................................................................................... 34 APPENDIX II(INTERNAL PHOTOS) .................................................................................................... 38 A…

Text truncated - open the document above for the full version.

1. Photo of Conducted Emission Test 2. Photo of Radiation Emission Test
