2AB7S-NA1800Car Audio System player

NA1800 AV Media Receiver User Manual Enjoy the Lifestyle of In-Car Entertainment FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID :2AB7S-NA1800 Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CONTENTS Contents Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. 1 Thank you for purchasing a Nakamichi products. INTRODUCTIONS 2 3 AV MEDIA Listening to the radio......................................................................... Playing of Music................................................................................ Enjoying the movie............................................................................ 4 5 6 7 AUDIO ADJUSTMENT Speaker/Subwoofer. Equalizer......................................................................................... .......................................................................... Smart Phone Mirroring - AV System.............................................................................. MIRROR PHONE REFERENCE Specifications................................................................................. 8 9 11 12 Overview the unit ............................................................................. Basic operations............................................................................... Viewing the photo............................................................................. BLUETOOTH Using bluetooth............................................................................... 10 APP DIM TILT EQ SRC REL NA1 800 AUX-IN 102.80 FMSELECT FMSELECT 90.30 90.30 108.00 108.00 102.80 102.80 104.00 104.00 94.70 94.70 FM3 FM3 MHz 03:38 EQ AM 2 INTRODUCTIONS Overview the unit Down Eject TFT Dimmer Unolck the panel USB Socket Open/Close TFT screen Source Aux in Jack Clock Power / Hold: Mute Press: Volume Rotate: Up Adjust position of the screen The virtual control buttons for the smart phone will pop up automatically. Power on or off Turn mute or restore volume Access into dimmer settings Playback list browser Access into the HOME menu Confirm an option up/down Tune for radio station Skip/search for track Fast backward/forward playback Adjust the function o AV source Increase/Decrease the volume Return to the previous item. Enter into the Setting mode. Select EQ mode iX-BASS booster function On/Off Dynamic bass boost sound On/Off Select audio channel Access the DVD menumain Bring up the Title Menu Radio band Pause or Resume play Media playback INTRODUCTIONS Basic operations Setup Audio Audio EQEQ SystemSystem InformationInformationBluetoothBluetooth ScreenScreen Access to Setup Menu Access to HOME Access to system settings System General SWC Learning Beep Clock Mode Date / Time 12H OFF Access to General settings Adjust the brightness Audio Control 102.80 FMSELECT FMSELECT 90.30 90.30 102.80 102.80 104.00 104.00 94.70 94.70 FM3 FM3 MHz 03:38 EQ EQ PM 0234 PM 2013 FEB 23 Access to CLOCK 3 General 108.00 108.00 AM 102.80 FMSELECT FMSELECT 90.30 90.30 108.00 108.00 102.80 102.80 104.00 104.00 94.70 94.70 FM3 FM3 MHz 03:38 AM EQ APP DIM TILT EQ SRC REL NA1 800 AUX-IN 102.80 FM SELEC T FM SELEC T 90. 30 90. 30 108. 00 108. 00 102. 80 102. 80 104. 00 104. 00 94. 70 94. 70 FM3 FM3 MHz 03:38 EQ AM External Box Language English No Device Access to External Box options System General SWC Learning External Box External Box Mirror Phone Box Analog TV Box External Box Select AV MEDIA Listening to the radio 4 Tap BAND to change to FM or AM FM3 FM3 Tap on button on the TFT screen access into the tuner function. AM Tuner Local Area ON Europe Tap on button into the Tuner Function menu. FM or or 102.80 FMSELECT FMSELECT 90.30 90.30 108.00 108.00 102.80 102.80 104.00 104.00 94.70 94.70 FM3 FM3 MHz 03:38 AM EQ Press and hold to MANUAL SEEK 102.80 FMSELECT FMSELECT 90.30 90.30 108.00 108.00 102.80 102.80 104.00 104.00 94.70 94.70 FM3 FM3 MHz 03:38 AM EQ Preset List Press to AUTO SEEK Tap to Auto Store Press and hold to Store stations USB/Music Yesterday.mp3 You are not alone.mp3 French Everytimes has com... Official Remix.mp3 Play file list browser EQ Mute/ Up/play or Pause/down Adjust the different Repeat mode AV MEDIA Playing of Music 5 Audio Control Media Repeat Random OFF One AP P DI M TILT EQ SRC REL NA1 800 AUX-IN Ending Dr eam Everytime We Touch.mp 3 Cascade 00:01:10 / 00:04:32 ON E 03:38 EQ 357243 AV MEDIA Enjoying the movie Change function bar 6 Select the audio type. (For DVD-VR: the audio channel)Select Top Menu or Browser Previous, Pause / Next Play, Home menu DVD 1/2 Pause T:2/5 C:1/20 00:01:10 / 00:04:32 Media function menu. access to system menu GOTO Access into the search mode (DVD only). Repeat playback mode Up/Down/Left/Right Zoom the video & photo Select aspect ratio AV MEDIA 7 Viewing the photo Move left the zooming frame Move up the zooming frame Move down the zooming frame Move right the zooming frame 2/2 Photo 1/20 1/2 Photo 1/20 Change function bar Top Menu or Browser Zoom the photo Audio - Subwoofer Level 6dB 12dB 0dB LPF 160Hz 160Hz 120Hz 80Hz 80Hz 120Hz 6dB AUDIO ADJUSTMENT Speaker/Subwoofer 8 Ba lanc e R-12 Fade r F- 10 Se tup EQEQSystemSy st em InformationInformat ionBluetoothBl ue too th ScreenSc ree n Touch to turn On / Off the subwoofer Tap on / buttons to adjust value of subwoofer level. Audio Au dio Balance L-6 Fad er F-R Aud io - Spea ke r SUB-WOOFER settings Aud io DB SS Sp eaker Su bwo ofer XB AS S ON ON Speaker settings Low Pass Filter Transfer Function Adjust Fader/Balance Value From -12 to +12. Access to Audio Menu Access to System Menu 160Hz 120Hz 80Hz 9 6 Pr…

Text truncated - open the document above for the full version.

All models are electrically identical, only the appearance, color, trade name and model No. are different .

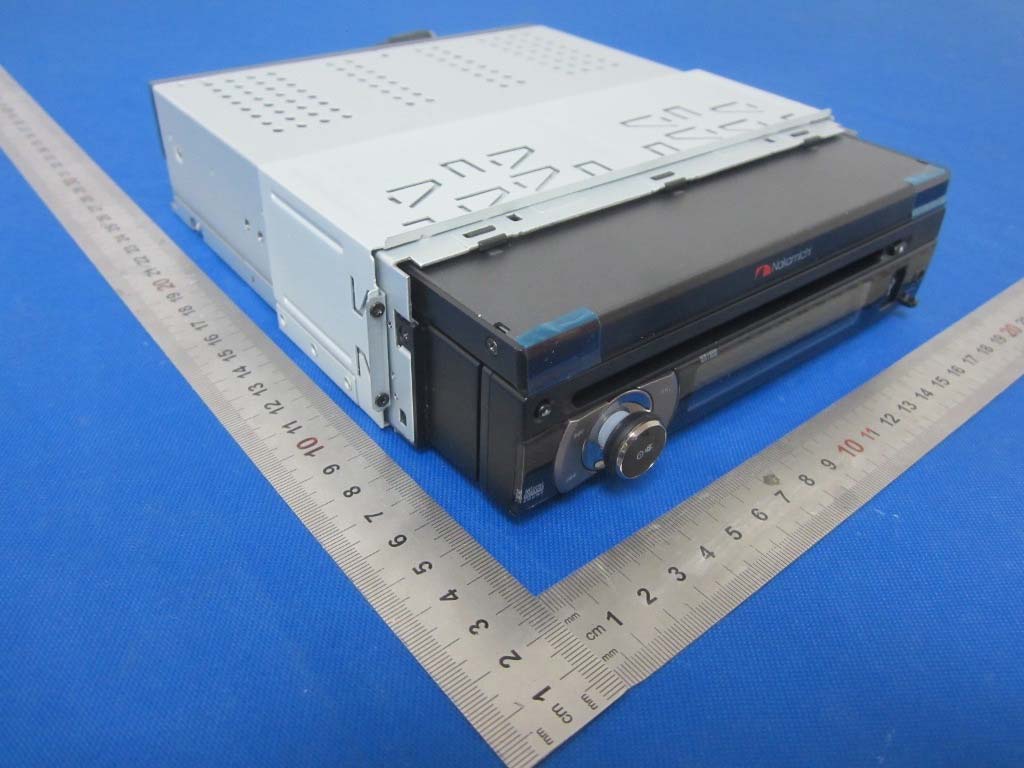

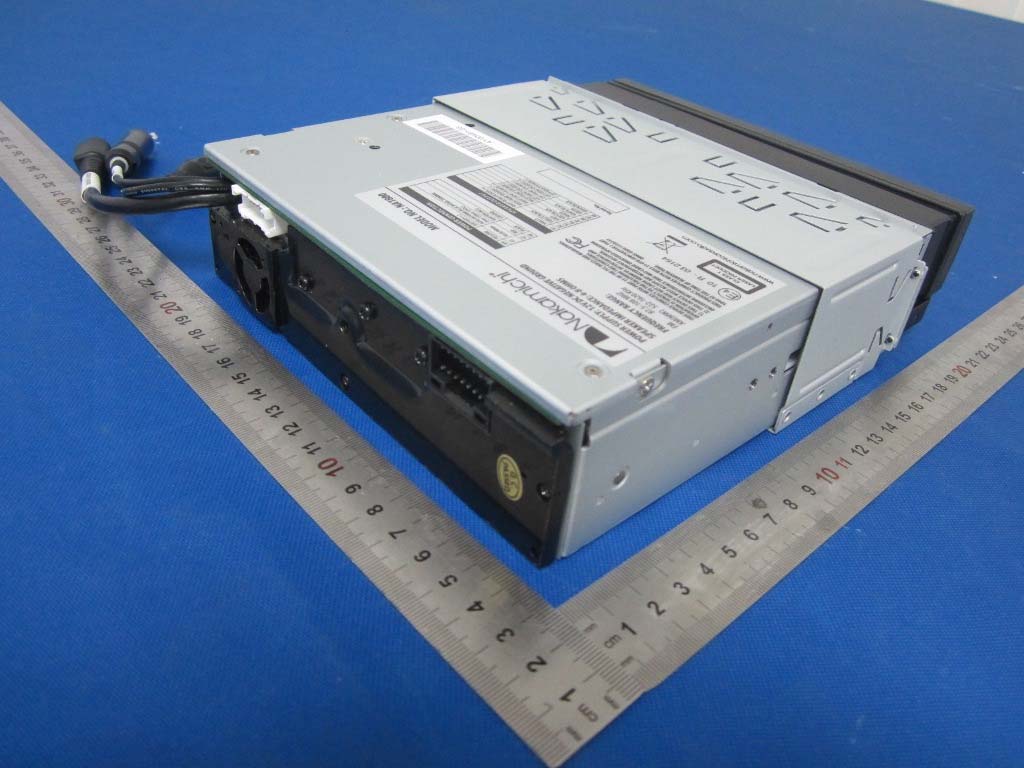

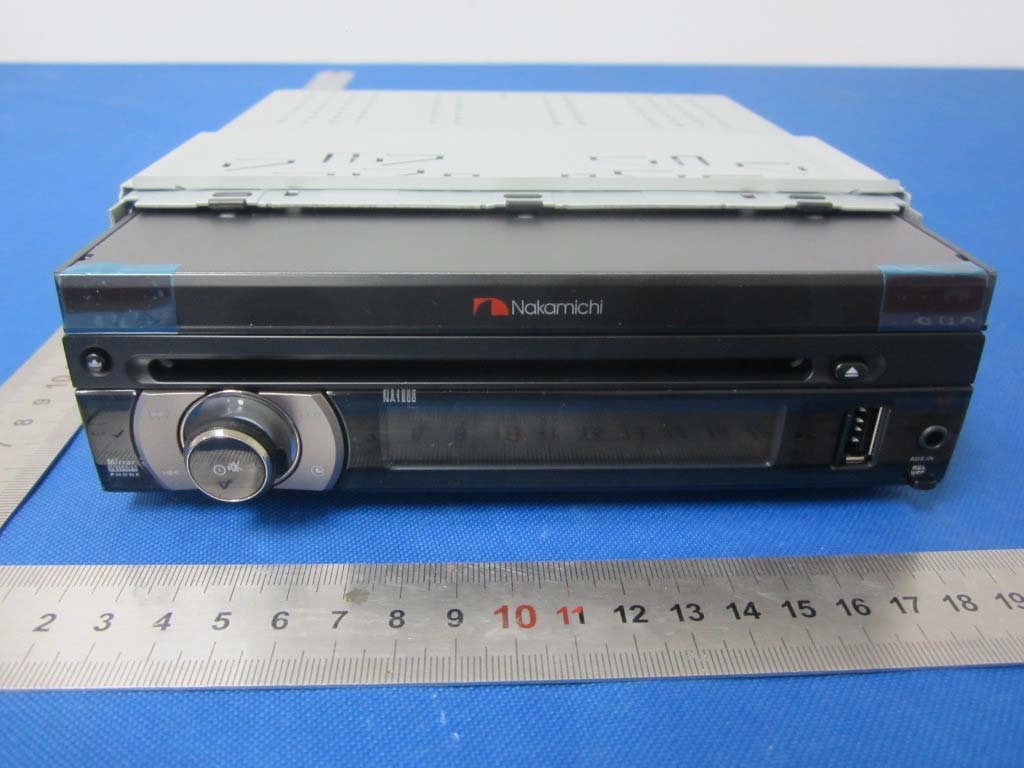

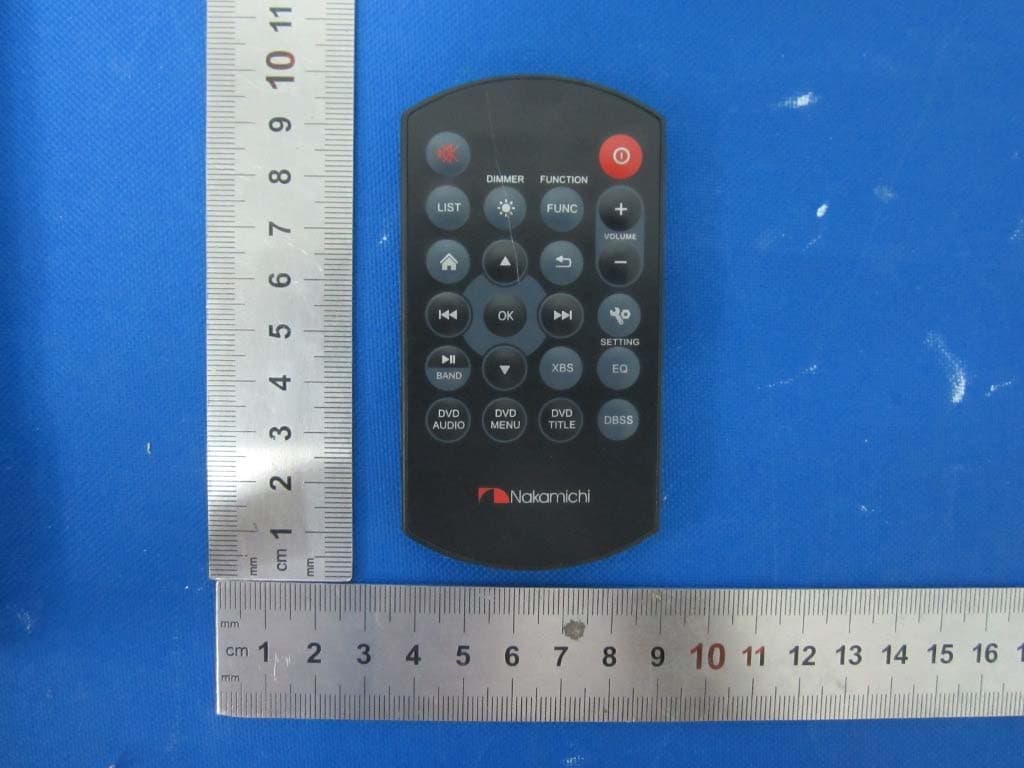

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1117-2E1 Page 43 of 61 15. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1117-2E1 Page 44 of 61 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1117-2E1 Page 45 of 61 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1117-2E1 Page 46 of 61

***PART NO: 706-NA180001-NH-00 NA1800(NAKAMICHI BRAND)* SAMPLE** TOP LABEL For Model : DATE:2015-11-18 COLOR: SILVER BACKGROUND/BLACK LETTERING SIZE: 110X72MM Serial No. RIGHT FRONT SPEAKER (+) LEFT FRONT SPEAKER (+) LEFT FRONT SPEAKER (-) RIGHT FRONT SPEAKER (-) LEFT REAR SPEAKER (-) LEFT REAR SPEAKER (+) B8 B6 B5 B4 B3 B7 GREEN/BLACK WHITE/BLACK GREEN GREY/BLACK WHITE GREY RIGHT REAR SPEAKER (+) RIGHT REAR SPEAKER (-) B1 B2 VIOLET VIOLET/BLACK SPEAKER OUTPUT 4 10 R- 03 2154 POWER SUPPLY: 12V DC NEGATIVE GROUND SPEAKER IMPEDANCE: 4-8 OHMS THIS PRODUCT COMPLIES WITH RULE 21 CFR SUBCHAPTER J PART 1040 AT THE TIME OF MANUFACTURE. DHHS CODE:1230213 FREQUENCY RANGE: FM 87.5-108 MHZ AM(MW) 522-1620 KHz BATTERY(+) A4 YELLOW A5 GROUND IGNITION (ACC) BLACK A8 A7 RED BLUE/White AUTO ANTENNA RELACONTROL TERMINAL (max 150mA 12VDC) MODEL NO.: NA1800 POWER CONNECTION FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID :2AB7S-NA1800

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz, 2.47dBm (1.77mW) output power] (1.77/5) ·[√2.441(GHz)]= 0.553 <3.0 for 1-g SAR Then SAR evaluation is not required Leo Liu 2015/11/19

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1117-2E1 Page 1 of 61 FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-22891499 Http://www.dgddt.com Applicant : Soundmax Electronics Limited Address : 17/F.,Eu Yan Sang Tower, 11-15 Chatham Road South, Tsim Sha Tsui , Kowloon., Hong Kong Equipment under Test : Car Audio System player Model No : NA1800, NA1801, NA1802 Trade Mark : Nakamichi FCC ID : 2AB7S-NA1800 Report No.: DDT-R15Q1117-2E1 Issued Date: Nov. 18, 2015 Nakamichi, SOUNDMAX Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1117-2E1 Page 2 of 61 TABLE OF CONTENTS Test report declares......................................................................................................................4 1.  Summary of test results ............................................................................................................... 5  2.  General test information .............................................................................................................. 6  2.1.  Description of EUT ..................................................................................................................... 6  2.2.  Assistant equipment used for test ................................................................................................ 6  2.3.  Block diagram of EUT configuration for test ............................................................................. 6  2.4.  Test environment conditions ....................................................................................................... 7  2.5.  Deviations of test standard .......................................................................................................... 7  2.6.  Test laboratory ............................................................................................................................. 7  2.7.  Measurement uncertainty ............................................................................................................ 7  3.Equipment used during test ......................................................................................................... 9 4.Maximum Peak Output Power .................................................................................................. 10 4.1.Test equipment .......................................................................................................................... 10 4.2.Block diagram of test setup ....................................................................................................... 10 4.3.Limits ........................................................................................................................................ 10 4.4.Test Procedure ........................................................................................................................... 10 4.5.Test Result ................................................................................................................................. 10 5.20dB Bandwidth ........................................................................................................................ 11 5.1.Test equipment .......................................................................................................................... 11 5.2.Block diagram of test setup ....................................................................................................... 11 5.3.Limits ........................................................................................................................................ 11 5.4. Test Procedure ........................................................................................................................... 11 5.5.Test Result ................................................................................................................................. 11 5.6.Original test data ....................................................................................................................... 12 6.Carrier Frequency Separation .................................................................................................... 13 6.1.Test equipment .......................................................................................................................... 13 6.2.Block diagram of test setup ....................................................................................................... 13 6.3.Limits ........................................................................................................................................ 13 6.4.Test Procedure ........................................................................................................................... 13 6.5.Test Result ................................................................................................................................. 13 6.6.Original test data ....................................................................................................................... 14 7.Number Of Hopping Channel ................................................................................................... 15 7.1.Test equipment .......................................................................................................................... 15 7.2.Block diagram of test setup ....................................................................................................... 15 7.3.Limits ........................................................................................................................................ 15 7.4.Test Procedure ..........................................................................................................................…

Text truncated - open the document above for the full version.

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1117-2E1 Page 42 of 61 14. Test setup photograph
