2AB7S-YL5045K00MONITOR WITH RECEIVER

• Updated information (the latest Instruction Manual, etc.) is available from <ht tp://w w w.jvc.net /cs/car/>. B5K-1095-00 EN (K)© 2023 JVC KENWOOD Corporation Model name indication position See “Removing the trim plate” (P.19) Trim plate KW-M180BT MONITOR WITH RECEIVER INSTRUCTION MANUAL 2 Before use Before use ................................................................................. 2 How to read this manual ................................................................................... 2 Precautions ................................................................................................................ 2 Getting Started ....................................................................... 3 Clock settings ........................................................................................................... 3 Basics .......................................................................................... 4 Functions of the Buttons on the Front Panel ...................................... 4 Common operations ........................................................................................... 4 HOME screen descriptions .............................................................................. 5 Source control screen ......................................................................................... 5 Tuner ........................................................................................... 6 Tuner Basic Operation......................................................................................... 6 Presetting stations ................................................................................................ 6 Tuner Setup ................................................................................................................ 6 USB .............................................................................................. 7 Preparation ................................................................................................................. 7 Playback operations ............................................................................................. 7 iPhone ........................................................................................ 8 Preparation ................................................................................................................. 8 Playback operations ............................................................................................. 8 Mirroring ................................................................................... 9 Preparation ................................................................................................................. 9 Mirroring operations............................................................................................ 9 External Components ........................................................10 Using external audio/video players .........................................................10 Rear view camera .................................................................................................10 Reverse with ATT ..................................................................................................10 Bluetooth ................................................................................11 Register your smartphone to the unit ...................................................11 Bluetooth Setup ....................................................................................................11 Receive a phone call ..........................................................................................12 Make a phone call ................................................................................................12 Playing Bluetooth Audio Device ................................................................13 Controlling Audio ................................................................14 Controlling General Audio .............................................................................14 Equalizer Control ..................................................................................................14 Speaker / X’Over setup .....................................................................................15 Listening Position / DTA ..................................................................................15 Sound Effect ............................................................................................................15 Remote control .....................................................................16 Functions of the Remote control Buttons ...........................................16 Installation ..............................................................................17 Before Installation ................................................................................................17 Installing the unit .................................................................................................18 About this Unit ......................................................................22 More information ................................................................................................22 Troubleshooting ..................................................................................................23 Copyrights ................................................................................................................24 Specifications .........................................................................................................24 Precautions #WARNING ÑTo prevent injury or fire, take the following precautions: • To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. • Do not watch or fix your eyes on the unit’s display when you are driving for any extended period. • If you experience problems during installation, consult your JVC dealer. …

Text truncated - open the document above for the full version.

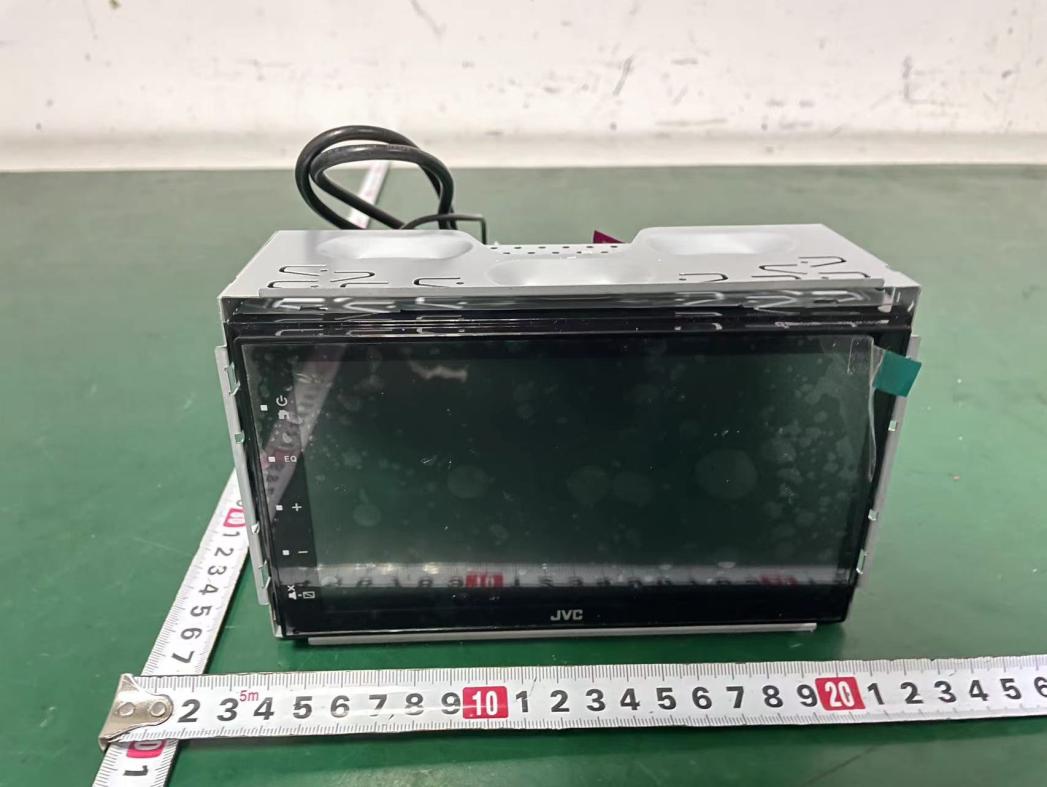

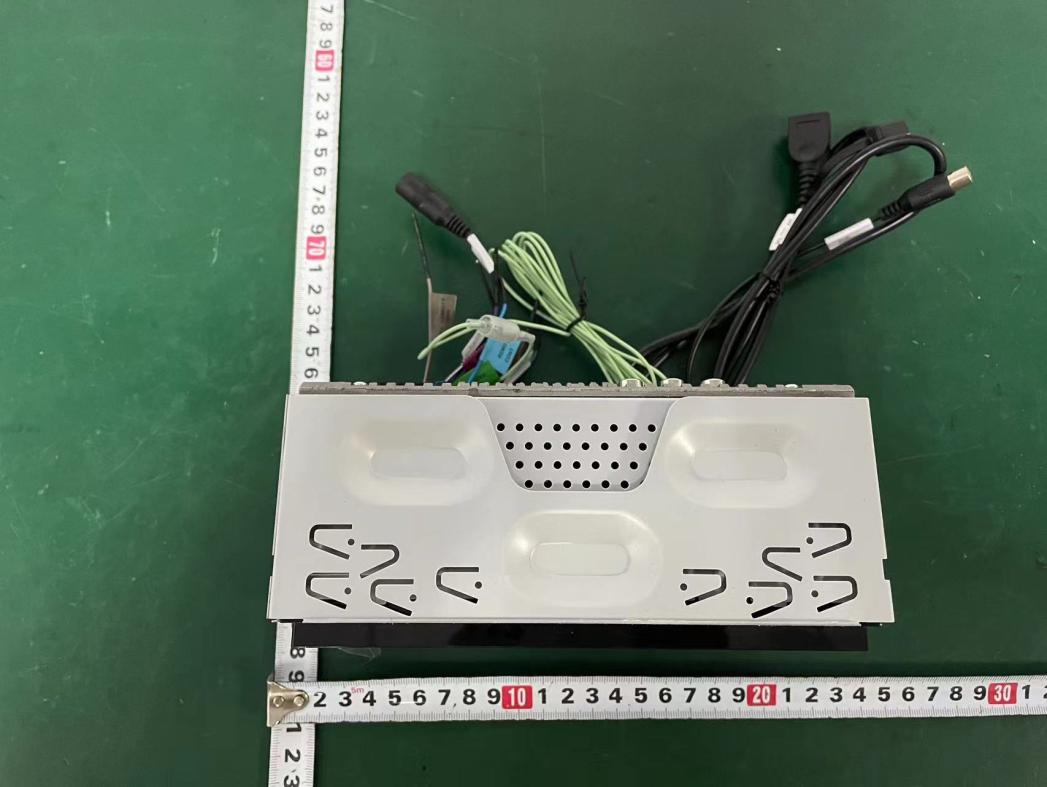

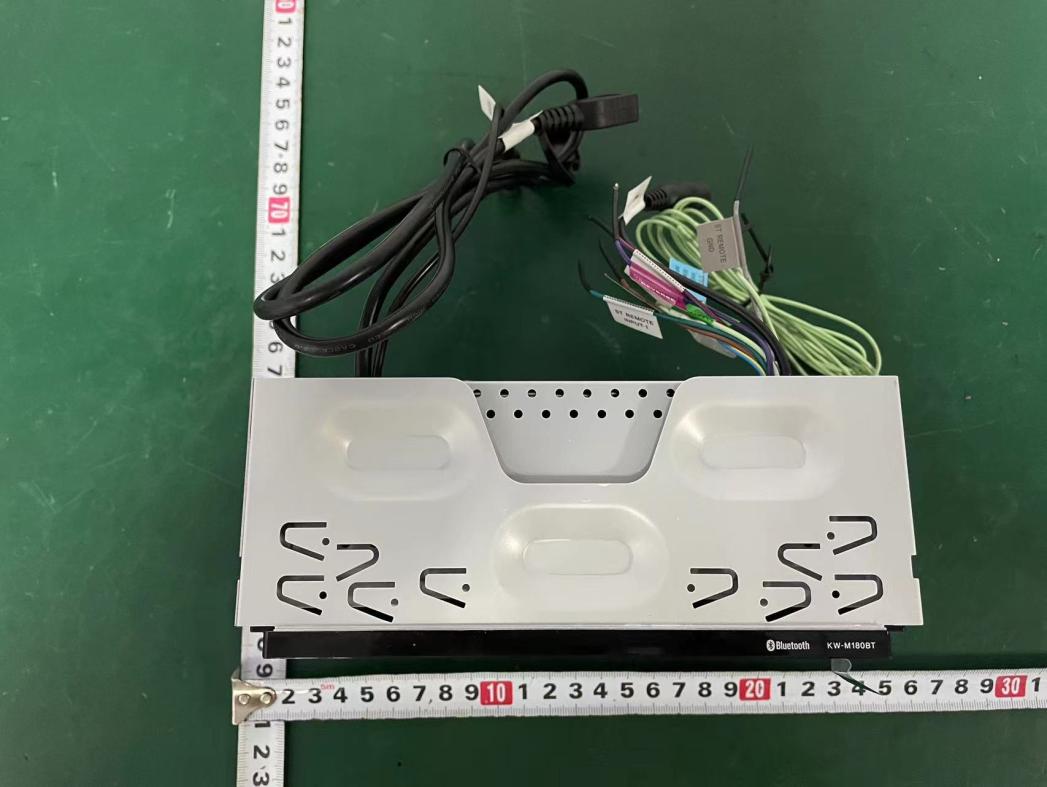

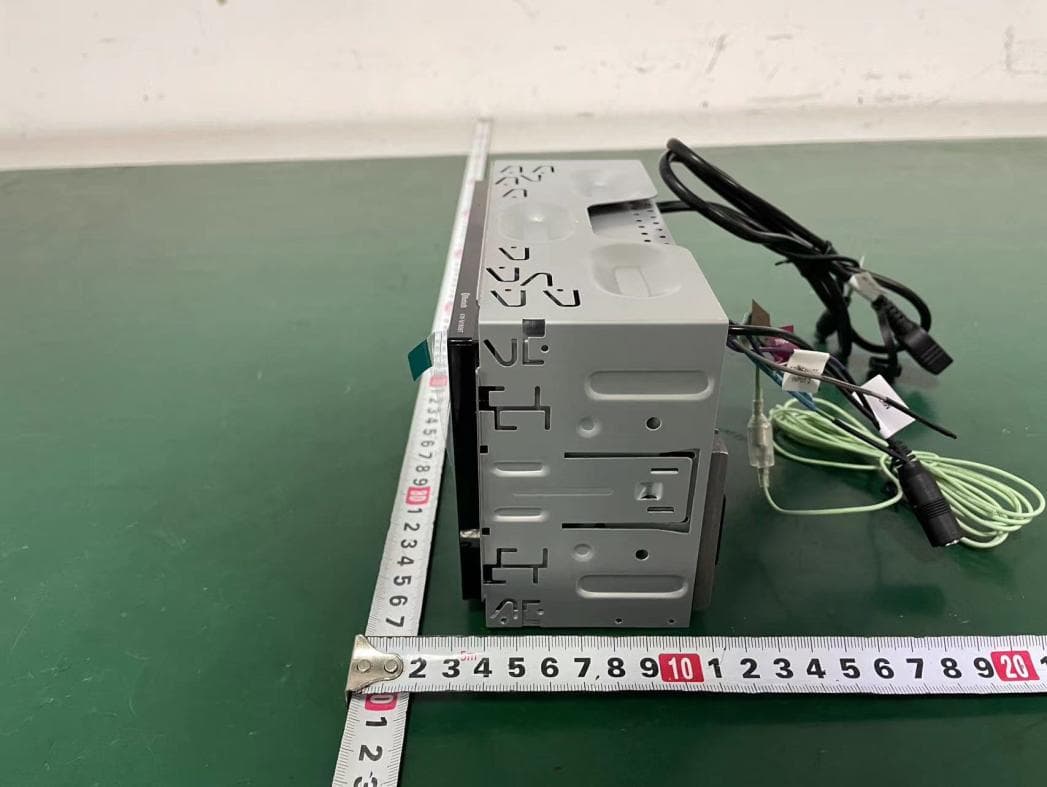

External photos M/N: KW-M180BT External photos M/N: KW-M180BT External photos M/N: KW-M180BT

Internal photos M/N: KW-M180BT Internal photos M/N: KW-M180BT Internal photos M/N: KW-M180BT Internal photos M/N: KW-M180BT Internal photos M/N: KW-M180BT BT ANT Internal photos M/N: KW-M180BT

FCC ID: 2AB7S-YL5045K00 EST Technology Co. ,Ltd Report No. ESTE-R2302043 Page 1 of 4 FCC 47 CFR MPE REPORT Soundmax Electronics Limited MONITOR WITH RECEIVER Model Number: KW-M180BT Additional Model: DMX129BT FCC ID: 2AB7S-YL5045K00 Applicant: Soundmax Electronics Limited Address: 17/F EU YANG SANG TOWER, 11-15 CHATHAM ROAD, T.S.T, KOWLOON, Hong Kong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2302043 Date of Test: Jan. 05~Apr. 08, 2023 Date of Report: Apr. 08, 2023 FCC ID: 2AB7S-YL5045K00 EST Technology Co. ,Ltd Report No. ESTE-R2302043 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AB7S-YL5045K00 EST Technology Co. ,Ltd Report No. ESTE-R2302043 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AB7S-YL5045K00 EST Technology Co. ,Ltd Report No. ESTE-R2302043 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 1.36 1.368 2441 -0.28 0.938 2480 -3.36 0.461 π/4-DQPSK 2402 1.02 1.265 2441 -0.54 0.883 2480 -3.60 0.437 8-DPSK 2402 0.89 1.227 2441 -0.73 0.845 2480 -3.61 0.436 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power (dBm) Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) GFSK 1.36 1±1 2 4.21 2.636 0.00083 1 Complies π/4-DQPSK 1.02 1±1 2 4.21 2.636 0.00083 1 Complies 8-DPSK 0.89 0±1 1 4.21 2.636 0.00066 1 Complies End of Test Report

FCC ID: 2AB7S-YL5045K00 EST Technology Co., Ltd Report No. ESTE-R2302042 Page 1 of 76 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Soundmax Electronics Limited MONITOR WITH RECEIVER Model Number: KW-M180BT Additional Model: DMX129BT FCC ID: 2AB7S-YL5045K00 Applicant : Soundmax Electronics Limited Address: 17/F EU YANG SANG TOWER, 11-15 CHATHAM ROAD, T.S.T, KOWLOON, Hong Kong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2302042 Date of Test: Jan. 05~Apr. 08, 2023 Date of Report: Apr. 08, 2023 FCC ID: 2AB7S-YL5045K00 EST Technology Co., Ltd Report No. ESTE-R2302042 Page 2 of 76 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 12 4. 20 DB BANDWIDTH ....................................................................................................................... 13 4.1. Limit ............................................................................................................................................... 13 4.2. Test Setup ....................................................................................................................................... 13 4.3. Spectrum Analyzer Setting ............................................................................................................. 13 4.4. Test Procedure ................................................................................................................................ 13 4.5. Test Result ...................................................................................................................................... 13 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 14 5.1. Limit ............................................................................................................................................... 14 5.2. Test Setup ....................................................................................................................................... 14 5.3. Spectrum Analyzer Setting ............................................................................................................. 14 5.4. Test Procedure ................................................................................................................................ 14 5.5. Test Result ...................................................................................................................................... 14 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 15 6.1. Limit ............................................................................................................................................... 15 6.2. Test Setup ...............................................…

Text truncated - open the document above for the full version.

Antenna Test Report Product name：Bluetooth antenna Antenna type: PCB antenna Operating frequency: 2400-2500MHz Antenna Gain: 4.21dBi (MAX) Test standard: IEEE149-1979,IEEE Stand test Procedures For Antennas Manufacturer: Team Force ELECTRONICS CO., LTD Address: FULONG INDUSTRIAL ZONE, FULONG VILLAGE, SHIPAI TOWN, DONGGUAN, GUANGDONG PROVINCE, P.R. CHINA Antenna gain& Efficiency SWR Frequency Gain (dBi) Efficiency( ) 2400MHz 3.46 52% 2402MHz 3.47 52% 2404MHz 3.45 52% 2406MHz 3.54 52% 2408MHz 3.55 53% 2410MHz 3.56 53% 2412MHz 3.55 53% 2414MHz 3.54 53% 2416MHz 3.61 54% 2418MHz 3.64 55% 2420MHz 3.64 55% 2422MHz 3.67 55% 2424MHz 3.72 55% 2426MHz 3.62 56% 2428MHz 3.65 56% 2430MHz 3.69 56% 2432MHz 3.75 56% 2434MHz 3.80 57% 2436MHz 3.70 56% 2438MHz 3.74 56% 2440MHz 3.79 56% 2442MHz 3.84 56% 2444MHz 3.88 56% 2446MHz 3.80 56% 2448MHz 3.82 56% 2450MHz 3.85 56% 2452MHz 3.88 56% 2454MHz 3.89 56% 2456MHz 3.94 56% 2458MHz 3.96 56% 2460MHz 3.96 56% 2462MHz 3.95 56% 2464MHz 3.96 56% 2466MHz 4.05 57% 2468MHz 4.07 57% 2470MHz 4.09 57% 2472MHz 4.09 58% 2474MHz 4.13 58% 2476MHz 4.13 59% 2478MHz 4.15 59% 2480MHz 4.15 59% 2482MHz 4.17 59% 2483.5MHz 4.21 59% Frequency SWR 2402MHz 1.82 2440MHz 1.39 2483.5MHz 1.15 1D radiation Pattern: PHI=0 PHI=90 THETA=90 SWR test photos ： Product photos:

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz
