B5H-0358-50 EN (K/R)© 2023 JVCKENWOOD Corporation DMX4710S DMX40S DMX400S MONITOR WITH RECEIVER INSTRUCTION MANUAL • Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from <https://www.kenwood.com/cs/ce/>. Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new receiver. For your records Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or service on the product. Model DMX4710S / DMX40S / DMX400S Serial number US Residence Only Register Online Register your KENWOOD product at www.kenwood.com/usa/ 2 Contents Before Use 4 Precautions ................................................................... 4 How to read this manual ......................................... 4 Basic Operations 5 Functions of the Buttons on the Front Panel ... 5 Turning on the Unit ................................................... 5 Getting Started............................................................ 6 Adjusting the volume ............................................... 7 Touch screen operations ......................................... 7 HOME screen descriptions ...................................... 8 Source selection screen descriptions .................. 8 Source control screen descriptions ...................10 MENU screen ..............................................................11 List screen ...................................................................11 APPS 12 Apple CarPlay Operation .......................................12 Android Auto Operation ........................................13 USB Mirroring Operation .......................................14 USB 15 Connecting a USB device ......................................15 USB Basic Operation ................................................15 Search Operation ......................................................17 Radio 18 Radio Basic Operation ............................................18 Memory Operation ..................................................19 Selecting Operation ................................................19 Traffic Information ...................................................20 Radio Setup ................................................................20 SiriusXM® 21 SiriusXM® Basic Operation ....................................21 Storing Channels in Preset Memory ..................22 Preset select ...............................................................22 Direct search ..............................................................23 Category/Channel search ......................................23 Replay ...........................................................................24 SiriusXM Setup ..........................................................24 Bluetooth Control 27 Information for using Bluetooth® devices .......27 Register from the Bluetooth device ...................28 Bluetooth Setup ........................................................28 Playing Bluetooth Audio Device .........................29 Using Hands-Free Unit ............................................31 Other External Components 35 View Camera ..............................................................35 External audio/video players—AV-IN ...............36 3English Setting Up 37 Monitor Screen Setup .............................................37 System Setup .............................................................37 User Interface Setup ................................................38 Special Setup .............................................................39 Display Setup .............................................................39 AV Setup ......................................................................40 Controlling Audio 41 Speaker/ X’over setup .............................................41 Controlling General Audio ....................................42 Equalizer Control ......................................................43 Volume Offset ............................................................44 Sound Effect ...............................................................44 Listening Position/ DTA ..........................................45 Remote control 46 Functions of the Remote control Buttons .......46 Connection/Installation 47 Before Installation ....................................................47 Installing the unit .....................................................48 Troubleshooting 52 Problems and Solutions .........................................52 Error Messages ..........................................................52 Appendix 54 Playable Media and Files........................................54 Specifications .............................................................55 About this Unit ..........................................................57 Before Use 4 Before Use Precautions # WARNINGS ÑTo prevent injury or fire, take the following precautions: • To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. • Do not watch or fix your eyes on the unit’s display when you are driving for any extended period. • If you experience problems during installation, consult your KENWOOD dealer. Ñ Precautions on using this unit • When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area. • You can select language to display menus, audio file tags, etc. See User Interface Setup (P.38). • The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station. Ñ Protecting the monitor • To protect the monitor from damage, do not operate the monit…

Text truncated - open the document above for the full version.

341 3408

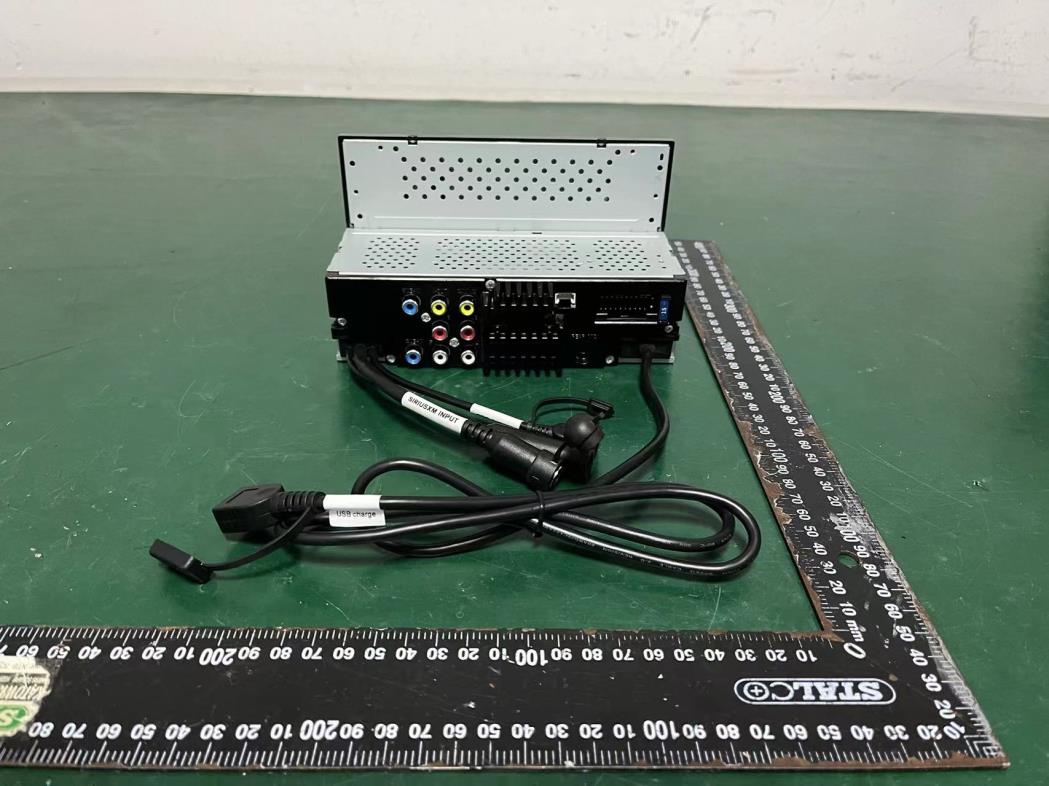

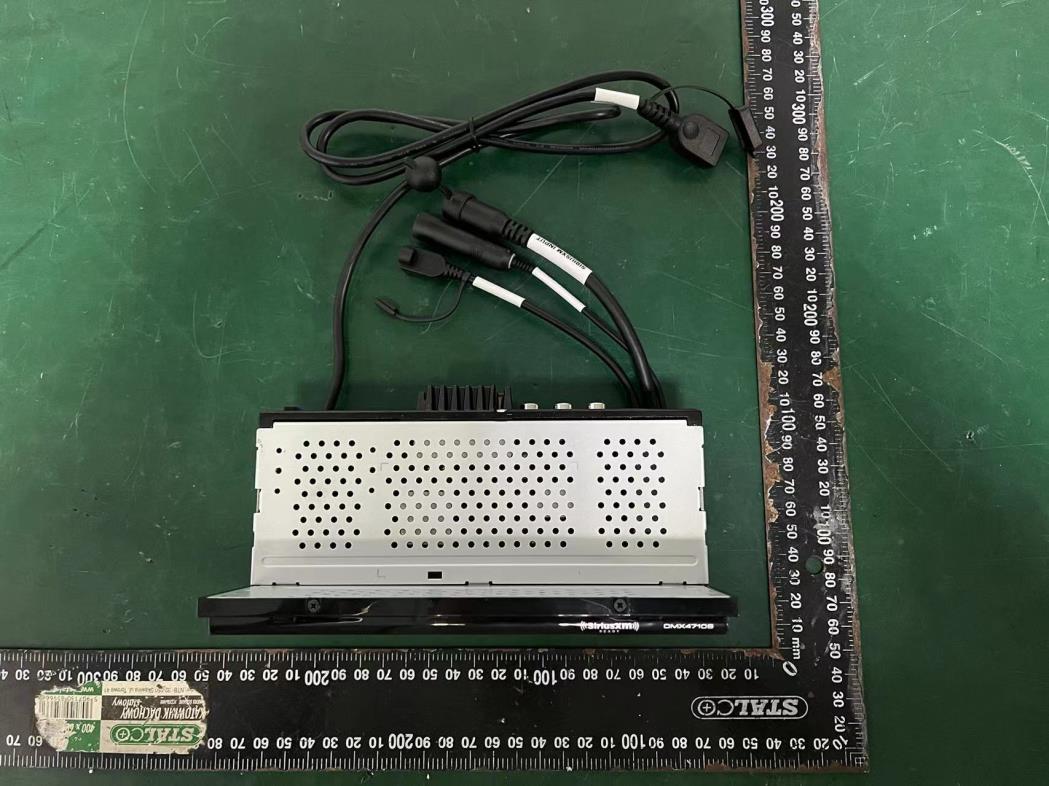

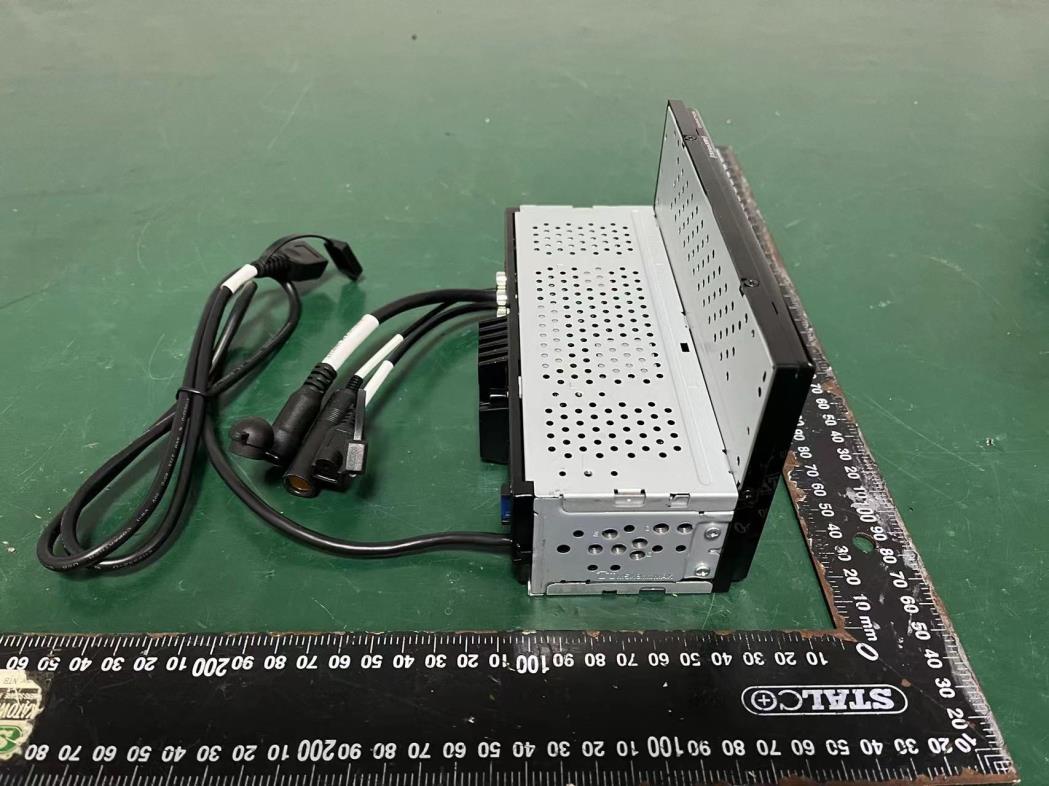

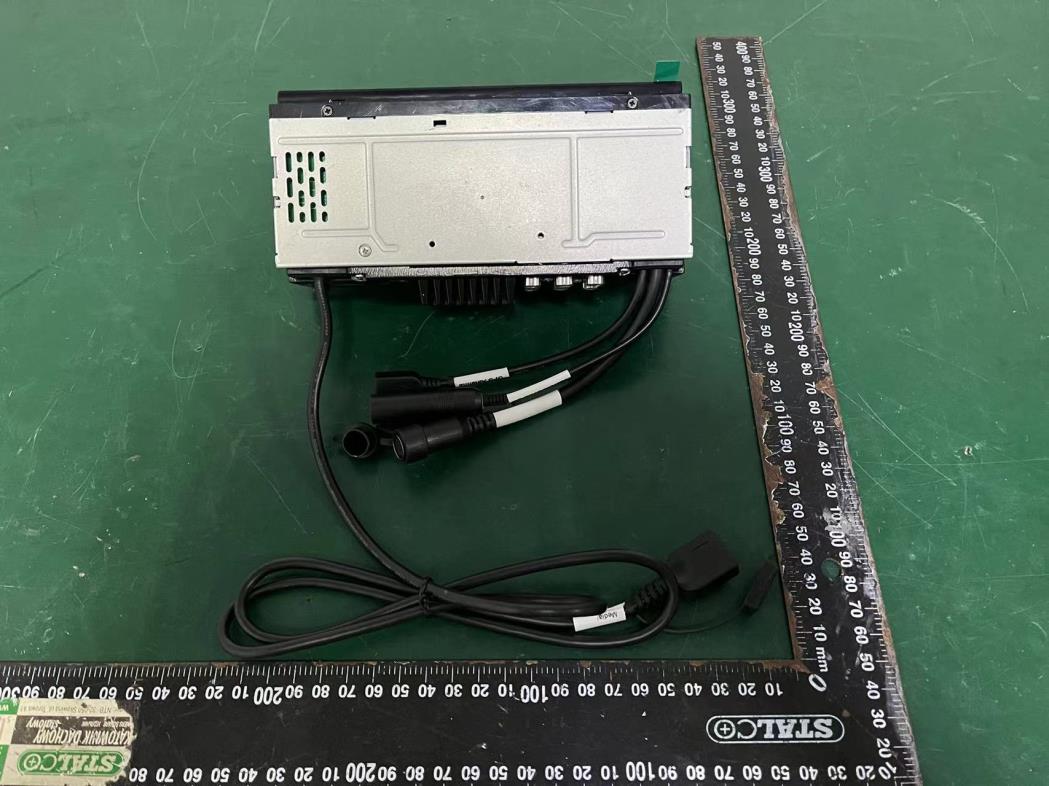

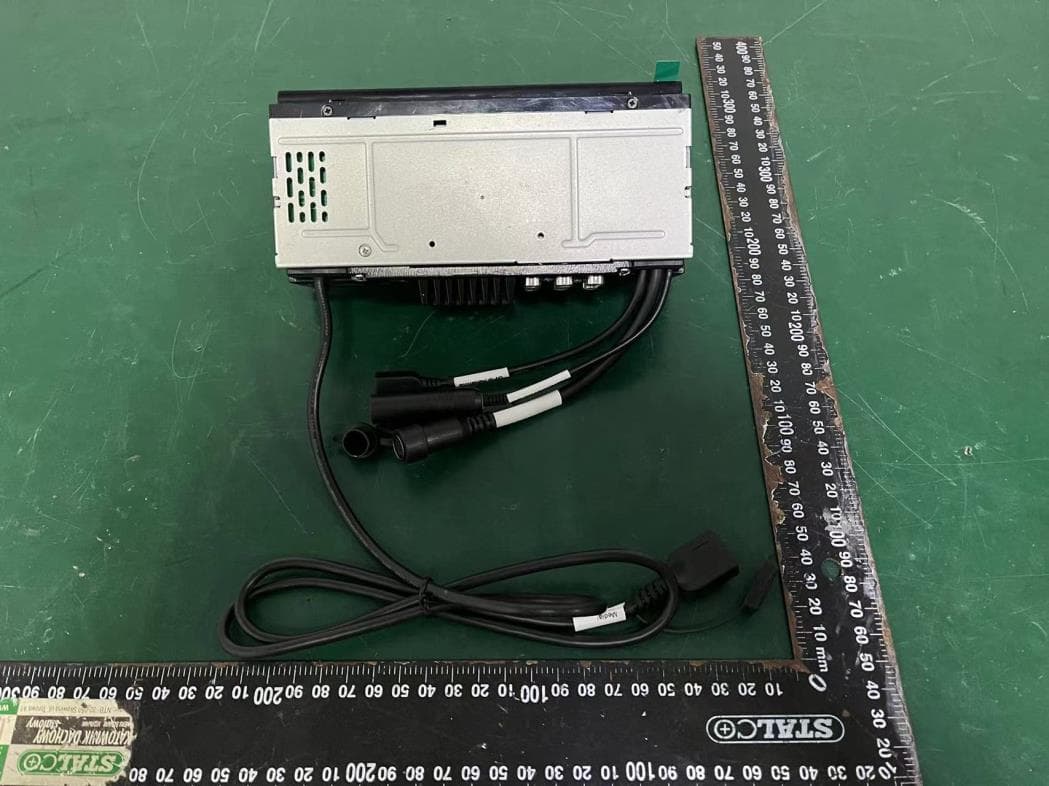

External photos M/N: DMX4710S External photos M/N: DMX4710S External photos M/N: DMX4710S External photos M/N: DMX4710S

Internal photos M/N: DMX4710S Internal photos M/N: DMX4710S Internal photos M/N: DMX4710S Internal photos M/N: DMX4710S Internal photos M/N: DMX4710S Bluetooth antenna Internal photos M/N: DMX4710S Internal photos M/N: DMX4710S

FCC ID: 2AB7S-YL5070K00 EST Technology Co. ,Ltd Report No. ESTE-R2312029 Page 1 of 4 FCC 47 CFR MPE REPORT Soundmax Electronics Limited MONITOR WITH RECEIVER Model Number: DMX4710S Additional Model: DMX40S, DMX400S, KW-M590BT, KW-M595BT FCC ID: 2AB7S-YL5070K00 Applicant: Soundmax Electronics Limited Address: 17/F EU YANG SANG TOWER, 11-15 CHATHAM ROAD,T.S.T, KOWLOON, Hong Kong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2312029 Date of Test: Oct. 11~Nov. 30, 2023 Date of Report: Dec. 05, 2023 FCC ID: 2AB7S-YL5070K00 EST Technology Co. ,Ltd Report No. ESTE-R2312029 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AB7S-YL5070K00 EST Technology Co. ,Ltd Report No. ESTE-R2312029 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AB7S-YL5070K00 EST Technology Co. ,Ltd Report No. ESTE-R2312029 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 6.79 4.775 2441 5.21 3.319 2480 4.56 2.858 π/4-DQPSK 2402 6.72 4.699 2441 5.17 3.289 2480 4.51 2.825 8-DPSK 2402 6.65 4.624 2441 5.08 3.221 2480 4.45 2.786 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power (dBm) Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) GFSK 6.79 6±1 7 0.43 1.104 0.00110 1 Complies π/4-DQPSK 6.72 6±1 7 0.43 1.104 0.00110 1 Complies 8-DPSK 6.65 6±1 7 0.43 1.104 0.00110 1 Complies End of Test Report

FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 1 of 78 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Soundmax Electronics Limited MONITOR WITH RECEIVER Model Number: DMX4710S Additional Model: DMX40S, DMX400S, KW-M590BT, KW-M595BT FCC ID: 2AB7S-YL5070K00 Applicant : Soundmax Electronics Limited Address: 17/F EU YANG SANG TOWER, 11-15 CHATHAM ROAD,T.S.T, KOWLOON, Hong Kong, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2312028 Date of Test: Oct. 11~Nov. 30, 2023 Date of Report: Dec. 05, 2023 FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 2 of 78 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Difference between Model Numbers ................................................................................................ 5 1.3. Antenna Information ........................................................................................................................ 5 1.4. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 12 4. 20 DB BANDWIDTH ....................................................................................................................... 13 4.1. Limit ............................................................................................................................................... 13 4.2. Test Setup ....................................................................................................................................... 13 4.3. Spectrum Analyzer Setting ............................................................................................................. 13 4.4. Test Procedure ................................................................................................................................ 13 4.5. Test Result ...................................................................................................................................... 13 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 14 5.1. Limit ............................................................................................................................................... 14 5.2. Test Setup ....................................................................................................................................... 14 5.3. Spectrum Analyzer Setting ............................................................................................................. 14 5.4. Test Procedure ................................................................................................................................ 14 5.5. Test Result ...................................................................................................................................... 14 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 15 6.1. Limit ..............................................…

Text truncated - open the document above for the full version.

FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 54 of 78 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 5.92 -35.58 ≤-14.08 PASS DH5 Ant1 High 2480 3.77 -42.05 ≤-16.23 PASS 2DH5 Ant1 Low 2402 5.45 -36.67 ≤-14.55 PASS 2DH5 Ant1 High 2480 3.54 -43.83 ≤-16.46 PASS 3DH5 Ant1 Low 2402 3.74 -40.71 ≤-16.26 PASS 3DH5 Ant1 High 2480 3.61 -44.12 ≤-16.39 PASS DH5 Ant1 High Hop_2480 3.84 -40.36 ≤-16.16 PASS DH5 Ant1 Low Hop_2402 5.47 -36.23 ≤-14.53 PASS 2DH5 Ant1 High Hop_2480 -0.94 -50.1 ≤-20.94 PASS 2DH5 Ant1 Low Hop_2402 0.09 -44.94 ≤-19.91 PASS 3DH5 Ant1 High Hop_2480 0.73 -42.49 ≤-19.27 PASS 3DH5 Ant1 Low Hop_2402 4.84 -38.6 ≤-15.16 PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 55 of 78 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 56 of 78 2DH5-Ant1-2480-PASS 3DH5-Ant1-2402-PASS 3DH5-Ant1-2480-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 57 of 78 DH5-Ant1-Hop_2480-PASS DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 58 of 78 2DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-Hop_2402-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 59 of 78 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 5.92 -42.71 ≤-14.08 PASS DH5 Ant1 2441 30~26500 4.04 -43.04 ≤-15.96 PASS DH5 Ant1 2480 30~26500 3.77 -41.94 ≤-16.23 PASS 2DH5 Ant1 2402 30~26500 5.45 -42.52 ≤-14.55 PASS 2DH5 Ant1 2441 30~26500 3.76 -43.11 ≤-16.24 PASS 2DH5 Ant1 2480 30~26500 3.54 -42.36 ≤-16.46 PASS 3DH5 Ant1 2402 30~26500 3.74 -42.7 ≤-16.26 PASS 3DH5 Ant1 2441 30~26500 3.77 -42.76 ≤-16.23 PASS 3DH5 Ant1 2480 30~26500 3.61 -42.42 ≤-16.39 PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 60 of 78 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 61 of 78 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS 2DH5-Ant1-2480-30~26500-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 62 of 78 3DH5-Ant1-2402-30~26500-PASS 3DH5-Ant1-2441-30~26500-PASS 3DH5-Ant1-2480-30~26500-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 63 of 78 Appendix I: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.99 5.92 DH5 Ant1 2441 2441.03 4.03 DH5 Ant1 2480 2480.16 3.77 2DH5 Ant1 2402 2402.06 5.45 2DH5 Ant1 2441 2441.06 3.76 2DH5 Ant1 2480 2480.16 3.54 3DH5 Ant1 2402 2402.08 3.74 3DH5 Ant1 2441 2441.06 3.77 3DH5 Ant1 2480 2480.14 3.61 FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 64 of 78 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 65 of 78 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 66 of 78 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 67 of 78 13. TEST SETUP PHOTO Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 68 of 78 14. EUT PHOTO External Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 69 of 78 External Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 70 of 78 External Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 71 of 78 External Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 72 of 78 Internal Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 73 of 78 Internal Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 74 of 78 Internal Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 75 of 78 Internal Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 76 of 78 Internal Photos M/N: DMX4710S Bluetooth Antenna FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 77 of 78 Internal Photos M/N: DMX4710S FCC ID: 2AB7S-YL5070K00 EST Technology Co., Ltd Report No. ESTE-R2312028 Page 78 of 78 Internal Photos M/N: DMX4710S End of Test Report

Antenna Test Report Product name：Bluetooth antenna Antenna type: PCB antenna Operating frequency: 2400-2483.5MHz Antenna Gain: 0.43dBi (MAX) Test standard: IEEE149-1979,IEEE Stand test Procedures For Antennas Manufacturer: Team Force ELECTRONICS CO., LTD Address: FULONG INDUSTRIAL ZONE, FULONG VILLAGE, SHIPAI TOWN, DONGGUAN, GUANGDONG PROVINCE, P.R. CHINA Antenna gain& Efficiency SWR Frequency Gain (dBi) Efficiency( ) 2400MHz 0.42 23% 2410MHz 0.43 23% 2420MHz 0.00 23% 2430MHz -0.45 23% 2440MHz -0.79 22% 2450MHz -0.51 22% 2460MHz -0.39 22% 2470MHz -0.26 22% 2480MHz -0.29 22% 2483.5MHz -0.33 22% Frequency SWR 2400MHz 1.46 2440MHz 1.46 2483.5MHz 1.55 1D radiation Pattern: PHI=0 PHI=90 THETA=90 SWR test photos ： Product photos:

Radiated emission test: Below 1GHz Radiated emission test: Above 1GHz
