2AB7S-YK5137K00MONITOR WITH DVD RECEIVER

B5H-0357-03 EN (K) © 2020 JVCKENWOOD Corporation KW-V660BT KW-V66BT MONITOR WITH DVD RECEIVER INSTRUCTION MANUAL • Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from <https://w w w.jvc.net/cs/car/>. !B5H-0357-03_JVC_KWV_K_En.indb 12020/04/06 19:13 2 Contents Before Use 4 Precautions ...................................................................4 How to read this manual .........................................5 Basic Operations 6 Functions of the Buttons on the Front Panel ... 6 Turning on the Unit ...................................................6 Getting S tarted............................................................ 7 Adjusting the volume ...............................................8 Touch scr een operations .........................................8 HOME screen descriptions ......................................9 S ource selection screen descriptions ..................9 S ource control screen descriptions ...................11 FUNCTION screen .....................................................12 List scr een ...................................................................12 Disc 13 Playing a disc .............................................................13 DVD/VCD Basic Operation ....................................13 M usic CD/Disc media Basic Operation .............15 File search Operation ..............................................16 DVD Disc Menu Operation ....................................17 DVD S etup ...................................................................18 APPS 19 Apple CarPlay Operation .......................................19 Android Auto™ Operation .....................................20 USB M irroring Operation .......................................21 USB 22 Connecting a USB device ......................................22 USB Basic Operation ................................................22 Sear ch Operation ......................................................24 Tuner 25 Tuner Basic Operation ............................................25 Memory Operation ..................................................26 Selec ting Operation ................................................26 Traffic Information ...................................................27 Tuner Setup ................................................................27 SiriusXM® 28 SiriusXM® Basic Operation ....................................28 Storing Channels in Preset Memory ..................29 P reset select ...............................................................29 Dir ect search ..............................................................30 C ategory/Channel search ......................................30 Replay ...........................................................................31 Sir iusXM Setup ..........................................................31 Bluetooth Control 34 Information for using Bluetooth® devices .......34 Register from the Bluetooth device ...................35 Bluet ooth Setup ........................................................35 Playing Bluetooth Audio Device .........................36 Using Hands-Free Unit ............................................38 Other External Components 42 View Camera ..............................................................42 External audio/video players—AV-IN ...............43 Setting Up 44 Monitor Screen Setup .............................................44 System Setup .............................................................44 U ser Interface Setup ................................................45 Special Setup .............................................................45 Displa y Setup .............................................................46 A V Setup ......................................................................47 !B5H-0357-03_JVC_KWV_K_En.indb 22020/04/06 19:13 3English Controlling Audio 48 Speaker/ X’over setup .............................................48 Controlling General Audio ....................................49 Equalizer Control ......................................................50 V olume Offset ............................................................51 Sound Effect ...............................................................51 Listening Position/ DTA ..........................................52 Remote control 53 Functions of the Remote control Buttons .......53 Connection/Installation 54 Before Installation ....................................................54 Installing the unit .....................................................55 Troubleshooting 59 Problems and Solutions .........................................59 Error Messages ..........................................................59 Appendix 61 Playable Media and Files........................................61 Region Codes in the World ...................................63 DVD Language C odes .............................................64 Specifications .............................................................65 About this Unit ..........................................................67 !B5H-0357-03_JVC_KWV_K_En.indb 32020/04/06 19:13 Before Use 4 Before Use Precautions # WARNINGS ÑTo prevent injury or fire, take the following precautions: • To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. • Do not watch or fix your eyes on the unit’s display when you are driving for any extended period. • If yo u experience problems during installation, consult your JVC dealer. ÑPrecautions on using this unit • When you purchase optional accessories, check with your JVC dealer to make sure that they work with your model and in your area. • Yo u can select language to display menus, audio file tags, etc. See User Interface Setup (P.45). • The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcast…

Text truncated - open the document above for the full version.

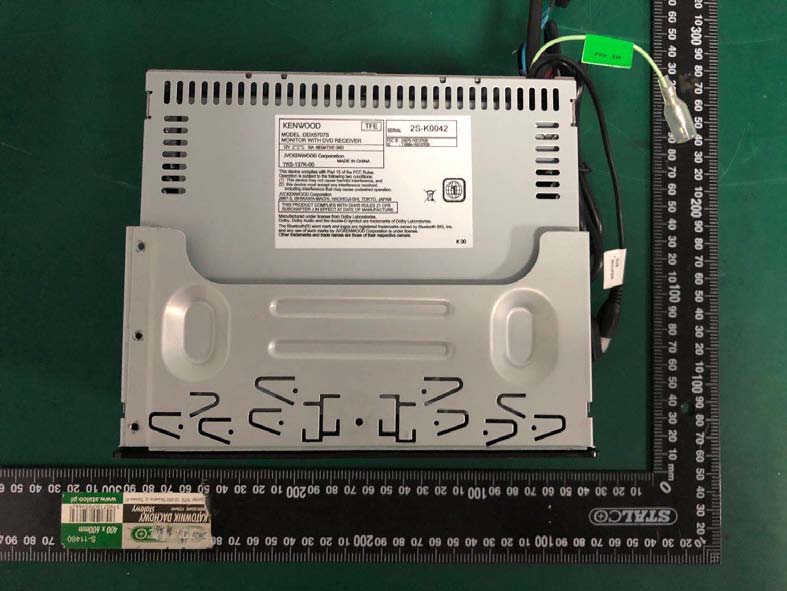

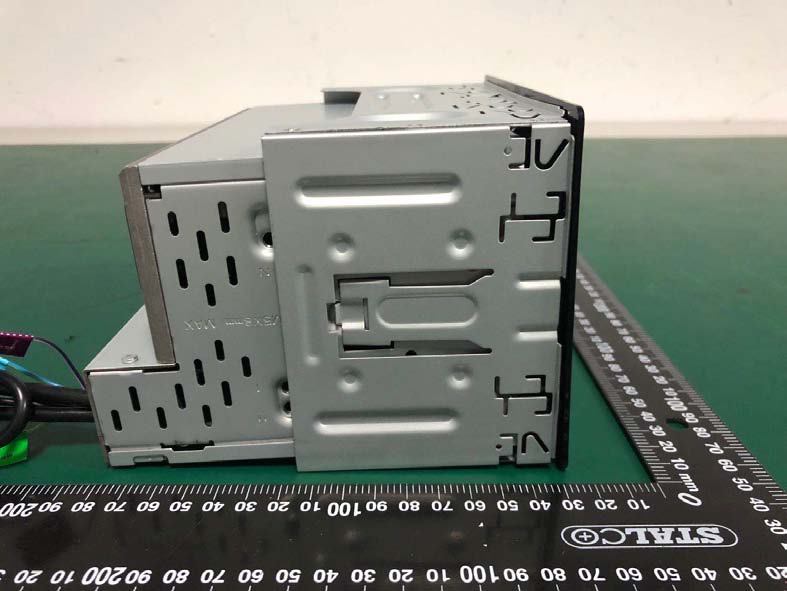

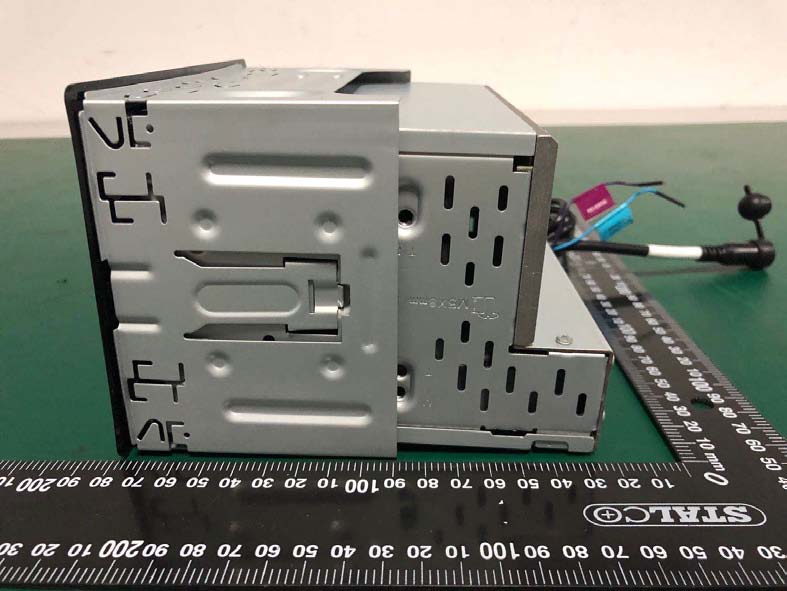

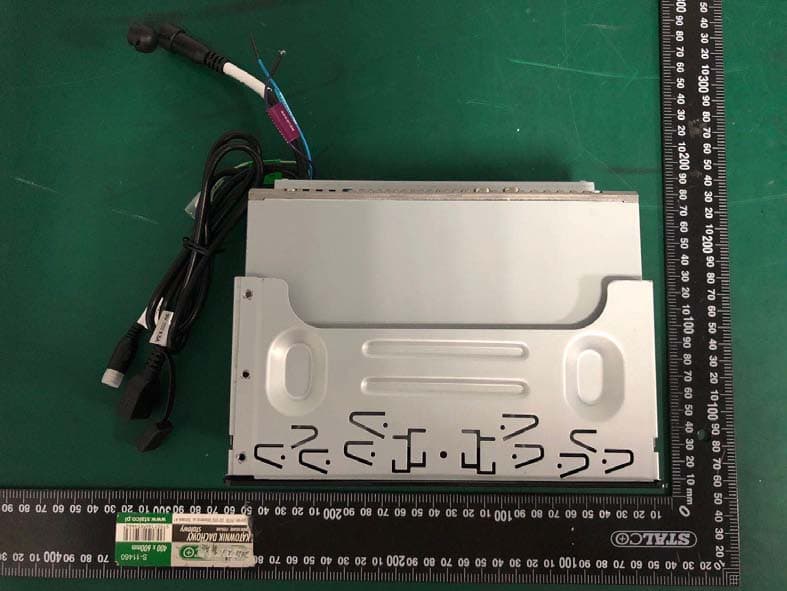

External photos M/N: DDX5707S External photos M/N: DDX5707S External photos M/N: DDX5707S

Internal photos M/N: DDX5707S Internal photos M/N: DDX5707S Internal photos M/N: DDX5707S Internal photos M/N: DDX5707S Internal photos M/N: DDX5707S Internal photos M/N: DDX5707S Internal photos M/N: DDX5707S Internal photos M/N: DDX5707S Bluetooth antenna Internal photos M/N: DDX5707S

FCC ID: 2AB7S-YK5137K00 EST Technology Co. ,Ltd Report No. ESTE-R2005052 Page 1 of 4 FCC 47 CFR MPE REPORT Soundmax Electronics Limited MONITOR WITH DVD RECEIVER Model Number: DDX5707S Additional Model: DDX57S, KW-V660BT, KW-V66BT FCC ID: 2AB7S-YK5137K00 Prepared for: Soundmax Electronics Limited 17/F EU YANG SANG TOWER,11-15 CHATHAM ROAD,T.S.T, KOWLOON,Hong Kong,China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2005052 Date of Test: Apr. 26~May. 12, 2020 Date of Report: May. 12, 2020 FCC ID: 2AB7S-YK5137K00 EST Technology Co. ,Ltd Report No. ESTE-R2005052 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AB7S-YK5137K00 EST Technology Co. ,Ltd Report No. ESTE-R2005052 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AB7S-YK5137K00 EST Technology Co. ,Ltd Report No. ESTE-R2005052 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) GFSK 2402 4.10 2.57 4 ±1 0 1 2441 4.04 2.54 4±1 0 1 2480 5.05 3.20 5±1 0 1 8-DPSK 2402 4.00 2.51 4 ±1 0 1 2441 4.60 2.88 4±1 0 1 2480 5.63 3.66 5±1 0 1 3. Calculated Result and Limit Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) GFSK 6 0 1 0.00079 1 Compiles 8-DPSK 6 0 1 0.00079 1 Compiles End of Test Report

FCC ID: 2AB7S-YK5137K00 EST Technology Co., Ltd Report No.ESTE-R2005051 Page 1 of 70 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Soundmax Electronics Limited MONITOR WITH DVD RECEIVER Model Number: DDX5707S Additional Model: DDX57S, KW-V660BT, KW-V66BT FCC ID: 2AB7S-YK5137K00 Prepared for: Soundmax Electronics Limited 17/F EU YANG SANG TOWER,11-15 CHATHAM ROAD,T.S.T, KOWLOON,Hong Kong,China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2005051 Date of Test: Apr. 26~May. 12, 2020 Date of Report: May. 12, 2020 FCC ID: 2AB7S-YK5137K00 EST Technology Co., Ltd Report No.ESTE-R2005051 Page 2 of 70 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION ........................................................................................................................ 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities .................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Difference between Model Numbers ................................................................................................ 8 2.6. Block Diagram .................................................................................................................................. 8 2.7. Test mode ......................................................................................................................................... 9 2.8. Channel List .................................................................................................................................... 10 2.9. Power Setting of Test Software ...................................................................................................... 10 2.10. Test Equipmen ................................................................................................................................ 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ...................................................................................................................... 17 4.1. Limit ............................................................................................................................................... 17 4.2. Test Setup ....................................................................................................................................... 17 4.3. Spectrum Analyzer Setting ............................................................................................................. 17 4.4. Test Procedure ................................................................................................................................ 17 4.5. Test Result ...................................................................................................................................... 18 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 22 5.1. Limit ............................................................................................................................................... 22 5.2. Test Setup ....................................................................................................................................... 22 5.3. Spectrum Analyzer Setting ............................................................................................................. 22 5.4. Test Procedure ................................................................................................................................ 22 5.5. Test Result ...................................................................................................................................... 23 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 27 6.1. Limit ............................................................................................................................................... 27 6.2. Test Setup ............................................…

Text truncated - open the document above for the full version.

Radiated test: Below 1GHz Radiated test: Above 1GHz
