2AB7S-NA87Car Audio System player

Car Audio System Player NA87 INSTRUCTION MANUAL MP3 WMA USB SD AUX-IN BT 1A USB Universal Charge Safety To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. Failure to observe this precaution may result in damage to the monitor or unit. Cleaning the connector: Wipe off dirt on the connector of the unit and faceplate. Use a cotton swab or cloth. WARNING Important to know... Maintenance Caution: Adjust the volume so that you can hear sounds outside the car. Driving with the volume too high may cause an accident. Condensation: When the car is air-conditioned, moisture may collect on the laser lens. This may cause disc read errors. In this case, remove the disc and wait for the moisture to evaporate. The illustrations in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the illustrations may differ from what appears on the actual equipment. If you experience problems during installation, consult your Nakamichi dealer. When you purchase external components, check with your Nakamichi dealer to make sure that they work with your model and in your area. Stop the car before operating the unit. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. This quipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Note: 2 EN Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID :2AB7S -NA87 How to reset your unit 3 Reset 2 To prevent deterioration, do not touch the terminals of the unit and faceplate with your fingers. 1 If this unit fails to operate properly, press the reset button. The unit returns to factory settings when the reset button is pressed. Do not expose the faceplate to direct sunlight, excessive heat, or humidity. Also avoid places with too much dust or the possibility of water splashing. What’s in the box Check and identify the contents of your package: Keep the faceplate in its casing while detached. The faceplate is a precision piece of equipment and can be damaged by shocks or jolts. How to attach/detach the faceplate Preparation 1 2 1 2 AttachDetach EN 3 Main unit (with sleeve) Carrying case (for front panel) Disassembly tool (2pcs) Front panel Remote control Trim plate ISO male connector User manual Installation / Connection Basic Procedure 1 Remove the key from the ignition switch, then disconnect the terminal of the car battery. 2 Make proper input and output wire connections. 3 Install the unit to your car. 4 Reconnect the terminal of the car battery. 5 Reset the unit. W arning The unit can only be installed in a car with a 12 V DC power supply, negative ground. If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. Disconnect the battery’s negative terminal and make all electrical connections before installing the unit. Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals. Be sure to ground this unit to the car’s chassis again after installation. If the power is not turned ON, the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked. Caution If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die. Install this unit in the console of your vehicle. Make sure the faceplate will not hit the lid of the console (if any) when closing and opening. After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. Mount the unit so that the mounting angle is 30° or less. If the fuse blows, first make sure the wires are not touching to cause a short circuit, then replace the old fuse with one that has the same rating. When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to…

Text truncated - open the document above for the full version.

all models are electrically identical, only the appearance, color, trade name and model No. are different .

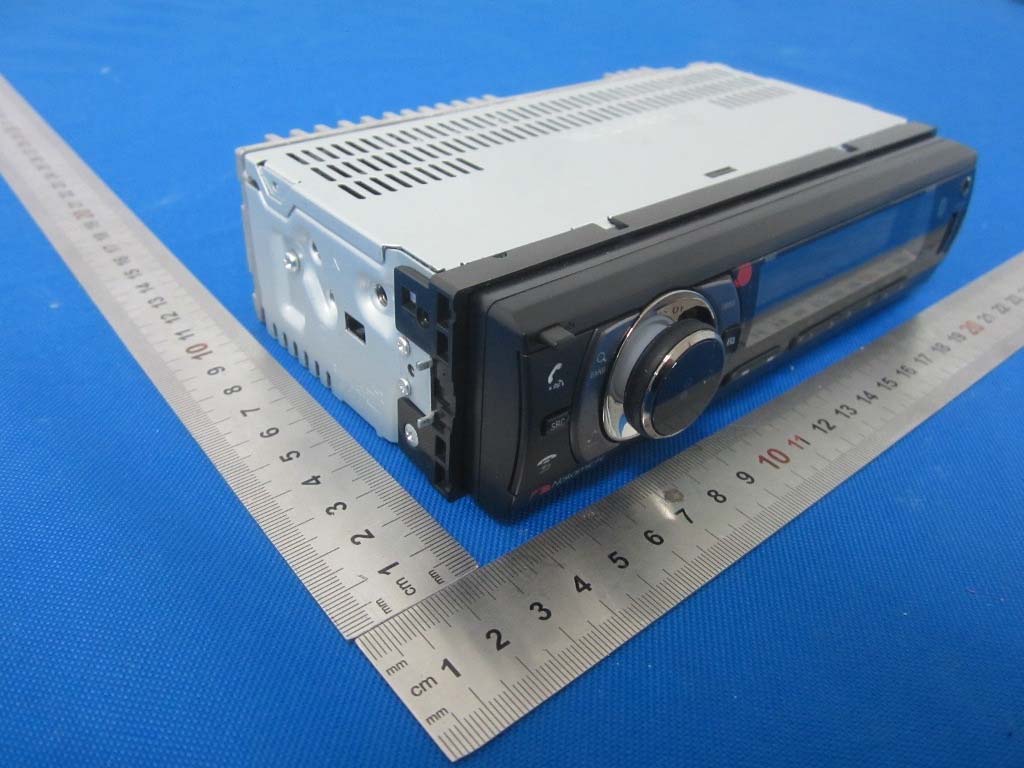

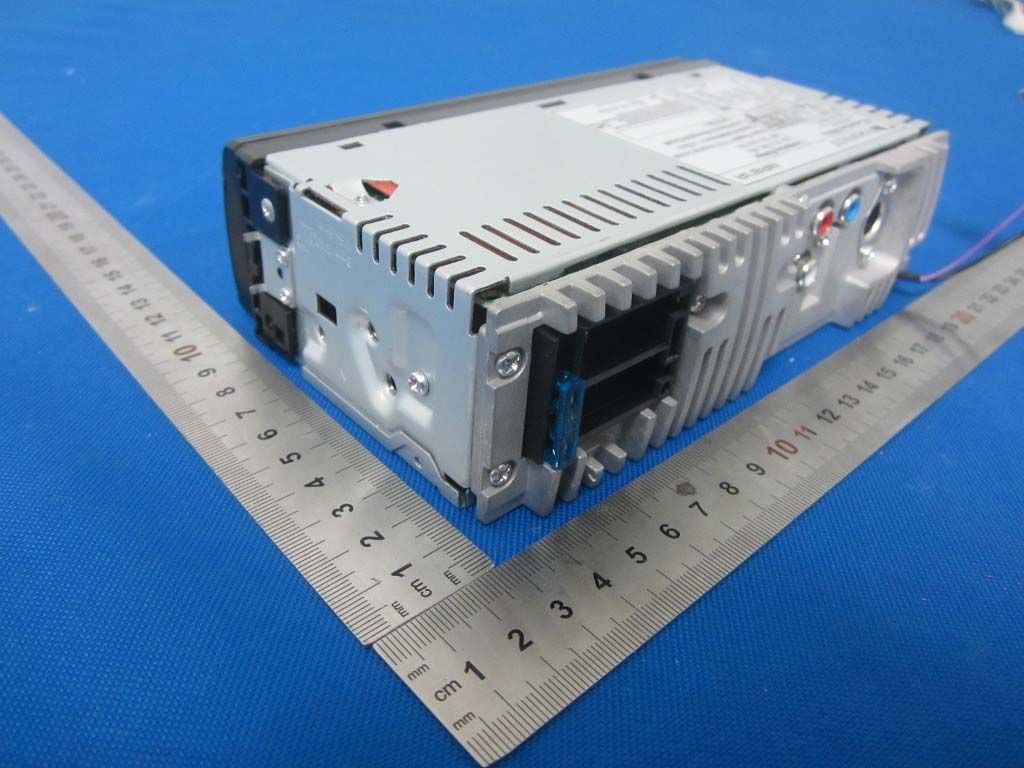

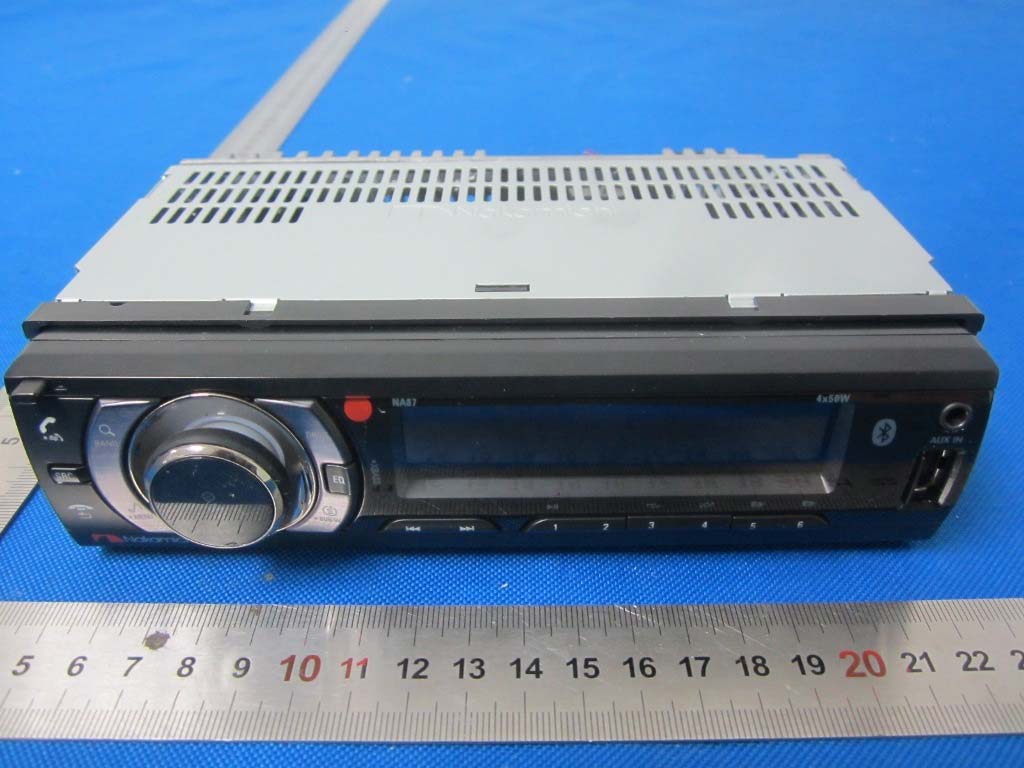

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 41 of 50 15. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 42 of 50 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 43 of 50

TOP LABEL For Model : COLOR: SILVER BACKGROUND/BLACK LETTERING SIZE: 85X65MM SCALE:1/1 NA87 (NAKAMICHI BAND)** P/NO:706-00NA8701-NH-00 DATE:2015-12-02 A B 1357 7 REAR RIGHT SPEAKER FRONT RIGHT SPEAKER BATTERY(+)/ YELLOW FRONT LEFT SPEAKER POWER ANT. / BLUE REAR LEFT SPEAKER IGN. 12V (B+) / RED GND./Black 2 4 68 5 48 ISO Connection Wiring Antenna Jack n(ot included) Radio Antenna Socket Rear RCA Output (Left) Rear RCA Output (Right) L R RearRear FUSE FUSE Subwoofer Output NA87 Power Supply: 12V DC Negative Ground Speaker Impedance: 4 - 8 Ohms Interference Absorption Circuit Frequency Range: FM 87.5-108 MHz AM 522-1620 KHz Serial No.: 4 10 R - 03 2126 FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : 2AB7S-NA87

Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 44 of 50 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 45 of 50 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 46 of 50 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 47 of 50 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 48 of 50 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 49 of 50 Dongguan Dongdian Testing Service Co., Ltd Report No.: DDT-R15Q1130-8E2 Page 50 of 50 END OF REPORT

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz, 4.45dBm (2.79mW) output power] (2.79/5) ·[√2.402(GHz)]= 0.865 <3.0 for 1-g SAR Then SAR evaluation is not required Leo Liu 2015/12/09
