2AB87572802.11a/b/g/n Long-Range USB Adapter Dual-Band 2.4/5 GHz

IEEE 802.1 1n Wireless Series Long-Range USB Adapter User Manual Ve rsion: 2.0 Date: January 13, 2009 J anuary 13, 2009 / Version: 2.0 i FCC Certifications Federal Communicatio n Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. J anuary 13, 2009 / Version: 2.0 ii CE Mark Warning This equipment com plies with the requirements relating to electromagnetic compatibility, EN 55022 Class B for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility. Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. T rademarks: All trade names and trademarks are the properties of their respective companies. Copyright © 2009, All Rights Reserved. J anuary 13, 2009 / Version: 2.0 ii i TABLE OF CONTENTS O VERVIEW ..........................................................1 U N PACKING I NFORMA TION ................................................................................................. 1 I NTRODUCTI ON TO THE I EEE 802.1 1 N W IREL ESS USB A DA PTER ........................................ 1 K EY F EATURES ................................................................................................................ 2 INST ALLATION GUIDE........................................2 SOFTW ARE INS TALLATION ................................................................................................. 2 MAN AGEMENT GUIDE.........................................5 M AKING A B ASIC N ETW ORK C O NNECTION .......................................................................... 5 Select a configuration tool .......................................................................................... 5 To connect with Microsoft Zero Configuration tool...................................................... 5 To connect with 802.11n Wireless LAN Utility ............................................................ 7 I NTRODUCTI ON TO THE 802.1 1 N W IR ELESS LA N U TILITY .................................................... 8 Interfaces.................................................................................................................... 8 Link Status Information ............................................................................................... 9 Profile....................................................................................................................... 10 Network .................................................................................................................... 19 Advanced.................................................................................................................. 20 Statistics ................................................................................................................... 21 WMM ........................................................................................................................ 22 WPS ......................................................................................................................... 24 CCX ..........................................................................................................................35 Radio On/Off............................................................................................................. 35 AP MO DE MANAGEMENT GUIDE FOR W INDOWS 2000/XP/V IST A ......................................... 36 Config....................................................................................................................... 38 Security Setting........................................................................................................ 40 Access Control ......................................................................................................... 41 MAC Table...................................................................................…

Text truncated - open the document above for the full version.

Iconnect Add: No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist., Taipei City,Taiwan Tel: +886-2-27968477 Fax: +886-2-27968478 Date: 2015-05-12 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 Dear Sir/Madam, We, Iconnect, hereby authorize Bay Area Compliance Laboratories Corp. to act as a laboratory for testing and test report generation for the following project(s): (Product name: 802.11abgn Long-Range USB Adapter Dual-Band 2.4GHz/5GHz , Model number: AWUS052NH,AWUS051NH V2,AWUS052NH V2,AWUS052NHS, AWUS052NHS V2,AWUS053NH,AWUS053NH V2,AWUS053NHS,AWUS053NHS V2,AWUS054NH,AWUS054NH V2,AWUS054NHS,AWUS054NHS V2, AWUS036ACH,AWUS036ACH V2,NU52,NU52 V2,NU52S,NU52S V2,NU53,NU53 V2,NU53S,NU53S V2,NU52AC,NU52AC V2,NU52ACS,NU52ACS V2,UBDO- 25,UBDO-25 V2,UBDO-25t,UBDO-25t V2,UBDO-25M,UBDO-25M V2,UBDO- 25Mt,UBDO-25Mt V2,Tube-U52,Tube-U52 V2,UBDO-AC,UBDO-AC V2,Tube- AC,Tube-AC V2,UBDO-ACT,UBDO-ACT V2) The chipset AR9582 which have band1:5150MHz-5250MHz. band2:5250MHz- 5350MHz. band3:5470MHz-5725MHz. band4:5725MHz-5850MHz, but band2 and band3 have been shielded by software. Sincerely, Signature: Johnson Wang Manager

QA-FR-170-B Iconnect Add: No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist., Taipei City,Taiwan Tel: +886-2-27968477 Fax: +886-2-27968478 FCC Authorization Date: 2015-5-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Iconnect , the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Johnson Wang Manager Tel: 886-2-27968477 Add: No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist., Taipei City,Taiwan

Iconnect Add: No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist., Taipei City,Taiwan Tel: +886-2-27968477 Fax: +886-2-27968478 FCC Confidential Authorization Date: 2015-5-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: 2AB87572 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Detailed Circuit Schematics of EUT--- (Long term)  Block Diagram--- (Long term)  Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Johnson Wang Manager

ADD: No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist.,Taipei City,Taiwan Tel: 886-2-27968477 Fax: 886-2-27968478 mail: [email protected] QPDG004R32 Version1.0（20140717） Declaration of Alteration To Whom It May Concern, We, Iconnect, hereby declare that there are some differences between our Multiple Models and testing products. Details as below: (This is for your reference only.) Products Description Name 802.11abgn Long-Range USB Adapter Dual-Band 2.4GHz/5GHz Brand ALFA Manufacturer Iconnect Project No. RDG150512002 Differences Description Testing Products Multiple Models Differences Items Details AWUS052NH AWUS051NH V2,AWUS052NH V2, AWUS052NHS,AWUS052NHS V2, AWUS053NH,AWUS053NH V2, AWUS053NHS,AWUS053NHS V2, AWUS054NH,AWUS054NH V2, AWUS054NHS,AWUS054NHS V2, AWUS036ACH,AWUS036ACH V2, NU52,NU52 V2,NU52S,NU52S V2, NU53,NU53 V2,NU53S,NU53S V2, NU52AC,NU52AC V2,NU52ACS, NU52ACS V2,UBDO-25,UBDO-25 V2, UBDO-25t,UBDO-25t V2,UBDO-25M, UBDO-25M V2,UBDO-25Mt,UBDO-25Mt V2,Tube-U52,Tube-U52 V2,UBDO-AC, UBDO-AC V2,Tube-AC,Tube-AC V2,UBDO-ACT,UBDO-ACT V2 Model name They are the same product, and just have the different model name. Notes: Testing products-the products tested by BACL Multiple Model- have the same or similar appearance, structure, PCB, Material and function to the testing products, and only are different for little parameters. Besides the differences in the table above, we declare the products are identical We guarantee all the information provided above is true, and notice that we’ll bear all the consequences caused by any false information or concealing Best Regards, ADD: No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist.,Taipei City,Taiwan Tel: 886-2-27968477 Fax: 886-2-27968478 mail: [email protected] QPDG004R32 Version1.0（20140717） Signature: Print Name: Johnson Wang Title: Manager

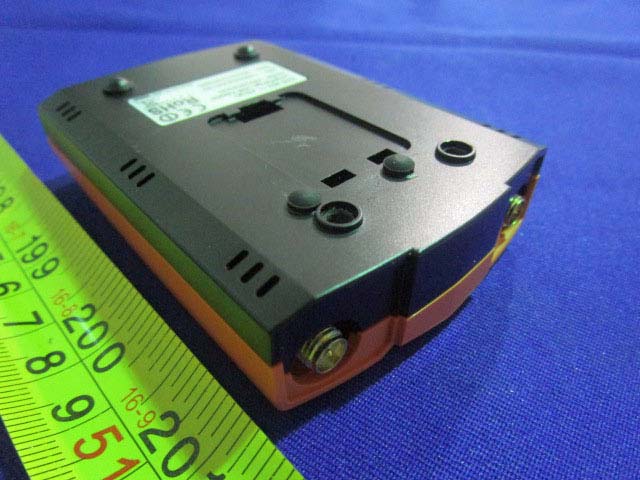

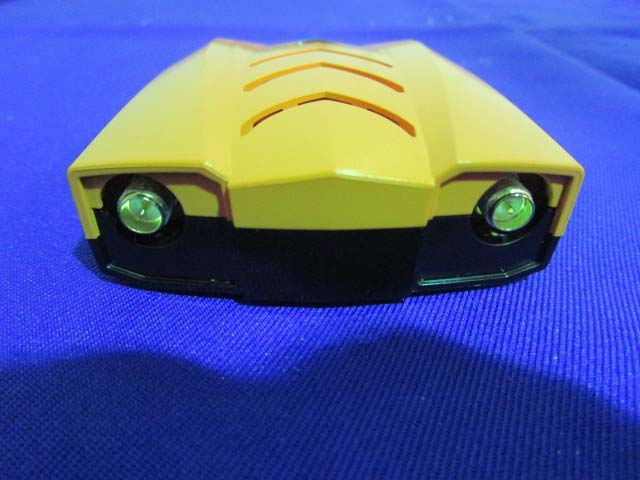

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – All View EUT – Top View EUT – Bottom View EUT –Side View EUT –Side View EUT –Port View EUT –Antenna Port View EUT – Antenna View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Uncover View EUT –Main Board Top View EUT –Main Board Top Shielding off View EUT –Main Board Bottom View EUT – RF Chip View

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 10 of 172 FCC §15.407(f) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.407(f)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 11 of 172 Calculated Data: MPE evaluation for single transmission: Frequency Range (MHz) Mode Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) 2412-2462 2.4G- 802.11b 2437 2.0 1.58 14.9030.9020 0.010 1.0 2.4G- 802.11 g 2437 2.0 1.58 16.8948.8720 0.015 1.0 2.4G- 802.11n HT20 2412 2.0 1.58 19.6191.4120 0.029 1.0 2.4G- 802.11n HT40 2452 2.0 1.58 21.56143.2220 0.045 1.0 5150-5250 5G- 802.11a 5240 2.0 1.58 18.14 65.1620 0.020 1.0 5G- 802.11n HT20 5240 2.0 1.58 18.3067.6120 0.021 1.0 5G- 802.11n HT40 5230 2.0 1.58 15.5635.9720 0.011 1.0 5725-5850 802.11a 5745 2.0 1.58 17.5356.6220 0.018 1.0 5G- 802.11n HT20 5785 2.0 1.58 17.6057.5420 0.018 1.0 5G- 802.11n HT40 5755 2.0 1.58 12.5417.9520 0.006 1.0 MPE evaluation for simultaneous transmission: 2.4 G and 5G can transmit at the same time, MPE evaluation is as below formula: PD1/Limit1+PD2/Limit2+......＜1, PD (Power Density) MPE evaluation= Max MPE of 2.4G + Max MPE of 5G = 0.045/1+0.021/1=0.066＜1.0 Result: MPE evaluation of single and simultaneous transmission meet the requirement of standard.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.407 TEST REPORT For Iconnect No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist.,Taipei City,Taiwan Report Type: Original Report Product Type: 802.11abgn Long-Range USB Adapter Dual-Band 2.4GHz/5GHz Test En gineer: Dean Liu Re port Number: RDG150512002-00B Re port Date: 2015-05-29 Reviewed By: Sula Huang RF Leade r Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2AB87572 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 2 of 172 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 7 CONFIGURATION OF TEST SETUP ................................................................................................................................. 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 FCC §15.407(f) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.407 (b) (6) §15.207 (a) – CONDUCTED EMISSIONS ............................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 MEASUREMENT UNCERTAINTY .................................................................................................................................. 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 15 TEST RESULTS SUMMARY .......................................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 15 FCC §15.209, §15.205 & §15.407(b) (1) (6) (7) –UNWANTED EMISSION ........................................................... 18 APPLICABLE STANDARD ............................................................................................................................................ 18 MEASUREMENT UNCERTAINTY ...................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 90 of 172 802.11n ht40 Band Edge, Left Side– Chain1 Att 30 dB * 3DB A * * RBW 1 MHz VBW 3 MHz SWT 20 msRef 20 dBm Offset 6 dB LVL Center 5.725 GHzSpan 100 MHz10 MHz/ 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -26.64 dBm 5.725000000 GHz 2 Marker 2 [T1 ] -30.15 dBm 5.714600000 GHz L Date: 25.MAY.2015 12:48:54 802.11n ht40 Band Edge, Right Side– Chain1 Att 30 dB * A 3DB * RBW 1 MHz SWT 20 ms * VBW 3 MHz Offset 6 dB LVL Ref 20 dBm Center 5.85 GHzSpan 150 MHz15 MHz/ 1 PK MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -37.51 dBm 5.850000000 GHz 2 Marker 2 [T1 ] -38.75 dBm 5.861100000 GHz R Date: 25.MAY.2015 14:09:56 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 91 of 172 FCC §15.407(a) –EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH Applicable Standard 15.407(a) (e) Test Equipment List and Details Manufacturer Description Model Serial Number Calibration Date Calibration Due Date R&S Spectrum Analyzer FSP 38 100478 2015-05-09 2016-05-09 * Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have been performed, traceable to National Primary Standards and International System of Units (SI). Test Procedure According to KDB 789033 D02 General UNII Test Procedures New Rules v01 Test Data Environmental Conditions Temperature:25.3 °C Relative Humidity: 56 % ATM Pressure: 100.1 kPa The testing was performed by Dean Liu on 2015-05-25. Test Result: Pass. Please refer to the following tables and plots. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 92 of 172 Test mode: Transmitting 5150MHz-5250MHz: Mode Channel Frequency MHz 26 dB Bandwidth (MHz) 99% occupied bandwidth (MHz) Result Chain0 Chain1 Chain0 Chain1 802.11a Low 5180 18.48 18.48 16.4 16.4 PASS Middle 5200 18.48 18.48 16.4 16.4 PASS High 5240 18.48 18.48 16.4 16.4 PASS 802.11n20 Low 5180 19.20 18.96 17.36 17.36 PASS Middle 5200 19.12 19.12 17.44 17.44 PASS High 5240 19.12 19.2 17.36 17.44 PASS 802.11n40 Low 5190 37.92 37.92 35.68 35.84 PASS High 5230 38.08 37.92 35.84 35.68 PASS 5725MHz-5850MHz: Mode Channel Frequency MHz 26 dB Bandwidth (MHz) 6dB Bandwidth (MHz) 99% occupied bandwidth (MHz) Result Chain0Chain1Chain0Chain1Chain0 Chain1 802.11a Low 5745 18.64 18.48 15.92 15.52 16.4 16.4 PASS Middle 5785 18.56 18.48 15.92 15.92 16.4 16.4 PASS High 5825 18.56 18.64 15.92 15.6 16.4 16.4 PASS 802.11n20 Low 5745 19.04 19.12 16.16 16.32 17.36 17.36 PASS Middle 5785 19.12 19.2 16.24 16.32 17.52 17.44 PASS High 5825 19.12 19.2 16.32 15.48 17.36 17.36 PASS 802.11n40 Low 5755 38.24 38.4 35.2 35.68 35.52 35.84 PASS High 5795 37.92 37.92 35.36 35.2 35.68 35.52 PASS Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 93 of 172 5150MHz-5250MHz: 26 dB Bandwidth 802.11a Low Channel – Chain0 Att 40 dB * 3DB A * RBW 100 kHz SWT 20 ms * VBW 300 kHz Ref 30 dBm Offset 1 dB LVL Center 5.18 GHzSpan 40 MHz4 MHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -23.74 dBm 5.170800000 GHz 2 Marker 2 [T1 ] 2.61 dBm 5.182560000 GHz 1 Delta 1 [T1 ] 0.44 dB 18.480000000 MHz D1 2.61 dBm D2 -23.39 dBm Date: 25.MAY.2015 14:44:29 802.11a Middle Channel – Chain0 Att 40 dB * 3DB A * RBW 100 kHz SWT 20 ms * VBW 300 kHz Ref 30 dBm Offset 1 dB LVL Center 5.2 GHzSpan 40 MHz4 MHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -23.62 dBm 5.190800000 GHz 2 Marker 2 [T1 ] 2.66 dBm 5.198800000 GHz 1 Delta 1 [T1 ] -0.06 dB 18.480000000 MHz D1 2.66 dBm D2 -23.34 dBm Date: 25.MAY.2015 14:49:38 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 94 of 172 802.11a High Channel – Chain0 Att 40 dB * 3DB A * RBW 100 kHz SWT 20 ms * VBW 300 kHz Ref 30 dBm Offset 1 dB LVL Center 5.24 GHzSpan 40 MHz4 MHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -22.63 dBm 5.230800000 GHz 2 Marker 2 [T1 ] 3.02 dBm 5.241280000 GHz 1 Delta 1 [T1 ] -0.42 dB 18.480000000 MHz D1 3.02 dBm D2 -22.98 dBm Date: 25.MAY.2015 14:51:41 802.11n ht20 Low Channel – Chain0 Att 40 dB * 3DB A * RBW 100 kHz SWT 20 ms * VBW 300 kHz Ref 30 dBm Offset 1 dB LVL Center 5.18 GHzSpan 40 MHz4 MHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -23.24 dBm 5.170480000 GHz 2 Marker 2 [T1 ] 2.64 dBm 5.178800000 GHz 1 Delta 1 [T1 ] 0.17 dB 19.200000000 MHz D1 2.64 dBm D2 -23.36 dBm Date: 25.MAY.2015 15:01:23 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 95 of 172 802.11n ht20 Middle Channel – Chain0 Att 40 dB * 3DB A * RBW 100 kHz SWT 20 ms * VBW 300 kHz Offset 1 dB LVL Ref 30 dBm Center 5.2 GHzSpan 40 MHz4 MHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -22.74 dBm 5.190480000 GHz 2 Marker 2 [T1 ] 2.66 dBm 5.201280000 GHz 1 Delta 1 [T1 ] -1.09 dB 19.120000000 MHz D1 2.66 dBm D2 -23.34 dBm Date: 25.MAY.2015 14:59:33 802.11n ht20 High Channel – Chain0 Att 40 dB * 3DB A * RBW 100 kHz SWT 20 ms * VBW 300 kHz Offset 1 dB LVL Ref 30 dBm Center 5.24 GHzSpan 40 MHz4 MHz/ 1 PK MAXH -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1 ] -22.50 dBm 5.230480000 GHz 2 Marker 2 [T1 ] 3.13 dBm 5.241280000 GHz 1 Delta 1 [T1 ] -0.66 dB 19.120000000 MHz D1 3.13 dBm D2 -22.87 dBm Date: 25.MAY.2015 14:57:16 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.:RDG150512002-00B FCC Part 15.407 Page 96 of 172 802.11n ht40 Low Channel – Chain0 Att 40 dB 5.1884 GHz * 5.1884 GHz 3DB 5.1884 GHz A 5.1884 GHz * 5.1884 GHz RBW 100 kHz 5.1884 GHz SWT 20 ms 5.1884 GHz * 5.1884 GHzVBW 300 kHz 5.1884 GHz Ref 30 dBm 5.1884 GHz Offset 1 dB 5.1884 GHz LVL 5.1884 GHz Center 5.19 GHz 5.1884 GHz Span 80 MHz 5.1884 GHz 8 MHz/ 5.1884 GHz 1 PK 5.1884 GHz MAXH 5.1884 GHz 5.1884 GHz 5.1884 GHz 5.1884 GHz 5.1884 GHz 5.1884 GHz 5.1884 GHz 5.1884 GHz 5.1884…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions – Front View Conducted Emissions - Side View Radiated Emissions –Front View (Below 1GHz) Radiated Emissions –Rear View (Below 1GHz) Radiated Emission –Front View (Above 1 GHz) Radiated Emission –Rear View (Above 1 GHz)
