Long Range Wireless USB Adapte r AWUS036NHV 2 Long-Range 802.11b/ g/ n User’s Guide 802.11b/g/n USB Adapter 802.11n Long Range Wireless USB Adapte r AWUS036NHV 3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution To assure continued compliance, (Example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions: (1) This device may not cause harmful interference. (2) This Device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. ALFA Network Inc. Page1 802.11n Long Range Wireless USB Adapter AWUS036NHV CE mark Warning This is a class B device, in a domestic environment; this product may cause radio interference, in which case the user may be required to take adequate measures. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria Belgium, Denmark, Finland, and France (with Frequency channel restrictions). Germany, Greece, Ireland, Italy, Luxembourg .The Netherlands, Portugal, Spain, Sweden and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. WEEE regulation To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. ALFA Network Inc. Page2 802.11n Long Range Wireless USB Adapter AWUS036NHV Table of Content Over view ................................................................................................... 3 Unpacking information ......................................................................... 3 Introduction to the AWUS036NHV Indoor USB Adapter ................. 4 Installation Guide ................................................................................. 5 Software Installation ............................................................................... 5 Management Guide ............................................................................. 9 Making a Basic Network Connection ................................................. 9 Ad-Hoc Mode ................................................................................. 9 Infrastructure mode ................................................................... 11 Introduction to the Wireless LAN Utility ......................................... 13 Starting the Wireless LAN Utility ............................................. 13 General ...................................................................................... 14 Profile .......................................................................................... 15 Available Network ..................................................................... 16 Advanced ................................................................................... 17 Status ......................................................................................... 18 Statistics ..................................................................................... 18 Appendix .............................................................................................. 19 RT-Set Setup Wizard ...................................................................... 19 Use this adapter as …

Text truncated - open the document above for the full version.

Iconnect Add: No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist., Taipei City,Taiwan Tel: +886-2-27968477 Fax: +886-2-27968478 FCC Confidential Authorization Date: 2014-8-18 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: 2AB878188 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Detailed Circuit Schematics of EUT--- (Long term)  Block Diagram--- (Long term)  Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Johnson Wang Manager

Iconnect Add: No.9, Aly. 58, Ln. 112, Ruiguang Rd., Neihu Dist., Taipei City,Taiwan Tel: +886‐2‐27968477 Fax: +886‐2‐27968478 DECLARATION OF SIMILARITY Date: 2014‐7‐25 Dear Sir or Madam: We, Iconnect , hereby declare that product: 802.11b/g/n Long Range USB adapter, model: AWUS036EV,Tube‐UV,WISP‐UV,UBDO‐UV is electrically identical with the model: AWUS036NHV which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. The results of which are featured in BACL projects: RDG140717003. A description of the difference between all the models as follows: They are the same product, and just have the different model name. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Johnson Wang Manager

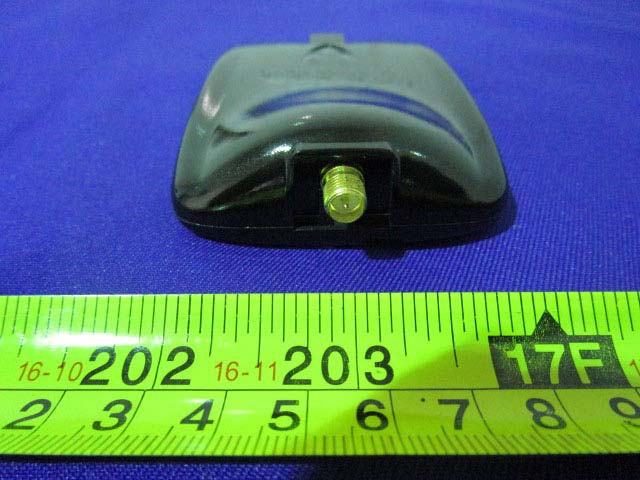

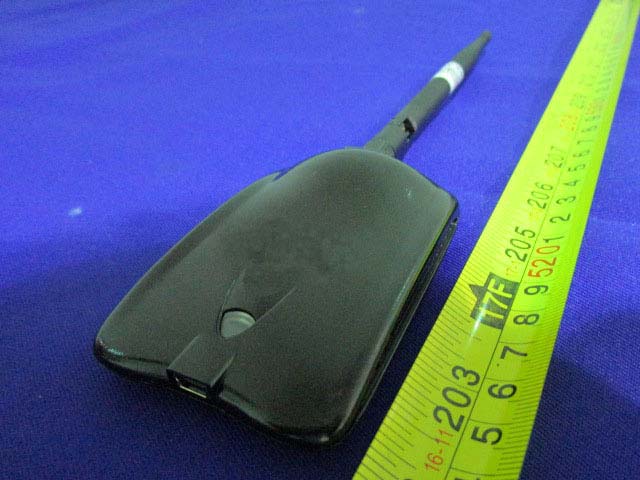

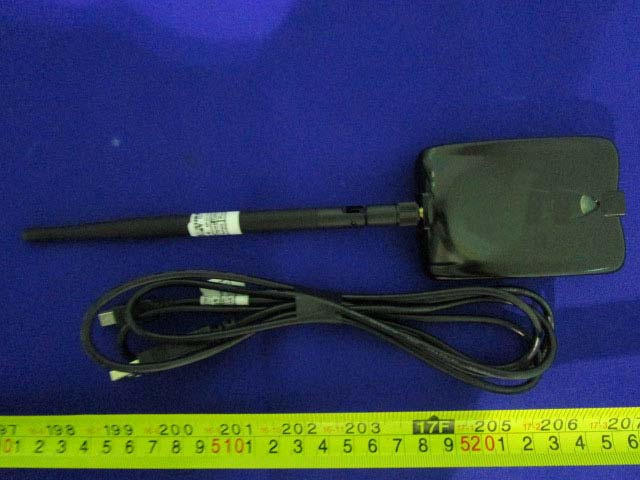

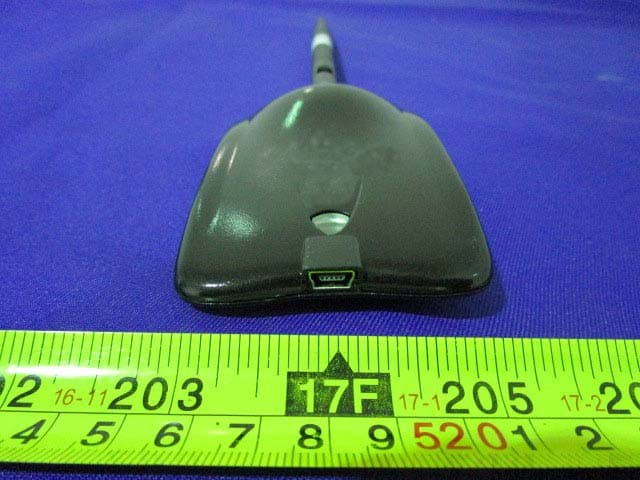

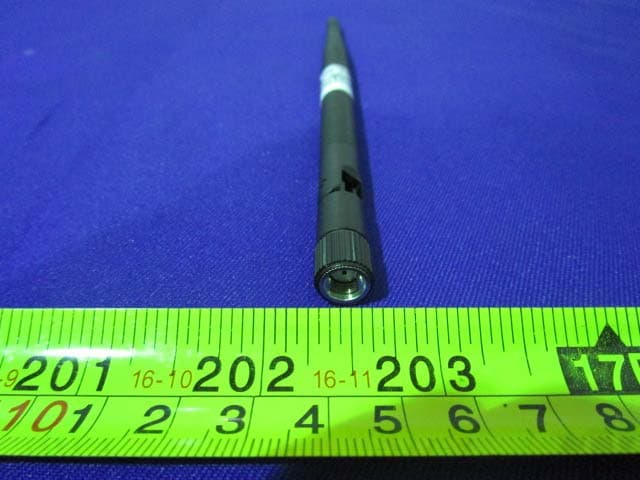

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Top View EUT – All View EUT – Top View EUT – Bottom View EUT – Side View EUT – Side View EUT –Side View EUT – Antenna View EUT – Antenna Port View EUT – Antenna Port View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncover View EUT – Main Board Top View EUT –Main Board Bottom View EUT – RF Chip View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Iconnect No.9, Aly.58, Ln. 112, Ruiguang Rd., Neihu Dist., Taipei City, Taiwan FCC ID: 2AB878188 Report Type: Original Report Product Type: 802.11b/g/n Long Range USB adapter Test En gineer: Dean Liu Re port Number: RDG140717003-00 Re port Date: 2014-08-13 Reviewed By: Sula Huang EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG140717003-00 FCC Part 15.247 Page 2 of 53 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL CABLE ........................................................................................................................................................ 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ......................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 MEASUREMENT UNCERTAINTY ...............................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Radiated Emission – Front View (Below 1GHz) Radiated Emission – Rear View (Below 1GHz) Radiated Emission – Front View (Above 1GHz) Radiated Emission – Rear View (Above 1GHz)
