2ABBXCM9209V4020152.4GHz Module

CMM-9209-V4.0 Long Range 2.4GHz Transceiver Module This module is limited to OEM installation ONLY SPEC No. CMM-9209-V4.0 2.4GHz Transceiver module Revision 1.6 State 2015-02-25 C-MAX printed 2015-02-25 Version English Page 1 of 10 C-MAX Description The CMM-9209 module is a miniaturised long range 2.4GHz transceiver module based on EM Micro- electronic’s RF transceiver EM9209. The module is highly optimized for long-range wireless application requiring ultra low power consumption and short time-to-market. It offers a plug and play solution for any EM9209 application without any additional hardware nor RF layout. Built in with a PCB strip antenna, this small sized, low cost module provides an ideal solution to wireless 2.4GHz license-free application worldwide. The EM9209 is a low-voltage 2.4GHz transceiver IC with built-in link-layer logic permitting proprietary wireless links in the license-free 2.400 ... 2.4835 GHz ISM band. This solution is ideal for battery operated wireless applications such as wireless sensors and control, toys, human interface devices, security and metering networks. 1.1 Features o Fully integrated 2.4 GHz transceiver (Chip on Board) o Operating voltage 1.9V ~ 3.6V o Mini-sized (18.5mm x 14mm) o Programmable RF output level (-10 dBm to +10 dBm) via software control o Low current consumption (1uA at power down mode, 8.2 mA RX (high sensitivity mode), 11.2 mA in TX mode (-1 dBm)) o No Tuning necessary o Programmable data rate (3kbps, 6 kbps, 12 kbps) o Reaches max 500m in open space line of sight o FSK modulation o SPI interface to host controller 1.2 Module Dimension & Pin Assignments Pin Number Pin Name Pin Description 1 GND Ground Connection 2 EN_REG Master Chip Enable Signal 3 IRQ Interrupt Output for external host Controller 4 MISO SPI Data Output 5 MOSI SPI Data Input 6 SS \ SPI Slave Select(Active High) 7 SCK SPI Clock Input 8 VDD Positive Power Supply CMM-9209-V4.0 Long Range 2.4GHz Transceiver Module SPEC No. CMM-9209-V4.0 2.4GHz Transceiver module Revision 1.6 State 2015-02-25 C-MAX printed 2015-02-25 Version English Page 2 of 10 C-MAX Top View Bottom View *** Connection pin pitch : 1.27mm CMM-9209-V4.0/4.0P Module Thickness (excluding pin header connectors, excluding shielding) = 2.1mm max. CMM-9209-V4.0F/4.0X Module Thickness (excluding pin header connectors, including shielding) = 3.3mm max. 1.3 Recommended PCB layout and foot print Footprint: Layout Under Module: Layout Around module: : Clearance area (no routing, components or copper plane) : Ground plane recommended CMM-9209-V4.0 Long Range 2.4GHz Transceiver Module SPEC No. CMM-9209-V4.0 2.4GHz Transceiver module Revision 1.6 State 2015-02-25 C-MAX printed 2015-02-25 Version English Page 3 of 10 C-MAX 1.4 Pinning Dimensions and definitions Pin Connection Dimension (applicable only for CMM-9209-V4.0P/4.0X) Pin Definition 1.5 Module Reference Circuit diagram CMM-9209-V4.0 Long Range 2.4GHz Transceiver Module SPEC No. CMM-9209-V4.0 2.4GHz Transceiver module Revision 1.6 State 2015-02-25 C-MAX printed 2015-02-25 Version English Page 4 of 10 C-MAX 1.6 Module Electrical Specifications Specification CMM-9209-V4.0/4.0P/4.0F/4.0X Voltae Range 1.9V to 3.6V Frequency Range 2.408 to 2.474 GHz Modulation FSK On-air data rate configurable 3 kbps, 6 kbps, 12 kbps Maximum Allowable Data bytes in payload per transmission Data rate (Kbps) Preamble (byte) Address (byte) header (byte) Payload (byte) 3 2 3 1 8 6 2 3 1 31 12 2 3 1 31 Current Consumption (Vcc = 2.5V) - RX mode 8.2mA (High sensitivity mode) - TX mode varies according to output power (see below) - Standby mode 140 uA (typ.) - Power-down mode 1uA Programmable output power vs TX current consumption Module Sensitivity RF setup time (Standby <-> TX/RX) Max 200 us CMM-9209-V4.0 Long Range 2.4GHz Transceiver Module SPEC No. CMM-9209-V4.0 2.4GHz Transceiver module Revision 1.6 State 2015-02-25 C-MAX printed 2015-02-25 Version English Page 5 of 10 C-MAX 2. Temperature Profile for Lead-free Reflow Soldering (only applicable for CMM-9209-V4.0F) 3. Ordering information Module Part Number Module Assembly process type Pin Headers on Module Shield on Module Qualification Cert. Packaging CMM-9209-V4.0 Hand soldering X X FCC, CE pre- scan passed In Trays CMM-9209-V4.0F SMT + reflow X √ FCC, CE Pending Tape & Reel CMM-9209-V4.0P Plug-in √ X FCC, CE pre- scan passed In Trays CMM-9209-V4.0X Plug-in √√ FCC, CE Pending In Trays CMM-9209-V4.0 Long Range 2.4GHz Transceiver Module SPEC No. CMM-9209-V4.0 2.4GHz Transceiver module Revision 1.6 State 2015-02-25 C-MAX printed 2015-02-25 Version English Page 6 of 10 C-MAX 4. Packaging Information CMM-9209-V4.0F - Tape and Reel Item D 0 D 1 P 0 P 2 E W A 0 A 1 Dimension 1.50 +0.10-0.00 0.00 +0.00-0.00 4.00 +0.10-0.10 2.00 +0.10-0.10 1.75 +0.10-0.10 32.0 +0.30-0.30 14.3 +0.10-0.10 0.00 +0.10-0.10 Item B 0 B 1 K 0 K 1 P F T Dimension 19.1 +0.10-0.10 0.00 +0.00-0.00 3.40 +0.10-0.10 0.00 +0.10-0.10 20.0 +0.10-0.10 14.2 +0.10-0.10 0.30 +0.05-0.05 5. FCC Statement NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference received, including interference that may cause undesired operation. The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occu…

Text truncated - open the document above for the full version.

C-MAX 16 January 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ABBXCM9209V402015. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram 2ABBXCM9209V402015 BlkDia.pdf Operational Description 2ABBXCM9209V402015 OpDes.pdf Schematics 2ABBXCM9209V402015 Schem.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, C-MAX Asia Limited General Manager

盤磁懿 16 January, 2015 Equipment Authorization Division Office id Engineering and Technology Federal Communications Commission 7435 Oakland M iIIs Road Columbia , MD 21046 Dear Si rs: 1 (C-MAX Asia Limited) am here to declare that module CMM-9209-V4.0 (FCC 10: 2ABBXCM9209V402015) is a single modular transmitter. Sincerely, C-MAX Asia Limited ~~ General Manager

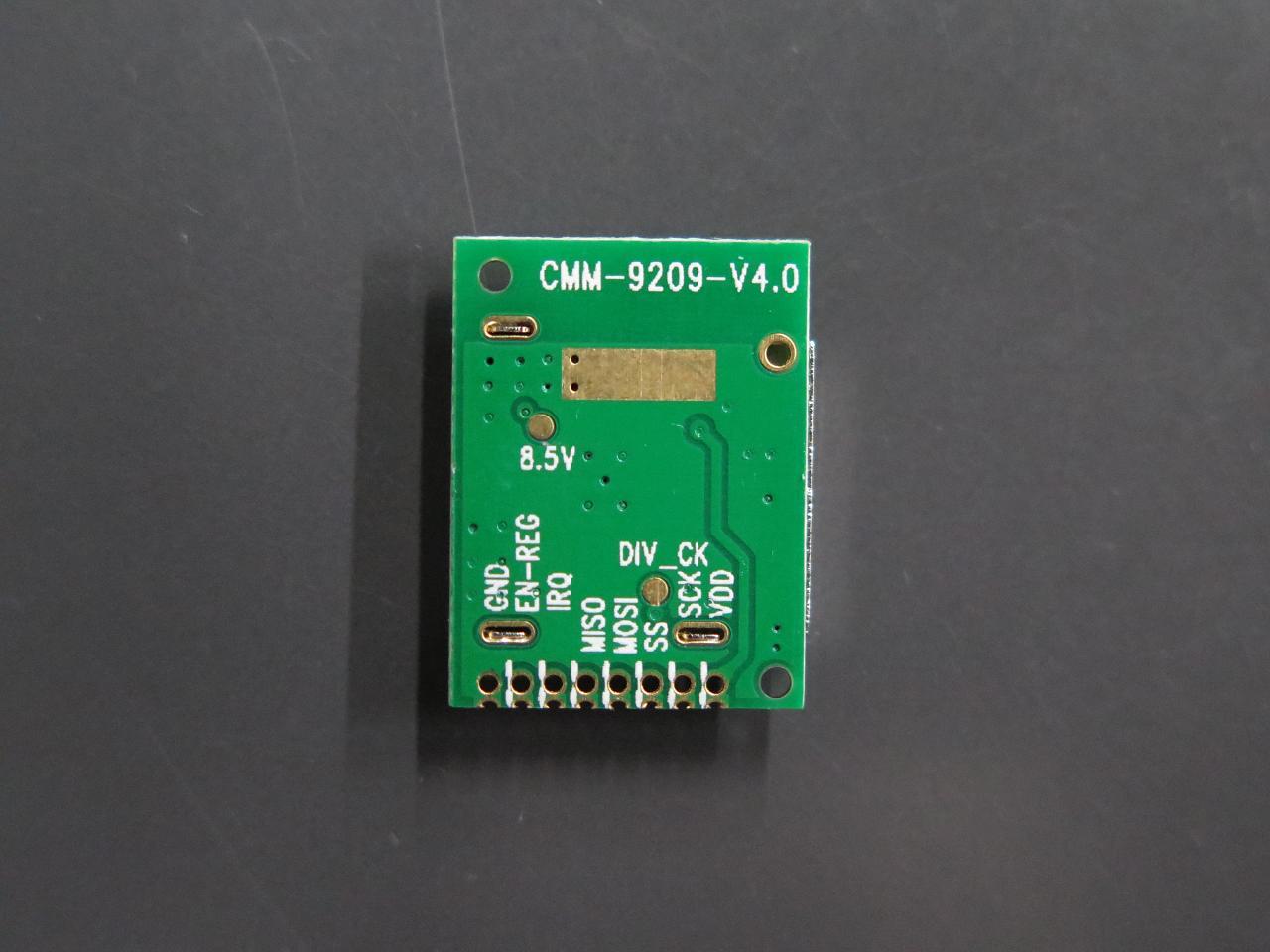

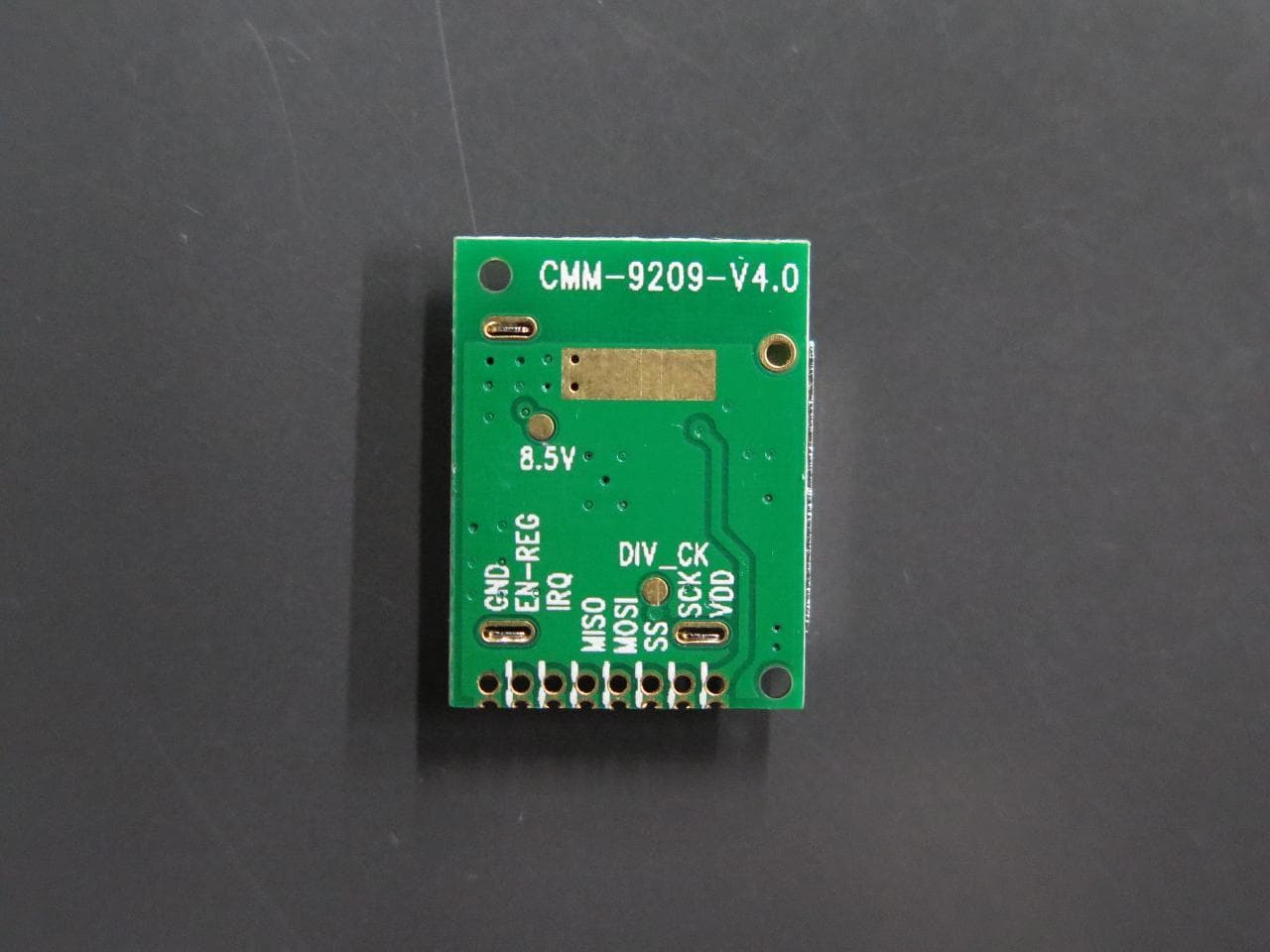

External Photo With pin header With pin header Without pin header Without pin header

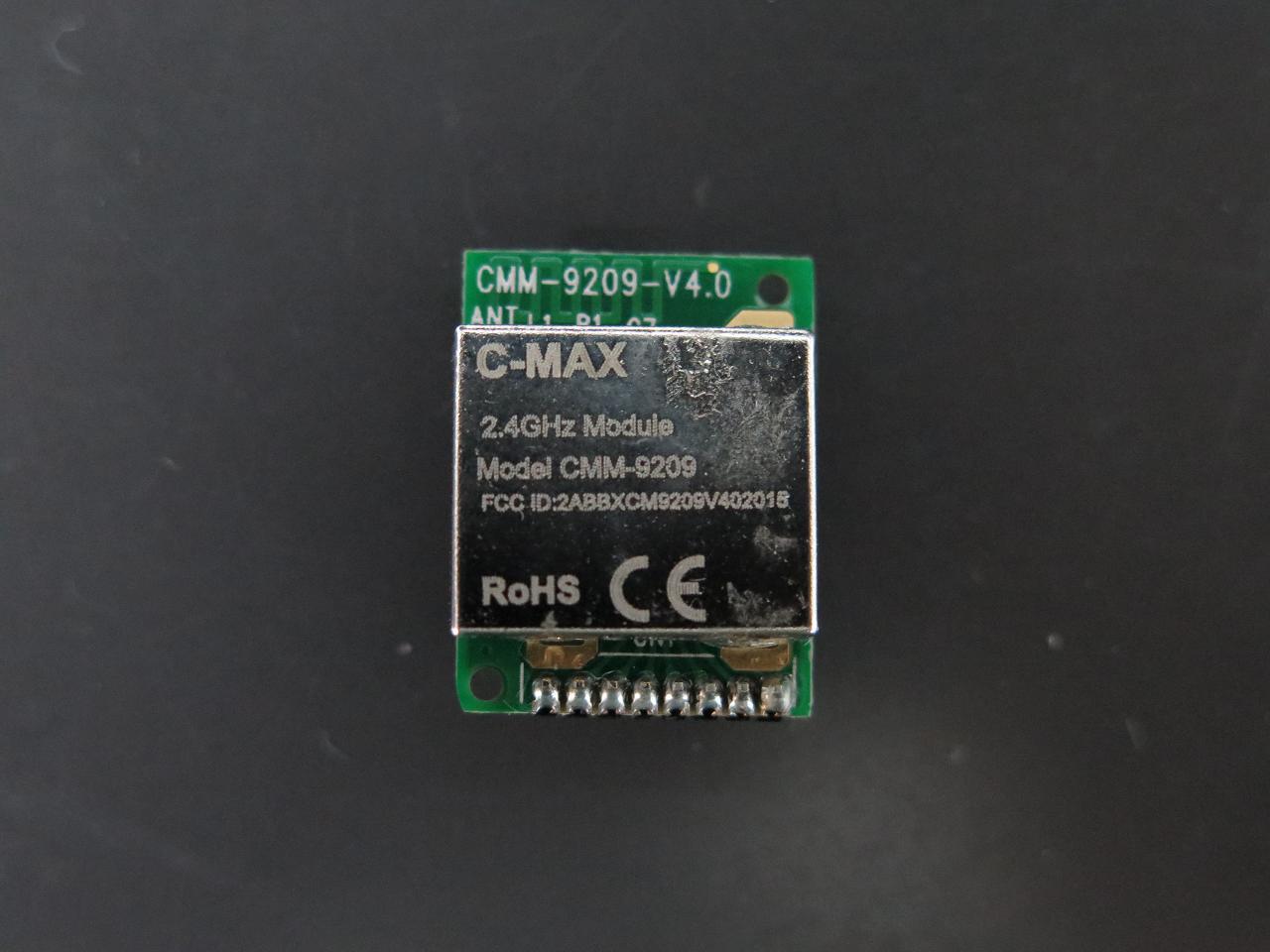

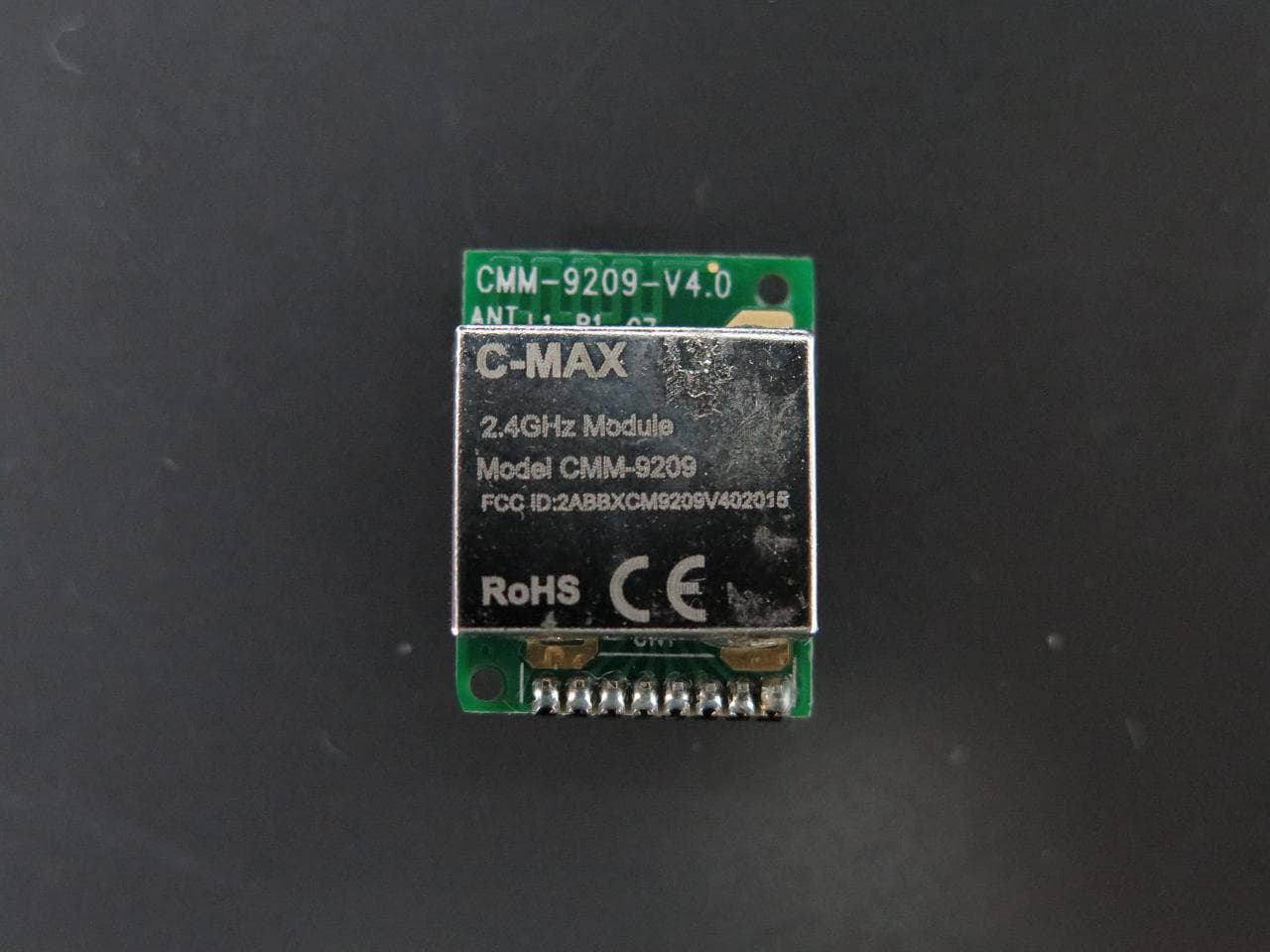

Label Sample With pin header Without pin header

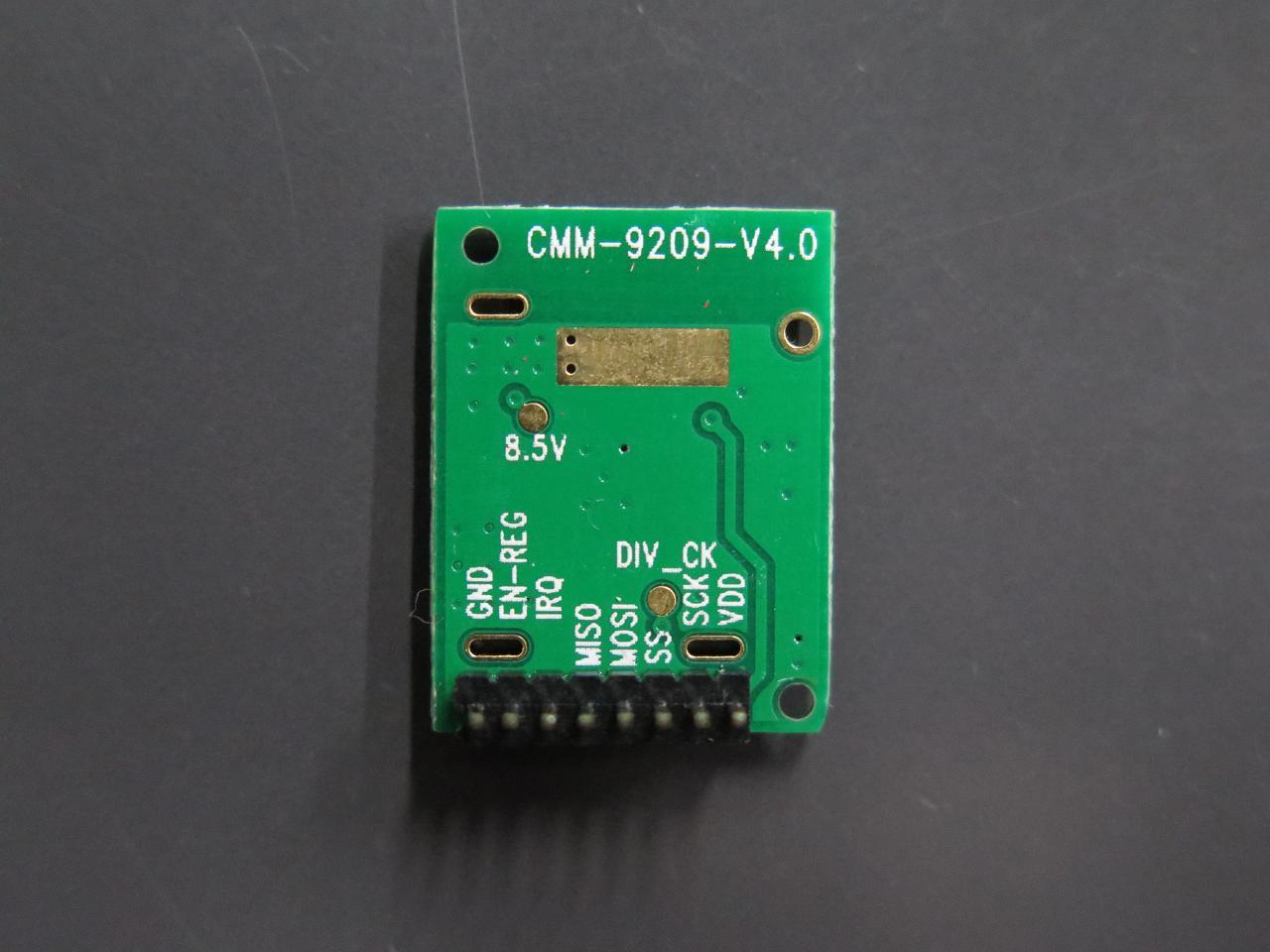

Internal Photo With pin header Without pin header

TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 27 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: 2ABBXCM9209V402015 Application No. : LT002836(8) Applicant : C-MAX Asia Limited Room 117, 1/F, Liven House, 61-63 King Yip Street, Kwun Tong, Hong Kong Sample Description : One(1) item of submitted sample stated to be 2.4GHz Module of Model No. CMM-9209-V4.0 Sample registration No. : RT005659-002, RT007719-001 Radio Frequency : 2408MHz – 2474 MHz Transceiver Rating : 2 x 1.5V AA size batteries No. of submitted sample : Five (5) piece (s) Date Received : 17 Jan 2015, 30 Jan 2015 Test Period : 17 Jan 2015 to 05 Feb 2015. Test Requested : FCC Part 15 Certificate (15.249) Test Method : 47 CFR Part 15 (10-1-12 Edition), ANSI C63. 4 – 2009 Test Engineer : Mr. LEUNG Shu-kan, Ken Test Result : See attached sheet(s) from page 2 to 27. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B and C. TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 Page 2 of 27 FCC ID: 2ABBXCM9209V402015 Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 12 3.1 Test Procedure .................................................................................................................................. 12 3.2 Test Result ........................................................................................................................................ 12 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 12 4 Photograph ............................................................................................................................................... 13 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 13 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 13 5 Supplementary document ......................................................................................................................... 14 5.1 Bandwidth ......................................................................................................................................... 14 5.2 Duty cycle ......................................................................................................................................... 14 5.3 Transmission time ............................................................................................................................. 14 5.4 Power Spectral Density ..................................................................................................................... 14 5.5 Average on time ................................................................................................................................ 14 6 Appendices ............................................................................................................................................... 15 TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 Page 3 of 27 FCC ID: 2ABBXCM9209V402015 1 General Information 1.1 General Description The equipment under test (EUT) is a transceiver module for 2.4GHz wireless device. The EUT is power by 3V dc. The EUT contain shielding, internal grounding and built in with a folded-dipole PCB antenna. The EUT can mount on other device through surface mount or plug in through 9-pin 1.27 mm connector. The brief circuit description is listed as follows: - X1 and its associated circuit act as oscillator - L1, R1, C6, C7 and its associated circuit act as antenna matching - U1 and its associated circuit act as controller TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 Page 4 of 27 FCC ID: 2ABBXCM9209V402015 1.2 Location of the test site FCC Registered Test Site Number: 552221 Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 Page…

Text truncated - open the document above for the full version.

TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 24 of 27 FCC ID: 2AABXCM9029V402015 A5. Band Edge Lower edge (Peak measurement) Lower edge (Average measurement) TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 25 of 27 FCC ID: 2AABXCM9029V402015 A5. Band Edge Higher edge (Peak measurement) Higher edge (Average measurement)

TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 26 of 27 FCC ID: 2AABXCM9029V402015 A6. 20dB Bandwidth Plot Bandwidth 1 (2408MHz) Bandwidth 2 (2442MHz) TEST REPORT Report No. : AT0008947(6) Date : 05 Feb 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 27 of 27 FCC ID: 2AABXCM9029V402015 A6. 20dB Bandwidth Plot Bandwidth 3 (2474MHz) ***** End of Report *****

Test Setup Photo Front view (30MHz – 1GHz) Rear view (30Mz – 1GHz) Front view (9kHz – 30MHz) Rear view (9kHz – 30MHz) Front view (1GHz – 25GHz) Rear view (1GHz – 25GHz) EUT with control board (top view) EUT with control board (bottom view)
