2ABBXCM9301V312013BLUETOOTH 4.0 SINGLE MODE HCI MODULE

CMM-9301-V3.1S Bluetooth 4.0 Single Mode HCI Module This Module is limited to OEM installation ONLY SPEC No. CMM-9301-V3.1S BLE HCI module Revision 3.3 State 2013-12-11 C-MAX printed 2013-12-13 Version English Page 1 of 9 C-MAX Description The CMM-9301-V3.1S module is a Bluetooth SIG qualified, miniaturised BLE controller module based on EM Microelectronic's low power fully integrated single-chip Bluetooth Low Energy (BLE) Controller EM9301. The module is highly optimized for Bluetooth 4.0 Single Mode (Bluetooth Low Energy) link application requiring ultra low power consumption and short time-to-market. It offers a plug and play solution for any BLE application up to the link layer, without any additional hardware nor RF layout. Built in with a folded-dipole PCB antenna, this small sized, low cost module provides an ideal solution to the new BLE technology. The EM9301 is designed to act as BLE master or slave according to the Bluetooth 4.0 specification. It can be controlled by any external microcontroller featuring BLE profile and applications, through the standard BT HCI interface. 1.1 Features o Bluetooth SIG qualified Controller Subsystem QDID: B020510 o Master and Slave BLE controller compliant to Bluetooth 4.0 specification o Embedded low-power physical layer, Link Layer with security engine, and a Host Controller Interface (HCI) o Low average current consumption o 1Mbps on-air data rate o Mini-sized (18.5mm x 14mm) o Integrated Battery Low Detection o Programmable RF output level (-18 to +3 dBm) for current consumption optimization. o No Tuning necessary o SPI interface as HCI transport layer to micro-controller CMM-9301-V3.1S Bluetooth 4.0 Single Mode HCI Module SPEC No. CMM-9301-V3.1S BLE HCI module Revision 3.4 State 2013-12-13 C-MAX printed 2013-12-13 Version English Page 2 of 9 C-MAX 1.2 Module Dimension, Pin Assignment and Physical Layout External External Top view Top view (Shielded, (Shielded, with pin header) without pin header) Internal Internal Top view Bottom view Module Dimensions Module Layout Connection pin pitch = 1.27mm Module Thickness (excluding pin header connectors) = 2.4mm max Pin Number Pin Name Input/Output to module Pin Description 1 RST I Reset (controlled via FET by 100ms HI input pulse) / ON (LO) / OFF (HI) 2 GND GND Ground Connection 3 CS I Chip Select (Active LO) 4 IRQ O Interrupt Output for external host Controller 5 SDO O SPI Data Output 6 SDI I SPI Data Input 7 SCK I SPI Clock Input 8 VCC VCC Power Supply 9 SEL I Interface Selection (0 = UART, 1 = SPI) CMM-9301-V3.1S Bluetooth 4.0 Single Mode HCI Module SPEC No. CMM-9301-V3.1S BLE HCI module Revision 3.4 State 2013-12-13 C-MAX printed 2013-12-13 Version English Page 3 of 9 C-MAX 1.3 Module Reference Circuit diagram 1.4 BLE application reference block diagram CMM-9301-V3.1S Bluetooth 4.0 Single Mode HCI Module SPEC No. CMM-9301-V3.1S BLE HCI module Revision 3.4 State 2013-12-13 C-MAX printed 2013-12-13 Version English Page 4 of 9 C-MAX 1.5 Module Electrical Specifications Specification CMM-9301-V3.1S Voltage Range 2.3V to 3.6V Frequency Range 2.400 to 2.484 GHz Modulation GFSK On-air data rate 1Mbps RF channels 40 Current Consumption (Vcc = 2.5V) - Off mode (RESET = HI) 1 uA typ. - Active mode (RX) 12.9 mA typ. - Active mode (TX at 0 dBm) 12.1 mA typ. Programmable output power -18 dBm to +3 dBm SPI speed (bit rate) 5000 kbits/s (max) Note : For more detailed timing and electrical characteristics, please contact C-MAX Asia Ltd for EM9301 updated datasheet. 2. Ordering information C-MAX Module Part Number Delivery Form Size Typical Operating Voltage CMM-9301-V3.1S Non-shielded, no pin connectors 18.5 x 14 mm 2.3 ~ 3.6V CMM-9301-V3.1SP Non-shielded, with pin connectors 18.5 x 14 mm 2.3 ~ 3.6V CMM-9301-V3.1SF Shielded, no pin connectors 18.5 x 14 mm 2.3 ~ 3.6V CMM-9301-V3.1SX Shielded, with pin connectors 18.5 x 14 mm 2.3 ~ 3.6V CMM-9301-V3.1S Bluetooth 4.0 Single Mode HCI Module SPEC No. CMM-9301-V3.1S BLE HCI module Revision 3.4 State 2013-12-13 C-MAX printed 2013-12-13 Version English Page 5 of 9 C-MAX 3. FCC Statement NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by CMA Industrial Development Foundation Limited may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help Radio frequency radiation exposure information: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. Please see the RF Exposure information. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device should be installed and operated with a minimum distance of 20cm between the anten…

Text truncated - open the document above for the full version.

C-MAX Federal Communications Commission Authorization and Evaluation Division 20 November , 2013 Confidentiality Request regarding application for certification of FCC ID: 2ABBXCM9301V312013 Pursuant to Sections 0.457 and 0 .459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram Module Schematics Module Operational Description File Name 2ABBXCM9301V312013 BlkDia.pdf 2ABBXCM9301V312013 Schem .pdf 2ABBXCM9301V312013 OpDes .pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely , C-MAX Asia Limited General Manager

'、 C-MAX 20 November, 2013 Equipment Authorization Division Offi ce id Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia , MD 21046 Dear Sirs: C-MAX Asia Limited requests acceptance of the labeling proposal described below for CMM-9301-V3.1 S bearing FCC identifier 2ABBXCM9301V312013. The subject Bluetooth 4.0 Single Mode HCI module CMM-9301-V3.1 S model as shown in figure 1, authorized under FCC Part 15 Class C figure 1 C-MAX It is because the surface of the device does not enough to indicate the FCC statement. For this reason , C-MAX ASIA LlMITEO proposes those statements is showing on the user manual and the device is carrying the FCC 10 number only. The figure2 is showing the FCC 10 locati on. h>且可1 趴〉白且可白1 ∞Cc 3 ∞一 古由一巴口 ×口 () 三 主c.o 心3 c.o o 心2 o -益 ....>. <心2 <bJ -益 -'‘ N o N o ....>. ....>. 心2 心2 figure 2 Sincerely , C-MAX Asia Limited General Manager

C-MAX FCC ID : 2ABBXCM9301V312013 POWER OF ATTORNEY 20 November. 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia , MD 21046 To Whom It May Concern, We, the undersigned, hereby authorize CMA Industrial Development Foundations Limited (Andrew Wong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CMA Industrial Development Foundation Limited (Andrew Wong) on our behalf shall have the same effect as acts of our own. This authorization expires one year from original date. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We C-MAX Asia Limited , are not su叫ectto a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no pa付Yto the application is su叫ectto a denial of federal benefits pursuant to that section. Sincerely , C-MAX Asia Limited General Manager

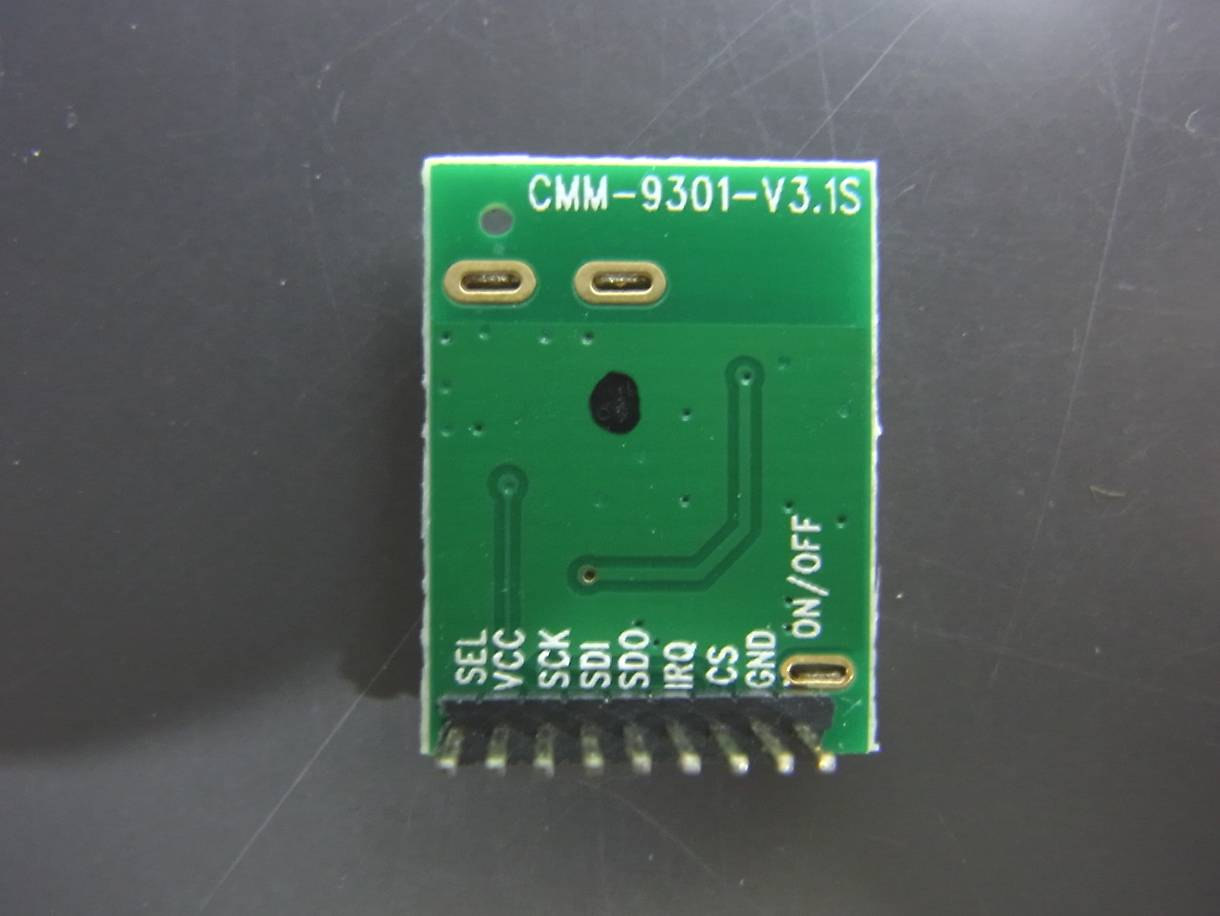

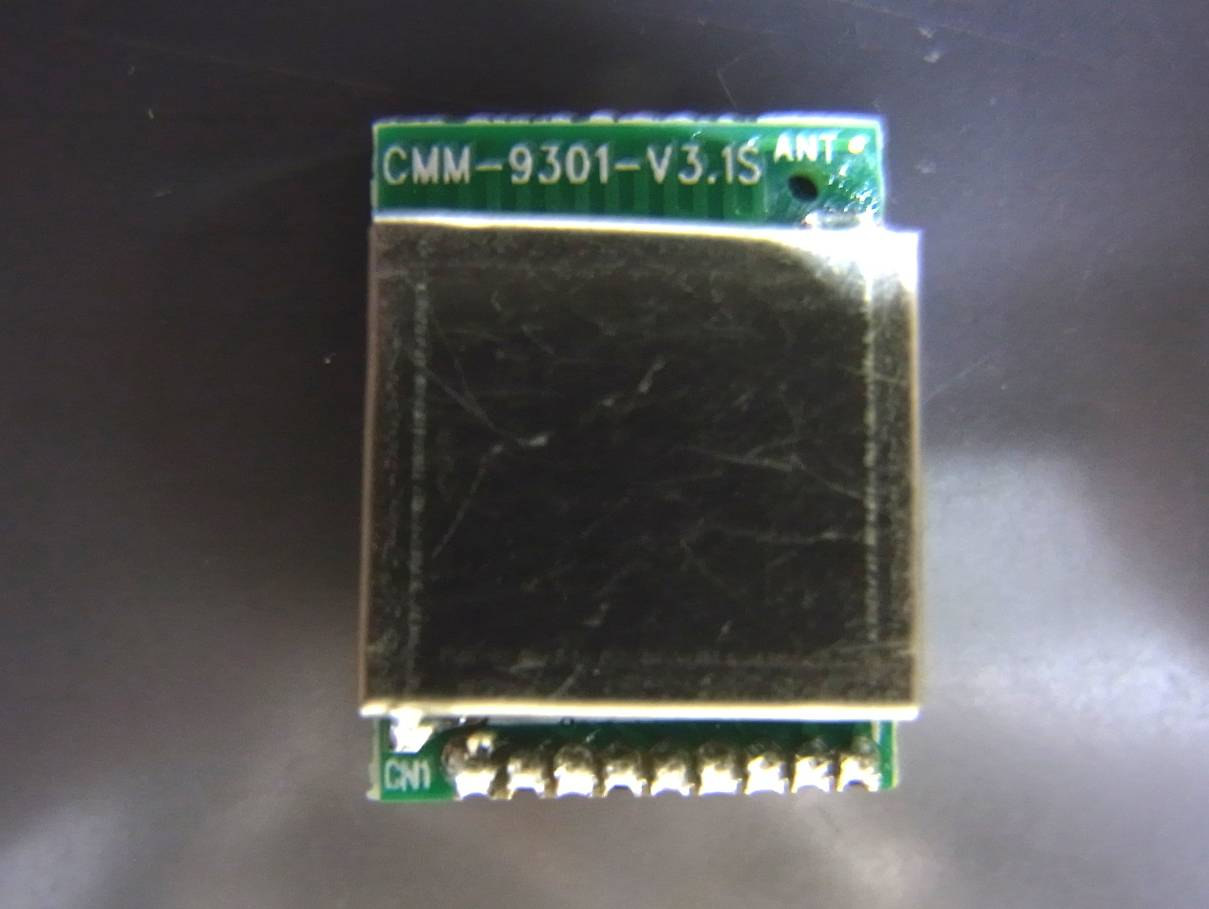

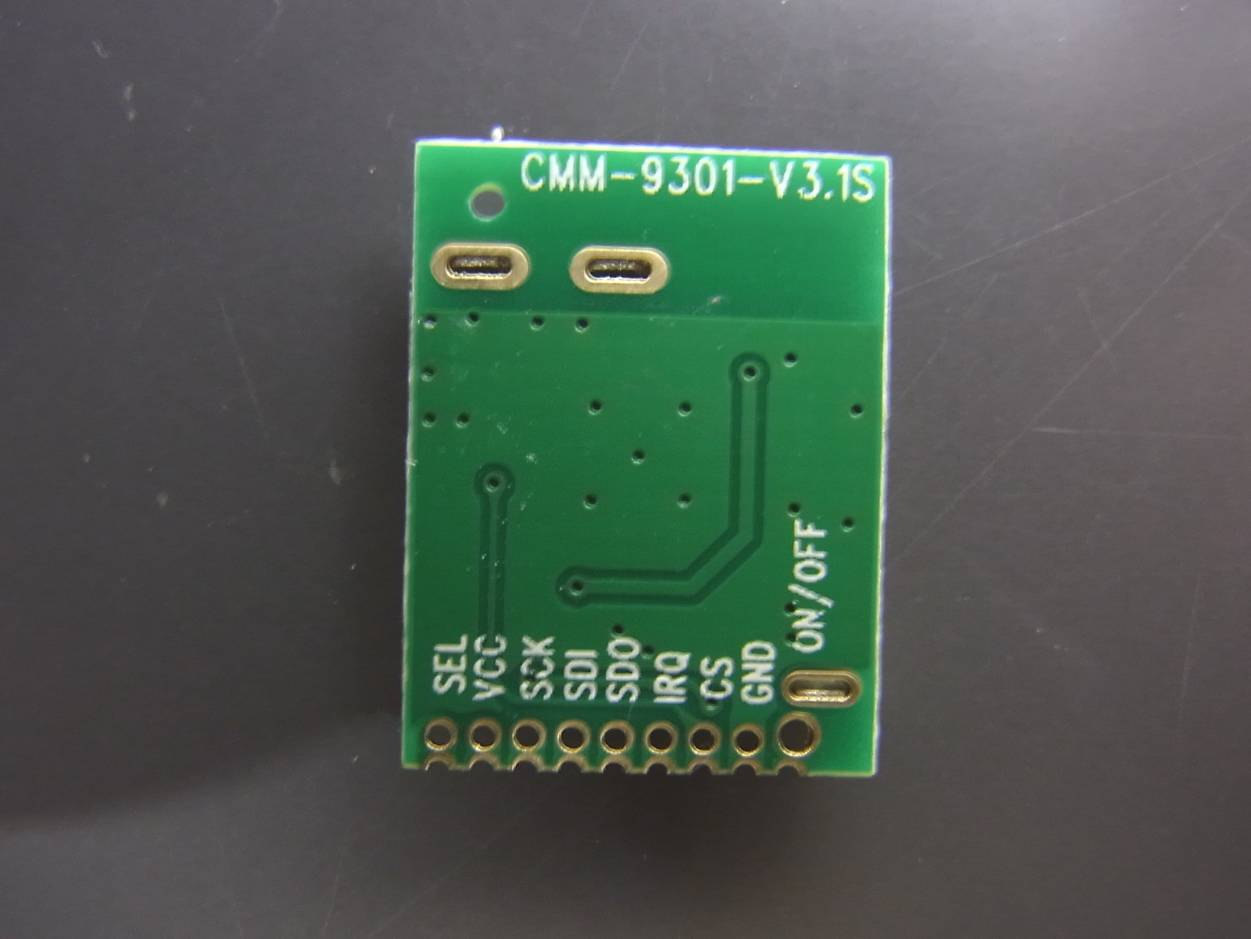

External Photo Top side (with header) Bottom side (with pin header) Top side (without pin header) Bottom side (without pin header)
