2ABDT-TE116C0MID

DATE : Oct 22, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ABDT-TE116C0 Product Name: MID Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description • Part List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Oct 22, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Luo Albert Signature Printed Title: Manager On behalf of : JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. Telephone: +86-513-88355088

Statement We JIANGSU SHUANGSHUANG TECHNOLOGY CO., LTD. Hereby declare that The product MID, models no. TE116C0, D2-1161G are all identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Dated this Oct 22, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Luo Albert Signature Printed Title: Manager On behalf of : JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. Telephone: +86-513-88355088

Statement We JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. Are applying for FCC DOC for MID with model number: TE116C0, D2-1161G FCC DOC is doing at FCC Authorized and Recognized lab. The FCC DOC application will be completed before sell. Your assistance on this matter is highly appreciated. Yours sincerely, Dated this Oct 22, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Luo Albert Signature Printed Title: Manager On behalf of : JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. Telephone: +86-513-88355088 Are applying for FCC DOC for MID with model number:TE116C0;D2-1161G FCC DOC is doing at FCC Authorized and Recognized MRA lab. The FCC DOC application will be completed before sell. Your assistance on this matter is highly appreciated.

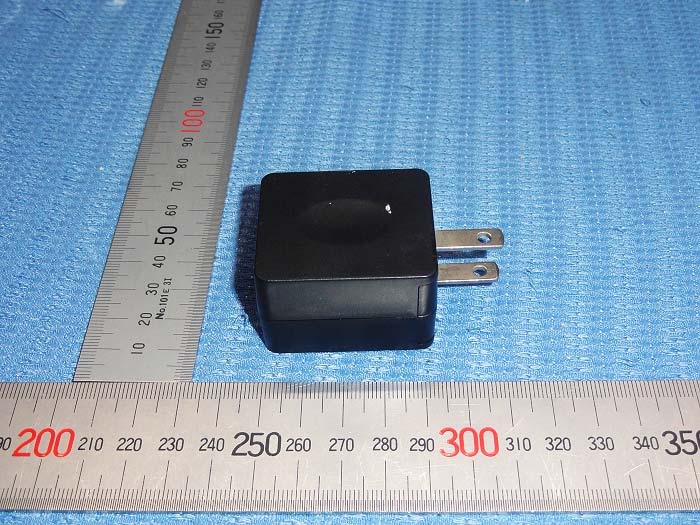

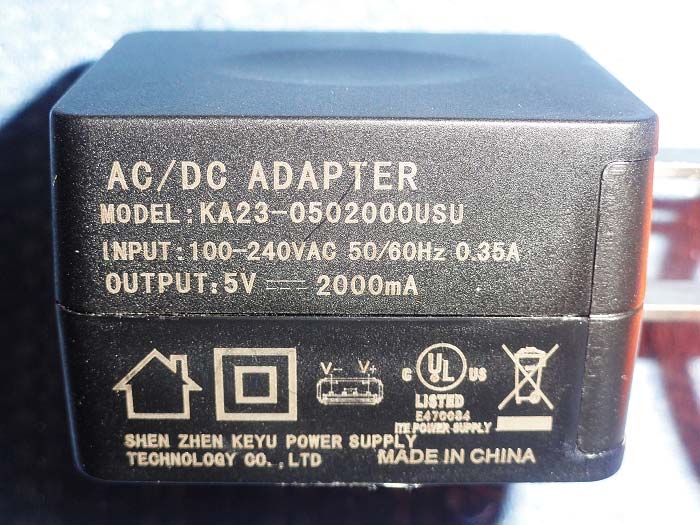

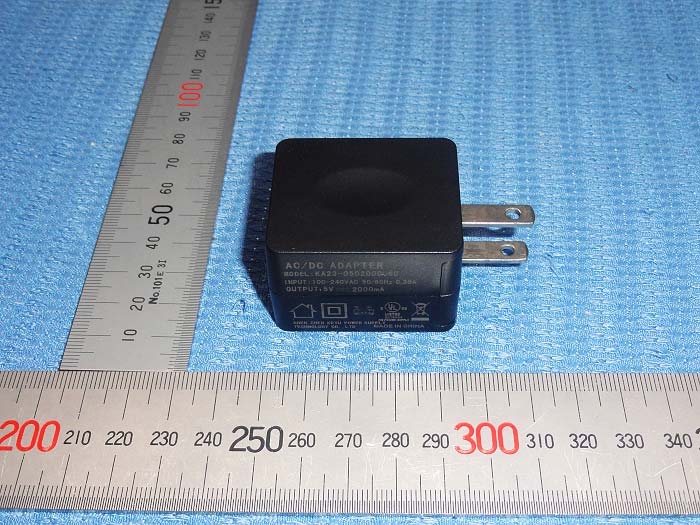

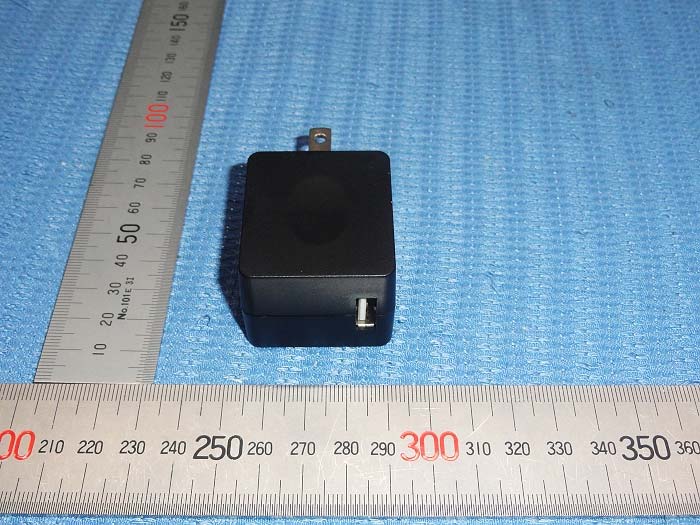

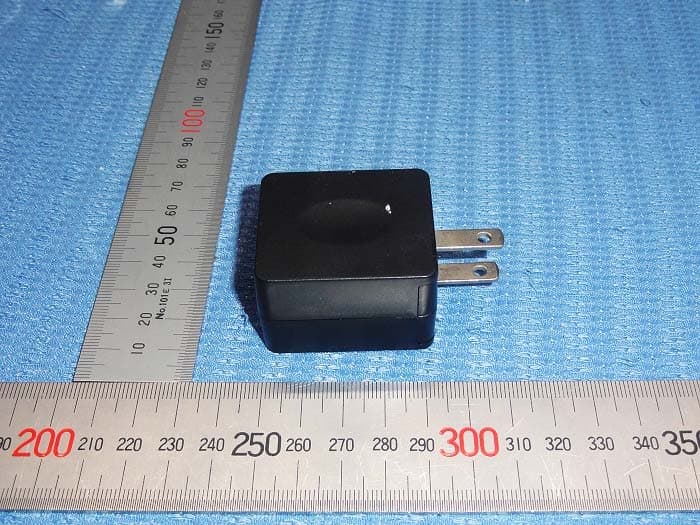

Outside view Outside view Outside view Outside view Outside view

Mark Location: FCC Label Location

FCC ID: 2ABDT-TE116C0 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Inside view Inside view Inside view Inside view Inside view Inside view

NO. Material NO. Material Description Qty Value 1 02.016.0185 Storm116 MAINBOARD PCB-SPCB-Storm116-MAINBOARD-L6-V3.0.0 1 2 02.002.0089 CAP-SMT-C0G-100PF-+/-5%-50V-0402 1 100pF C189 3 02.002.0192 CAP-SMT-C0G-15PF-+/-5%-50V-0402 6 15pF C173 C9 C58 C17 2 4 02.002.0077 CAP-SMT-C0G-18PF-+/-5%-50V-0402 2 18pF C119-120 5 02.002.0206 CAP-SMT-C0G-2.7pF-+/-0.25pF-50V-0402 7 2.7pF C166-167 C175 C182 C184-186 6 02.002.0099 CAP-SMT-C0G-22PF-+/-5%-50V-0402 3 22pF C171 C199 7 02.002.0088 CAP-SMT-C0G-33PF-+/-5%-50V-0402 10 33pF C121 C146 C152 C196 C200-201C216 C254 C303 C174 8 02.002.0195 CAP-SMT-X5R-0.1uF-+/-10%-16V-0402 1 0.1uF C331 9 02.002.0182 CAP-SMT-X5R-100nF-+/-20%-10V-0402 88 100nF C3-5 C7 C11-15 C18 C20 C22 C26-27 C29-30 C35-36 C40-41 C46-47C67 C93-94 C96-97 C99 C101 C105C108 C110-111 C116-117 C122C128 C130 C132-134 C144-145C158 C160-165 C169-170 C188C194 C198 C208-209 C211 C226-231 C262 C264 DC1 DC5-8 DC21DC23-24 DC27-28 HR1 C126 C131C147 DC12-14 DC18-20 DC26 DC42 10 02.002.0073 CAP-SMT-X5R-10uF-+/-20%-16V-0805 3 10uF C16 C49 C55 Storm116 BOM 11 02.002.0146 CAP-SMT-X5R-10uF-+/-20%-6.3V-0603 44 10uF C6 C23 C28 C32 C37 C43 C50 C53C56-57 C59 C61 C63-66 C68-72C80 C82 C88 C109 C112 C159 C168C190 C202 C206 C234 C263 C265-270 C272-273 DC2 DC9 DC15 12 02.002.0179 CAP-SMT-X5R-10uF-+/-20%-25V-0805 1 10uF C54 13 02.002.0160 CAP-SMT-X5R-1uF-+/-20%-10V-0402 39 1uF C8 C25 C31 C33-34 C38-39C44-45 C51 C73 C79 C95 C98C100 C102-103 C106-107 C113C115 C151 C155 C238 C244DC3-4 C17 C19 C21 C24 DC10-11 DC16-17 DC22 DC25 DC40-41 14 02.002.0196 CAP-SMT-X5R-2.2uF-+/-20%-6.3V-0402 5 2.2uF C123 C129 C135 C154 C197 15 02.002.0168 CAP-SMT-X5R-22uF-+/-20%-6.3V-0603 1 22uF C157 16 02.002.0187 CAP-SMT-X5R-4.7uF-+/-20%-10V-0603 21 4.7uF C10 C74-78 C81 C83 C89-90C104 C114 C153 C212 C271 17 02.002.0084 CAP-SMT-X7R-0.022uF-+/-10%-16V-0402 4 0.022uF C125 C1 43 C150 C183 18 02.002.0109 CAP-SMT-X7R-4.7nF-+/-10%-50V-0402 1 4.7nF C52 19 02.009.0240 CON-Others-5pin-1.25mm-11.7*5.5*1.85mm 1 1.25-5P J18 20 02.009.0250 CON-OTHERS-CHARGER_CONNECTOR-10*7*3 1 DC-056C08 J5 21 02.009.0194 CON-Earphone_jack-EARCON-5PIN-3.5mm-12*8.1*4.2mm 1 P JK-3550-35XK J14 22 02.009.0242 CON-I/O-USB-5PIN-A01SB12411B23-165-6.25*7.4*2.35 1 A 01SB12411B23-165 J15 23 02.009.0243 CON-OTHERS-HDMI_CONNECTOR-D_TYPE-19pin-0.4mm-7.5*6 .5*3.0m m 1 SHD-19F031 CON1 24 02.009.0275 CON-Positions_Pogo-1Pin-Φ2.0*2.5 6 SPR00-250825PN02 T P2 TP8 TP14-17 25 02.009.0252 CON-SOCKET_FPC_FLIP-10Pin-0.5mm-9.1*4.5*1.5 1 FPC051 5-10B2-S3R CN7 26 02.009.0247 CON-SOCKET_FPC_FLIP-12Pin-0.5mm-10.1*4.5*1.5 1 SFC-0 512-00H15 CN2 27 02.009.0175 CON-SOCKET_FPC_FLIP-30Pin-0.5mm-19.1*5.0*1.5 1 FPC30 -T1T1-2021-A CN1 28 02.009.0248 CON-SOCKET_FPC_FLIP-40Pin-0.4mm-10.1*5*1.0 1 24-5805 -040-001-829+ CN5 29 02.009.0251 CON-SOCKET_FPC_FLIP-8Pin-0.5mm-8.1*4.5*1.5 1 FPC0515 -08B2-S3R CN6 30 02.009.0258 CON-SOCKET_TF-9pin-11.25*6.2*1.65MM 1 ZLJTFDK CN4 31 02.008.0029 CRYSTAL-CRYSTAL-24MHZ-12PF-+/-10ppm-3.2*2.5*0.65mm 1 24MHz X3 32 02.008.0030 Crystal-CRYSTAL-32.768K-12.5PF-+/-20ppm-1.5*1.5*7. 0 1 32.768KHZ X4 33 02.008.0028 CRYSTAL-CRYSTAL-40MHZ-15PF-10ppm-3.2*2.5*0.8 1 40MHz U19 34 02.006.0076 TRANSISTOR-TVS-ESD-4Channel-5V-0.35pF-DFN10 2 TEVA0R 4V05D4X U2-3 35 02.011.0020 Shield Clip-PTC0703B-6.5*0.8*1.28 9 PTC0703B J1-2 J4 J6-8 J11-13 36 02.005.0017 IC-AUDIO-AMPLIFIER-5V-1.3W-5.1mm*3mm*1.2mm-MSOP-8 2 NS4890 U13 U32 37 02.004.0251 IC-CPU-A83T-A7-1.8GHz-14*14mm-FBGA345 1 A83T U1 38 02.004.0222 IC-Others-Current_Limiter-2.5_5.5V-1A-SOT23-5 2 AP16 21C U10 U7 39 02.004.0182 IC-FLASH-DDR3-256MByte-1.5V-11*7.5*1.1-FBGA78 4 256M B DU7-10 40 02.004.0316 IC-Driver-WHITE_LED-2.5_5.5V-OVP36V-SOT23-6 1 HE3806 U6 41 02.004.0223 IC-FLASH-NAND-8GByte-3.3V-16nm-12*20-TSOP48 2 8GB U4 U18 42 02.004.0276 IC-OTHERS-HALL_SENSOR-2.4_5.5V-DFN1616_6L 1 OCH175VA DU5 43 02.021.0327 ACCESSORY-MIC-OMNI-45+/-1.5dB-1.25*4.72*3.76-SMD 1 M ULPS4CX MIC1 44 02.004.0252 IC-POWER-AXP813-PMU_CODEC-11*11mm-BGA218 1 AXP813 U28 45 02.004.0206 IC-POWER_SUPPLY-DC_DC-5V-1A-SOT23-6 1 HE2104 U8 46 02.004.0219 IC-RF-RTL8723BS-VQ0-CG-WIFI_BT_SOLUTION-3.3V-8*8*0 .85mm-Q F 1 RTL8723BS-VQ0-CG U17 47 02.004.0128 IC-SENSOR-Accelerometer-1.2-3.6V-2*2*0.95mm-LGA12 1 BMA223 U14 48 02.012.0018 IND-FERRITE BEAD-220ohm-300mA-0.35ohm-0402 9 220 FB1- 4 FB9-10 L8 R86-87 49 02.003.0086 IND-Others-SMD-Power-10uH-+/-20%-4.0*4.0*1.8 2 10uH L 4 L9 50 02.003.0104 IND-Others-SMD-Power-1.0uH-+/-30%-2A-3.0*3.0*1.5 3 1 uH L1 L6-7 51 02.003.0101 IND-Others-SMD-Power-1uH-+/-30%-3.2A-4.0*4.0*1.8 4 1 uH L2-3 L5 L11 52 02.003.0078 RES-SMT-EMI-2Channel-90ohm-100mA-4ohm-1.25*1.0*0.8 mm 2 TF1210A2X900MT U9 U11 53 02.001.0043 RES-SMT-FILM-0-±5%-1/10W-0603 1 0 R79 54 02.001.0015 RES-SMT-FILM-0-±5%-1/16W-0402 33 0 HR4 R1 R10-11 R21-22 R26 R31R38 R51 R56-57 R62 R66-67R70-71 R81 R85 R88 R96 R102R105 R123-124 R138-139 R149R152-153 R325-326 R331 55 02.001.0146 RES-SMT-FILM-0-+/-5%-1/4W-1206 1 0 R885 56 02.001.0060 RES-SMT-FILM-0-+/-5%-1/8W-0805 1 0 R77 57 02.001.0215 RES-SMT-FILM-0.01-+/-1%-1/4W-0805 1 0.01 R15 58 02.001.0217 RES-SMT-FILM-1-+/-1%-1/16W-0402 1 1 R58 59 02.001.0133 RES-SMT-FILM-1.8K-+/-5%-1/16W-0402 2 1.8K R17 R37 60 02.001.0020 RES-SMT-FILM-100-+/-5%-1/16W-0402 1 100 DR8 61 02.001.0016 RES-SMT-FILM-100K-+/-5%-1/16W-0402 18 100K R3 R46-47 R53 R60-61 R104R126 R129 R133-134 R136-137R140 62 02.001.0044 RES-SMT-FILM-10K-±5%-1/10W-0603 2 10K R18 R35 63 02.001.0021 RES-SMT-FILM-10K-+/-5%-1/16W-0402 22 10K HR3 HR5 HR23 HR26 R2 R24 R27R30 R39-40 R42 R48-49 R82R107 R154 R173-174 R176-178R188 64 02.001.0174 RES-SMT-FILM-10M-+/-5%-1/16W-0402 1 10M R54 65 02.001.0046 RES-SMT-FILM-150K-+/-1%-1/16W-0402 1 150K R9 66 02.001.0183 RES-SMT-FILM-16K-+/-1%-1/16W-0402 4 16K R63 R69 R73 R 75 67 02.001.0026 RES-SMT-FILM-1K-+/-5%-1/16W-0402 2 1K R12 R50 68 02.001.0114 RES-SMT-FILM-2.7K-+/-5%-1/16W-0402 1 2.7K HR12 69 02.001.0003 RES-SMT-FILM-200K-+/-1%-1/16W-0402 1 200K R8 70 02.001.0222 RES-SMT-FILM-20K-+/-1%-1/16W-0402 1 20K R5 71 02.001.0129 RES-SMT-FILM-20K-+/-5%-1/16W-0402 1 20K R83 72 02…

Text truncated - open the document above for the full version.

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): WIFI Mode [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =9.31/5 * 1.57= 2.92, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Bluetooth Mode [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =3.46/5 * 1.57= 1.09, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Note: WIFI and Bluetooth can not transmit at the time. The SAR measurement is not necessary.

Report No: FCC 1509133-02 File reference No: 2015-09-29 Applicant: JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. Product: MID Model No: TE116C0, D2-1161G Trademark: N/A Test Standards: FCC Part 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4, FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: September 29, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Room 512-519, 5/F., East Tower, Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: FCC1509133-02 Page 2 of 85 Date: 2015-09-29 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No.: FCC1509133-02 Page 3 of 85 Date: 2015-09-29 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition....................................................................................9 5.5 Conducted Emission Limit................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
