2ABDT-TQ10A11tablet PC

INTEL TABLET PC Quick Start Guide Model: TVE1002I UserManual Safety Precautions 1. This production is suitable for use in non-tropic areas below 2,000 meters, and the mark in the nameplate indicates the product is suitable for use in non-tropic areas. 2. Prevent the Tablet PC from falling to the ground or being strongly impacted otherwise. 3. Do not use it in the long term in any environment where the air is too cold, too hot (<35°C), too humid or with too much dust. Do not expose the Tablet PC to sunlight. 4. Avoid using it in the strong magnetic and strong static environment as much as possible. 5. Once any water or other liquid splashes onto the Tablet PC, close it immediately and do not use it until it dries out. 6. Do not clean the Tablet PC with any detergent containing chemical element or other liquid to avoid causing damage due to corrosion and becoming damp. If cleaning is really necessary, clean it with dry soft cloth tissue paper. 7. Our company shall not bear any and all responsibilities for loss or deletion of material inside the machine caused due to abnormal software and hardware operation, maintenance or any other accident. 8. Please back up your important material at any time to avoid loss. 9. Please do not disassemble the Tablet PC by yourself; otherwise you will lose the right to warranty. 10. Replacement with incorrect type batteries may cause explosion. Make sure to use original batteries. 1 UserManual Packing List Please check box for the following items 1. Device 2. User Manual 3. Product Warranty 4. USB Adaptor 5. External pipo keyboard Other accessories can be purchased at local retailers The accessories may not be compatible with other devices Power Adaptor Specification: MODEL: TVE1002I INPUT: AC 100-240V 50/60Hz 0.3A MAX OUTPUT: 5.0V2.0A 2 UserManual Device description ①Touch screen：You can click and drag in the touch screen. ②Front Camera：You can take photos and videos etc. ③Volume-：Turn down the volume. ④Volume+：Turn up the volume. ⑤POWER： Keep pressing button over 2 seconds for power on/ off, press button once to turn on screen from sleep mode. ⑥ ⑦ Micro SD/TF card：Micro SD/TF card slot. ⑧ Micro HDMI：Micro HDMI Output. ⑨ ⑩ ⑪ 【TIPS 】： 1. When the battery is low, it will power off automatically. 2. Shutdown illegally, when you restart, device would scan and repair the disk. The screen will stay at the progress bar for a long time . 【Note】：The pictures in the user manual are just for your reference. ：Micro USB, Micro-5pin connector. Earphone jack：3.5mm standard earphone jack. ①②③④⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫⑬ Micro USB connection. Speaker. ⑫ ⑬ Rear Camera：You can take photos and videos etc. Pen. 3 UserManual Setting up for the first time Charging your device： For first-time use, you need to charge the device for ten hours. After that you can recharge the device as needed. Connect the DC-in jack to your device and plug the AC adapter into any AC outlet. 【TIPS】: 1. This device adopts built-in polymer battery. Only the specified charger should be used. 2. It is normal for the device’s surface to become warm during charging or long periods of use. All devices are factory tested before release. 3. If you do not use this set for a long time, please charge/release it once one month to avoid deep discharge. The damage caused by battery over-consuming is not included in the warranty. Battery Saving To save battery running life, please see below key points. With below suggestions, battery can run longer time after fully charged each time. 1. When device is not in use, press power button once to go to sleep mode. 2. Shut down the applications when not in use. 3. Turn off WLAN when not in use 4. Shut off application sync selection 5. Set a shorter time for display backlight 6. Reduce brightness of display 4 UserManual Power On Keep pressing power button over 2 seconds, device will start up opening screen. Sleep Mode After devise is on, press power button once and it goes to sleep mode. The screen is now on standby and under low battery consumption. To wake up device, press one more time power button. Power off When you are not using the device, keep pressing power button over 2 seconds, the screen will display slide down. 5 UserManual Windows 8.1 start image On the start screen, you can see many programs fixed in the image. These application programs are displayed in the form of “magnet”. As long as you click them, you can easily visit them. You need to log on your Microsoft account before the application program completely runs. 6 UserManual Image slide applications Slide to right：Slide to the right from the left side of the screen to start the application program in running Slide to left：Slide to the left from the right side of the screen to start Charm menu column. . Reduce：On the touch screen, narrow two fingers to reduce the image. 7 UserManual Enlarge：On the touch screen, widen two fingers to enlarge the image. Slide downward: In start screen, slide from the top of the screen to view all application programs. Slide with finger: In start screen, slide finger right and left to move the image. 8 UserManual Slide upward：In the start screen, slide upward from the bottom of the screen to visit all application program (APPS) interfaces. 9 UserManual Introduction to app Interface Besides the application programs already fixed on the start screen, you can also start other application programs in all application programs, such as other software application programs attached to the Tablet PC. 10 UserManual If you want to fix more application programs on the start interface, see the operation in the figure below, (1) lightly touch, press and hold the application program magnet for about one second and then let go, and select (2) to fix to the start screen. 11 UserManual Conversely, if you want to cancel or delete a certain application in the start screen, (1) lightly touch, press and hold the application program magnet for about one second and then let it go and run, and select (2) attribut…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (obsolete)2.03.0Jan-31-2012 Updated letter information (obsolete)3.04.0May-23-2014 Added FCC ID field (current)4.05.0Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. 2015/06/01 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, __JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD.___hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): (Product description, model name) tablet PC，TQ10A11 FCC ID :2ABDT-TQ10A11 Sincerely, Client’s signature Client’s name / title：albert luo / Manager Contact information / address No.188,West Coastal Road，Haian County，Jiangsu Province,P,R.China.

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (obsolete) 2.03.0Jan-31-2012 Added IC confidentiality letter form (current)3.04.0March-26-2015 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 4.0 JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. 2015/06/01 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Request forFCC ID :2ABDT-TQ10A11 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram -e. g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarilyreleased to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title：albert luo / Manager Contact information / address No.188,West Coastal Road，Haian County，Jiangsu Province,P,R.China.

JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : 2ABDT-TQ10A11 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name:JIANGSU SHUANGSHUANG TECHNOLOGY CO,LTD. Address : No.188,West Coastal Road ， Haian County ， Jiangsu Province,P,R.China. Name / Title :albert luo / Manager Signature : Phone :+86-513-88355088 Email :[email protected] Date :2015/06/01

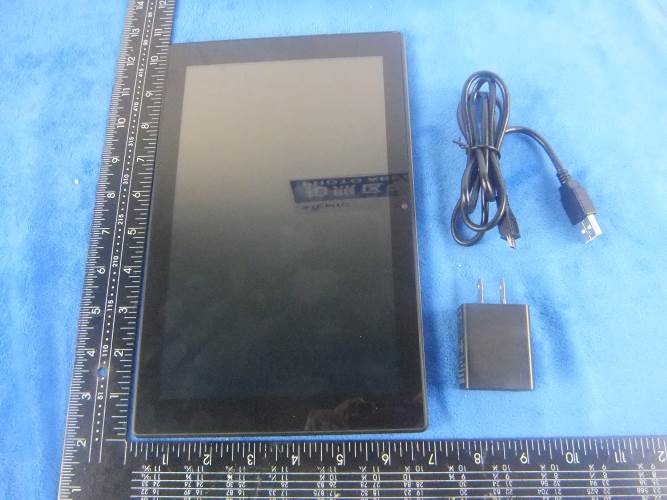

Test Report 15070325-FCC-E1 Page 18 of 27 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo Whole Package - Top View Adapter - Front View EUT - Front View EUT - Rear View Test Report 15070325-FCC-E1 Page 19 of 27 EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

Label location：The bottom right line spacing: 8MM, column spacing: 15MM

Test Report 15070325-FCC-E1 Page 20 of 27 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View 1 WIFI/BT - Antenna View Battery - Top View Battery - Bottom View Mainborad With Shielding - Front View Mainborad Without Shielding - Front View Test Report 15070325-FCC-E1 Page 21 of 27 Mainborad With Shielding - rear View Mainborad Without Shielding - rear View LCD – Rear View LCD - Front View

RF EXPOSURE REPORT Report No.: 15070325-FCC-H Supersede Report No.: N/A Applicant JIANGSU SHUANGSHUANG TECHNOLOGY CO.,LTD Product Name tablet PC Model No. TQ10A11 Serial No. / Test Standard FCC 2.1093 Test Date April 25 to May 29, 2015 Issue Date May 29, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Wiky.Jam Test Engineer Chris You Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15070325-FCC-H Page 2 of 10 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15070325-FCC-H Page 3 of 10 This page has been left blank intentionally. Test Report 15070325-FCC-H Page 4 of 10 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. FCC §2.1093 - RADIOFREQUENCY RADIATION EXPOSURE EVALUATION: PORTABLE DEVICES. 8 5.1 RF EXPOSURE .......................................................................................................................................................... 8 5.2 TEST RESULT ........................................................................................................................................................... 9 Test Report 15070325-FCC-H Page 5 of 10 1. Report Revision History Report No. Report Version Description Issue Date 15070325-FCC-H NONE Original May 29, 2015 2. Customer information Applicant Name JIANGSU SHUANGSHUANG TECHNOLOGY CO.,LTD Applicant Add No.188,West Coastal Road，Haian County，Jiangsu Province,P,R.China. Manufacturer JIANGSU SHUANGSHUANG HIGH TECHNOLOGY CO.,LTE Manufacturer Add No.188,West Coastal Road，Haian County，Jiangsu Province,P,R.China. 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15070325-FCC-H Page 6 of 10 4. Equipment under Test (EUT) Information Description of EUT: tablet PC Main Model: TQ10A11 Serial Model: / Date EUT received: April 24, 2015 Test Date(s): April 25 to May 29, 2015 Antenna Gain: Bluetooth: 2dBi WIFI: 2dBi Type of Modulation: 802.11b/g/n: DSSS, OFDM Bluetooth: GFSK, π /4DQPSK, 8DPSK RF Operating Frequency (ies): WIFI:802.11b/g/n(20M): 2412-2462 MHz WIFI:802.11n(40M): 2422-2452 MHz Bluetooth: 2402-2480 MHz Number of Channels: WIFI :802.11b/g/n(20M): 11CH WIFI :802.11n(40M): 7CH Bluetooth: 79CH Port: Power Port, Earphone Port, USB Port Input Power: Battery: Model: / Spec: 3.7V Adapter: Model: PS10E050K2000UU Input: AC 100-240V; 50/60Hz 0.35A Max Output: DC 5.0V; 2A Trade Name : / Test Report 15070325-FCC-H Page 7 of 10 FCC ID: 2ABDT-TQ10A11 Test Report 15070325-FCC-H Page 8 of 10 DFP/ 5. FCC §2.1093 - Radiofrequency radiation exposure evaluation: portable devices. 5.1 RF Exposure Standard Requirement: According to §15.247 (i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’ s guidelines. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. result = P= Maximum turn-up power in mW F= Channel frequency in GHz D= Minimum test separation distance in mm Test Report 15070325-FCC-H Page 9 of 10 5.2 Test Result Bluetooth Mode: Modulation CH Freq (MHz) Conducted Power (dBm) Tune Up Power (dBm) Max Tune Up Power (dBm) Max Tune Up Power (mW) ResultLimit GFSK Low 2402 5.44 5.0±1 6.0 3.98 1.23 3 Mid 2441 5.54 5.0±1 6.0 3.98 1.24 3 High 2480 5.53 5.0±1 6.0 3.98 1.25 3 π /4 DQPSK Low 2402 5.52 5.0±1 6.0 3.98 1.23 3 Mid 2441 5.00 5.0±1 6.0 3.98 1.24 3 High 2480 4.39 5.0±1 6.0 3.98 1.25 3 8-DPSK Low 2402 5.76 5.0±1 6.0 3.98 1.23 3 Mid 2441 5.39 5.0±1 6.0 3.98 1.24 3 High 2480 4.68 5.0±1 6.0 3.98 1.25 3 WIFI Mode: M…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 15070325-FCC-R1 Supersede Report No.: N/A Applicant JIANGSU SHUANGSHUANG TECHNOLOGY CO.,LTD Product Name tablet PC Model No. TQ10A11 Serial No. / Test Standard FCC Part 15.247: 2014, ANSI C63.10: 2013 Test Date April 27 to May 29, 2015 Issue Date May 29, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Wiky.Jam Test Engineer Chris You Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15070325-FCC-R1 Page 2 of 55 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15070325-FCC-R1 Page 3 of 55 This page has been left blank intentionally. Test Report 15070325-FCC-R1 Page 4 of 55 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 9 6.2 CHANNEL SEPARATION ...................................................................................................................................... 10 6.3 20DB BANDWIDTH ................................................................................................................................................. 14 6.4 PEAK OUTPUT POWER ........................................................................................................................................ 18 6.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 22 6.6 TIME OF OCCUPANCY (DWELL TIME) ............................................................................................................. 24 6.7 BAND EDGE ............................................................................................................................................................. 28 6.8 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 36 6.9 RADIATED SPURIOUS EMISSIONS ................................................................................................................... 40 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 45 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 46 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 51 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 54 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 55 Test Report 15070325-FCC-R1 Page 5 of 55 1. Report Revision History Report No. Report Version Description Issue Date 15070325-FCC-R1 NONE Original May 29, 2015 2. Customer information Applicant Name JIANGSU SHUANGSHUANG TECHNOLOGY CO.,LTD Applicant Add No.188,West Coastal Road，Haian County，Jiangsu Province,P,R.China. Manufacturer JIANGSU SHUANGSHUANG HIGH TECHNOLOGY CO.,LTE Manufacturer Add No.188,West Coastal Road，Haian County，Jiangsu Province,P,R.China. 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15070325-FCC-R1 Page 6 of 55 4. Equipment under Test (EUT) Information Description of EUT: tablet PC Main Model: TQ10A11 Serial Model: / Date EUT received: April 24, 2015 Test Dat…

Text truncated - open the document above for the full version.

Test Report 15070325-FCC-R1 Page 50 of 55 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz
