Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
FCC This pur s agai radi a may inter inter off a follo ‐Reo ‐Incr ‐Con conn ‐Con To a part Statement equipment h suant to part nst harmful i ate radio freq y cause harm rference will rference to ra and on, the owing measur orient or reloc rease the sep nnect the eq nected. nsult the deal assure contin y. has been test 15 of the FC nterference quency energ ful interferen not occur i adio or televi user is enco res: cate the rece paration betw uipment into ler or an expe nued complia ted and foun CC rules. Thes in a residenti gy and, if not nce to radio in a particula ision receptio ouraged to tr iving antenna ween the equ o an outlet o erienced radi nce, any ch a nd to comply se limits are ial installatio t installed and communicat ar installatio on, which can ry to correct a. ipment and r on a circuit d io/TV technic anges or mo with the lim designed to p n. This equip d used in acc tions. Howev on. If this eq n be determi t the interfer receiver. ifferent fro m cian for help. difications n its for a Clas provide reaso pment genera ordance with er, there is n uipment doe ned by turnin rence by one that to whic ot expressly ss B digital de onable prote ates, uses and h the instruct no guarantee es cause har ng the equip e or more o ch the recei v approved by evice, ction d can tions, e that rmful ment f the ver is y the Responsible for compliance could void the user’s authority to operate this equipment. (Example‐ use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 Pathway Innovations and Technologies, Inc. 2014-10-08 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter FCC ID: 2ABES-GURUBOOK5 We, _____ Pathway Innovations and Technologies, Inc. _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Gurubook 5/MID, Gurubook 5, Gurubook 8, Gurubook 12, Gurubook 13, Gurubook 16) Sincerely, Client’s signature Client’s name / title Garry Wu/Engineer Contact information / address 9833 Pacific Heights Blvd., Suite D, San Diego, CA 92121
Model Declaration Letter FCC ID: 2ABES-GURUBOOK 5 We, the undersigning company Company Name: Pathway Innovations and Technologies, Inc. Address: 9833 Pacific Heights Blvd., Suite D, San Diego, CA 92121 Hereby confirm that the following products: Product description: Gurubook 5/MID Type designation: Gurubook 5, Gurubook 8, Gurubook 12, Gurubook 13,Gurubook 16 Trade name or Brand(s): HoverCam That All models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. City and Country: Date: Name: Function: Signature: San Diego, United States 10/08/2014 Garry Wu Engineer

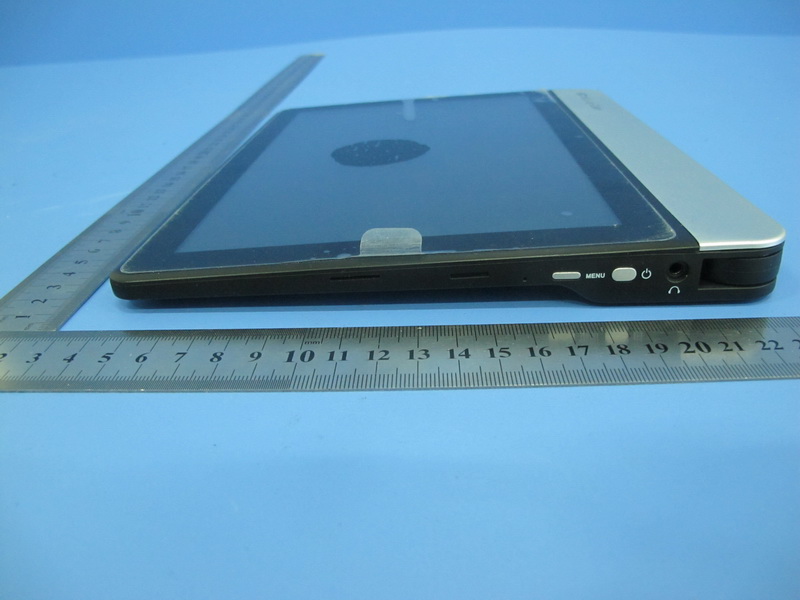

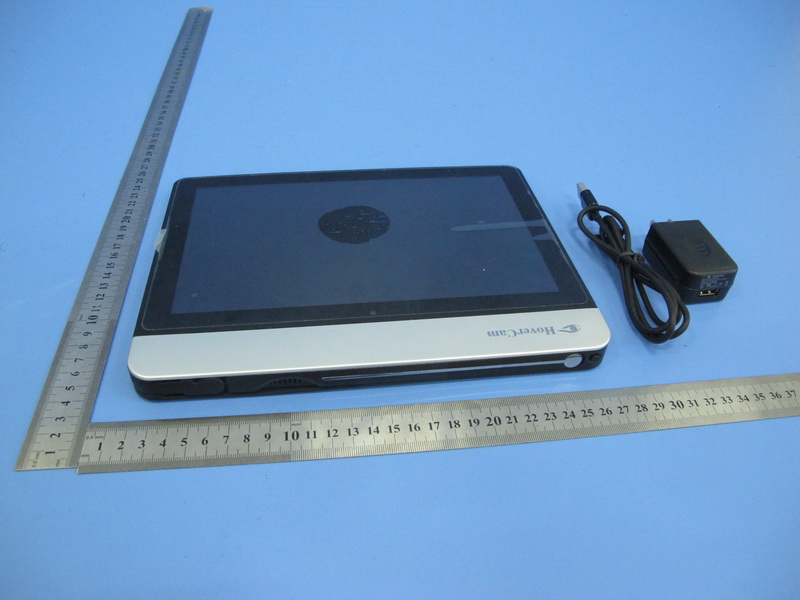

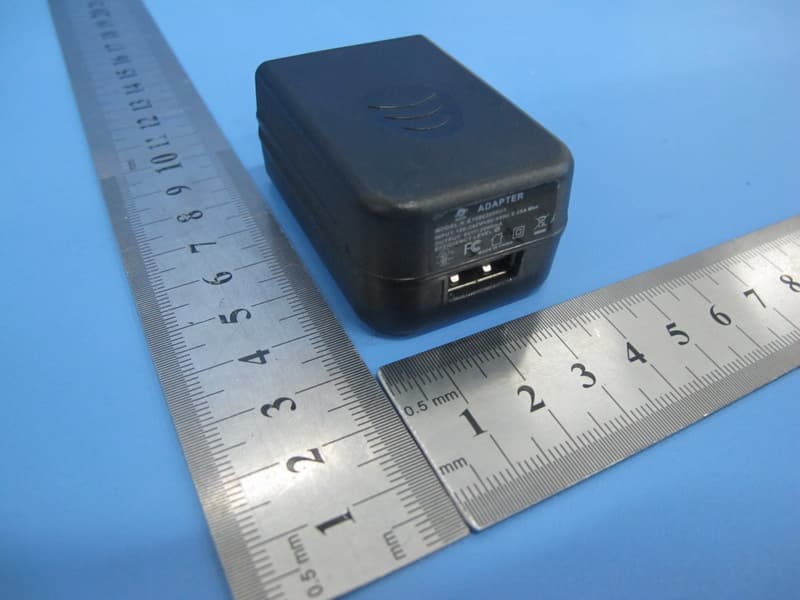

Report No.: TB-FCC140202 Page: 3 of 15 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of Adapter Report No.: TB-FCC140202 Page: 4 of 15 TB-RF-075-1.0 Photo 3 Appearance of Adapter Photo 4 Appearance of EUT Report No.: TB-FCC140202 Page: 5 of 15 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT Report No.: TB-FCC140202 Page: 6 of 15 TB-RF-075-1.0 Photo 6 Appearance of EUT
Report No.: TB-FCC140202 Page: 1 of 15 TB-RF-074-1.0 Appendix IFCC ID Label Note: There are similar labels as shown above for other models, where only the model name is replaced by: Gurubook 8, Gurubook 12, Gurubook 13, Gurubook 16. FCC ID: 2ABES-GURUBOOK5 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Pathway Innovations and Technologies, Inc. Model: Gurubook5 Made in China
Report No.: TB-FCC140202 Page: 2 of 15 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION
Report No.: TB-FCC140202 Page: 7 of 15 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT Report No.: TB-FCC140202 Page: 8 of 15 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Report No.: TB-FCC140202 Page: 9 of 15 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No.: TB-FCC140202 Page: 10 of 15 TB-RF-075-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of PCB WiFi (2.4G)Antenna BT(2.4G) Antenna Report No.: TB-FCC140202 Page: 11 of 15 TB-RF-075-1.0 Photo 15 Appearance of Battery and Screen
Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE140202 Page: 1 of 5 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ABES-GURUBOOK5 1. Client Information Applicant : Pathway Innovations and Technologies, Inc. Address : 9833 Pacific Heights Blvd., Suite D, San Diego, CA 92121 Manufacturer : ShenZhen KerunVisual Technology Co., LTD. Address : 6th Floor Building 2, District 2, South Honghualing Industrial Zone, No.1213 Liuxian Road, Nanshan Branch, Shenzhen City, Guangdong, China 2. General Description of EUT EUT Name : Gurubook 5/MID Models No. : Gurubook 5, Gurubook 8, Gurubook 12, Gurubook 13, Gurubook 16 Model Difference : All the other models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11b/g/n(HT40): 2422MHz~2452MHz Bluetooth: 2402MHz~2480MHz Number of Channel: 802.11b/g/n(HT20):11 channels 802.11b/g/n(HT40): 7 channels Bluetooth:79 Channels Max Peak Output Power:802.11b: 9.80 dBm 802.11g: 9.46 dBm 802.11n (HT20): 9.36 dBm 802.11n (HT40): 9.30 dBm Bluetooth: GFSK: -2.094 dBm 8-DPSK: -2.524 dBm Antenna Gain: 0 dBi FPC Antenna Modulation Type: 802.11b: DSSS (CCK, QPSK, BPSK) 802.11g: OFDM 802.11n: OFDM GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC power supplied by AC/DC Adapter DC Voltage supplied from Li-Polymer battery. Power Rating : AC/DC Adapter: Input: AC 100~240V 50/60Hz 0.35A Output: DC 5V 2A Report No.: TB-MPE140202 Page: 2 of 5 TB-RF-074-1.0 DC 3.7V 2800mAh from Li-ion battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE140202 Page: 3 of 5 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE140202 Page: 4 of 5 TB-RF-074-1.0 2. Calculation: 802.11b Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 9.75 0 9.441 5 2.932 3.0 2.437 9.79 0 9.528 5 2.975 3.0 2.462 9.80 0 9.550 5 2.997 3.0 802.11g Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 9.42 0 8.750 5 2.718 3.0 2.437 9.46 0 8.831 5 2.757 3.0 2.462 9.38 0 8.670 5 2.721 3.0 802.11n(HT20) Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.412 9.36 0 8.630 5 2.681 3.0 2.437 9.32 0 8.551 5 2.670 3.0 2.462 9.27 0 8.453 5 2.653 3.0 802.11n(HT40) Mode Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.422 8.06 0 6.397 5 1.991 3.0 2.437 8.17 0 6.561 5 2.049 3.0 2.452 8.30 0 6.761 5 2.117 3.0 Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -5.102 0 0.309 5 0.096 3.0 2.441 -2.094 0 0.617 5 0.193 3.0 2.480 -3.934 0 0.404 5 0.127 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -4.750 0 0.335 5 0.104 3.0 2.441 -2.524 0 0.559 5 0.175 3.0 2.480 -3.539 0 0.443 5 0.139 3.0 So standalone SAR measurements are not required. Report No.: TB-MPE140202 Page: 5 of 5 TB-RF-074-1.0 Remark: WiFi and Bluetooth can’t transmit at the same time.
Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC140201 Page: 1 of 86 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ABES-GURUBOOK5 Original Grant Report No. : TB-FCC140201 Applicant : Pathway Innovations and Technologies, Inc. Equipment Under Test (EUT) EUT Name : Gurubook 5/MID Model No. : Gurubook 5 Series Model No. : Gurubook 8, Gurubook 12, Gurubook 13, Gurubook 16 Brand Name : HoverCam Receipt Date : 2014-08-18 Test Date : 2014-08-19 to 2014-09-05 Issue Date : 2014-09-10 Standards : FCC Part 15, Subpart C (15.247:2013) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC140201 Page: 2 of 86 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 6 1.7 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. CONDUCTED EMISSION TEST ............................................................................................. 9 3.1 Test Standard and Limit ...................................................................................................... 9 3.2 Test Setup ............................................................................................................................. 9 3.3 Test Procedure ..................................................................................................................... 9 3.4 Test Equipment Used ........................................................................................................ 10 3.5 EUT Operating Mode ........................................................................................................ 10 3.6 Test Data ............................................................................................................................. 10 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 17 4.6 Test Data ............................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 44 5.1 Test Standard and Limit .................................................................................................... 44 5.2 Test Setup ........................................................................................................................... 44 5.3 Test Procedure ................................................................................................................... 44 5.4 EUT Operating Condition ................................................................................................. 45 5.5 Test Equipment .................................................................................................................. 45 5.6 Test Data ............................................................................................................................. 45 6. BANDWIDTH TEST ................................................................................................................. 66 6.1 Test Standard and Limit .................................................................................................... 66 6.2 Test Setup ........................................................................................................................... 66 6.3 Test Procedure ................................................................................................................... 66 6.4 EUT Operating Condition .................…
Text truncated - open the document above for the full version.
Report No.: TB-FCC14020 Page: 14 of 15 TB-RF-075-1.0 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC14020 Page: 15 of 15 TB-RF-075-1.0 Photo of Setup for Conducted Emission
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 9.55 mW |
