2ABES-ULTRA8Remote Control

Ultra8 Usermanual The camera head maybe flipped up and downly the connecting hinge. It can also rotate 90° counter clockwise or 270° clockwise along the connecting hinge. Note: When rotating or flipping the camera head, do not force the camera head in any direction if there is resistace. Electronic specification 1. Operation Voltage： 3.0V 2. Voltage range：2.4V-3.6V 3. Operation current：<30mA 4. Standby current:：<30uA 5. Frequency: 2403-2480MHz For Your Safety To prevent damage to yourself or to others, read the following safety precautions in their entirety before using this product. Keep these safety instructions where all those who use the product will read them. The consequences that could result from failure to observe the precautions listed in this WARNINGS Do not disassemble. Failure to observe this precaution could result in fire, electric shock, or other injury. Should the product break open as the result of a fall or other accident, remove the batteries. Keep out of reach of children. Failure to observe this precaution could result in injury. In addition, note that small parts constitute a choking hazard. Should a child swallow any part of this product, consult a physician immediately. Cut power immediately in the event of malfunction. Should you notice smoke or an unusual smell coming from the product, immediately turn the product off . Continued operation could result in injury. Once the product has cooled, remove the batteries and take the product to a Nikon-authorized service representative for inspection. Do not use in the presence of flammable gas. Failure to observe this precaution could result in explosion or fire. Keep dry. Do not immerse in or expose to water or rain. Failure to observe this precaution could result in fire or electric shock. Do not expose to high temperatures. Do not leave the product in a closed vehicle under the sun or in other areas subject to extremely high temperatures. Failure to observe Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must not be collocated or operating in conjunction with any other antenna or transmitter.

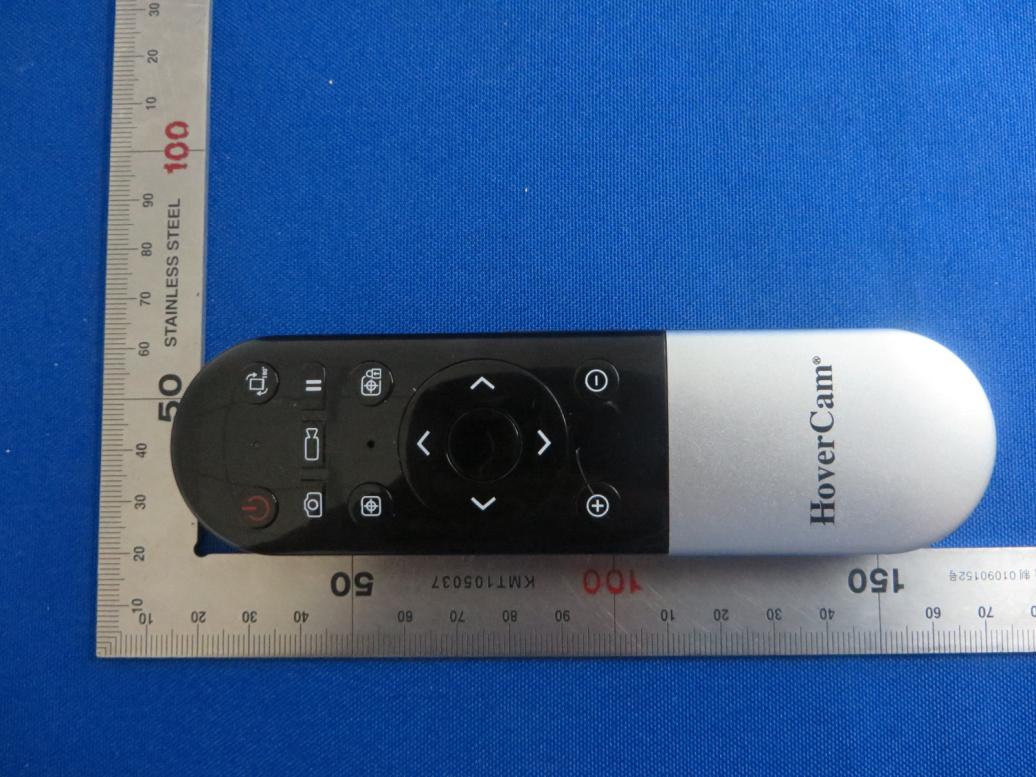

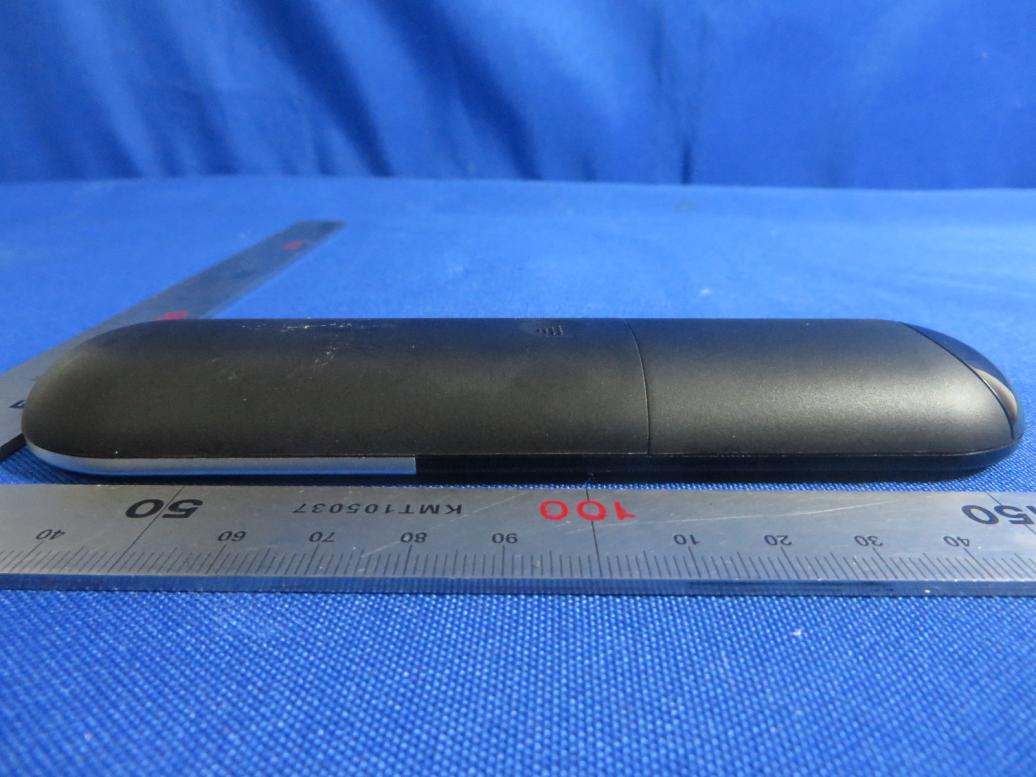

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

Label Label Location FCC ID: 2ABES-ULTRA8

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1504RSU01801 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 05-25-2015 Web: www.mrt-cert.com FCC ID: 2ABES-ULTRA8 Page Number: 1 of 29 FCC ID: 2ABES-ULTRA8 APPLICANT: Pathway Innovations and Technologies, Inc. Application Type: Certification Product: Remote Control Model No.: Ultra8, Ultra13, Ultra18, Ultra25, U800, U1300, U1800, U2500 FCC Classification: Low Power Communication Device Transmitter (DXX) FCC Rule Part(s): Part 15.249 Test Procedure(s): ANSI C63.10-2009 Test Date: Apr. 25 ~ May 21, 2015 MEASUREMENT REPORT FCC PART 15.249 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1504RSU01801 FCC ID: 2ABES-ULTRA8 Page Number: 2 of 29 Revision History Report No. Version Description Issue Date 1504RSU01801 Rev. 01 Initial report 05-21-2015 1504RSU01801 Rev. 02 Revised the description of test Software 05-25-2015 Report No.: 1504RSU01801 FCC ID: 2ABES-ULTRA8 Page Number: 3 of 29 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 5 1.1. Scope ........................................................................................................................... 5 1.2. MRT Test Location ....................................................................................................... 5 2. PRODUCT INFORMATION ..................................................................................................... 6 2.1. Equipment Description .................................................................................................. 6 2.2. Mode of Operation ........................................................................................................ 6 2.3. Test Configuration ........................................................................................................ 6 2.4. EMI Suppression Device(s)/Modifications ..................................................................... 6 2.5. Labeling Requirements ................................................................................................. 6 2.6. Test Software ............................................................................................................... 7 3. DESCRIPTION OF TEST ........................................................................................................ 8 3.1. Evaluation Procedure ................................................................................................... 8 3.2. AC Line Conducted Emissions ..................................................................................... 8 3.3. Radiated Emissions ...................................................................................................... 9 4. ANTENNA REQUIREMENTS ................................................................................................ 10 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................. 11 6. MEASUREMENT UNCERTAINTY ......................................................................................... 12 7. TEST RESULT ...................................................................................................................... 13 7.1. Summary .................................................................................................................... 13 7.2. Conducted Emission ................................................................................................... 14 7.2.1. Test Limit ................................................................................................................ 14 7.2.2. Te s t Setup ............................................................................................................... 14 7.2.3. Te s t Result .............................................................................................................. 14 7.3. Radiated Emission ...................................................................................................... 15 7.3.1. Te s t Limit ................................................................................................................ 15 7.3.2. Te s t Setup ............................................................................................................... 16 7.3.3. Te s t Result .............................................................................................................. 18 7.4. Radiated Outside of The Specified Frequency Bands Measurement ........................... 21 7.4.1. Te s t Result .............................................................................................................. 21 8. CONCLUSION ....................................................................................................................... 29 Report No.: 1504RSU01801 FCC ID: 2ABES-ULTRA8 Page Number: 4 of 29 §2.1033 General Information Applicant: Pathway Innovations and Technologies, Inc. Applicant Address: 10211 Pacific Mesa Blvd, #412, San Diego, CA 92121, USA Manufacturer: Shenzhen Kerun Visual Technology Co., Ltd Manufacturer Address: 6/F, Building 2, Zone S2, 1213 Liuxian Blvd, Honghualing Industrial Park, Nanshan District, Shenzhen, Guangdong, China Test Site: MRT Technology (Suzhou) Co., Ltd Test Site Address: D8 Building, Youxin Industrial Park, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China MRT Registration No.: 809388 FCC Rule Part(s): Part 15.249 M…

Text truncated - open the document above for the full version.

1 of 2 FCC Part15C Test Setup Photo Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 40GHz
