2ABFHVDT-7106Underwater Camera System

Videotek Company Limited VT-7106 Users manual Document name : Technical Instructions Document NO. : VT1.7106.000CS Version : 01 Compiler : Luoxiangrong Checker : Authorizer : Commencement date: On November 8,2013 Distribution NO. : All rights reserved, the pirate edition investigates necessarily! signet Technical Instructions Volume : Volume Two Total Pages : Pages Total Volume : One Volume Product NO. ：VT-7106 Product name : Wireless Transmission Product drawing NO.: VT1.7106.000CS Compiler : Luoxiangrong Checker : Authorizer : On November 8,2013 Videotek Company Limited External View 1.Subject matter and Applications The instructions stated the series of VT-7106 is made up of WIFI image transmission;HD cameras,etc.It is a remote wireless monitoring transmitter contains image collection ,compression storage transport functions. The technical requirements include features;technical parameter;operation manual etc.The series of product of VT-7106 will display the image on the andriod/iphone/ipad etc.smart phone thru WIFI. 2.Features of 7106 2.1 Unique separating appearance design 2.2 Get the image for monitoring on smart phone or IPAD via WI-FI 2.3 Low power consumption design 2.4 Unique function of taking photos or videos via cellphone 2.5 adjust the brightness of LED via the cellphone 2.6 It can display ,monitor and storage on varies of Android cellphone and IPHONE 2.7 Transmission distance above 50M 2.8 One key to restore the factory default Settings 2.9 With the multinational languages design 2.10 short latency time when transmitting images 2.11 It can change name and password 3.Technical Data Wireless transmitter It is made of super compressive engineering plastic ,high efficiency power and high resolution camera etc. 3.1 Video input:Composite Video,1V(p-p)+or-20% 75 Ohms 3.2 Dimensions:IPHONE or Android etc.Varies of smart phone 3.3 System: Above Android 2.3 or IOS 6.0 3.4 wireless parameter: Frequency range:2412-2472MHz Wireless transmit operation mode:ieee802.11b/g/n Receiving sensitivity:-88dBM Maximum power supply:(16dBM) Modulation system:OFDM 3.5 Video output: 1V(p-p)+or-20% 75 Ohms 3.6 cable length: 20M 3.7 Power supply:DC :10V-15V 3.8 Power consumption: ≤4W 3.9 Standby current:0MA 3.10 TV system：PAL/NTSC 3.11 Light button:red 3.12 Low voltage display:≤10.5V±0.5V 3.13 Waterproof standard:IP65 3.14 Operating temp:-15ºC-- +65ºC 3.15 Storage temp:-20ºC-- +70ºC 2hours, 30seconds to turn it on 3.16 Whole dimension:279mm(length)×152mm(wide)×167mm(high) 3.17 maximum transmission distance:80M 4.7106 Operating instructions 4.1 OSD instructions CONNECT NOW (Connect video and display image) SYSTEM STEP CHANGE WIFI NAME CHANGE WIFI PASSWORD FACTORY Default BACK LIBRARY (Photos or video skinning) LED ON/OFF I Agree Operation Manual 4.2 Button instructions 1.Video output.Connect to the equipment with AV video display 2.Recharge socket,Intermediate for the anode.(Please use the special charger) 3.Power switch,short pressing to turn it on;Long pressing more than 2 seconds to turn it off;3times short pressing to reset. 4.Video port.To connect the video with varies of same ports. 4.3 FISHphone WIFI wireless monitoring operation manual 1.Make sure the camera have connected with the WIFI equipment.As shown below: 2.turn on the power of WIFI equipment,the equipment include a rechargeable battery,when insert the special charger in the DC socket,it will work by recharge.A full battery can work more than 8 hours.(remark:one time pressing turn it on.more than 3 seconds pressing turn it off,three times continuous pressing reset the system. 3.On the mobile phone standby mode shown as below ,click “settings”and set the “WIFI”. 4.Click “WIFI”select the name of the wireless router.As shown below: 5.select “FISHPhone”WIFI net,when there is a “√”on the fishphone,wireless router has selected,then click “home”back. 6.On the mobile phone standby mode shown as below,click “FISHPone”and enter. 7.Appeared as shown below: (In the official version of the software, only the first time using this software will appear the following screen) Click “click here”for end user license agreement and will show the following page,and click “back”key back. Click “View Usage Warnings” and will turn to following page,and click “back”key back. Click “I agree” and will turn to following page,(In the official version of the software, only the first time using this software will appear the following screen) Click “” and will turn to following page, When the equipment is normal connection,the LED light will flash rapidly,it means the system is on normal operation. B.click the screen of monitoring enter the full screen monitoring Click “ ” and show the following page.then it can set the “WIFI name”and “passwords” Click “ Change WIFI name” and show the following page OLD WIFI NAME will recognize automatically, generally don't have to set. NEW WIFI NAME to modify the NAME, input the NEW NAME. CONFIRM after input the name click this button to CONFIRM the modification. Cannel for the cancel button, that is, cancel and return to the interface of a changed. After the modification, the WIFI module of 7106 needs to be restarted, then search the WIFI after restarted is already a new WIFI name. 6.As shown below: 1. the LED button of camera. 2. the button of taking monitor photos 3. the button of adjusting brightness of LED light; 4. Photos or video skinning 5. exit monitoring 7.click “”and enter the monitoring screen to take photos,as it is shown below,when the button become red,it means monitoring photos have been taken. 8.Click “ ”and enter the monitoring screen to record videos,as it is shown below,when the button become red,it means recording the monitoring video.click“ ”again stop recording. 9.9.click “”and turn off the LED light of camera.click and adjust the brightness of LED light. 10.Click “ ”and enter the function of browsing photos.then click “camera roll”and browsing the photos. 13.click one photo and show below, Click “Cancel”back to …

Text truncated - open the document above for the full version.

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter may not be co-located with any other transmitter or antenna.

VIDEOTEK COMPANY LIMITED Bldg 12, Section B, BaoSheng Industrial Area, BaiNikeng, PingHu Town,ShenZhen, China. FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name VIDEOTEK COMPANY LIMITED Addresss Bldg 12, Section B, BaoSheng Industrial Area, BaiNikeng, PingHu Town,ShenZhen, China. City Shenzhen Country China FF request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: 2ABFH VDT-7106 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen China 2013-12-5 Zou Yu Lan Manager

VIDEOTEK COMPANY LIMITED Bldg 12, Section B, BaoSheng Industrial Area, BaiNikeng, PingHu Town,ShenZhen, China. FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name VIDEOTEK COMPANY LIMITED Address Bldg 12, Section B, BaoSheng Industrial Area, BaiNikeng, PingHu Town,ShenZhen, China. City Shenzhen Country China declare that the following representative (agent): Name (person) Ruby zhang Company name Supervisor Address Compliance Certification Services (Shenzhen) Inc. City No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China Country Shenzhen China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Underwater camera system Type or Model(s) VT-7106, 857224002507, 857224002514 Tradename or Brand(s) VDT We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen China 2013-12-5 Zou Yu Lan Manager

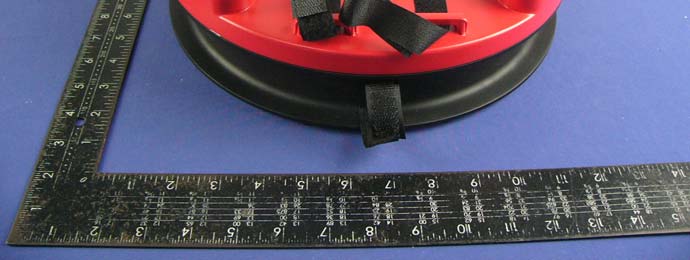

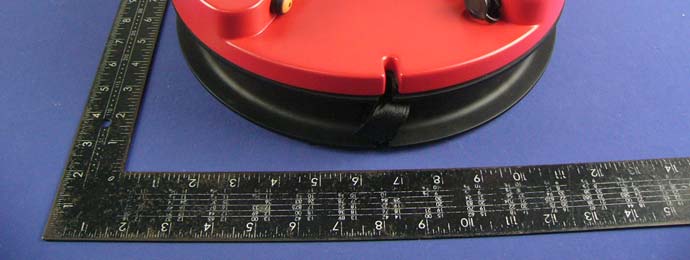

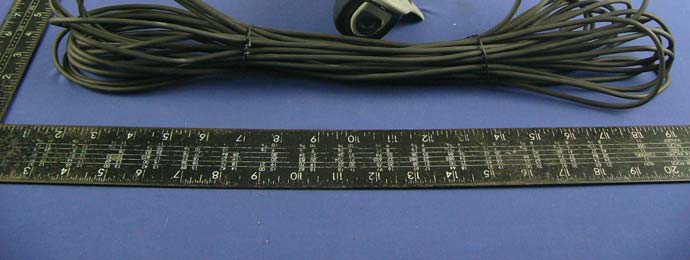

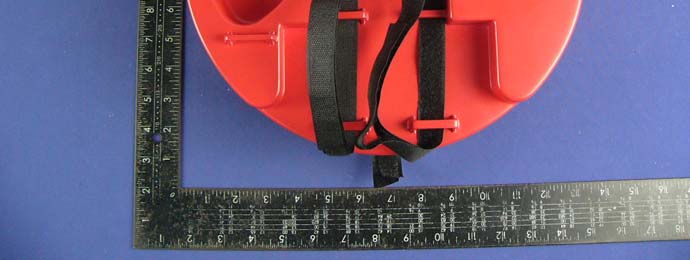

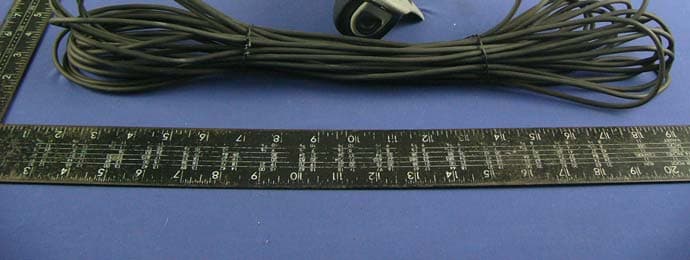

Report No: C131126Z02-RP1 Page 1 / 4 External Photos of EUT Report No: C131126Z02-RP1 Page 2 / 4 Report No: C131126Z02-RP1 Page 3 / 4 Report No: C131126Z02-RP1 Page 4 / 4

Report No: C131126Z02-RP1 Page 1 / 4 Internal Photos of EUT Report No: C131126Z02-RP1 Page 2 / 4 Report No: C131126Z02-RP1 Page 3 / 4 Report No: C131126Z02-RP1 Page 4 / 4

Compliance Certification Services Inc. Report No: C131126Z02-RP1 _MPE FCC ID: 2ABFHVDT-7106 Date of Issue: December 2, 2013 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUTUnderwater camera system Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure(S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power19.06dBm (80.54mW) Antenna gain (Max)2.0dBi (Numeric gain:1.58) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 19.06dBm (80.54mW) at 2437MHz(with 1.58 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm,even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C131126Z02-RP1 _MPE FCC ID: 2ABFHVDT-7106 Date of Issue: December 2, 2013 2 Calculation Given 2 4d GP S Π × = Equation 1 Where d = distance in cm P=PowerinmW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=80.54mW Numeric antenna gain=1.58 Substituting the MPE safe distance using d=20 cm into Equation 1: Fields The power density S = 80.54 × 1.58/ (4 ∏ × 400) cm 2 =0.0253mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C131126Z02-RP1 FCC ID: 2ABFHVDT-7106 Page 1 / 70 FCC 47 CFR PART 15 SUBPART C for Underwater camera system Model: VT-7106,857224002507,857224002514 Brand: Test Report Number: C131126Z02-RP1 Issued Date: December 2, 2013 Issued for VIDEOTEK COMPANY LIMITED Bldg 12,Section B,BaoSheng Industrial Area, BaiNikeng, PingHu Town, ShenZhen, China Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: C131126Z02-RP1 FCC ID: 2ABFHVDT-7106 Page 2 / 70 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C131126Z02-RP1 Initial Issue ALL Sinphy Xie Report No.: C131126Z02-RP1 FCC ID: 2ABFHVDT-7106 Page 3 / 70 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION.................................................................................................. 4 2 TEST RESULT SUMMARY............................................................................................ 5 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ................................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST........................................................................ 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS .......................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY..................................................................................... 10 7 FCC PART 15.247 REQUIREMENTS.......................................................................... 11 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 11 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 15 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 41 7.4. PEAK OUTPUT POWER ................................................................................................... 48 7.5. BAND EDGES MEASUREMENT....................................................................................... 50 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 64 Report No.: C131126Z02-RP1 FCC ID: 2ABFHVDT-7106 Page 4 / 70 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Underwater camera system Model VT-7106,857224002507,857224002514 Brand Tested November 26~December 2, 2013 Applicant VIDEOTEK COMPANY LIMITED Bldg 12,Section B,BaoSheng Industrial Area, BaiNikeng, PingHu Town, ShenZhen, China Manufacturer SHENZHEN KONLIKA ELECTRONICS CO., LTD Bldg 12,Section B,BaoSheng Industrial Area, BaiNikeng, PingHu Town, ShenZhen, China APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C131126Z02-RP1 FCC ID: 2ABFHVDT-7106 Page 5 / 70 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type ResultRemark 15.247(a)(2) 6dB Bandwidth Measurement PassMeet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement PassMeet the requirement of limit. 15.247(d) Band Edges Measurement PassMeet the requirement of limit. 15.247(e) Peak Power Spectral Density PassMeet the requirement of limit. 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions PassMeet the requirement of limit. 15.2…
