2ABGL-007KT1551I, KT1552I, KT1546I, KT1547I

t WARNING This manual contains important safety and use information. Keep this manual for future reference. • An adult must read this entire manual • Adult supervision is required at all times Age: 3–5 years Weight: Maximum 60 lbs (27 kg) Maximum Speed: 2.5 MPH Battery: 6 volt Owner's Manual K T1551I Audi Q5 Styles and colors may vary. Made in China WARNINGWARNING WARNING -- -- WARNING CAUTION 23 Safety If you are unsure of any information in this manual or have a question regarding assembly or use please call customer service at 877-741-6154. Always keep this manual for reference and include it with resale of the ride-on toy. FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN SERIOUS INJURY OR DEATH. The owner’s manual contains assembly, use and maintenance instructions. Safe Riding Warnings • Not be used by children under three (3) years of age or children over five (5) years of age • Do not exceed the maximum weight capacity of 130 lbs. (27kg) • Do not allow more than one (1) rider. ADULTS AND SUPERVISORS, PLEASE NOTE: 1. Always instruct all children of common sense rules and safe practices. 2. Be aware that flat, hard surfaces provide the safest experience for child riders. 3. Do not allow the child rider to operate the ride-on toy near streets, roads, sidewalks, walkways, or any other place where they may encounter other moving vehicles. 4. Never leave children unattended with this ride-on toy. Continuous adult supervision is required. 5. If necessary, adults and supervisors are always responsible for setting up gates and barriers to ensure a safe riding environment for the child rider. 6. Be aware that this ride-on toy does not have braking capabilities. Allowing use of this ride-on toy in areas that require braking may cause rolls, crashes, serious injury, or death to the child rider. 7. Teach children not to allow other children to use this ride-on toy. Communicate this message to other adults and supervisors of fellow children with which your child interacts. 8. Sternly alert children that hands, legs, hair, and clothing can potentially get caught in moving parts. Ensure they never place a body part or piece of clothing near a moving part of the ride-on toy. Avoid loose clothing. • Battery posts, terminals and related accessories contain lead and lead compounds (acids) chemicals and are toxic and corrosive. Never open the battery. • Contact or exposure to battery leakage (lead acid) may cause serious injury. If contact or exposure occurs with the skin or in the eyes, or if the chemical is swallowed, immediately call 911. • Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fire or explosion. Only use the supplied rechargeable battery and charger with the ride-on toy. • Do not charge the battery near heat or flammable materials. • Using the rechargeable battery and charger for any other product many result in overheating, fire or explosion. Never use the rechargeable battery and charger with another product. Re-Charge Interval and Time Important! • Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely. • Check the battery and charger (supply cord, connector) for wear and damage before charging. Do not charge the battery if damage has occurred. Do not use an extension cord when charging the ride-on toy. • On average you will need to charge the battery for 10 hours and no more than 24 hours. Failure to charge the battery as directed could cause permanent damage to the battery and void the warranty. • Only an adult who has read and understands the safety warnings should handle, charge and recharge the battery. Child Safety Warnings • Adults supervising children must read and understand this entire manual before allowing any child to use this product. • Adults must evaluate their own children as to maturity, strength, judgment and ability to follow safety rules. Published age guidelines are not a substitute for careful evaluation of your own child. • Adults must teach children about thinking ahead while riding as this may be the first time a child has ever controlled a motorized ride-on toy. While you supervise, see through the child’s eyes, and verbally teach them about steering and avoiding obstacles in the approved riding area. 9. Instruct children to always wear shoes when using the ride-on toy. 10. Confirm that children do not have access to the charging equipment or come into contact with any part of the ride-on toy while it is charging. 11. Do not mix old and new batteries. 12. Do not mix alkaline, standard (carbon zinc), or rechargeable batteries. 13. Firmly instruct children to use the ride-on toy in a safe manner. Unsafe behaviors include, but are not limited to: • Traveling at unsafe speeds • Not riding in the seated position • Riding at night or in any conditions of low visibility • Riding in any wet conditions including rain, snow, and ice • Any kind of stunt riding: jumps, ramps, stairs, hills, sloped surfaces, or other actions involving any notable risk • Any kind of off-road riding: rough terrain, dirt, mud, gravel, or any others that involve notable risk • Riding near any pool or open body of water • Pushing, pulling, or shoving the driver in any way while operating the ride-on toy • Using the ride-on toy without the battery cover or any other safety cover fully closed • Pulling or hitching the ride-on toy with other similar moving ride-on toys or products • Riding a motorized ride-on toy can be a dangerous activity, even under the best of circumstances. Good choices regarding where and when to ride, constant adult supervision of riding, and practice and careful riding by the child can all help to minimize risk. However this ride-on toy is intended to move and therefore it is possible for the rider to lose control, fall off and/or get into dangerous situations that no amount of care, instruction or expertise can eliminate. • If this inherent ri…

Text truncated - open the document above for the full version.

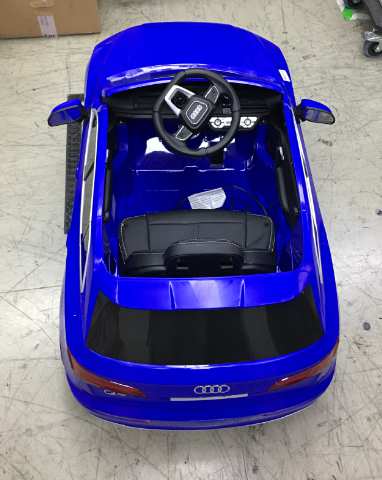

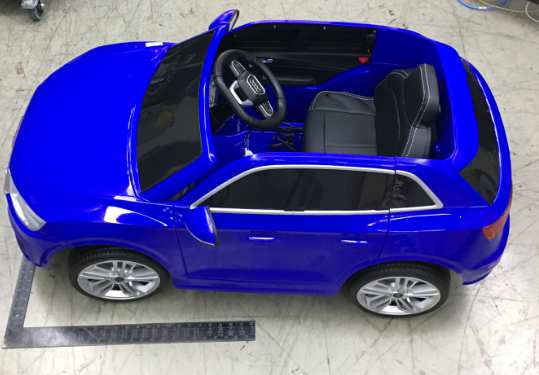

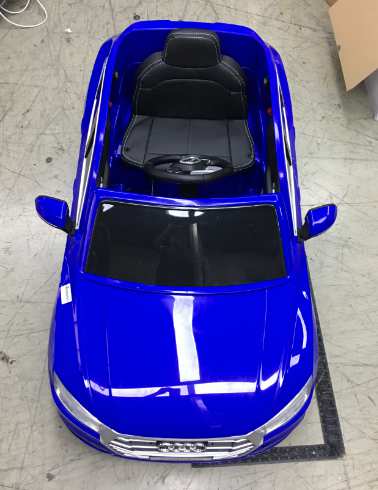

FCC ID: 2ABGL-007 External Photos FCC ID: 2ABGL-007 KT1551I FCC ID: 2ABGL-007

FCC ID: 2ABGL-007 Internal Photos FCC ID: 2ABGL-007 KT1551I FCC ID: 2ABGL-007

Pacific Cycle, Inc. SAR COMPLIANCE REPORT Report Type: FCC SAR assessment report Model: KT1551I; KT1552I; KT1546I ;KT1547I REPORT NUMBER: 191000949SHA-002 ISSUE DATE: Dec 06, 2019 DOCUMENT CONTROL NUMBER: TTRFFCCSAR-01_V1 © 2018 Intertek Report No.: 191000949SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 2 of 8 Report no.: 191000949SHA -002 Applicant: Pacific Cycle, Inc. 4902 hammersley Road madison, WI 53719 Manufacturer: Pacific Cycle, Inc. 4902 hammersley Road madison, WI 53719 Product Name: 6V Luxury Audi Q5 Blue & 6V Luxury Audi Q5 White;6V Luxury Mercedes Benz AMG G63 Red & 6V Luxury Mercedes Benz Type/Model: KT1551I; KT1552I; KT1546I ;KT1547I FCC ID: 2ABGL-007 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: KDB447498 D01 General RF Exposure Guidance v06 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Chris Chen Reviewer Daniel Zhao Report No.: 191000949SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 3 of 8 Revision History Report No. Version Description Issued Date 191000949SHA-002 Rev. 01 Initial issue of report Dec 06, 2019 Report No.: 191000949SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 4 of 8 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: 6V Luxury Audi Q5 Blue & 6V Luxury Audi Q5 White;6V Luxury Mercedes Benz AMG G63 Red & 6V Luxury Mercedes Benz Type/Model: KT1551I; KT1552I; KT1546I ;KT1547I Description of EUT: The EUT is a Toy car which contains a Bluetooth 4.2 technology module, the Bluetooth module support BR+EDR and the worst data were listed in this report. All models covered in this report have the similar circuit schematic, components, critical components .The difference is the model name and enclosure shape and color. Rating: DC 6V Category of EUT: Class B EUT type: Table top Floor standing Software Version: / Hardware Version: / Sample received date: Nov 12, 2019 Date of test: Nov 12, 2019 ~ Nov 30, 2019 1.2 Technical Specification Frequency Range: 2402-2483.5MHz Support Standards: Bluetooth BR+EDR Type of Modulation: GFSK, π/4 DQPSK Channel Number: 79 (0 - 78) Data Rate: 1Mbps Channel Separation: 1MHz Antenna Information: -0.58dBi, PIFA antenna Report No.: 191000949SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 5 of 8 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab Registration code No.: 2042B-1 VCCI Registration Lab Registration No.: R-4243, G-845, C-4723, T-2252 NVLAP Accreditation Lab NVLAP LAB CODE: 200849-0 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 191000949SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 6 of 8 2 SAR Assessment Test result: Pass 2.1 SAR Test Exclusion Limit 100 MHz – 6 GHz and ≤ 50 mm Report No.: 191000949SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 7 of 8 100 MHz – 6 GHz and > 50 mm < 100 MHz and < 200 mm Report No.: 191000949SHA-002 TEST REPORT TTRFFCCSAR-01_V1© 2018 Intertek Page 8 of 8 2.2 Assessment Results The highest EIRP adjusted with tune-up tolerance is -0.33dBm = 0.93mW < 10mW (Test Exclusion Thresholds of 2450MHz at 5mm). Therefore, the SAR requirement is deemed to be satisfied without test. ******************************************* END ************************************

Pacific Cycle, Inc. RF TEST REPORT Report Type: FCC Part 15.247 & ISED RSS-247 RF report Model: KT1551I; KT1552I; KT1546I ;KT1547I REPORT NUMBER: 191000949SHA-001 ISSUE DATE: December 6, 2019 DOCUMENT CONTROL NUMBER: TTRF15.247-01_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.247-01_V1 © 2018 Intertek Page 2 of 37 Report no.: 191000949SHA-001 Applicant: Pacific Cycle, Inc. 4902 hammersley Road madison, WI 53719 Manufacturer: Pacific Cycle, Inc. 4902 hammersley Road madison, WI 53719 Product Name: 6V Luxury Audi Q5 Blue & 6V Luxury Audi Q5 White;6V Luxury Mercedes Benz AMG G63 Red & 6V Luxury Mercedes Benz Type/Model: KT1551I; KT1552I; KT1546I ;KT1547I FCC ID: 2ABGL-007 SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2017): Radio Frequency Devices (Subpart C) ANSI C63.10 (2013): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices RSS-247 Issue 2 (February 2017): Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices RSS-Gen Issue 5 (April 2018): General Requirements for Compliance of Radio Apparatus PREPARED BY: REVIEWED BY: Project Engineer Chris Chen Reviewer Daniel Zhao Report No.: 191000949SHA-001 TEST REPORT TTRF15.247-01_V1 © 2018 Intertek Page 3 of 37 Content REVISION HISTORY................................................................................................................................................ 5 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 6 1 GENERAL INFORMATION ............................................................................................................................. 7 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 7 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 7 1.3 FREQUENCY HOPPING SYSTEM REQUIREMENT .......................................................................................................... 8 1.4 DESCRIPTION OF TEST FACILITY ............................................................................................................................ 10 2 TEST SPECIFICATIONS ................................................................................................................................. 11 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................. 11 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................. 11 2.3 TEST SOFTWARE LIST .......................................................................................................................................... 12 2.4 TEST PERIPHERALS LIST ....................................................................................................................................... 12 2.5 TEST ENVIRONMENT CONDITION: .......................................................................................................................... 12 2.6 INSTRUMENT LIST .............................................................................................................................................. 13 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 14 3 20DB BANDWIDTH .................................................................................................................................... 15 3.1 LIMIT .............................................................................................................................................................. 15 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 15 3.3 TEST CONFIGURATION ........................................................................................................................................ 16 3.4 TEST RESULTS OF 20DB BANDWIDTH ..................................................................................................................... 16 4 CARRIER FREQUENCY SEPARATION ............................................................................................................ 17 4.1 LIMIT .............................................................................................................................................................. 17 4.2 TEST CONFIGURATION .................................................…

Text truncated - open the document above for the full version.

1. Transmitter Test results 1.1 RF Output Power 1.1.1 Test Result and Data BT Maximum Output Power Mode Test Frequency (MHz) Packet Type Power (dBm) Result GFSK 2402 DH5 -1.31 Pass GFSK 2441 DH5 -1.03 Pass GFSK 2480 DH5 -1.12 Pass DQPSK 2402 2DH5 -0.61 Pass DQPSK 2441 2DH5 -0.33 Pass DQPSK 2480 2DH5 -0.40 Pass GFSK,2402MHz,DH5 GFSK,2441MHz,DH5 GFSK,2480MHz,DH5 DQPSK,2402MHz,2DH5 DQPSK,2441MHz,2DH5 DQPSK,2480MHz,2DH5 1.2 20dB Down Bandwidth 1.2.1 Test Result and Data BT Occupied 20dB Bandwidth Mode Test Frequency (MHz) Packet Type 20dB Bandwidth (kHz) Result GFSK 2402 DH5 928.4 Pass GFSK 2441 DH5 935.1 Pass GFSK 2480 DH5 936.9 Pass DQPSK 2402 2DH5 1296.1 Pass DQPSK 2441 2DH5 1300.2 Pass DQPSK 2480 2DH5 1308.8 Pass GFSK,2402MHz,DH5 GFSK,2441MHz,DH5 GFSK,2480MHz,DH5 DQPSK,2402MHz,2DH5 DQPSK,2441MHz,2DH5 DQPSK,2480MHz,2DH5 1.3 99% BandWidth 1.3.1 Test Result and Data BT 99% Occupied Bandwidth Mode Test Frequency (MHz) Packet Type 99% Occupied Bandwidth (kHz) Result GFSK 2402 DH5 856.02 Pass GFSK 2441 DH5 850.56 Pass GFSK 2480 DH5 857.23 Pass DQPSK 2402 2DH5 1207.28 Pass DQPSK 2441 2DH5 1205.43 Pass DQPSK 2480 2DH5 1204.89 Pass GFSK,2402MHz,DH5 GFSK,2441MHz,DH5 GFSK,2480MHz,DH5 DQPSK,2402MHz,2DH5 DQPSK,2441MHz,2DH5 DQPSK,2480MHz,2DH5 1.4 Transmitter Spurious Emission 1.4.1 Test Result and Data BT Transmitter Spurious Emission Mode Test Frequency (MHz) Packet Type Frequency Range Power (dBm) Result GFSK 2402 DH5 0.009MHz~2380MHz -55.13 Pass GFSK 2402 DH5 10000MHz~25000MHz -50.25 Pass GFSK 2402 DH5 2410MHz~10000MHz -43.79 Pass GFSK 2402 DH5 Band Edge -35.03 Pass GFSK 2441 DH5 0.009MHz~2300MHz -53.68 Pass GFSK 2441 DH5 10000MHz~25000MHz -49.80 Pass GFSK 2441 DH5 2500MHz~10000MHz -44.22 Pass GFSK 2441 DH5 Band Edge -52.14 Pass GFSK 2480 DH5 0.009MHz~2475MHz -41.60 Pass GFSK 2480 DH5 10000MHz~25000MHz -49.66 Pass GFSK 2480 DH5 2505MHz~10000MHz -46.53 Pass GFSK 2480 DH5 Band Edge -48.92 Pass DQPSK 2402 2DH5 0.009MHz~2380MHz -51.33 Pass DQPSK 2402 2DH5 10000MHz~25000MHz -50.00 Pass DQPSK 2402 2DH5 2410MHz~10000MHz -43.36 Pass DQPSK 2402 2DH5 Band Edge -35.00 Pass DQPSK 2441 2DH5 0.009MHz~2300MHz -54.76 Pass DQPSK 2441 2DH5 10000MHz~25000MHz -49.71 Pass DQPSK 2441 2DH5 2500MHz~10000MHz -46.02 Pass DQPSK 2441 2DH5 Band Edge -53.29 Pass DQPSK 2480 2DH5 0.009MHz~2475MHz -42.15 Pass DQPSK 2480 2DH5 10000MHz~25000MHz -50.31 Pass DQPSK 2480 2DH5 2505MHz~10000MHz -47.92 Pass DQPSK 2480 2DH5 Band Edge -48.92 Pass GFSK,2402MHz,DH5,Plot 1,Band Edge GFSK,2402MHz,DH5,Plot 2,0.009MHz~2380 MHz GFSK,2402MHz,DH5,Plot 3,2410MHz~10000 MHz GFSK,2402MHz,DH5,Plot 4,10000MHz~2500 0MHz GFSK,2441MHz,DH5,Plot 1,Band Edge GFSK,2441MHz,DH5,Plot 2,0.009MHz~2300 MHz GFSK,2441MHz,DH5,Plot 3,2500MHz~10000 MHz GFSK,2441MHz,DH5,Plot 4,10000MHz~2500 0MHz GFSK,2480MHz,DH5,Plot 1,Band Edge GFSK,2480MHz,DH5,Plot 2,0.009MHz~2475 MHz GFSK,2480MHz,DH5,Plot 3,2505MHz~10000 MHz GFSK,2480MHz,DH5,Plot 4,10000MHz~2500 0MHz DQPSK,2402MHz,2DH5,Plot 1,Band Edge DQPSK,2402MHz,2DH5,Plot 2,0.009MHz~23 80MHz DQPSK,2402MHz,2DH5,Plot 3,2410MHz~100 00MHz DQPSK,2402MHz,2DH5,Plot 4,10000MHz~25 000MHz DQPSK,2441MHz,2DH5,Plot 1,Band Edge DQPSK,2441MHz,2DH5,Plot 2,0.009MHz~23 00MHz DQPSK,2441MHz,2DH5,Plot 3,2500MHz~100 00MHz DQPSK,2441MHz,2DH5,Plot 4,10000MHz~25 000MHz DQPSK,2480MHz,2DH5,Plot 1,Band Edge DQPSK,2480MHz,2DH5,Plot 2,0.009MHz~24 75MHz DQPSK,2480MHz,2DH5,Plot 3,2505MHz~100 00MHz DQPSK,2480MHz,2DH5,Plot 4,10000MHz~25 000MHz 1.5 Frequency Band Edge 1.5.1 Test Result and Data BT Frequency Band Edges-Conducted Mode Test Range (MHz) Packet Type Hopping Mode Band Edge (dBm) Limit Result GFSK 2380~2420 DH5 Hopping On -35.01 -21.19 Pass GFSK 2463.5~2503.5 DH5 Hopping On -48.92 -21.048 Pass DQPSK 2380~2420 2DH5 Hopping On -34.99 -21.193 Pass DQPSK 2463.5~2503.5 2DH5 Hopping On -49.41 -21.058 Pass GFSK,Hopping,DH5,Band Edge HighRange GFSK,Hopping,DH5,Band Edge LowRange DQPSK,Hopping,2DH5,Band Edge HighRang e DQPSK,Hopping,2DH5,Band Edge LowRange 1.6 Dwell Time 1.6.1 Test Result and Data BT Dwell Time Mode Test Frequency (MHz) Packet Type Transmission Time (ms) Number Dwell Time (ms) Result GFSK 2402 DH1 0.370 320 118.28 Pass GFSK 2402 DH3 1.628 70 113.99 Pass GFSK 2402 DH5 2.877 10 28.77 Pass GFSK,2402,DH1,Transmission Time GFSK,2402,DH1,Transmission Number GFSK,2402,DH3,Transmission Time GFSK,2402,DH3,Transmission Number GFSK,2402,DH5,Transmission Time GFSK,2402,DH5,Transmission Number 1.7 Carrier Frequency Separation 1.7.1 Test Result and Data BT Carrier Frequency Separation Mode Test Frequency (MHz) Packet Type Range Separation (kHz) Result GFSK Hopping DH5 2401.5MHz~2403.5MHz 997 Pass GFSK Hopping DH5 2440.5MHz~2442.5MHz 1007 Pass GFSK Hopping DH5 2478.5MHz~2480.5MHz 1005 Pass DQPSK Hopping 2DH5 2401.5MHz~2403.5MHz 981 Pass DQPSK Hopping 2DH5 2440.5MHz~2442.5MHz 1125 Pass DQPSK Hopping 2DH5 2478.5MHz~2480.5MHz 1127 Pass GFSK,Hopping,DH5,2401.5~2403.5MHz GFSK,Hopping,DH5,2440.5~2442.5MHz GFSK,Hopping,DH5,2478.5~2480.5MHz DQPSK,Hopping,2DH5,2401.5~2403.5MHz DQPSK,Hopping,2DH5,2440.5~2442.5MHz DQPSK,Hopping,2DH5,2478.5~2480.5MHz 1.8 Hopping Channel Numbers 1.8.1 Test Result and Data BT Number Of Hopping Channels Mode Test Frequency Packet Type Test Range Result GFSK Hopping DH5 2400MHz~2483.5MHz Pass DQPSK Hopping 2DH5 2400MHz~2483.5MHz Pass GFSK,Hopping,DH5,2400~2426.5MHz GFSK,Hopping,DH5,2400~2483.5MHz GFSK,Hopping,DH5,2426.5~2454.5MHz GFSK,Hopping,DH5,2454.5~2483.5MHz DQPSK,Hopping,2DH5,2400~2426.5MHz DQPSK,Hopping,2DH5,2400~2483.5MHz DQPSK,Hopping,2DH5,2426.5~2454.5MHz DQPSK,Hopping,2DH5,2454.5~2483.5MHz

FCC ID: 2ABGL-007 Test Setup Photos FCC ID: 2ABGL-007 1. Radiated Emission 30-1000MHz Above 1GHz FCC ID: 2ABGL-007 2. Conducted Emission
