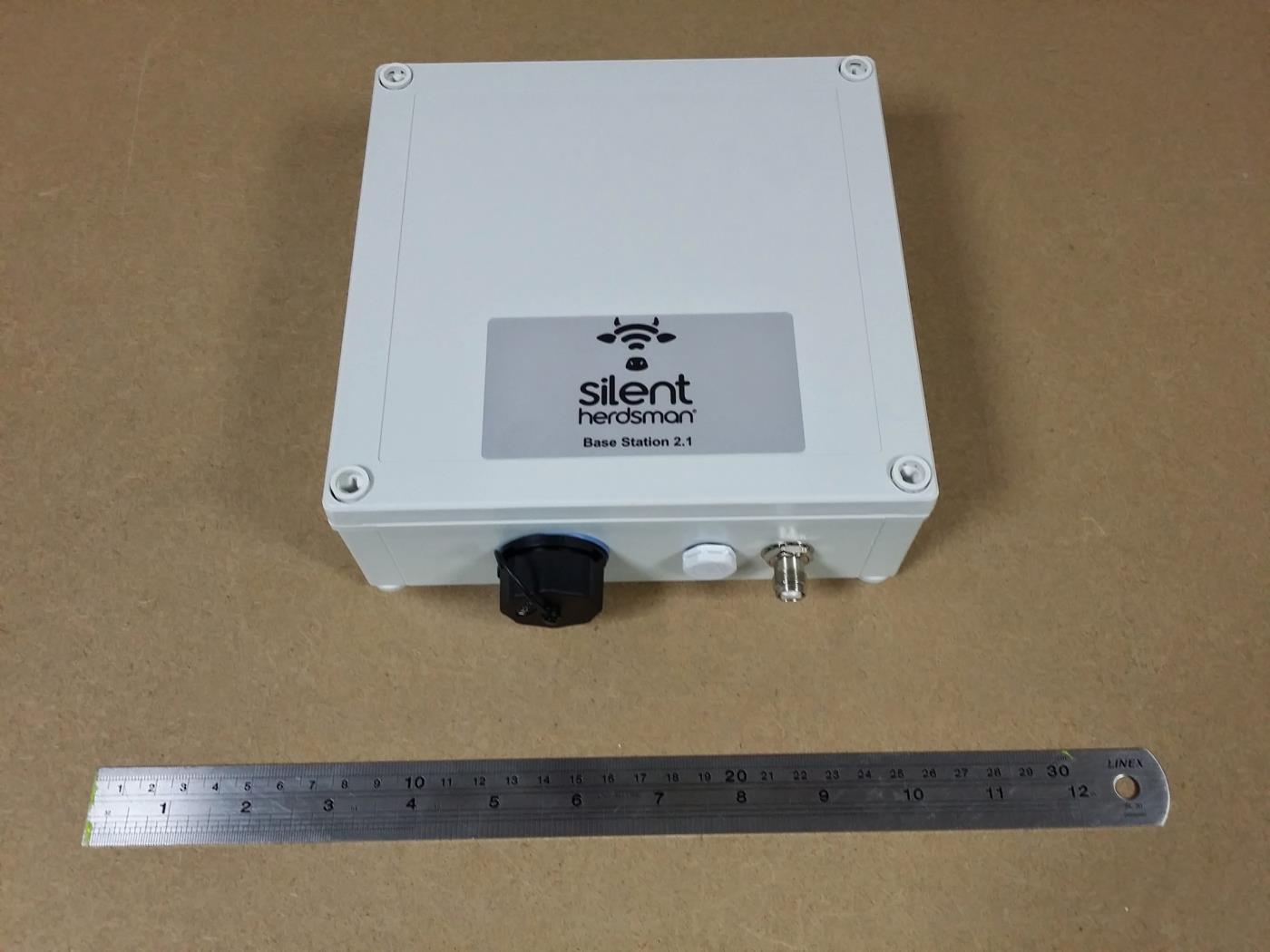

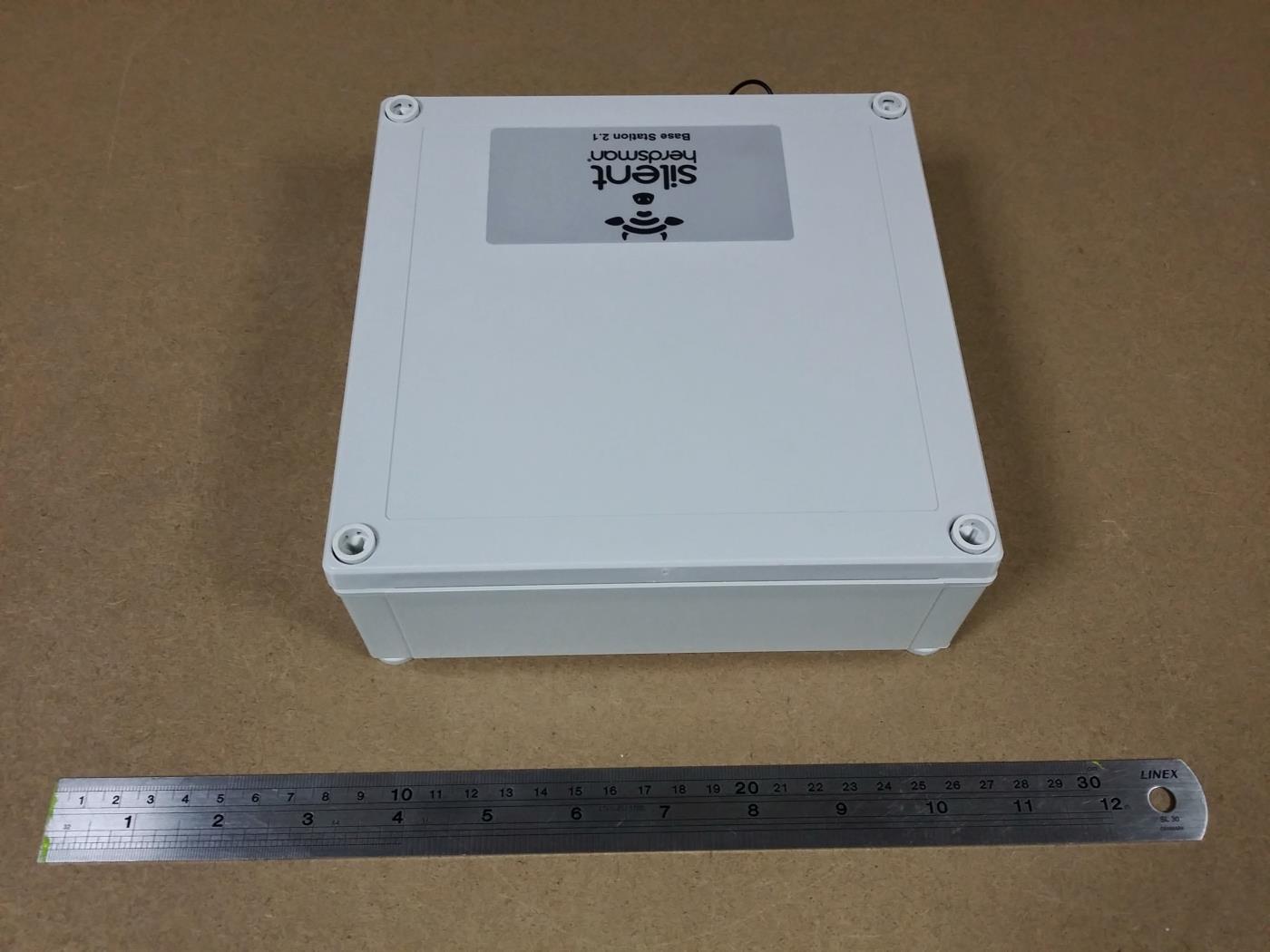

2ABHT2110010Silent Herdsman Base Station

Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland Silent Herdsman ® Base Station Quick Start Version: 1.1 Silent Herdsman ® Base Station User Guide February 2015 2 Version: 1.1 Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland 1 Introduction The Silent Herdsman ® Base Station is a unit that provides the gateway between the Silent Herdsman collars and the Management computer. Silent Herdsman® Management Computer Network Router Silent Herdsman® Data Gathering Basestation Silent Herdsman® Collar Figure 1 – Silent Herdsman System overview The enclosure is mounted on a structure using the 4 mounting lugs and the supplied antenna is attached to the antenna connector. The network cable is attached to the Ethernet socket on the enclosure using the connector supplied to ensure that it is weatherproofed. Figure 2 – Silent Herdsman Base Station Ethernet Antenna Mounting Lug Mounting Lug Silent Herdsman ® Base Station User Guide February 2015 3 Version: 1.1 Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland EC Declaration of Conformity Manufacturer: Silent Herdsman Ltd, Unit 9000, Academy Park, Glasgow, G51 1PR Product / Apparatus: Silent Herdsman Base Station Type Number: 2110010 Variants include: All country variations Declaration I declare that above product is in conformity with the essential requirements and other relevant requirements of the R&TTE Directive (1999/5/EC), EMC Directive, 2004/108/EC and the Low Voltage Directive 2006/95/EC. The product is in conformity with the following standards and/or other normative documents: EN 300 328 V1.8.1 (2012-06) EN 55022:2010; EN 55024:2010; EN 301 489-1 v1.9.2 EN 301 489-17 v2.2.1:2012 EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 EN60950-22:2006 Signature: ...................................................................... Name: Ivan Andonovic Title: Chief Technology Officer Date: 16 th February 2015 Waste Electric and Electronic Equipment User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of Silent Herdsman products. Consumers are required to comply with this notice for all electronic products bearing the ‘bin’ symbol shown: European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or supplier of the product. Silent Herdsman ® Base Station User Guide February 2015 4 Version: 1.1 Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland FCC warning statement: Device, FCC ID 2ABHT2110010, complies with Part 15 of the FCC Rules.  Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Antenna modifications: This intentional radiator may only be operated with the antenna types with which it is authorized: 1. The antenna type, as used, refers to antennas that have similar in-band and out-of-band radiation patterns. 2. The following list of authorized antenna types:  Rubber Duck/Omni-directional indoor antenna, 9dBi gain, 2400- 2500MHz [NET-WL-ANT009OTC];  Outdoor Omni Antenna, 9dBi gain, 2400-2483MHz [SH-A-RTNC09O];  Outdoor Omni Antenna, 9dBi gain, 2400-2483MHz with 1 meter cable extension [SH-A-RTNC09O1M];  Outdoor Omni antenna, 15dBi gain, 2400-2500MHz [SH-A-RTNC15O];  Outdoor Omni antenna, 15dBi gain, 2400-2500MHz with 1 meter cable extension [SH-A-RTNC15O1M];  Any antenna that is of the same type and of equal or less directional gain as an antenna that is authorized with the intentional radiator may be marketed with, and used with, this intentional radiator, guarantees that the antenna doesn’t have standard electrical sockets will be made according to the Unique Antenna Connection Statement. Copyright and Trademarks ‘Silent Herdsman’ and Embedded Technology Solutions Logo are registered trademarks of Silent Herdsman Holdings Limited. Other brands and product names are trademarks or registered trademarks of their respective holders. © 2007 - 2015 Silent Herdsman Limited. All rights reserved. See www.silentherdsman.com for further information.

TRaC Global Ltd. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX 16 February 2015 To Whom It May Concern: Subject: Unique Antenna Connection Statement - FCC ID: 2ABHT2110010: Please be advised that all standard electrical connectors on antennas will be made non-electrically standard according to the following steps: 1. Loctite 243 Threadlocking Adhesive or adhesive with equivalent or stronger strength will be used; 2. The adhesive will be applied to the antenna assemblies at the factory prior to shipment to guarantee a unique electrical connector; 3. Two commercially available antennas with N Type connectors will be modified via an Reverse Polarity TNC adaptor and using the adhesive outlined above to create unique connector antennas, details are: a. Commercially available antenna with part number Solwise NET-WL-ANT-009NPLG becomes a unique connector antenna with part number SH-A-RTNC09O; b. Commercially available antenna with part number Solwise NET-WL-ANT-015ON becomes a unique connector antenna with part number SH-A-RTNC15O; 4. Each of the two antennas mentioned above will have an option of a 1 meter extension cable which will be permanently attached to guarantee a unique electrical connector. a. Commercially available antenna with part number Solwise NET-WL-ANT-009NPLG and 1 meter extension cable becomes a unique connector antenna with part number SH- A-RTNC09O1M; b. Commercially available antenna with part number Solwise NET-WL-ANT-015ON and 1 meter extension cable becomes a unique connector antenna with part number SH-A- RTNC15O1M; 5. Any additional antennas will be permanently attached with adhesive as to guarantee they have a unique electrical connector; Thank you for your attention to this matter. Kind regards, Ivan Andonovic Chief Technology Officer E: [email protected] T: +44(0) 141 255 2930

Silent Herdsman Supplied antenna details. oOutdoor Omni antenna o15dBi gain oReverse TNC plug oFrequency range - 2400~2500Mhz SH-A-RTNC15O oRubber Duck/Omni-directional indoor antenna o9dBi gain o2400~2500 MHz oReverse TNC plug Part Number NET-WL-ANT009OTC o Outdoor Omni Antenna o Reverse TNC plug o 9dBi Gain o Frequency range - 2400-2483MHz Part Number SH-A-RTNC09O

Silent Herdsman Base Station Internal photographs for Silent Herdsman Product 211-0010 14 th January 2015

Silent Herdsman Base Station Label Artwork and Positioning FCC ID on Silent Herdsman Base Station Product 211-0010 14 th January 2015 Figure 1 – Silent Herdsman Base station 2110010 FCC Label Artwork and position Figure 2 - Silent Herdsman Base Station 2110010 serial number location

Silent Herdsman Base Station Internal photographs for Silent Herdsman Product 211-0010 14 th January 2015

TRaC Global Test Report: TRA-022673-47-00-A Appendix G: SAR Exclusion & MPE Calculation KDB 447498 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. In the frequency range below 100 MHz to 6 GHz and test separation distance of 50mm, the SAR Test Exclusion Threshold for operation in the 2400 – 2483.5 MHz band will be determined as follows SAR Exclusion Threshold (SARET) SAR Exclusion Threshold = Step 1 + Step 2 Step 1 NT = [ (MP/TSD A ) * √ f GHz ] NT = Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP = Max Power of channel (mW) (inc tune up) TSD A = Min Test separation Distance or 50mm (whichever is lower) = 50 We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. = [(NT x TSD A ) / √ f GHz ] For Distances Greater than 50 mm Step 2 applies Step 2 (TSD B – 50mm) * 10} Where: TSD B = Min Test separation Distance (mm) = 50 61 TRaC Global Test Report: TRA-022673-47-00-A Operating Frequency 2.455 GHz SARET = [ (3.0 x 50) / √2.412 ] + { (50 – 50) * 10 } SARET = [150 / 1.55 ] + (0 * 10 } SARET = 96.77mW Operating Frequency 2.465 GHz SARET = [ (3.0 x 50) / √2.437 ] + { (50 – 50) * 10 } SARET = [150 / 1.56 ] + (0 * 10 } SARET = 96.15mW Operating Frequency 2.475 GHz SARET = [ (3.0 x 50) / √2.462 ] + { (50 – 50) * 10 } SARET = [150 / 1.57 ] + (0 * 10 } SARET = 95.54mW Channel Frequency (MHz) Conducted Carrier Power (dBm) Maximum Antenna Gain (dBi) EIRP (mW) SAR Exclusion Threshold SAR Evaluation 2455 2.17 15 52.12 96.77 Not Required 2465 2.15 15 51.88 96.15 Not Required 2475 2.14 15 51.76 95.54 Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. where: S = power density R = distance to the centre of radiation of the antenna EIRP = EUT Maximum power Note: The EIRP was calculated by addition on the maximum conducted carrier power 7.95 dBm (6.24 mW) and based on a antenna gain of 0 dBi Result Prediction Frequency (MHz) Maximum EIRP (mW) Power density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than 1 mW/cm 2 2455 52.12 1 2.04 62

A RADIO TEST REPORT FOR SILENT HERDSMAN LTD ON SILENT HERDSMAN BASE STATION DOCUMENT NO. TRA-022673-47-00-A TRaC Wireless Test Report : TRA-022673-47-00-A Applicant : Silent Herdsman Ltd Apparatus : Silent Herdsman Base station Specification(s) : CFR47 Part 15.247 & RSS-210 Annex 8 Purpose of Test : Certification FCCID :2ABHT2110010 Authorised by : : Radio Product Manager Issue Date :20 th February 2015 Authorised Copy Number : PDF Total number of pages : 63 TRaC Global Test Report: TRA-022673-47-00-A Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To The Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 13 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 6 dB Bandwidth 15 A2 Transmitter Peak Output Power 16 A3 Transmitter Power Spectral Density 17 A4 RF Antenna Conducted Spurious Emissions 18 A5 Radiated Electric Field Emissions 20 A6 Antenna Gain 22 A7 Unintentional Radiated Electric Field Emissions 23 A8 Power Line Conducted Emissions 27 Appendix B: Supporting Graphical Data 30 Appendix C: Additional Test and Sample Details 49 Appendix D: Additional Information 55 Appendix E: Calculation of the duty cycle correction factor 56 Appendix F: Photographs and Figures 57 Appendix G: SAR Exclusion & MPE Calculation 61 3 TRaC Global Test Report: TRA-022673-47-00-A Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed at: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D Winstanley Report author: D Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global. 4 TRaC Global Test Report: TRA-022673-47-00-A 1.2 Tests Requested By This testing in this report was requested by : Silent Herdsman Ltd Unit 9000 Academy Park 51 Gower Street Glasgow, G51 1PR 1.3 Manufacturer As Above 1.4 Apparatus Assessed The following apparatus was assessed between 25 th November – 19 th December 2014 Silent Herdsman Base station The above equipment was a DSSS transmitter operating in the 2400 MHz to 2483.5 MHz band. The equipment operates on 5 frequencies separated by 5MHz. These frequencies are 2455 MHz, 2460MHz, 2465 MHz, 2470 MHz and 2475MHz. The device is to be professionally installed with either 9 dBi or 15 dBi gain antenna. Testing performed with the highest gain antenna only. The base station assessed contains the following:- • Single Board computer (Ledato module) o software: v1.5 o PCB 17.127.01 • RF Daughter card (Dresden module) o software: v1.0 o Unable to see serial no. but their FCC test was done with version 1.0 of PCB • Interposer PCB o No software here – passive PCB o PCB: V1.2 5 TRaC Global Test Report: TRA-022673-47-00-A 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result RSS-210 Issue 8 December 2010 Title 47 of the CFR: Part 15 Subpart C; Radiated spurious emissions (Restricted bands) Annex 8, A8.5 15.247 (d) 15.209 ANSI C63.10:2009 Pass Conducted spurious emissions (Non-restricted bands) Annex 8.A4(4) 15.247(d) ANSI C63.10:2009 Pass AC Power conducted emissions RSS-Gen Issue 4 Annex 8.8 15.207 ANSI C63.10:2009 Pass Occupied Bandwidth Annex 8.A8.2a 15.247(a)(1)(i) 15.247(a)(2) ANSI C63.10:2009 Pass Conducted Carrier Power Annex 8.A4(4). 15.247(b) ANSI C63.10:2009 Pass Power Spectral Density Annex 8.A8.2b 15.247(d) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions RSS-Gen Issue 4 Annex 7.1 Title 47 of the CFR: Part 15 Subpart B; 15.109 ANSI C63.10:2009 Pass RF Safety RSS-102 Title 47 of the CFR : Part 15 Subpart C; KDB 447498 - Pass Unique antenna connector - 15.203 - Pass Digital Modulation - Title 47 of the CFR: Part 15 Subpart C; 15.403 - Pass Abbreviations used in the above table: Mod : Modification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 TRaC Global Test Report: TRA-022673-47-00-A 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass”…
