Silent Herdsman External photographs for Silent Herdsman Product 211-0012 19 th August 2014

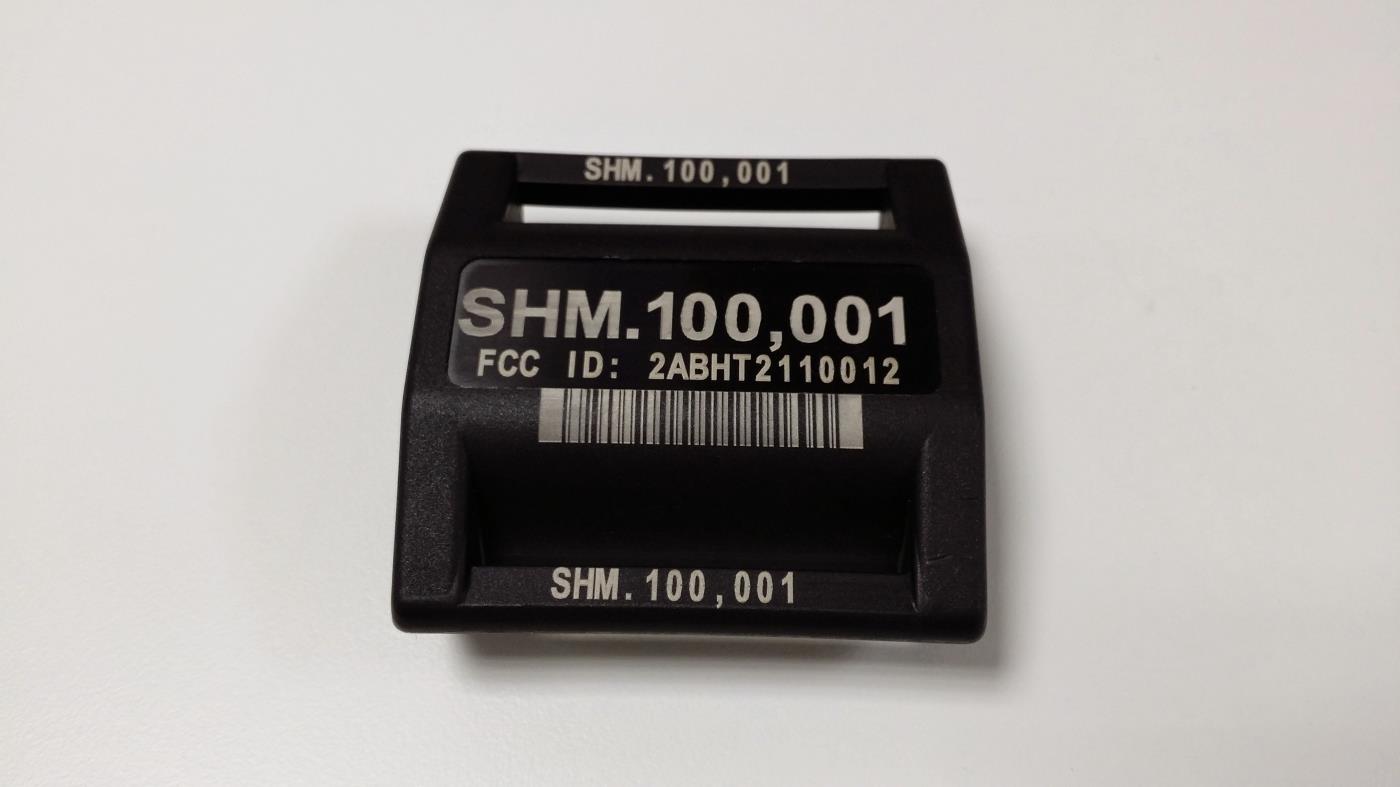

Silent Herdsman Label Artwork and Positioning FCC ID of Silent Herdsman Product 211-0012 19 th August 2014 ETS2110012 FCC Label Artwork and position All labelling is laser etched into the sensor enclosure

Silent Herdsman Internal photographs for Silent Herdsman Product 211-0012 19 th August 2014

A RADIO TEST REPORT FOR SILENT HERDSMAN LTD ON BATTERY OPERATED WIRELESS SENSOR DOCUMENT NO. TRA-020895-00-47-00C Total number of pages: 51 TRaC Wireless Test Report : TRA-020895-00-47-00C Applicant : Silent Herdsman Ltd Apparatus : Battery Operated Wireless Sensor Specification(s) : CFR47 Part 15.247 & RSS-210 Annex 8 Purpose of Test : Certification FCCID : 2ABHT211012 Authorised by : : Radio Product Manager Issue Date : 18 th September 2014 Authorised Copy Number : PDF TRaC Global Test Report: TRA-020895-00-47-00C 3 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To The Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 12 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 6 dB Bandwidth 15 A2 Transmitter Peak Output Power 16 A3 Transmitter Power Spectral Density 17 A4 Radiated Electric Field Emissions 18 A5 Antenna Gain 24 A6 Unintentional Radiated Electric Field Emissions 25 Appendix B: Supporting Graphical Data 28 Appendix C: Additional Test and Sample Details 41 Appendix D: Additional Information 47 Appendix E: Photographs and Figures 48 Appendix F: MPE Calculation 50 TRaC Global Test Report: TRA-020895-00-47-00C 4 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed at: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: A Tosif Report author: A Tosif This report must not be reproduced except in full without prior written permission from TRaC Global. TRaC Global Test Report: TRA-020895-00-47-00C 5 1.2 Tests Requested By This testing in this report was requested by : Unit 9000, Academy Park Glasgow GLASGOW G51 1PR United Kingdom 1.3 Manufacturer As Above 1.4 Apparatus Assessed The following apparatus was assessed between 19 th and 27 th June 2014 • Battery operated wireless sensor The above equipment is a DSSS transmitter operating in the 2400 MHz to 2483.5 MHz band. The equipment operates on 4 frequencies separated by 5MHz. These frequencies are 2455 MHz, 2460MHz, 2465 MHz and 2470 MHz TRaC Global Test Report: TRA-020895-00-47-00C 6 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Radiated spurious emissions (Restricted bands) RSS-210 Issue 8 December 2010 Annex 8, A8.5 Title 47 of the CFR: Part 15 Subpart C; 15.247 ANSI C63.10:2009 Pass Radiated spurious emissions (Non-restricted bands) RSS-210 Issue 8 December 2010 Annex 8.A4(4) Title 47 of the CFR: Part 15 Subpart C; 15.247 ANSI C63.10:2009 Pass AC Power conducted emissions RSS-GEN Issue 3 December 2010 Annex 7, 7.2.4 Title 47 of the CFR: Part 15 Subpart C; 15.207 ANSI C63.10:2009 N/A Occupied Bandwidth RSS-210 Issue 8 December 2010 Annex 8.A8.2a Title 47 of the CFR : Part 15 Subpart C; 15.247(a)(2) ANSI C63.10:2009 Pass Carrier Power RSS-210 Issue 8 December 2010 Annex 8.A4(4). Title 47 of the CFR : Part 15 Subpart C; 15.247(b) ANSI C63.10:2009 Pass Power Spectral Density RSS-210 Issue 8 December 2010 Annex 8.A8.2b Title 47 of the CFR : Part 15 Subpart C; 15.247(d) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions RSS-GEN Issue 3 December 2010 7.2.2(c) Title 47 of the CFR: Part 15 Subpart B; 15.109 ANSI C63.10:2009 Pass RF Safety RSS-102 Title 47 of the CFR : Part 15 Subpart C; 15.247(b)(5) - Pass Digital Modulation - Title 47 of the CFR: Part 15 Subpart C; 15.403 - Pass Abbreviations used in the above table: ANSI C 63.10:2009 is outside the scope of the laboratories UKAS accreditation. Mod : Modification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions TRaC Global Test Report: TRA-020895-00-47-00C 7 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with …
