2ABHT2110013Silent Herdsman Base Station

Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland Silent Herdsman ® Base Station Quick Start Version: 1.3 Silent Herdsman ® Base Station User Guide October 2015 2 Version: 1.3 Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland 1 Introduction The Silent Herdsman ® Base Station is a unit that provides the gateway between the Silent Herdsman collars and the Management computer. S i l e n t H e r d s m a n ® M a n a g e m e n t C o m p u t e r N e t w o r k R o u t e r S i l e n t H e r d s m a n ® D a t a G a t h e r i n g B a s e s t a t i o n S i l e n t H e r d s m a n ® C o l l a r Figure 1 – Silent Herdsman System overview The enclosure is mounted on a structure using the 4 mounting lugs and the supplied antenna is attached to the antenna connector. The network cable is attached to the Ethernet socket on the enclosure using the connector supplied to ensure that it is weatherproofed. Figure 2 – Silent Herdsman Base Station Ethernet Antenna Mounting Lug Mounting Lug Silent Herdsman ® Base Station User Guide October 2015 3 Version: 1.3 Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland EC Declaration of Conformity Manufacturer: Silent Herdsman Ltd, Unit 9000, Academy Park, Glasgow, G51 1PR Product / Apparatus: Silent Herdsman Base Station Type Number: 2110013 Variants include: All country variations Declaration I declare that above product is in conformity with the essential requirements and other relevant requirements of the R&TTE Directive (1999/5/EC), EMC Directive, 2004/108/EC and the Low Voltage Directive 2006/95/EC. The product is in conformity with the following standards and/or other normative documents: EN 300 328 V1.8.1 (2012-06) EN 55022:2010; EN 55024:2010; EN 301 489-1 v1.9.2 EN 301 489-17 v2.2.1:2012 EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 EN60950-22:2006 Signature: ...................................................................... Name: Alan Faichney Title: Chief Technology Officer Date: 26/10/2015 Waste Electric and Electronic Equipment User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of Silent Herdsman products. Consumers are required to comply with this notice for all electronic products bearing the ‘bin’ symbol shown: European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your Silent Herdsman ® Base Station User Guide October 2015 4 Version: 1.3 Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or supplier of the product. FCC warning statement: Device, FCC ID 2ABHT2110013, complies with Part 15 of the FCC Rules.  Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Antenna modifications: This intentional radiator may only be operated with the antenna types with which it is authorized: 1. The antenna type, as used, refers to antennas that have similar in-band and out-of-band radiation patterns. 2. The following list of authorized antenna types:  Rubber Duck/Omni-directional indoor antenna, 9dBi gain, 2400- 2500MHz [NET-WL-ANT009OTC];  Outdoor Omni Antenna, 9dBi gain, 2400-2483MHz [SH-A-RTNC09O];  Outdoor Omni Antenna, 9dBi gain, 2400-2483MHz with 1 meter cable extension [SH-A-RTNC09O1M];  Outdoor Omni antenna, 15dBi gain, 2400-2500MHz [SH-A-RTNC15O];  Outdoor Omni antenna, 15dBi gain, 2400-2500MHz with 1 meter cable extension [SH-A-RTNC15O1M];  Any antenna that is of the same type and of equal or less directional gain as an antenna that is authorized with the intentional radiator may be marketed with, and used with, this intentional radiator, guarantees that the antenna doesn’t have standard electrical sockets will be made according to the Unique Antenna Connection Statement. Copyright and Trademarks Silent Herdsman ® Base Station User Guide October 2015 5 Version: 1.3 Silent Herdsman Limited is a limited company registered in Scotland. Company Registration No: SC333487 Registered Offices: Unit 9000, Academy Park, 51 Gower Street, Glasgow, G51 1PR, Scotland ‘Silent Herdsman’ and Embedded Technology Solutions Logo are registered trademarks of Silent Herdsman Holdings Limited. O…

Text truncated - open the document above for the full version.

TRaC Global Ltd. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX 17 November 2015 To Whom It May Concern: Subject: Unique Antenna Connection Statement - FCC ID: 2ABHT2110013: Please be advised that all standard electrical connectors on antennas will be made non-electrically standard according to the following steps: 1. Loctite 243 Threadlocking Adhesive or adhesive with equivalent or stronger strength will be used; 2. The adhesive will be applied to the antenna assemblies at the factory prior to shipment to guarantee a unique electrical connector; 3. Two commercially available antennas with N Type connectors will be modified via an Reverse Polarity TNC adaptor and using the adhesive outlined above to create unique connector antennas, details are: a. Commercially available antenna with part number Solwise NET-WL-ANT-009NPLG becomes a unique connector antenna with part number SH-A-RTNC09O; b. Commercially available antenna with part number Solwise NET-WL-ANT-015ON becomes a unique connector antenna with part number SH-A-RTNC15O; 4. Each of the two antennas mentioned above will have an option of a 1 meter extension cable which will be permanently attached to guarantee a unique electrical connector. a. Commercially available antenna with part number Solwise NET-WL-ANT-009NPLG and 1 meter extension cable becomes a unique connector antenna with part number SH- A-RTNC09O1M; b. Commercially available antenna with part number Solwise NET-WL-ANT-015ON and 1 meter extension cable becomes a unique connector antenna with part number SH-A- RTNC15O1M; 5. Any additional antennas will be permanently attached with adhesive as to guarantee they have a unique electrical connector; Thank you for your attention to this matter. Kind regards, Alan Faichney Chief Technology Officer E: [email protected] T: +44(0) 141 255 2930

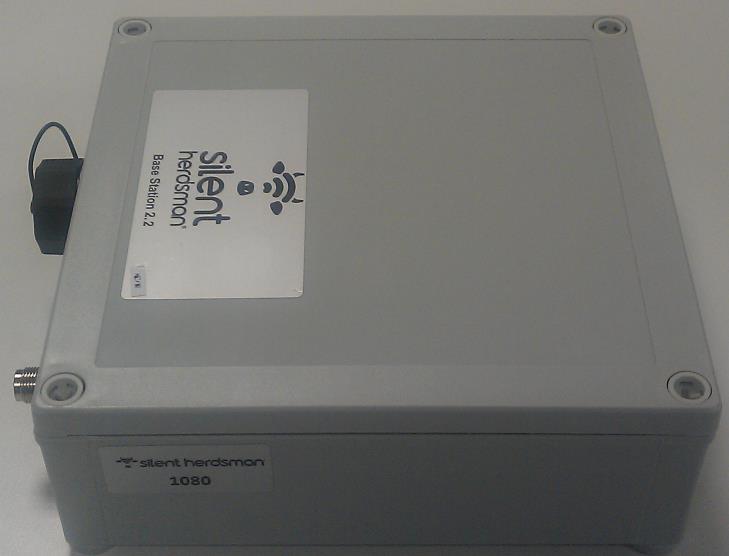

Base station V2.2 ABHT2110013 – External

Base Station V 2.2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2ABHT2110013 Base Station V 2.2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2ABHT2110013 Base Station V 2.2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2ABHT2110013 Base Station V 2.2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2ABHT2110013 Base Station V 2.2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2ABHT2110013 Base Station V 2.2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2ABHT2110013 Base Station V 2.2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2ABHT2110013 Base Station V 2.2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modification…

Text truncated - open the document above for the full version.

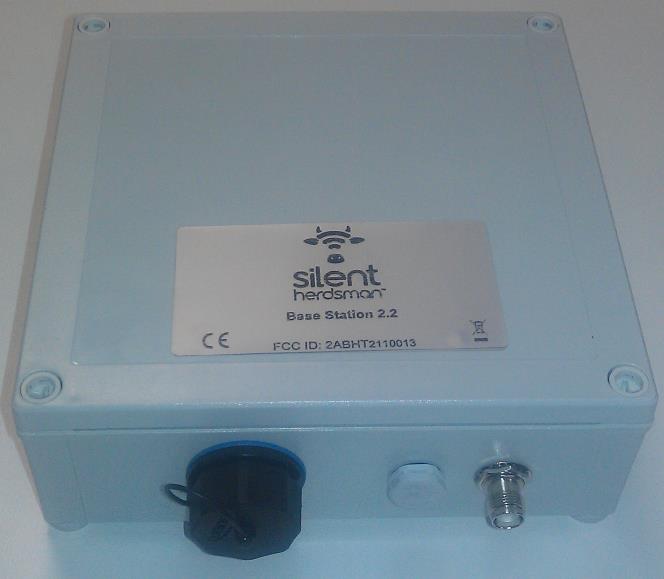

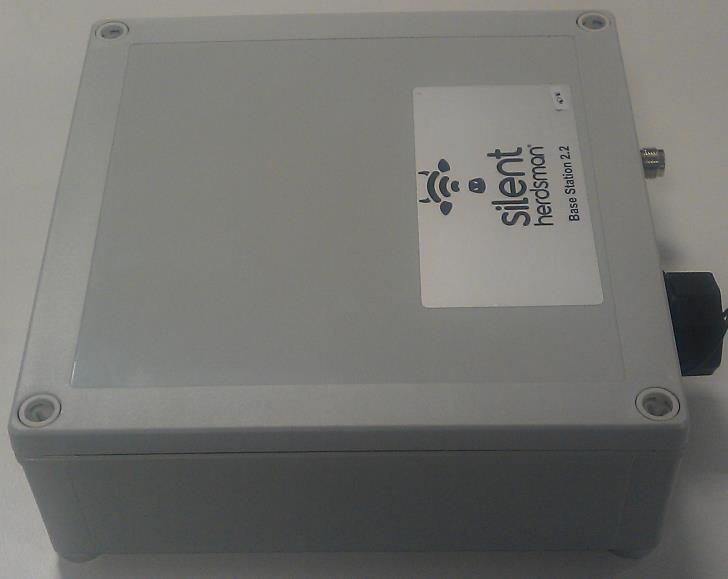

Base station V2.2 ABHT2110013 – External

Base station V2.2 ABHT2110013 – Internal view

Report Number: TRA-027735-47-00A RF915 2.0Page 41 of 42 18 RF Exposure KDB 447498 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. In the frequency range below 100 MHz to 6 GHz and test separation distance of 50mm, the SAR Test Exclusion Threshold for operation in the 2400 – 2483.5 MHz band will be determined as follows SAR Exclusion Threshold (SARET) SAR Exclusion Threshold=Step 1 + Step 2 Step 1 NT => 0376'$  ¥I*+]@ NT=Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP =Max Power of channel (mW) (inc tune up) TSDA =Min Test separation Distance or 50mm (whichever is lower) = 50 We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. => 17[76'$ ¥I*+]@ For Distances Greater than 50 mm Step 2 applies Step 2 (TSDB – 50mm) * 10} Where: TSDB =Min Test separation Distance (mm) = 50 Report Number: TRA-027735-47-00A RF915 2.0Page 42 of 42 Operating Frequency 2.455 GHz SARET=> [ ¥@^ – 50) * 10 } SARET=[150 / 1.55 ] + (0 * 10 } SARET=96.77mW Operating Frequency 2.465 GHz SARET=> [ ¥@^ – 50) * 10 } SARET=[150 / 1.56 ] + (0 * 10 } SARET=96.15mW Operating Frequency 2.475 GHz SARET=> [ ¥@^ – 50) * 10 } SARET=[150 / 1.57 ] + (0 * 10 } SARET=95.54mW Channel Frequency (MHz) Conducted Carrier Power (dBm) Maximum Antenna Gain (dBi) EIRP (mW) SAR Exclusion Threshold SAR Evaluation 24552.131551.6496.77Not Required 24651.991550.0096.15Not Required 24751.851548.4295.54Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required.

RF915 2.0 Report on the Radio Testing For Silent Herdsman Ltd on Base Station Report no. TRA-027735-47-00B 20th November 2015 RF915 2.0 REPORT ON THE RADIO TESTING OF A Silent Herdsman Ltd Base Station WITH RESPECT TO SPECIFICATION FCC 47CFR 15.247 & IC RSS-210 Annex 8 TEST DATE: 24th - 28th September 2015 Written by: D Winstanley D Winstanley Radio Senior Test Engineer Approved by: J Charters Department Manager - Radio Date: 20th November 2015 Disclaimers: [1] THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE [2] THE RESULTS CONTAINED IN THIS DOCUMENT RELATE ONLY TO THE ITEM(S) TESTED Report Number: TRA-027735-47-00B Issue: A Report Number: TRA-027735-47-00B RF915 2.0 Page 3 of 42 1 Revision Record Issue Number Issue Date Revision History A 20th November 2015 Original Report Number: TRA-027735-47-00B RF915 2.0 Page 4 of 42 2 Summary TEST REPORT NUMBER: TRA-027735-47-00B WORKS ORDER NUMBER TRA-027735-03 PURPOSE OF TEST: USA: Testing of radio frequency equipment per the relevant authorization procedure of chapter 47 of CFR (code of federal regulations) Part 2, subpart J. TEST SPECIFICATION(S): 47CFR15.247 EQUIPMENT UNDER TEST (EUT): Base Station FCC IDENTIFIER: 2ABHT2110013 EUT SERIAL NUMBER: not applicable MANUFACTURER/AGENT: Silent Herdsman Ltd ADDRESS: Unit 9000 Academy Park 51 Gower Street Glasgow G51 1PR United Kingdom CLIENT CONTACT: Dave Evans  0141 255 2930  [email protected] ORDER NUMBER: Not Applicable TEST DATE: 24th - 28th September 2015 TESTED BY: D Winstanley Element Report Number: TRA-027735-47-00B RF915 2.0 Page 5 of 42 2.1 Test Summary Test Method and Description 47CFR15 Applicable to this equipment Result / Note Radiated spurious emissions (restricted bands of operation and cabinet radiation) 15.205 Pass AC power line conducted emissions 15.207 Pass Occupied bandwidth 15.247(a)(2) Pass Conducted carrier power Peak 15.247(b)(3) Pass Max. Conducted / radiated RF power out-of-band 15.247(d) Pass Power spectral density, conducted 15.247(e) Pass Calculation of duty correction 15.35(c) N/A Notes: The results contained in this report relate only to the items tested, in the condition at time of test, and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Any modifications made are identified in Section 8 of this report. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 5.2 of this test report (Deviations from Test Standards). Report Number: TRA-027735-47-00B RF915 2.0 Page 6 of 42 3 Contents 1 Revision Record ................................................................................................................................ 3 2 Summary ........................................................................................................................................... 4 2.1 Test Summary ........................................................................................................................... 5 3 Contents ............................................................................................................................................ 6 4 Introduction ....................................................................................................................................... 8 5 Test Specifications ............................................................................................................................ 9 5.1 Normative References .............................................................................................................. 9 5.2 Deviations from Test Standards ................................................................................................ 9 6 Glossary of Terms ........................................................................................................................... 10 7 Equipment Under Test .................................................................................................................... 11 7.1 EUT Identification .................................................................................................................... 11 7.2 System Equipment .................................................................................................................. 11 7.3 EUT Mode of Operation .......................................................................................................... 11 7.3.1 Transmission ................................................................................................................... 11 7.3.2 Reception ........................................................................................................................ 11 7.4 EUT Radio Parameters ........................................................................................................... 12 7.4.1 General ........................................................................................................................... 12 7.4.2 Antennas ......................................................................................................................... 12 7.4.3 Product specific declarations ........................................................................................... 13 7.5 EUT Description ...................................................................................................................... 13 8 Modifications ................................................................................................................................... 14 9 EUT Test Setup............................................................................................................................... 15 9.1 Block Diagram ..............................................…

Text truncated - open the document above for the full version.

Report Number: TRA-027735-47-00A RF915 2.0Page 15 of 42 9EUT Test Setup 9.1Block Diagram The following diagram shows basic EUT interconnections with cable type and cable lengths identified: EUT Mains Power Supply 230V, 50Hz Cat5, POE, 5m Silent Herdsman PC Power over Ethernet injector Router Report Number: TRA-027735-47-00A RF915 2.0Page 16 of 42 9.2General Set-up Photograph The following photograph shows basic EUT set-up: Report Number: TRA-027735-47-00A RF915 2.0Page 19 of 42 11.4 Test Method With the EUT setup as per section 9 of this report and connected as per Figure i, the emissions from the EUT were measured on a spectrum analyzer / EMI receiver. Radiated electromagnetic emissions from the EUT are checked first by preview scans. Preview scans for all spectrum and modulation characteristics are checked, using a peak detector and where applicable worst-case determined for function, operation, orientation, etc. for both vertical and horizontal polarisations. Pre-scan plots are shown with a peak detector and 100 kHz RBW. If the EUT connects to auxiliary equipment and is table or floor standing, the configurations prescribed in ANSI C63.10 are followed. Alternatively, a layout closest to normal use (as declared by the provider) is employed, (see EUT setup photographs for more detail). Emissions between 30 MHz and 1 GHz are measured using calibrated broadband antennas. Emissions above 1 GHz are characterized using standard gain horn antennas. Pre-amplifiers and filters are used where required. Care is taken to ensure that test receiver resolution bandwidth, video bandwidth and detector type(s) meet the regulatory requirements. For both horizontal and vertical polarizations, the EUT is then rotated through 360 degrees in azimuth until the highest emission is detected. At the previously determined azimuth the test antenna is raised and lowered from 1 to 4 m in height until a maximum emission level is detected, this maximum value is recorded. Power values measured on the test receiver / analyzer are converted to field strength, FS, in dBȝV/m at the regulatory distance, using: FS = PR + CL + AF – PA + DC – CF Where, PR is the power recorded on the receiver / spectrum analyzer in dBȝV; CL is the cable loss in dB; AF is the test antenna factor in dB/m; PA is the pre-amplifier gain in dB (where used); DC is the duty correction factor in dB (where used, e.g. harmonics of pulsed fundamental); CF is the distance factor in dB (where measurement distance different to limit distance); This field strength value is then compared with the regulatory limit. Figure i Test Setup Report Number: TRA-027735-47-00A RF915 2.0Page 20 of 42 11.5 Test Set-up Photograph 11.6 Test Equipment Type of EquipmentMaker/Supplier Model Number Element Number Calibration Due Date EMI ReceiverR&SESVS10TRL35207/08/2016 Bilog AntennaChaseCBL6111/AUH19126/02/2017 Spectrum AnalyserR&SFSU46UH28124/04/2016 Horn AntennaEmco3115TRL13817/10/2015 Horn AntennaFlann20240-20TRL30010/02/2016 Pre AmplifierAgilent8449ATRL57210/02/2016 Report Number: TRA-027735-47-00A RF915 2.0Page 26 of 42 12.4 Test Method With the EUT setup in a screened room, as per section 9 of this report and connected as per Figure ii, the power line emissions were measured on a spectrum analyzer / EMI receiver. AC power line conducted emissions from the EUT are checked first by preview scans with peak and average detectors covering both live and neutral lines. A spectrum analyzer is used to determine if any periodic emissions are present. Formal measurements using the correct detector(s) and bandwidth are made on frequencies identified from the preview scans. Final measurements were performed with EUT set at its maximum duty in transmit and receive modes. Figure ii Test Setup 12.5 Test Set-up Photograph
