2ABLX-240ZZigbee Roller Shade

The Watt Stopper Inc., d/b/a Qmotion

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 29, 2015
Application Purpose: Original Equipment
Date of Application: Jun 29, 2015
Equipment Note: Zigbee Roller Shade
Frequency Range: 2405.00000000 - 2480.00000000
Company: The Watt Stopper Inc., d/b/a Qmotion
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2ABLX-240Z IC: 8832A-240Z FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-247 ACS Project Number: 15-0213 Manufacturer: QMotion Incorporated Model: QMRS-240Z Step 1 Open the coordinator hub for joining or pairing the remote and the shade. - If you already have a coordinator/ router check manufacturers instruction on how to place into pairing mode - If using QMotion coordinator/router push pairing button on side and let go Step 2 Slightly tug the shade 6” to wake shade up. The shade will try to join the network by moving up and down (jogging). Will be in learn mode for 2 minutes. Step 3 Press any button on the remote to join the network. Step 4 Shade is now connected to network. LED on remote will flash letting you know if connected. Step 5 Learn shade to remote. Hit “MODE SELECT” button on the back of remote. Then you will hit “UP” button. Shade will then move to 75% position. Step 6 Tug the shade 6” and let go. Shade is now learned to the remote. Step 7 To learn bottom limit, hold “DOWN” button for five seconds. Shade will jog. Step 8 Tug shade to enter learn mode. Step 9 Pull shade to desired bottom limit. Step 10 Hold “DOWN” button for five seconds to store posi- tion. Shade will jog to confirm learned bottom limit. Step 11 Hit “DOWN” button to confirm bottom limit. Step 12 Hit “UP” button to open shade. Shade will travel to full open position. You now have bottom limit and intermediate positions learned. NETWORK SETUP AND INSTALLATION INSTRUCTIONS UNIVERSAL REMOTE (MODEL #QZR-ZIG2400) & CRYSTAL CONNECT (MODEL #QMRS-240Z) Channel Button Variable Position Butttons Channel/Mode Reverse Side Mode Select Button Pairing the remote to the coordinator/ router allows for communications to your shades Universal Remote Router / Coordinator Crystal Connect Roller Shade Up/Down Buttons IMPORTANT Read and understand all instructions before installing. Always wear personal protection equipment including safety glasses and gloves. Use a ladder per its manufacturer’s instructions. Work safely! FCC Warning: Changes or modifications to this device not expressly approved by QMotion Advanced Shading Systems could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de- vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inter- ference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ- ment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. INDUSTRY CANADA Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce po- tential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful com- munication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Indus- trie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Cover Letter(s)

June 2, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID:2ABLX-240Zto the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, David Ayer RF Design Engineer

Cover Letter(s)

CONFIDENTIALITY REQUEST QMRS-240Z2ABLX-240Z QMRS-240Z

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 June 19, 2015 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: 2ABLX-240Z To Whom It May Concern: The following application is submitted on behalf of our client, QMotion Incorporated, for evaluation of their model QMRS-240Z for certification under FCC Part 15.247. The QMRS-240Z is a wireless window shade operating in the frequency range 2.405 – 2.480 GHz and based around IEEE 802.15.4 and the Zigbee communications protocol. Many roller shades can be joined into a network and controlled by the push of a single remote button. Central control or mapping of this network of roller shades is controlled (coordinated) by a coordinating router. The QMRS-240Z was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

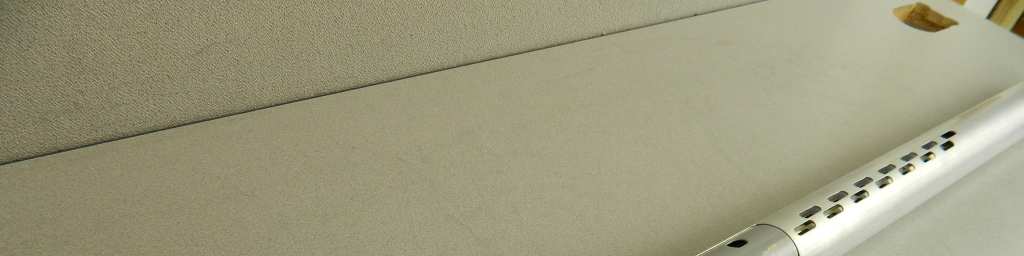

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2ABLX-240Z FCC Rule Part: 15.247 ACS Project Number: 15-0213 Manufacturer: QMotion Incorporated Model: QMRS-240Z Model: QMRS-240ZFCC ID: 2ABLX-240Z ACS Project: 15-0213Advanced Compliance SolutionsPage 2 General Information: Applicant:QMotion Incorporated Device Category:Mobile Environment:General Population/Uncontrolled Exposure Technical Information: Antenna Type: PCB Balanced Loop Antenna Gain: 0dBi Maximum Transmitter Conducted Power: 20.88 dBm, 122.46 mW Maximum System EIRP: 20.88 dBm, 122.46 mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 247520.881.00122.4601.000 200.024 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

Test Report

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 7708318048 Fax: 7708318598 Certification Test Report FCC ID: 2ABLX-240Z IC: 8832A-240Z FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-247 ACS Report Number: 15-0213.W06.1A Manufacturer: QMotion Incorporated Model: QMRS240Z Test Begin Date: June 11, 2015 Test End Date: June 12, 2015 Report Issue Date: June 19, 2015 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 2006120 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 20 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 7708318048 Fax: 7708318598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 4 2 TEST FACILITIES .............................................................................................................................. 5 2.1 LOCATION ....................................................................................................................................... 5 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 5 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 6 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 6 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 7 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 8 3 APPLICABLE STANDARD REFERENCES .................................................................................... 8 4 LIST OF TEST EQUIPMENT ............................................................................................................ 9 5 SUPPORT EQUIPMENT ...................................................................................................................10 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ..........................................................10 7 SUMMARY OF TESTS ......................................................................................................................11 7.1 ANTENNA REQUIREMENT – FCC 15.203 ........................................................................................11 7.2 POWER LINE CONDUCTED EMISSIONS – FCC 15.207, IC: RSS-GEN 8.8 ........................................11 7.2.1 Measurement Procedure ........................................................................................................11 7.3 6DB / 99% BANDWIDTH – FCC 15.247(A)(2), IC: RSS-247 5.2(1) ................................................12 7.3.1 Measurement Procedure ........................................................................................................12 7.3.2 Measurement Results .............................................................................................................12 7.4 FUNDAMENTAL EMISSION OUTPUT POWER – FCC 15.247(B)(3), IC: RSS-247 5.4(4) ...................14 7.4.1 Measurement Procedure ........................................................................................................14 7.4.2 Measurement Results .............................................................................................................14 7.5 EMISSION LEVELS – FCC 15.247(D), 15.205, 15.209; IC RSS-247 5.5, RSS-GEN 8.9....................15 7.5.1 Emissions into Non-restricted Frequency Bands ...................................................................15 7.5.1.1 Measurement Procedure ................................................................................................................... 15 7.5.1.2 Measurement Results ....................................................................................................................... 15 7.5.2 Emissions into Restricted Frequency Bands - FCC 15.205, 15.209; RSS-Gen 8.9/8.10 .......17 7.5.2.1 Measurement Procedure ................................................................................................................... 17 7.5.2.2 Duty Cycle Correction ..................................................................................................................... 17 7.5.2.3 Measurement Results ....................................................................................................................... 17 7.5.2.4 Sample Calculation: ......................................................................................................................... 18 7.6 MAXIMUM POWER SPECTRAL DENSITY IN THE FUNDAMENTAL EMISSION – FCC 15.247(E) IC: RSS-247 5.2(2) ..........................................................................................................................................19 7.6.1 Measurement Procedure ........................................................................................................19 7.6.2 Measurement Results .................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

David Ayer(RF Design Engineer)

[email protected]850-308-7328Fax: 850-208-3404

Test Firm

Advanced Compliance Solutions, Inc.Randy Abernathy

[email protected]770-831-8048Fax: 770-831-8598

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	122.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. Output power as shown in this filing is reduced at upper channel for compliance with restricted band-edge requirements, power not to exceed 22.5 mW when transmitting on 2480 MHz. End-users must be provided with operating instructions for satisfying RF exposure compliance requirements. Device must operate with a source-based, time-averaged duty cycle not to exceed 66% controlled via software or firmware.
