2ABLX-QSYNC433FMQSYNC Transceiver

The Watt Stopper Inc., d/b/a Qmotion

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Sep 24, 2015
Application Purpose: Original Equipment
Date of Application: Sep 24, 2015
Equipment Note: QSYNC Transceiver
Frequency Range: 433.92000000 - 433.92000000
Company: The Watt Stopper Inc., d/b/a Qmotion
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2ABLX-QSYNC433FM IC: 8832A-QSYNC433FM FCC Rule Part: 15.231 IC Radio Standards Specification: RSS-210 ACS Project Number: 15-0317 Manufacturer: Qmotion Incorporated Model: QSYNC-433FM sync Network Gateway for Qmotion Automated Shades www.qmotionshades.com Step 1 Verify the contents of the Qsync package and gather materials: a. Ethernet cable b. Qsync c. Antenna d. Power Adapter (Color may vary.) Step 2 Attach the antenna to the Qsync by screwing it onto the coaxial connector on Qsync’s back plate. For best performance, position the antenna as high up as possible and without obstructions between it and the shades. Step 3 Plug the power cord into Qsync’s front plate. Then plug it into a power outlet. Power connector PN 9000136 a b c d Step 4 Connect Qsync to one of your router’s LAN ports using an ethernet cable. Do not use the Internet Port (shown yellow.) Qsync will only receive commands from this WiFi network. Before continuing, ensure that your Apple device is connected to this router’s WiFi network. NO OK OK OK OK Back of Router Internet Cable, not for Qsync { LAN Ports Coax Connector Installing and Opening the Qsync App APPLE DEVICES Adding a Group and Adding/ Deleting Shades in a Group Deleting a Group To add a group of shades, first tap . The remote slides over to reveal the group listing. Tap to add a new Group. Name the group. Add shades by tapping ______. Delete shades by tapping _______. Follow on- screen instructions for each. Open the App Store on your Apple Device. Search for “qmotion”. Download the latest Qmotion app by tapping . Tap to install the Qmotion app. Open the Qmotion app. The screen shown allows you to select Qsync devices on the same WiFi network. Select Group Using Qsync Tap on the group you would like to control. You can control synced groups and groups you created. You can now use the control buttons to change shade positions. You can also use the jog buttons to move the shade a little at a time. Alternatively, you can swipe the on-screen shade to the position you like. 1 2 6 7 8 1 3 2 4 3 5 4a 4b Tap __ to edit the group list. 2 NOTE: You must remove every shade from the group prior to deleting it. 5a 5b To get started, first select a group by tapping ____. Jog Up Jog Down Open 25% 50% 75% Close 1 To delete a group of shades, first tap __ . 1 2 Existing groups created on your device can now be deleted. Tap the red circle next to a group, then tap ___ . 4 3 To add a group of shades, first tap . Download the latest Qmotion app by tapping . Installing and Opening the Qsync App Adding a Group and Adding/ Deleting Shades in a Group Deleting a Group The remote slides over to reveal the group listing. Tap to add a new Group. Name the group. Add shades by tapping ______. Delete shades by tapping _______. Follow on- screen instructions for each. Open the Play Store on your Android Device. Search for “qmotion”. Tap to install the Qmotion app. Open the Qmotio app. The screen shown allows you to select Qsync devices on the same WiFi network. Select Group Using Qsync Tap on the group you would like to control. You can control synced groups and groups you created. You can now use the control buttons to change shade positions. You can also use the jog buttons to move the shade a little at a time. Alternatively, you can swipe the on-screen shade to the position you like. 1 2 6 7 8 1 3 2 4 3 5 4a 4b Tap __ to edit the group list. 2 NOTE: You must remove every shade from the group prior to deleting it. 5a 5b To get started, first select a group by tapping ____. Jog Up Jog Down Open 25% 50% 75% Close 1 To delete a group of shades, first tap __ . 1 2 Existing groups created on your device can now be deleted. Tap the red circle next to a group, then tap ___ . 4 3 ANDROID DEVICES The Qsync app can recover the Qsync hardware. Simply tap ______ . If the Troubleshooting section does not resolve an issue, open the app and tap ___________ . 1 SymptomProblemSolution I added a group, but it does not show up in My Groups list. Poor network connection. Exit out of the app by tapping __ . Re-open the app. If this has not fixed the problem, your device could be having WiFi connectivity issues. Check for a WiFi connection or try to move closer to the WiFi router. I deleted a group, but it still shows up in My Groups list. Poor network connection. Exit out of the app by tapping __ . Re-open the app. If this has not fixed the problem, your device could be having WiFi connectivity issues. Check for a WiFi connection or try to move closer to the WiFi router. I tried to change the settings of a group, but nothing happened. Your device did not create that group. You can only modify or delete groups that were created by the same device. In other words, creating a group on a Smart Phone would only allow that particular Smart Phone to modify or delete that group. No other device has permission to do so. Qsync Recovery Console If you still experience difficulties, please call toll-free 1-877-849-6070. Troubleshooting Set a Passcode Tap the blue arrow on the Qsync you wish to protect. Swipe the Passcode slider to “ON”. Enter a 4 digit pass code and tap _______. 2 1 2 9000136 US 8.26.15 FCC Warning: Changes or modifications to this device not expressly approved by QMotion Advanced Shading Systems could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener- ates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.…

Text truncated - open the document above for the full version.

Cover Letter(s)

August 19, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID:2ABLX-QSYNC433FMto the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, David Ayer RF Design Engineer

Cover Letter(s)

CONFIDENTIALITY REQUEST QSYNC-433FM2ABLX- QSYNC433FM QSYNC-433FM

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 August 27, 2015 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: 2ABLX-QSYNC433FM To Whom It May Concern: The following application is submitted on behalf of our client, Qmotion Incorporated, for evaluation of their model QSYNC-433FM for certification under FCC Part 15.231. The QSYNC-433FM is a TCP/IP to 433MHz bridge for controlling Qmotion shades with Apple or Android mobile devices. Mobile devices can connect to a network over Wi-Fi and control any QSyncs that are found. The QSYNC-433FM was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

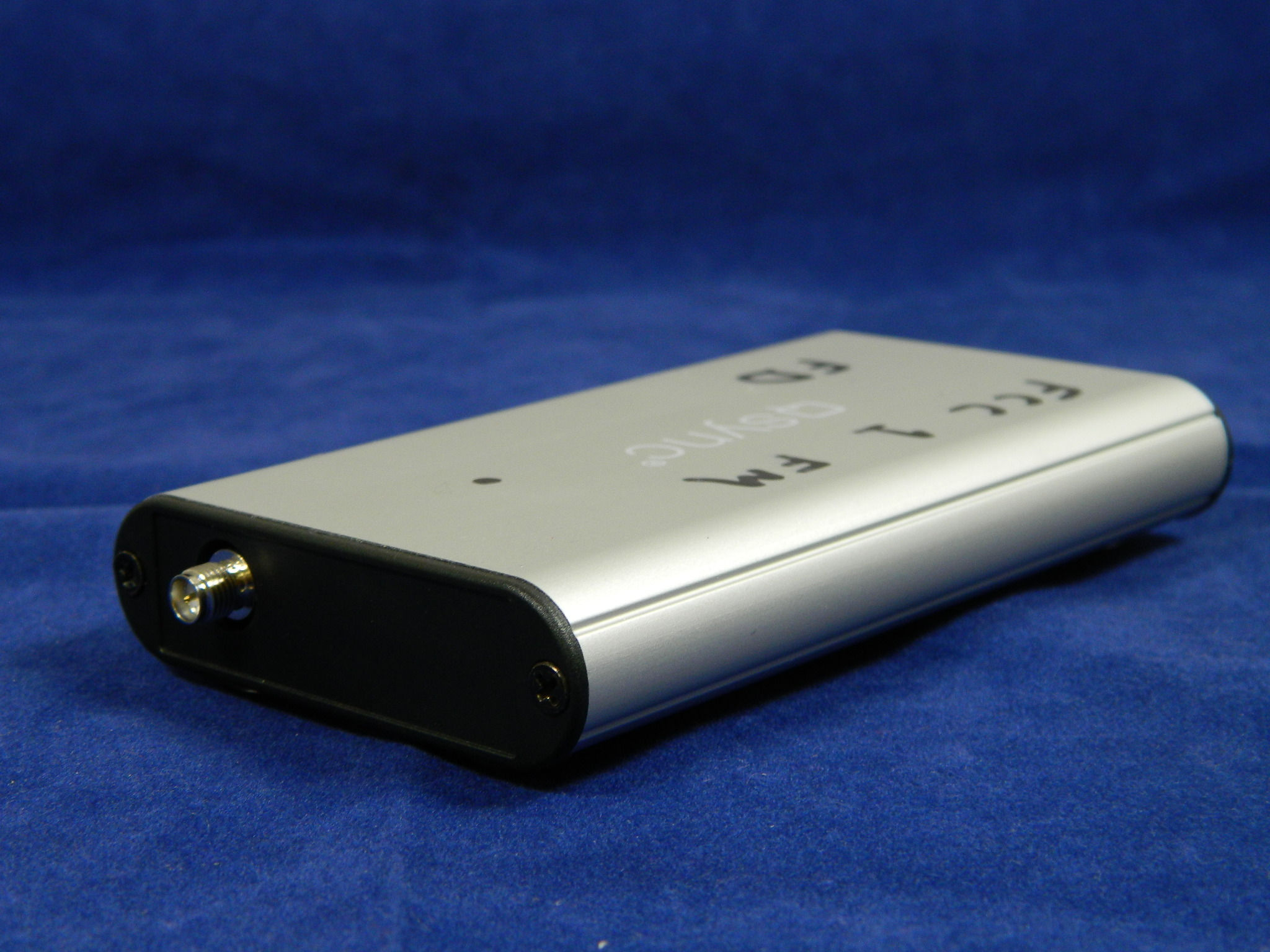

External Photos

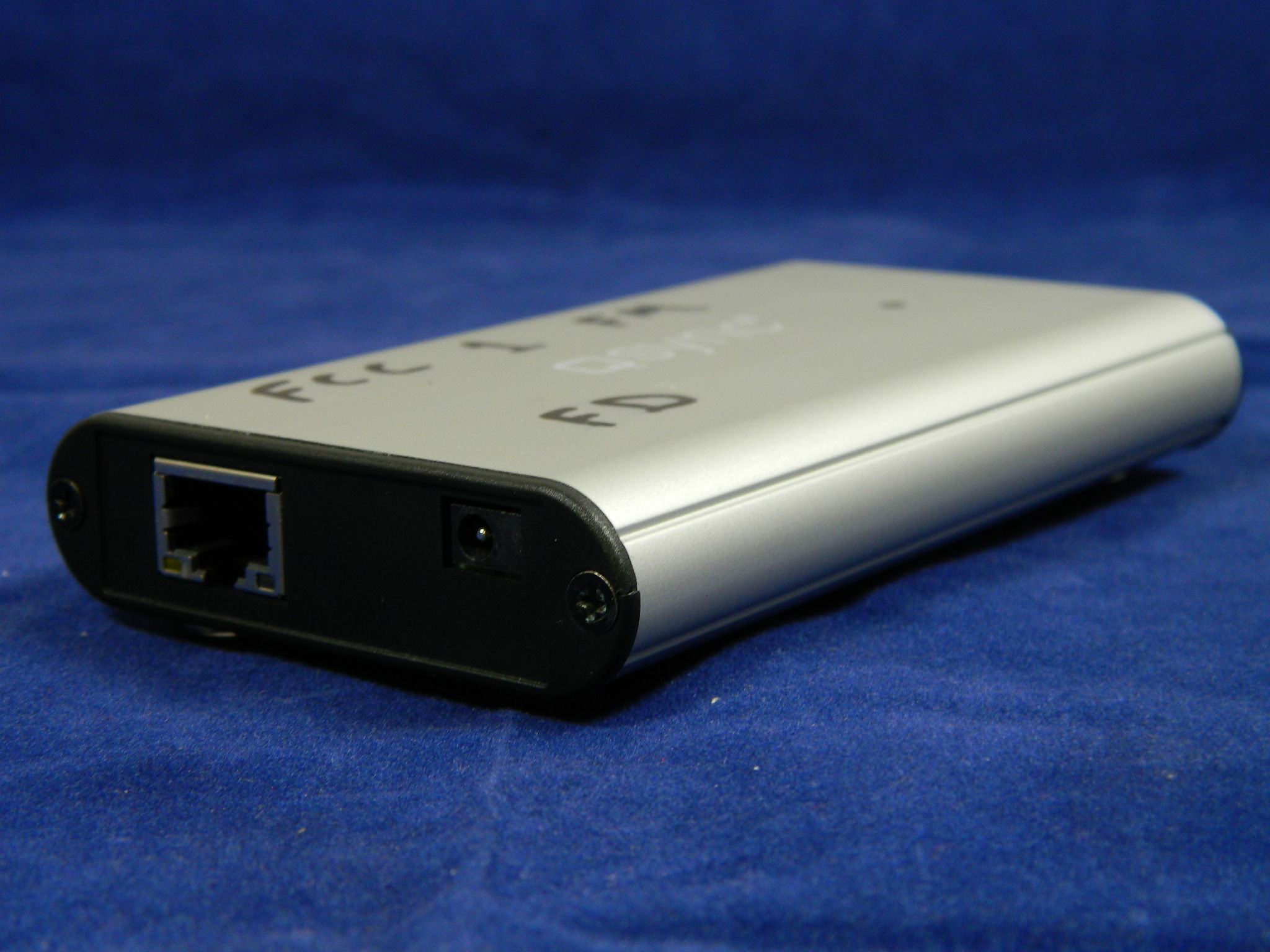

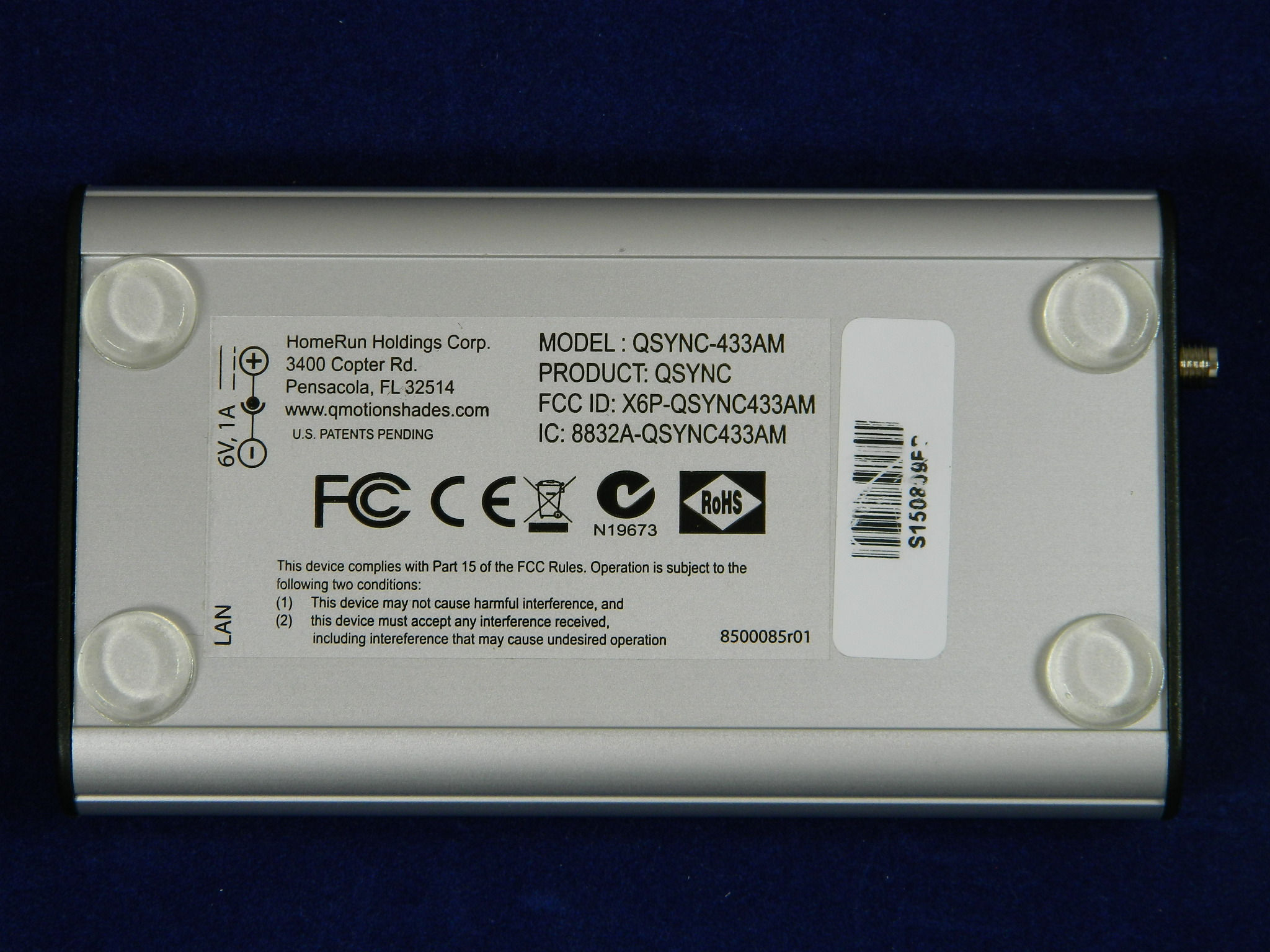

ID Label/Location Info

Internal Photos

Test Report

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: 2ABLXQSYNC433FM IC: 8832AQSYNC433FM FCC Rule Part: 15.231 IC Radio Standards Specification: RSS210 ACS Report Number: 150317.W06.1A Manufacturer: QMotion Incorporated Model: QSYNC-433FM Test Begin Date: August 17, 2015 Test End Date: August 22, 2015 Report Issue Date: August 28, 2015 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Prepared by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 17 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ......................................................................................................................10 7.1 ANTENNA REQUIREMENT – FCC: CFR 47 PART 15.203 .................................................................10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: CFR 47 PART 15.207/ IC: RSS-GEN 8.8 ................10 7.2.1 Measurement Procedure ........................................................................................................10 7.2.2 Measurement Results .............................................................................................................10 7.3 PERIODIC OPERATION – FCC: CFR 47 15.231(A) / IC: RSS-210 A1.1.1 ........................................11 7.3.1 Test Methodology ..................................................................................................................11 7.3.2 Test Results ............................................................................................................................11 7.4 OCCUPIED BANDWIDTH – FCC: CFR 47 15.231(C)(1) / IC: RSS-210 A1.1.3 .................................12 7.4.1 Test Methodology ..................................................................................................................12 7.4.2 Test Results ............................................................................................................................12 7.5 RADIATED EMISSIONS – FCC: CFR 47 15.231(B) / IC: RSS-210 A1.1.2 ........................................14 7.5.1 Test Methodology ..................................................................................................................14 7.5.2 Duty Cycle Correction ...........................................................................................................14 7.5.3 Test Results ............................................................................................................................15 7.5.4 Sample Calculation: ..............................................................................................................16 8 CONCLUSION ....................................................................................................................................17 Model: QSYNC433FM FCC ID: 2ABLXQSYNC433FM IC: 8832AQSYNC433FM ACS Report: 150317.W06.1A Advanced Compliance Solutions Page 3 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210. 1.2 Product description The QSYNC-433FM is a TCP/IP to 433MHz bridge for controlling Qmotion shades with Apple or Android mobile devices. Mobile devices can connect to a network over Wi-Fi and control any QSyncs that are found. Frequency Range: 433.92 MHz Operating channels: 1 Modulation: FSK Operating Voltage: 120Vac / 60Hz Antenna Type / Gain: Molded Whip / 2.5dBi Manufacturer I…

Text truncated - open the document above for the full version.

Test Setup Photos
