2ABLX-ZIG24DECOZigbee 2.4 Deco Remote

The Watt Stopper Inc., d/b/a Qmotion

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 23, 2015
Application Purpose: Original Equipment
Date of Application: Apr 23, 2015
Equipment Note: Zigbee 2.4 Deco Remote
Frequency Range: 2405.00000000 - 2480.00000000
Company: The Watt Stopper Inc., d/b/a Qmotion
Country: United States

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

March 17, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sam Wismer at Advanced Compliance Solutions, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID:2ABLX-ZIG24DECOto the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, David Ayer RF Design Engineer

Cover Letter(s)

CONFIDENTIALITY REQUEST QZR-ZIG24002ABLX- ZIG24DECO QZR-ZIG2400

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 April 10, 2015 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: 2ABLX-ZIG24DECO To Whom It May Concern: The following application is submitted on behalf of our client, Qmotion Incorporated, for evaluation of their model QZR-ZIG2400 for certification under FCC Part 15.247. The QZR-ZIG2400 is a battery powered wireless remote which transmits and receives RF signals according to the IEEE 802.15.4 standard. The remote activates (controls) wireless window shades (treatments) for residential or commercial use. The QZR-ZIG2400 was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

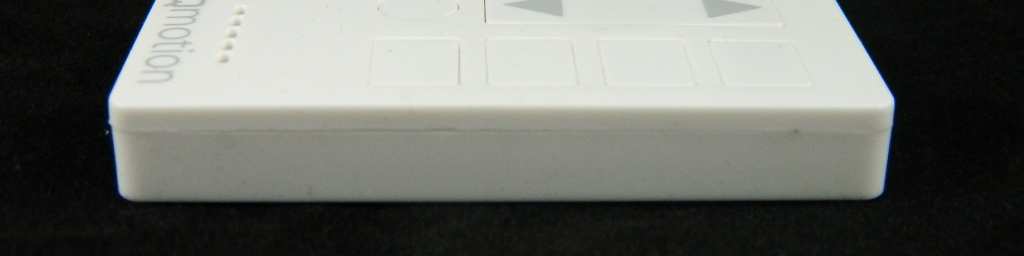

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2ABLX-ZIG24DECO IC: 8832A-ZIG24DECO FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 15-0094 Manufacturer: Qmotion Incorporated Model: QZR-ZIG2400 Model: QZR-ZIG2400FCC ID: 2ABLX-ZIG24DECOIC: 8832A-ZIG24DECO ACS Project: 15-0094Advanced Compliance SolutionsPage 2 General Information: Applicant:Qmotion Incorporated Environment:General Population/Uncontrolled Exposure Exposure Conditions:Portable (Hand-held) Technical Information: Minimum Test Separation Distance: 5 mm Highest Operating Frequency: 2480 MHz Antenna Type: Inverted F Antenna Gain: 3.3dBi Maximum Transmitter Conducted Power: 1.95 dBm, 1.57 mW Maximum Transmitter EIRP: 5.25 dBm, 3.35 mW Justification for SAR Test Exclusion (FCC): Standalone SAR Test Exclusion: Per KDB 447498 D01 General RF Exposure Guidance v05r02, the standalone 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR = (2 / 5)*( √2.480) = 0.6 0.6< 7.5 Standalone SAR test exclusion is applied. Justification for SAR Test Exclusion (IC): The SAR test exclusion thresholds are determined using draft IC RSS-102 Issue 5, section 2.5.1 Table 1. Maximum Conducted or Equivalent Isotropically Radiated power (EIRP): 3.35 mW The linear interpolated threshold of table 1 for 2480 MHz at a separation distance of 5 mm is determined as 4 mW. 3.35 mW < 4 mW SAR test exclusion is applied.

Test Report

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 7708318048 Fax: 7708318598 Certification Test Report FCC ID: 2ABLX-ZIG24DECO IC: 8832A-ZIG24DECO FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 15-0094.W06.1A Manufacturer: Qmotion Incorporated Model: QZRZIG2400 Test Begin Date: March 25, 2015 Test End Date: March 26, 2015 Report Issue Date: April 10, 2015 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 2006120 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 20 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 7708318048 Fax: 7708318598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 4 2 TEST FACILITIES .............................................................................................................................. 5 2.1 LOCATION ....................................................................................................................................... 5 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 5 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 6 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 6 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 7 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 8 3 APPLICABLE STANDARD REFERENCES .................................................................................... 8 4 LIST OF TEST EQUIPMENT ............................................................................................................ 9 5 SUPPORT EQUIPMENT ...................................................................................................................10 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ..........................................................10 7 SUMMARY OF TESTS ......................................................................................................................11 7.1 ANTENNA REQUIREMENT – FCC 15.203 ........................................................................................11 7.2 POWER LINE CONDUCTED EMISSIONS – FCC 15.207, IC: RSS-GEN 8.8 ........................................11 7.3 6DB / 99% BANDWIDTH – FCC 15.247(A)(2), IC: RSS-210 A8.2(A) .............................................12 7.3.1 Measurement Procedure ........................................................................................................12 7.3.2 Measurement Results .............................................................................................................12 7.4 FUNDAMENTAL EMISSION OUTPUT POWER – FCC 15.247(B)(3), IC: RSS-210 A8.4(4) ................14 7.4.1 Measurement Procedure ........................................................................................................14 7.4.2 Measurement Results .............................................................................................................14 7.5 EMISSION LEVELS – FCC 15.247(D), 15.205, 15.209; IC RSS-210 2.2/A8.5, RSS-GEN 8.9 ...........15 7.5.1 Emissions into Non-restricted Frequency Bands ...................................................................15 7.5.1.1 Measurement Procedure ................................................................................................................... 15 7.5.1.2 Measurement Results ....................................................................................................................... 15 7.5.2 Emissions into Restricted Frequency Bands ..........................................................................17 7.5.2.1 Measurement Procedure ................................................................................................................... 17 7.5.2.2 Duty Cycle Correction ..................................................................................................................... 17 7.5.2.3 Measurement Results ....................................................................................................................... 17 7.5.2.4 Sample Calculation: ......................................................................................................................... 18 7.6 MAXIMUM POWER SPECTRAL DENSITY IN THE FUNDAMENTAL EMISSION – FCC 15.247(E) IC: RSS-210 A8.2(B) .......................................................................................................................................19 7.6.1 Measurement Procedure ........................................................................................................19 7.6.2 Measurement Results .............................................................................................................19 8 CONCLUSION .........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

David Ayer(RF Design Engineer)

[email protected]850-308-7328Fax: 850-208-3404

Test Firm

Advanced Compliance Solutions, Inc.Randy Abernathy

[email protected]770-831-8048Fax: 770-831-8598

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.60 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. End-users must be provided with operating instructions for satisfying RF exposure compliance requirements. Device must operate with a source-based, time-averaged duty cycle not to exceed 66% controlled via software or firmware.
