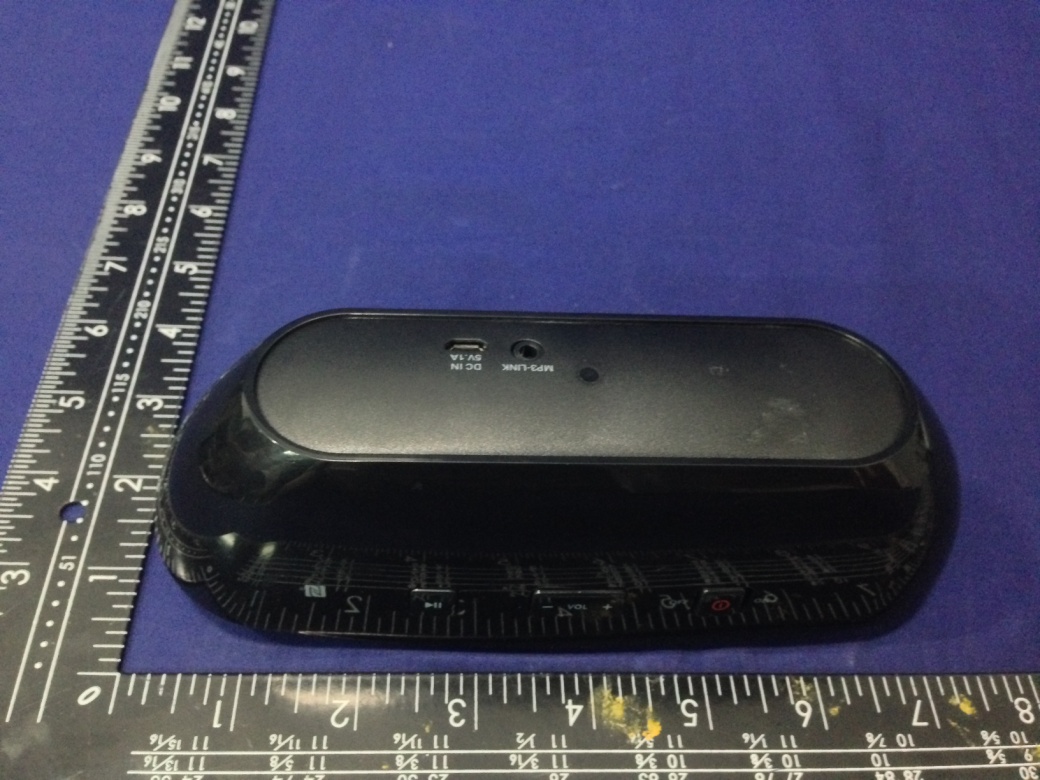

2ABM5-BTS220Bluetooth music player

EN Safety Warnings - Read all the instructions carefully before using the unit and keep them for future reference. - Retain the manual. If you pass the unit onto a third party make sure to include this manual. - Check that the voltage marked on the rating label matches your mains voltage. - The product complies with the requirement of the 1999/5/EC directive. Damage - Please inspect the unit for damage after unpacking. - Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer. Location of Unit - The unit must be placed on a flat stable surface and should not be subjected to vibrations. - Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over. - The mains socket must be located near the unit and should be easily accessible. Temperature - Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires. - A void exposure to direct sunlight and other sources of heat. Naked Flames - Never place any type of candle or naked flame on the top of or near the unit. Moisture - To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit. - If you spill any liquid into the unit, it can cause serious damages. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer. Ventilation - T o prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents. - A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation. - Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated. Safety - Always disconnect the unit from the mains supply before connecting/ disconnecting other devices or moving the unit. - Unplug the unit from the mains socket before a lightning storm. - In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket. Interference - Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely af fect the operating performance of the unit, and cause a distorted picture or sound. Batteries CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. - Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous. - Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed. - Please dispose of batteries correctly by following the guidance in this manual. - Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Supervision - Children should be supervised to ensure that they do not play with the unit. - Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock. Service - To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel. - Do not open any fixed covers as this may expose dangerous voltages. Maintenance - Ensure the unit is fully unplugged from the power supply before cleaning. - Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit’s surface. - Do not use liquids to clean the unit. FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver . - Connect the equipment into an outlet on a circuit dif ferent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s author- ity to operate this equipment. Pack Contents Make sure all of the following contents are included. - Main Unit - USB Cable - Instruction Manual Product Overview 1.ON OFF - Turn on/off the unit 2. - VOL + - Adjust volume 3. - Press to play/pause in Bluetooth mode - Press 3s to disconnected Bluetooth pairing 4. - NFC Area 5. DC IN 5V.1A - Power supply socket 6.MP3-LINK - Connect an audio device. 7. Power indicator - Steadily on when the battery is in charging 8. Bluetooth indictor - Steadil…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 Zhong Shan City LI TAI Electronic Industrial Co., Ltd 2014-09-02 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _ Zhong Shan City LI TAI Electronic Industrial Co., Ltd_hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Bluetooth music player, Model Number: BTS220B, BTS220W Sincerely, Yuki Cai/Safety approbation engineer E-mail: [email protected] Phone: +86-760-23808322 Fax: +86-760-23808800 Address: No.3 Industrial District, Wuguishan Town, Zhongshan, Guangdong, China SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Zhong Shan City LI TAI Electronic Industrial Co., Ltd 2014-09-02 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Zhong Shan City LI TAI Electronic Industrial Co., Ltd hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Bluetooth music player, Model Number: BTS220B, BTS220W We affirm that between SIEMIC, Inc. and Zhong Shan City LI TAI Electronic Industrial Co., Ltd, any difference in understanding, including test plan, measurement methods, - applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Address: SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 Yuki Cai/Safety approbation engineer E- mail: [email protected] Phone: +86-760-23808322 Fax: +86-760-23808800 No.3 Industrial District, Wuguishan Town, Zhongshan, Guangdong, China

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 Zhong Shan City LI TAI Electronic Industrial Co., Ltd 2014-9-2 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABM5-BTS220 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, A ddress: SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Yuki Cai/Safety approbation engineer E- mail: [email protected] Phone: +86-760-23808322 Fax: +86-760-23808800 No.3 Industrial District, Wuguishan Town, Zhongshan, Guangdong, China

Family models declaration letter. 2014-9-2 We Zhong Shan City LI TAI Electronic Industrial Co., Ltd Of No.3 Industrial District, Wuguishan Town, Zhongshan, Guangdong, China （address） Declare under our sole responsibility tha t the product Product: Bluetooth music player Model Namer : BTS220B, BTS220W FCC ID: 2ABM5-BTS220 All models have the same constructions, circuit diagram and PCB layout. Only model name and colour is different. Unless otherwise stated Thanks Sincerely, Yuki Cai/Safety approbation engineer E-mail: [email protected] Phone: +86-760-23808322 Fax: +86-760-23808800 Address: No.3 Industrial District, Wuguishan Town, Zhongshan, Guangdong, China

Proposed Label Location on EUT

BT Module Antenna

FCC ID: 2ABM5-BTS220 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BT DSS: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) Result calculation 1-g SAR 2.402 GFSK 1.842 0.4737 3.0 2.441 GFSK 1.259 0.4175 3.0 2.480 GFSK 0.162 0.3269 3.0 2.402 1/4Π-DQPSK 0.704 0.3645 3.0 2.441 1/4Π-DQPSK 0.178 0.3255 3.0 2.480 1/4Π-DQPSK -0.98 0.2513 3.0 2.402 8DPSK 0.674 0.3620 3.0 2.441 8DPSK 0.135 0.3223 3.0 2.480 8DPSK -0.974 0.2517 3.0 Conclusion: For the max result : 0.4737≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

TRF No：FCC 15.247/A Page 1 of 59 Report No: ES140813156E ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENTS OF Bluetooth music player MODEL No.: BTS220B, BTS220W FCC ID: 2ABM5-BTS220 Trade Mark: neon REPORT NO: ES140813156E ISSUE DATE: August 31, 2014 Prepared for Zhong Shan City LI TAI Electronic Industrial Co., Ltd No.3 Industrial District, Wuguishan Town, Zhongshan, China Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No：FCC 15.247/A Page 2 of 59 Report No: ES140813156E VERIFICATION OF COMPLIANCE Applicant: Zhong Shan City LI TAI Electronic Industrial Co., Ltd No.3 Industrial District, Wuguishan Town, Zhongshan, China Manufacturer: Zhong Shan City LI TAI Electronic Industrial Co., Ltd No.3 Industrial District, Wuguishan Town, Zhongshan, China Product Description: Bluetooth music player Model Number: BTS220B, BTS220W Trade Mark: neon Serial Number: N/A File Number: ES140813156E Date of Test: August 15, 2014 to August 31, 2014 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : August 15, 2014 to August 31, 2014 Prepared by : Joe Xia/Editor Reviewer : Jack Li/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No：FCC 15.247/A Page 3 of 59 Report No: ES140813156E Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 Product Description ................................................................................................................................. 5 1.2 Related Submittal(s) / Grant (s)............................................................................................................... 5 1.3 Test Methodology ................................................................................................................................... 5 1.4 Special Accessories ................................................................................................................................. 5 1.5 Equipment Modifications ........................................................................................................................ 5 1.6 Test Facility ............................................................................................................................................. 6 2. System Test Configuration ...................................................................................................... 7 2.1 EUT Configuration .................................................................................................................................. 7 2.2 EUT Exercise .......................................................................................................................................... 7 2.3 Test Procedure ......................................................................................................................................... 7 2.4 Limitation ................................................................................................................................................ 7 2.5 Configuration of Tested System .............................................................................................................. 11 2.6 Description of test modes ...................................................................................................................... 12 3. Summary of Test Results ....................................................................................................... 13 4. Conducted Emissions Test .................................................................................................... 14 4.1 Measurement Procedure: ....................................................................................................................... 14 4.2 Test SET-UP (Block Diagram of Configuration) .................................................................................. 14 4.3 Measurement Equipment Used: ............................................................................................................ 14 4.4 Conducted Emission Limit ......................................................................................................................... 14 4.5 Measurement Result: ............................................................................................................................. 15 5. Radiated Emission Test ......................................................................................................... 17 5.1 Measurement Procedure ........................................................................................................................ 17 5.2 Test SET-UP (Block Diagram of Configuration) .................................................................................. 18 5.3 Measurement Equipment Used: ............................................................................................................ 19 5.4 Measurement Result .............................................................................................................................. 20 6. Channel Separation test ........................................................................................................ 32 6.1 Measurement Procedure ........................................................................................................................ 32 6…

Text truncated - open the document above for the full version.

Conducted Emissions Te s t Radiated Emission Te s t
