2ABQO-ROCKOUTSpeaker Bag

MANUAL Product Name: Solar Bluetooth Hand-Free Speaker bags Item No.: AMK-3W9-02 Client Code: ROCK OUT 2 SOLAR Summary: This product is a Bluetooth Hands-Free, IPHONE control, solar charging Multifunctional speakers. Main PCB with two built-in 5W amplifier IC go through two 5W high quality output speakers. The built-in 1A charging IC which can charge the speaker by USB or even the solar panel. During the charging, there also have four LED indicate showing the battery power. Also the intelligent MCU would help automatically change to button control or Bluetooth control. Operating Instructions （1）Power on/off；Long press the power button for 3 seconds to turn on the speaker. With the “Power on” UI sound , Bluetooth indicator lights and background lights flashing alternately, gently press the power button to turn off the speaker with “Power off” UI Sound. （2）After turn on the speaker it would automatically connected to device which had connected before. With the ”connected” UI sound after successful connection. “Connection failed” UI sound also if not. （3）For the first time using the speaker, turn on your BT device and speaker. Searching for “ROCK OUT” and pairing with it. （4）You can play music with the speaker when Bluetooth is successfully paired. Using the play / pause, Forward and Backward buttons on the speaker to control. （5）The volume buttons on the speaker can only control the speaker itself. （6）You can gently press the “play/pause” button to answer the phone call when playing music with the Bluetooth. （7）When plug the audio cable into a device which is already having the music on, the speaker will automatically turn from the Bluetooth mode to LINE-IN mode. （8）The speaker will need to be charged when the blue power indicator light turn to red or flashing. Using the USB port cable for charging or you can also charge it by solar energy . （9）When charging, the solar panel four LED indicates will flashing show the battery status. If 4 lights all light up means the charging is complete. （10）You can also control from the speaker while the audio cable plug in the IPHONE. FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try correct the interference by one or more of the receiving measures: Reorient or replace relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless user could lose the authority to operate this equipment if an unauthorized change or modification is made. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

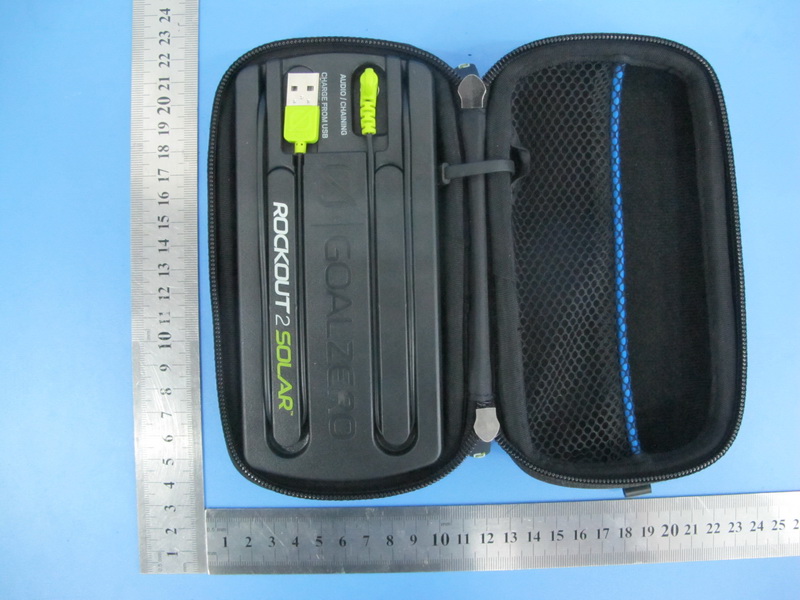

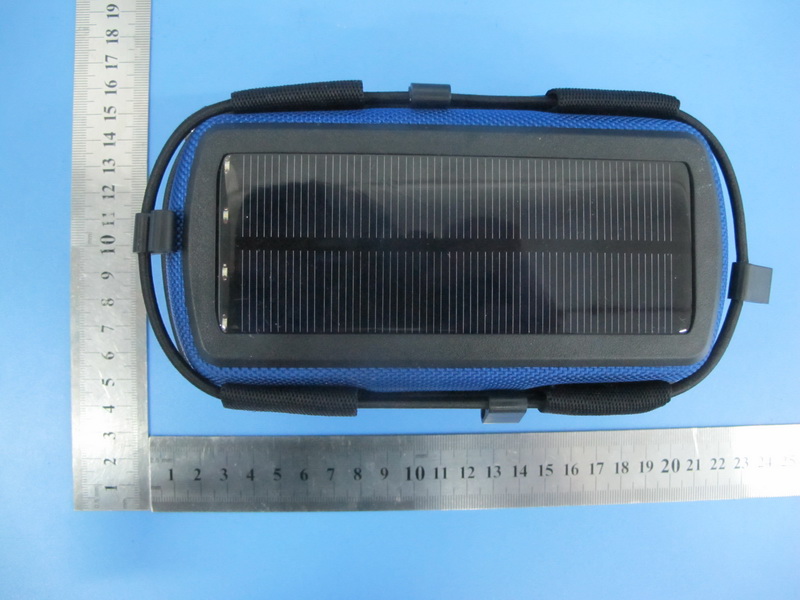

Report No.: TB-FCC140971 Page: 3 of 10 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC140971 Page: 4 of 10 TB-RF-075-1.0 Photo 3 Appearance of EUT

Report No.: TB-FCC140971 Page: 2 of 10 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC140971 Page: 5 of 10 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 4 Internal of EUT Photo 5 Appearance of PCB Report No.: TB-FCC140971 Page: 6 of 10 TB-RF-075-1.0 Photo 6 Appearance of PCB Photo 7 Appearance of PCB Report No.: TB-FCC140971 Page: 7 of 10 TB-RF-075-1.0 Photo 8 Appearance of PCB Photo 9 Appearance of PCB BT(2.4G) Antenna Report No.: TB-FCC140971 Page: 8 of 10 TB-RF-075-1.0 Photo 10 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE141073 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ABQO-ROCKOUT 1. Client Information Applicant : Dongguan Meiluodi Electronics Co., Ltd Address : No.16, Zhenxing Road, Shangjiao, Chang'an, Dongguan, Guangdong, 523876, China Manufacturer : Dongguan Meiluodi Electronics Co., Ltd Address : No.16, Zhenxing Road, Shangjiao, Chang'an, Dongguan, Guangdong, 523876, China 2. General Description of EUT EUT Name : SPEAKER BAG Models No. : ROCK OUT 2 SOLAR, AMK-3W9-02B Model Difference : All models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power:GFSK:-2.10 dBm Antenna Gain: 0 dBi PIFA Antenna Modulation Type: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC Voltage supplied from Host System by USB cable DC power by Li-ion Battery Power Rating : DC 5.0V by USB cable. DC 3.7V 800mAh Li-ion Battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE141073 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE141073 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -4.50 0 0.355 5 0.110 3.0 2.441 -2.10 0 0.617 5 0.193 3.0 2.480 -3.33 0 0.465 5 0.146 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -4.90 0 0.324 5 0.100 3.0 2.441 -2.36 0 0.581 5 0.182 3.0 2.480 -3.57 0 0.440 5 0.138 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC141072 Page: 1 of 83 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ABQO-ROCKOUT Original Grant Report No. : TB-FCC141072 Applicant : DongGuan Meiluodi Electronics Co., Ltd Equipment Under Test (EUT) EUT Name : SPEAKER BAG Model No. : ROCK OUT 2 SOLAR Series Model No. : AMK-3W9-02B Brand Name : GOAL ZERO Receipt Date : 2014-06-28 Test Date : 2014-06-29 to 2014-07-11 Issue Date : 2014-07-16 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC141072 Page: 2 of 83 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. CONDUCTED EMISSION TEST ........................................................................................... 10 3.1 Test Standard and Limit .................................................................................................... 10 3.2 Test Setup ........................................................................................................................... 10 3.3 Test Procedure ................................................................................................................... 10 3.4 Test Equipment Used ........................................................................................................ 11 3.5 EUT Operating Mode ........................................................................................................ 11 3.6 Test Data ............................................................................................................................. 11 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 16 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 32 5.1 Test Standard and Limit .................................................................................................... 32 5.2 Test Setup ........................................................................................................................... 32 5.3 Test Procedure ................................................................................................................... 32 5.4 EUT Operating Condition ................................................................................................. 33 5.5 Test Equipment .................................................................................................................. 33 6. NUMBER OF HOPPING CHANNEL .................................................................................... 46 6.1 Test Standard and Limit .................................................................................................... 46 6.2 Test Setup ........................................................................................................................... 46 6.3 Test Procedure ................................................................................................................... 46 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Equipment .................................................................................................................. 46 6.6 Test Data ............................................................................................................................. …
