2ABQOAMK-S3-02BBluetooth speaker

For Warranty Information and the most up-to-date version of this User’s Guide, go to: WARRANTY To download this User’s Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.meiluodi.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: INTERNATIONAL SUPPORT PAIRING A BLUETOOTH DEVICE 1. Press and hold the Power button to power on the speaker. 2. Press and hold the Pair button to begin pairing. The Pairing Indicator will begin flashing quickly. When pairing, remain within 3 feet of the unit. 3. Using the controls on your Bluetooth device, scan for and select ISBW105 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0 . Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices. 4. When successfully paired, the Pairing Indicator will turn solid and an audible chime will sound through the speaker. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the above steps. PLAYING AUDIO WIRELESSLY 1. Use the controls on the connected device to select an audio track. 2. Audio played through the connected Bluetooth device will now be heard through the speaker. Use controls on your device or the speaker to play, pause, skip, and change the volume. Bluetooth Speaker User’s Guide for Model No. ISBW105 USING THE SPEAKERPHONE 1. When a call is received, a ringtone will sound through the speaker. Press the Play/Pause/Speakerphone button to accept the call or accept the call using the controls on the connected phone. 2. The incoming call received through the device will now be heard through the speaker. Speak into the microphone on the top of the speaker during the call. 3. To end the call, press the Play/Pause/Speakerphone button or end the call using the controls on the connected phone. CHARGING THE BATTERY Requires a Micro-USB to USB cable (included). Note: Be sure the computer is not in sleep mode. 1. Using a Micro-USB to USB cable (included), connect the larger USB plug to the USB port of a powered on computer or USB power adaptor. 2. Pull back the water cap and connect the smaller Micro-USB plug to the Micro- USB port of the unit. The unit will now charge. WARNING: DO NOT, UNDER ANY CIRCUMSTANCES, CHARGE THE SPEAKER WHILE IT IS IN OR NEAR WATER. ALLOW AMPLE TIME TO DRY BEFORE CHARGING AFTER USE IN WATER. FCC ID:2ABQOAMK-S3-02B www.meiluodi.com www.meiluodi.com www.meiluodi.com CONTROLS WARNINGS AND PRECAUTIONS • WARNING: To prevent fire or shock hazards, do not expose this unit to rain or moisture. • WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining. • WARNING: Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable. • NOTE: This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead after several attempts to charge, please contact 1-888-999-4215 for support. • Never disassemble the unit or attempt to remove the battery as that could cause leakage of an electrolytic substance. FCC WARNINGS Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FEATURES • Built-in Bluetooth speaker • Wireless range: 60 feet • IPX7 water resistant • Built-in microphone for hands free speakerphone operation • Micro-USB port for battery recharge • Battery life: approx. 4 hours • Micro-USB to USB cable • Detachable suction cup INCLUDES Bluetooth Pairing Indicator Battery Charge Indicator Mic Power OFF/ON Press and hold to power on or off. Pair Bluetooth Micro-USB Charging Port (side) Skip Fwd/Rev/Vol +/− Press to skip. Press and hold to set volume. Play/Pause/Speakerphone / // BATTERY CHARGE INDICATORS STATUSINDICATOR Low BatteryFlashing red light Charging Device Solid red light Full ChargeNo light BLUETOOTH PAIRING INDICATORS STATUSINDICATOR Pairing DeviceFlashing blue light Device PairedSolid blue light WATER RESISTANCE This unit has an IPX 7 level of water resistance. Thi…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/1/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ABQOAMK-S3-02B including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Dongguan Meiluodi Electronics Co., Ltd Contact person: Jacky Fang Title: General Manager

Jun.01, 2015 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ABQOAMK-S3-02B Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dongguan Meiluodi Electronics Co., Ltd Contact person: Jacky Fang Title: General Manager

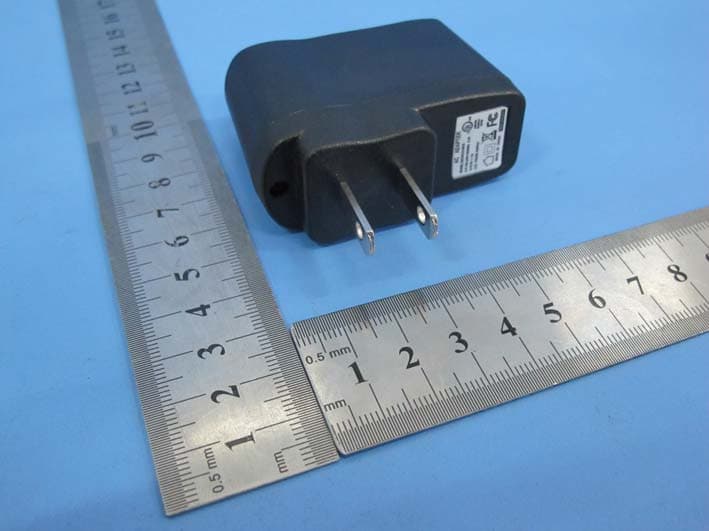

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2ABQOAMK-S3-02B

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Antenna

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: AMK-S3-02B, ISBW105 FCC ID: 2ABQOAMK-S3-02B fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Dongguan Meiluodi Electronics Co., Ltd Address: No.16, Zhenxing Road, Shangjiao, Chang'an,Dongguan, Guangdong, 523876 China City: Dongguan ZIP / Postal code: 523876 Country: China Place: Shenzhen Date: Jun.01,2015 Signature:

RF Exposure evaluation Product Description:Bluetooth speaker Model Number: AMK-S3-02B, ISBW105 FCC ID: 2ABQOAMK-S3-02B According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=95.98 dBuv/m= 0.060 V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.060x3) 2 /(30x1)=0.00108W=1.08mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -1.08mW output power] (1.08mW /5mm) .[√2.402(GHz)]= 0.33<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 54 FCC Test Report Report No.: AGC03930150301FE03 FCC ID : 2ABQOAMK‐S3‐02B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth speaker BRAND NAME : N/A MODEL NAME : AMK‐S3‐02B, ISBW105 CLIENT : DongGuan Meiluodi Electronics Co., Ltd. DATE OF ISSUE : May 28,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC03930150301FE03 Page 2 of 54 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / May 28,2015Valid Original Report Report No.: AGC03930150301FE03 Page 3 of 54 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................ 4 2. GENERAL INFORMATION ........................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ................................................................................................................. 5 2.2. TABLE OF CARRIER FREQUENCYS ................................................................................................ 5 3. MEASUREMENT UNCERTAINTY ............................................................................................................. 6 4. DESCRIPTION OF TEST MODES ............................................................................................................. 6 5. SYSTEM TEST CONFIGURATION ............................................................................................................ 7 5.1. CONFIGURATION OF EUT SYSTEM ................................................................................................. 7 5.2. EQUIPMENT USED IN EUT SYSTEM ................................................................................................ 7 5.3. SUMMARY OF TEST RESULTS ......................................................................................................... 7 6. TEST FACILITY .......................................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ..................................................................................................................... 8 8. RADIATED EMISSION ............................................................................................................................... 9 8.1TEST LIMIT ........................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ...................................................................................................... 10 8.3. TEST SETUP .................................................................................................................................... 12 8.4. TEST RESULT(Worst modulation:GFSK) ......................................................................................... 14 9. BAND EDGE EMISSION .......................................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ...................................................................................................... 27 9.2 TEST SETUP ..................................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ........................................................................ 28 10. 20DB BANDWIDTH ................................................................................................................................ 32 10.1. MEASUREMENT PROCEDURE .................................................................................................... 32 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS ...................................................................................... 32 11. FCC LINE CONDUCTED EMISSION TEST ........................................................................................... 42 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST .......................................................................... 42 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ....................................................... 42 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ..................................... 43 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ................................................... 43 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ............................................................. 44 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ..................................................................................... 46 APPENDIX B: PHOTOGRAPHS OF EUT .................................................................................................... 48 Report No.: AGC03930150301FE03 Page 4 of 54 1. VERIFICATION OF CONFORMITY Applicant DongGuan Meiluodi Electronics Co., Ltd. Address NO.16, Zhenxing Road, ShangJiao, Chan'an, Dongguan, Guangdong, 523878 China Manufacturer DongGuan Meiluodi Electronics Co., Ltd. Address NO.16, Zhenxing Road, ShangJiao, Chan'an, Dongguan, Guangdong, 523878 China Product Designation Bluetooth speaker Brand Name N/A Test Model AMK-S3-02B Series Model ISBW105 Different Description All the same except for the model name Date of test May 26,2015 to May 27,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation,…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
