2ABQOAMK-S2-02BBluetooth speaker

MIC / / / La prise du secteur est utilisé pour déconnecter le système. La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être débranchée du secteur. • Battery shall not be exposed to excessive heat such as sunshine, fire or the like. Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu ou autres choses de semblable. • Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. Gardez les piles neuves et d’occasion à partir des enfants. Si le compartiment de la batterie ne pas fermer correctement, cesser d’utiliser le produit et garder loin des enfants. • If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Si vous pensez que les batteries peuvent avoir été avalé ou placé à l’intérieur d’une partie du corps, consulter immédiatement un médecin. • Do not mix old and new batteries. Ne pas mélanger vieilles et nouvelles batteries. • Completely replace all old batteries with new ones. Remplacer complètement toutes les piles par des neuves. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries. Ne mélangez pas des piles alcalines, standard (carbone-zinc) ou rechargeables (Ni-Cd, Ni-MH, etc) batteries. • Batteries should be recycled or disposed of as per state and local guidelines. Piles doivent être recyclées ou éliminées selon les directives étatiques et locales. FEATURES & CONTROLS Floating Water-resistant Wireless Speaker User’s Guide for Model ISBW305W v1200-01 Important Safety Instructions • Read these Instructions. • Keep these Instructions. • Heed all Warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. FCC Warnings Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Additional Warnings and Precautions • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. AVIS: AFIN DE PRÉVENIR LES CHOCS ÉLÉCTRIQUES, FAITES CORRESPONDRE LA FICHE BLANCHE DE LA PRISE À LA FENTE LARGE, INSÉREZ TOTALEMENT. • WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. AVIS: Pour réduire le risque d’incendie ou de choc électrique, n’exposez pas cet appareil à la pluie ou l’humidité ou aux éclaboussures. • CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. AVIS: L’utilisation de commande ou l’exécution de procédures autres que celles spécifiées ici peuvent aboutir à une exposition à des radiations dangereuses. • WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. AVIS: Des changements ou des modifications sur ce produit non expressément approuvés par la partie responsable de la conformité peut annuler le droit de l’utilisateur d’utiliser cet équipement. • WARNING: Do not place this unit directly onto furniture surfaces with any type of …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 DongGuan Meiluodi Electronics Co., Ltd 2015-01-30 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ DongGuan Meiluodi Electronics Co., Ltd _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Bluetooth speaker, AMK-S2-02B) FCC ID: 2ABQOAMK-S2-02B Sincerely, Client’s signature Client’s name / title Jack Fang / General Manager Contact information / address No.16, Zhenxing Road, Shangjiao, Chang'an, Dongguan, Guangdong, 523876 China

DongGuan Meiluodi Electronics Co., Ltd SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 DongGuan Meiluodi Electronics Co., Ltd SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2015-01-30 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABQOAMK-S2-02B We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Jack Fang / General Manager Contact information / address No.16, Zhenxing Road, Shangjiao, Chang'an, Dongguan, Guangdong, 523876 China

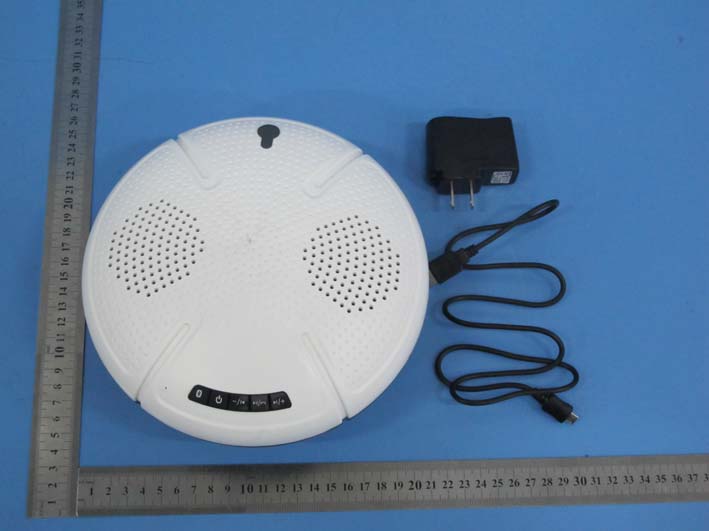

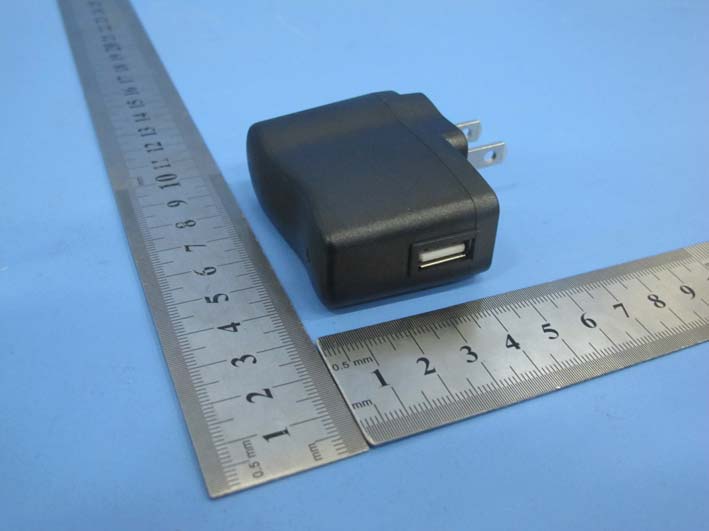

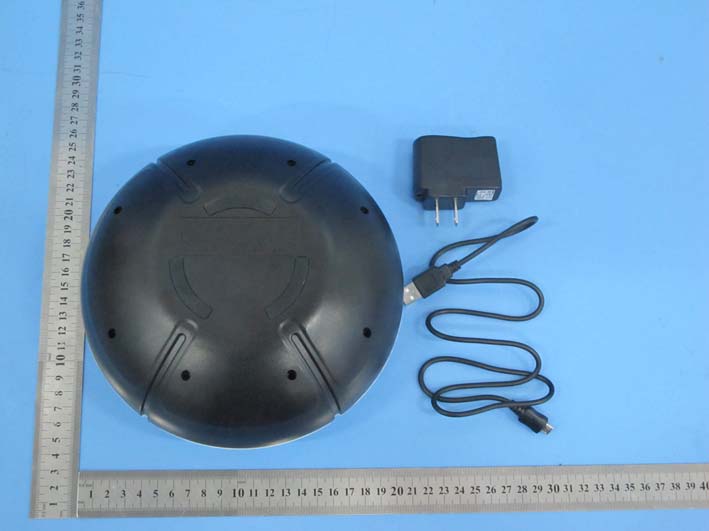

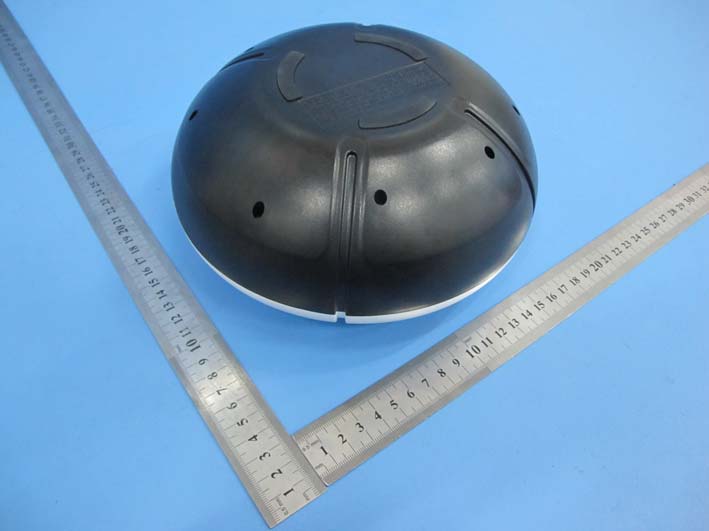

Report No.: TB-FCC143182 Page: 3 of 11 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC143182 Page: 4 of 11 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC143182 Page: 5 of 11 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of Adapter Report No.: TB-FCC143182 Page: 6 of 11 TB-RF-075-1.0 Photo 7 Appearance of Adapter

Report No.: TB-FCC143182 Page: 1 of 11 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID : 2ABQOAMK-S2-02B Bluetooth speaker Dongguan Meiluodi Electronics Co., Ltd Model: AMK-S2-02B

Report No.: TB-FCC143182 Page: 2 of 11 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC143182 Page: 7 of 11 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 8 Internal of EUT Photo 9 Internal of EUT Report No.: TB-FCC143182 Page: 8 of 11 TB-RF-075-1.0 Photo 10 Appearance of PCB Photo 11 Appearance of PCB 2.4G Antenna Report No.: TB-FCC143182 Page: 9 of 11 TB-RF-075-1.0 Photo 12 Appearance of PCB Photo 13 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE143183 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ABQOAMK-S2-02B 1. Client Information Applicant : DongGuan Meiluodi Electronics Co., Ltd Address : No.16, Zhenxing Road, Shangjiao, Chang'an, Dongguan, Guangdong, 523876 China Manufacturer : DongGuan Meiluodi Electronics Co., Ltd Address : No.16, Zhenxing Road, Shangjiao, Chang'an, Dongguan, Guangdong, 523876 China 2. General Description of EUT EUT Name : Bluetooth speaker Models No. : AMK-S2-02B Brand Name : MEILUODI Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power:GFSK: 2.559dBm Antenna Gain: 0 dBi PCB Antenna Modulation Type: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC power supplied by AC/DC Adapter DC Voltage supplied from Li-ion battery. Power Rating : Input: AC 100~240V 50/60Hz 0.2A Output: 5V 1A DC 3.7V 1000mAh from Li-ion battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE143183 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE143183 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 2.248 ±0.5 1.883 0.584 3.0 2.441 2.559 ±0.5 2.023 0.632 3.0 2.480 2.240 ±0.5 1.879 0.592 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 2.287 ±0.5 1.900 0.589 3.0 2.441 2.532 ±0.5 2.010 0.628 3.0 2.480 2.143 ±0.5 1.838 0.579 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC143182 Page: 1 of 75 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ABQOAMK-S2-02B Original Grant Report No. : TB-FCC143182 Applicant : Dongguan Meiluodi Electronics Co., Ltd Equipment Under Test (EUT) EUT Name : Bluetooth speaker Model No. : AMK-S2-02B Brand Name : MEILUODI Receipt Date : 2015-01-26 Test Date : 2015-01-26 to 2014-01-29 Issue Date : 2015-01-30 Standards : FCC Part 15: 2014, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC143182 Page: 2 of 75 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. CONDUCTED EMISSION TEST ........................................................................................... 10 3.1 Test Standard and Limit .................................................................................................... 10 3.2 Test Setup ........................................................................................................................... 10 3.3 Test Procedure ................................................................................................................... 10 3.4 Test Equipment Used ........................................................................................................ 11 3.5 EUT Operating Mode ........................................................................................................ 11 3.6 Test Data ............................................................................................................................. 11 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 32 5.1 Test Standard and Limit .................................................................................................... 32 5.2 Test Setup ........................................................................................................................... 32 5.3 Test Procedure ................................................................................................................... 32 5.4 EUT Operating Condition ................................................................................................. 33 5.5 Test Equipment .................................................................................................................. 33 6. NUMBER OF HOPPING CHANNEL .................................................................................... 46 6.1 Test Standard and Limit .................................................................................................... 46 6.2 Test Setup ........................................................................................................................... 46 6.3 Test Procedure ................................................................................................................... 46 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Equipment .................................................................................................................. 46 6.6 Test Data ............................................................................................................................. 46 7. AVERAGE TIME OF OC…

Text truncated - open the document above for the full version.

Report No.: TB-FCC143182 Page: 10 of 11 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC143182 Page: 11 of 11 TB-RF-075-1.0 Photo of Setup for Conducted Emission
