2ABQOAMK-K66-02Bluetooth Speaker

charge device by connecting to a computer or a USB wall charge. MIC Hook Answer/Play/PauseSpeaker Short Press:previous song Long press:Volume dwon ON/OFF Long press button for 3 seconds Short Press :Next song Long press:Volume up DC Charging Port Use a USB cable(included)to BLUETOOTH HAND-FREE SPEAKER Operation Manual Pairting 1.Make sure your speaker is charged. 2.Long press the on/off button for 3 seconds. 3.When your speaker is turned on ,the Led light will turn blue . This will indicate that the speaker is now in pairing mode. 4.Turn on your mobile device and ensure Bluetooth is enabled.Search for nearby devices from your phone or tablet. 5.Find BLUETOOTH SPEAKER and connect to your device. 6.Once Paired,you can control audio from your speaker or device directly. Troubleshootin If your speaker is not Pairing or playing: -Ensure it is correctly paired to your device. -Ensure your speaker is charged -Ensure bluetooth is enabled on your device. Batteries:220 MAHProduct material:ABS Charging time:1 HourWork time:1 Hour Charge voltage:5VLoudspeaker:40mm 4Ω2W Net Weight:55GSize:112*97*43mm FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try correct the interference by one or more of the receiving measures: Reorient or replace relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless user could lose the authority to operate this equipment if an unauthorized change or modification is made. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

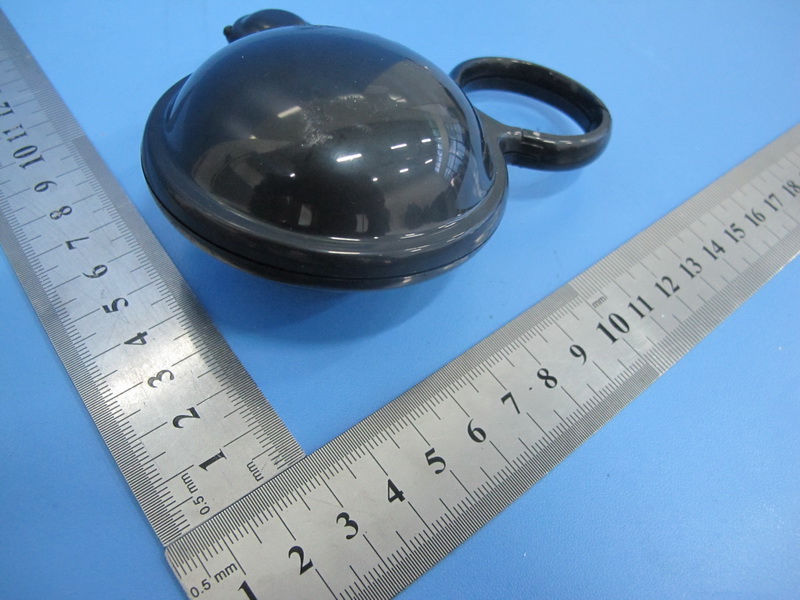

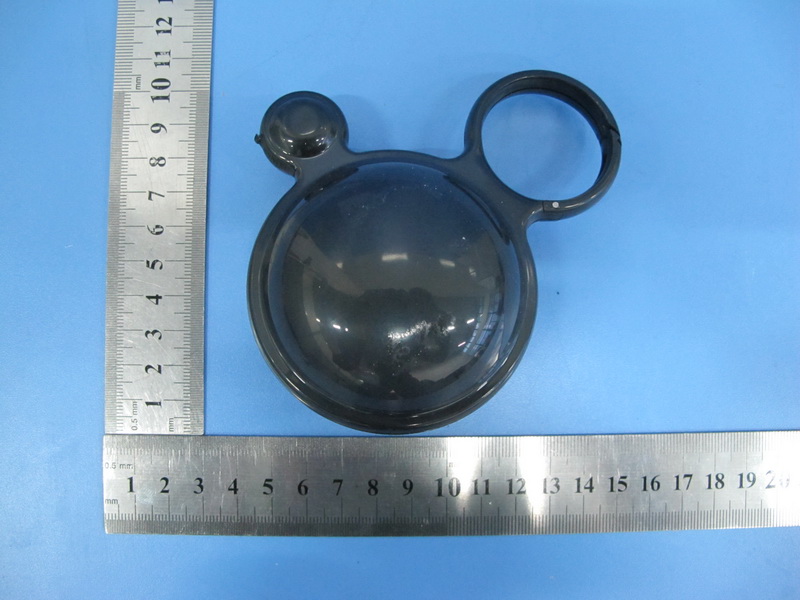

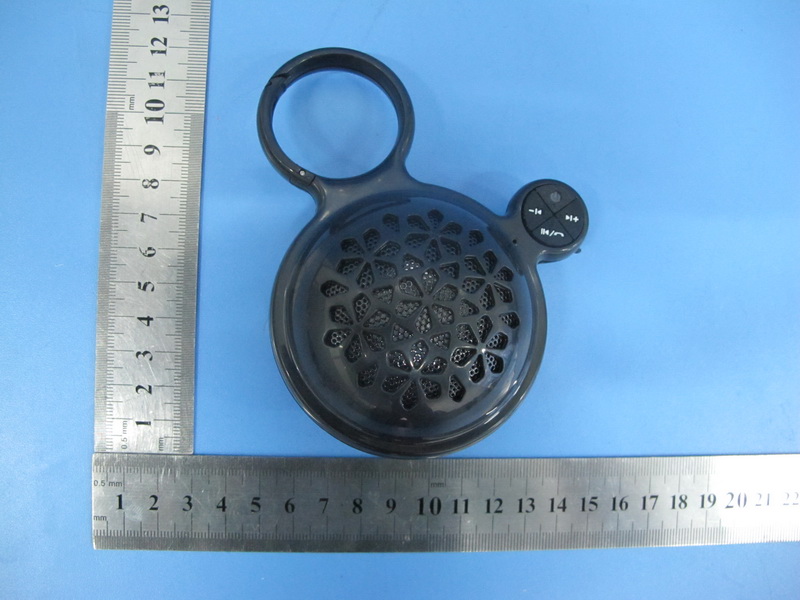

Report No.: TB-FCC140971 Page: 3 of 8 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC140971 Page: 4 of 8 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC140971 Page: 2 of 8 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC140971 Page: 5 of 8 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Appearance of PCB Report No.: TB-FCC140971 Page: 6 of 8 TB-RF-075-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB BT(2.4G) Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE140971 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ABQOAMK-K66-02 1. Client Information Applicant : Dongguan Meiluodi Electronics Co., Ltd Address : No.16, Zhenxing Road, Shangjiao, Chang'an, Dongguan, Guangdong, 523876, China Manufacturer : Dongguan Meiluodi Electronics Co., Ltd Address : No.16, Zhenxing Road, Shangjiao, Chang'an, Dongguan, Guangdong, 523876, China 2. General Description of EUT EUT Name : Bluetooth Speaker Models No. : AMK-K66-02 Model Difference : N/A Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power:GFSK:-1.965 dBm Antenna Gain: 0 dBi PIFA Antenna Modulation Type: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC Voltage supplied from Host System by USB cable DC power by Li-ion Battery Power Rating : DC 5.0V by USB cable. DC 3.7V Li-ion Battery Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE140971 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE140971 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -1.965 0 0.636 5 0.197 3.0 2.441 -1.970 0 0.635 5 0.198 3.0 2.480 -2.143 0 0.611 5 0.192 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Ant Gain (dBi) TX Power (mW) Distance (mm) Calculation Value Threshold Value 2.402 -3.611 0 0.435 5 0.135 3.0 2.441 -3.189 0 0.479 5 0.150 3.0 2.480 -3.345 0 0.463 5 0.146 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC140970 Page: 1 of 83 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ABQOAMK-K66-02 Original Grant Report No. : TB-FCC140970 Applicant : DongGuan Meiluodi Electronics Co., Ltd Equipment Under Test (EUT) EUT Name : Bluetooth Speaker Model No. : AMK-K66-02 Series Model No. : N/A Brand Name : N/A Receipt Date : 2014-06-28 Test Date : 2014-06-29 to 2014-07-11 Issue Date : 2014-07-14 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC140970 Page: 2 of 83 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. CONDUCTED EMISSION TEST ........................................................................................... 10 3.1 Test Standard and Limit .................................................................................................... 10 3.2 Test Setup ........................................................................................................................... 10 3.3 Test Procedure ................................................................................................................... 10 3.4 Test Equipment Used ........................................................................................................ 11 3.5 EUT Operating Mode ........................................................................................................ 11 3.6 Test Data ............................................................................................................................. 11 4. RADIATED EMISSION TEST ................................................................................................ 14 4.1 Test Standard and Limit .................................................................................................... 14 4.2 Test Setup ........................................................................................................................... 15 4.3 Test Procedure ................................................................................................................... 16 4.4 EUT Operating Condition ................................................................................................. 16 4.5 Test Equipment .................................................................................................................. 16 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 32 5.1 Test Standard and Limit .................................................................................................... 32 5.2 Test Setup ........................................................................................................................... 32 5.3 Test Procedure ................................................................................................................... 32 5.4 EUT Operating Condition ................................................................................................. 33 5.5 Test Equipment .................................................................................................................. 33 6. NUMBER OF HOPPING CHANNEL .................................................................................... 46 6.1 Test Standard and Limit .................................................................................................... 46 6.2 Test Setup ........................................................................................................................... 46 6.3 Test Procedure ................................................................................................................... 46 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Equipment .................................................................................................................. 46 6.6 Test Data ............................................................................................................................. 46 7. AVERAG…

Text truncated - open the document above for the full version.

Report No.: TB-FCC140971 Page: 7 of 8 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC140971 Page: 8 of 8 TB-RF-075-1.0 Photo of Setup for Conducted Emission
