2ABWCPA100wireless on/off switch

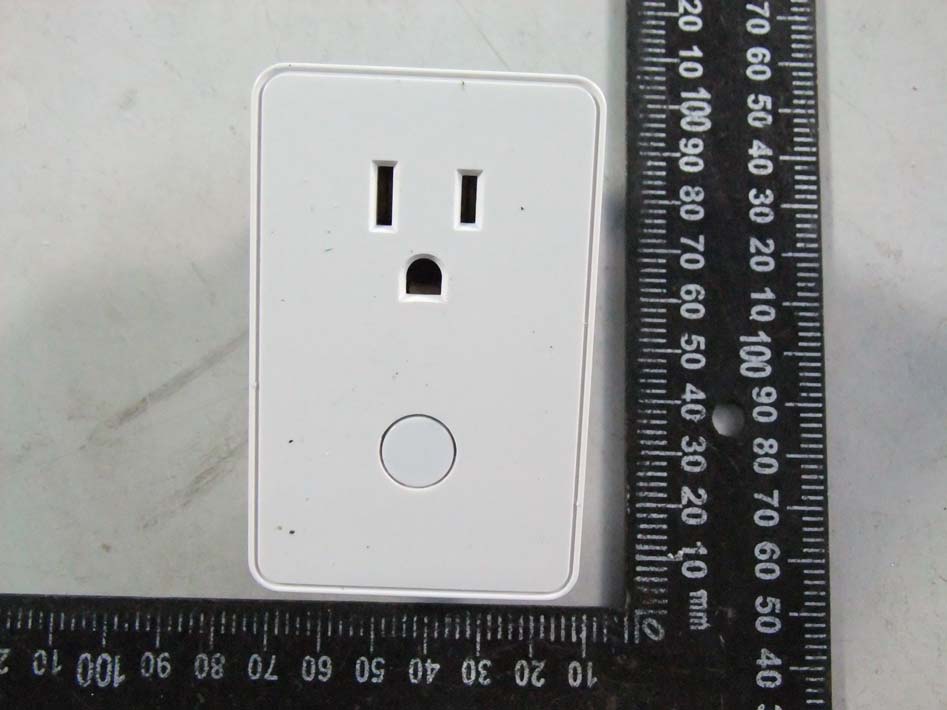

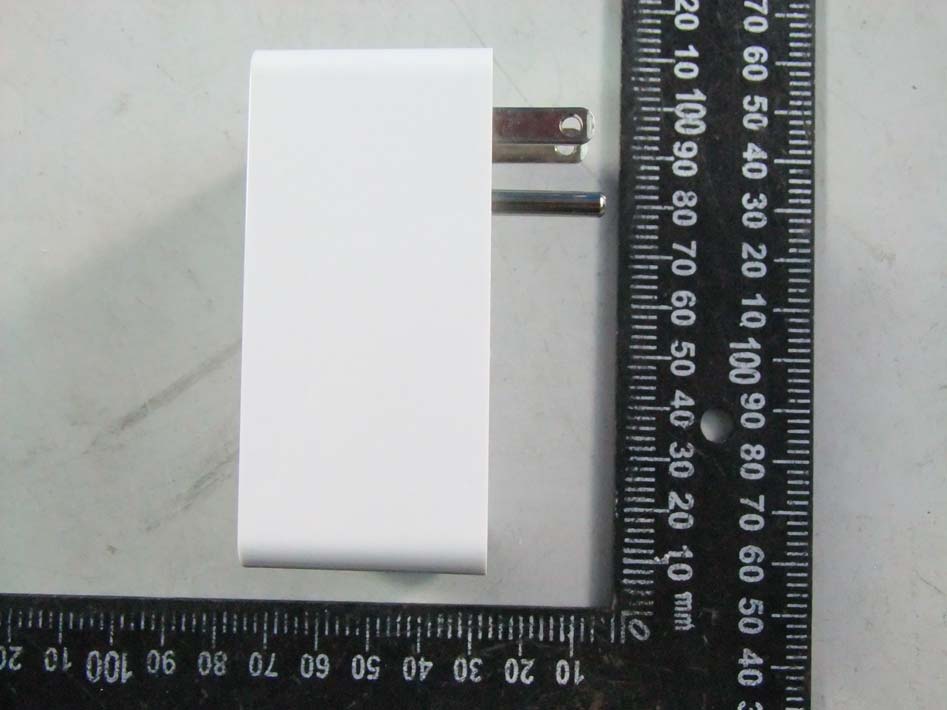

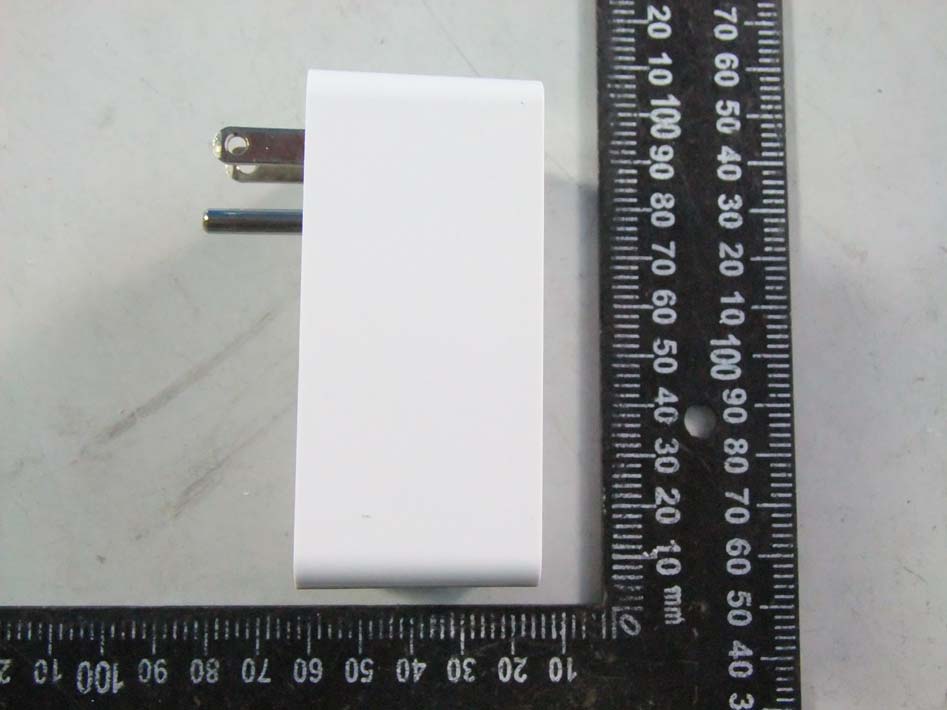

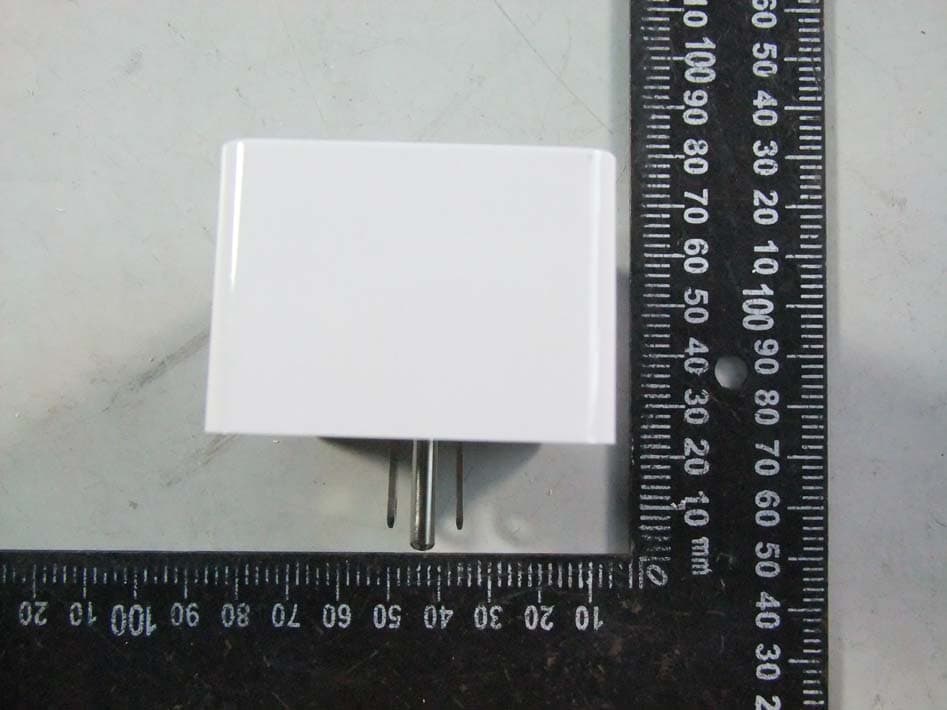

This product speaks with other Z-Wave certified devices Wireless Appliance Control Module PA-100 Plug In Appliance Module INTRODUCTION domitech™ PA-100 is a member of the Z-Wave® family and communicates with other Z- Wave certified devices in a control network. PA-100 can be used to turn On or Off lamps or AC operated appliances. PA-100 device serves as a node to repeat the signal in the network, thus, extending the overall Z-Wave mesh wireless network range. Different types and brands of Z-Wave devices can be associated with domitech PA-100 in your system and they will work together to optimize and expand the coverage of your Z-Wave network. Once setup is completed, you can enjoy the convenience and leisure which PA-100 offers. FEATURES Works with incandescent, florescent (CFL) or LED lighting and AC operated appliance ON/OFF status and location LED indicator Can be controlled wirelessly or manually Tamper resistant screws GROUP/SCENE/ALL enabled Plug and play, simple setup Lightweight and compact. Does not block the second AC outlet. Grounded 3-pin AC power receptacle and plug to enhance safety Over-The-Air firmware upgrade available with compatible gateway, Z-Wave static controller, PC and software Powered by Z-Wave 500 Series module inside Internal resettable fuse to protect from surge current Manual reset capability ! WARNING ! RISK OF FIRE, ELECTRICAL SHOCK & BURNS DO NOT USE WITH MEDICAL AND LIFE SUPPORT INSTRUMENT No user serviceable parts are in this module To minimize the risk of electric shock, the power plug of this module has a grounding pin which only fits into a grounding 3-prong electrical outlet. Please call a qualified electrician to replace the outlet if the plug does not fit into it. Do not attempt to change the plug in any way. The appliance connected to this Z-Wave module must not exceed 900W incandescent, 200W CFL/LED, ½ horsepower motor and 15A, 1800W resistive load. SETUP Step 1. Plug in the AC power plug of the appliance to the receptacle of PA-100 Step 2. Insert the PA-100's 3-pin plug into an AC outlet of your preferred location. In normal operating mode, the LED on the front panel will be lit. Step 3. Add (Include) the module into your network by a Z-Wave certified controller. Please refer to your gateway or controller’s instructions manual for details. Normally, the sequence is as follows: 1.Initiate software to add a new device on your controlling device 2.When the controller’s software is ready, single click the button on the front of PA- 100 3.The controller’s software should indicate that the new device was added successfully. If the controller’s software shows it was a fail, repeat the procedure. Note: If Inclusion still fails after the 2 nd attempt, you need to first reset the PA-100 before repeating the above step. The manual reset method is as follows, a. Unplug PA-100 from the AC outlet and also unplug the power plug of the appliance from the module(if plugged in) b. Press and hold the button on the module c. Plug the module back into the AC outlet with the button pressed After 3 seconds, release the button. If you see the button blinks, that means the module has been reset successfully and you may retry Step 3 above to add the module into your network. Before repeating the above steps, try moving the PA-100 to an AC outlet in the same room as your home gateway in case the preferred outlet is out of range initially. Repeat Steps 1-3 until the PA-100 is added to your network. Once the PA-100 has been successfully added to your home network, you can move it to the preferred location in the home. Note: Once the PA-100 is Added (Included) in your network, resetting it locally does not mean it has been removed from your network. If you wish to remove PA-100 from your network, you will need to Delete(Exclude) the module from the network by your controller. BASIC OPERATION The connected appliance can be controlled manually with a push button OR Wirelessly with a remote controller Once the PA-100 has been added to your network, you may assign it to a Group or Scene, change its status when the All ON or OFF command is received from the controller. It can also be set in Association with another Z-Wave device to perform a specific duty. Please refer to the instructions manual of your gateway or remote controller for detail procedures on how these functions can be set. About the push button: There is a single button on PA-100 for manual operation that: A) Manually turns the connected appliance ON/OFF by pressing the button. It functions as a toggle switch; if the appliance is ON, pressing the button turns the appliance OFF and vice versa. B) Adds (Includes) or Deletes (Excludes) your PA-100 to/from your Z-Wave network. Please refer to the instructions manual of your gateway or remote controller for detail procedures on how these actions can be done. This push button is also backlit with an LED indicator that will be ON whenever the connected appliance is Off, and turns OFF when the connected device is ON. By changing the following configuration with your primary controller (if supported), the default status of the LED indicator can be changed as follows: Parameter 3Length: 1 Byte Valid Values: 0, 1 or 2 (default = 0) When value = 1, the LED indicator will be ON when the connected appliance is ON, and the LED indicator will be OFF when the connected appliance is OFF When value = 2, the LED indicator is always OFF regardless of the load condition About the Z-Wave 500 Series module with Z-Wave Plus features: You can use a Z-Wave certified portable or static controller to communicate with the module. Depending on the capability of your controller or gateway software, the following simple to advanced operations can be performed. Please refer to the controller or gateway's manual for details. 1.Turn the appliance On/Off 2.Add(Include) or Delete(Exclude) your PA-100 to/from your network 3.Assign your PA-100 to a specific Group/Scene and/or to include your …
