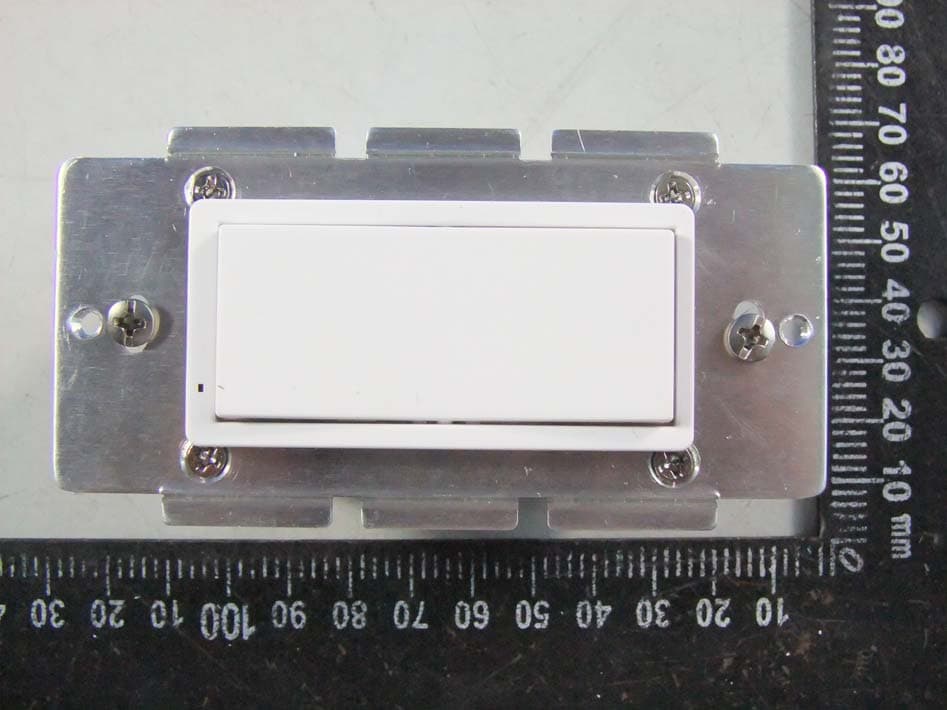

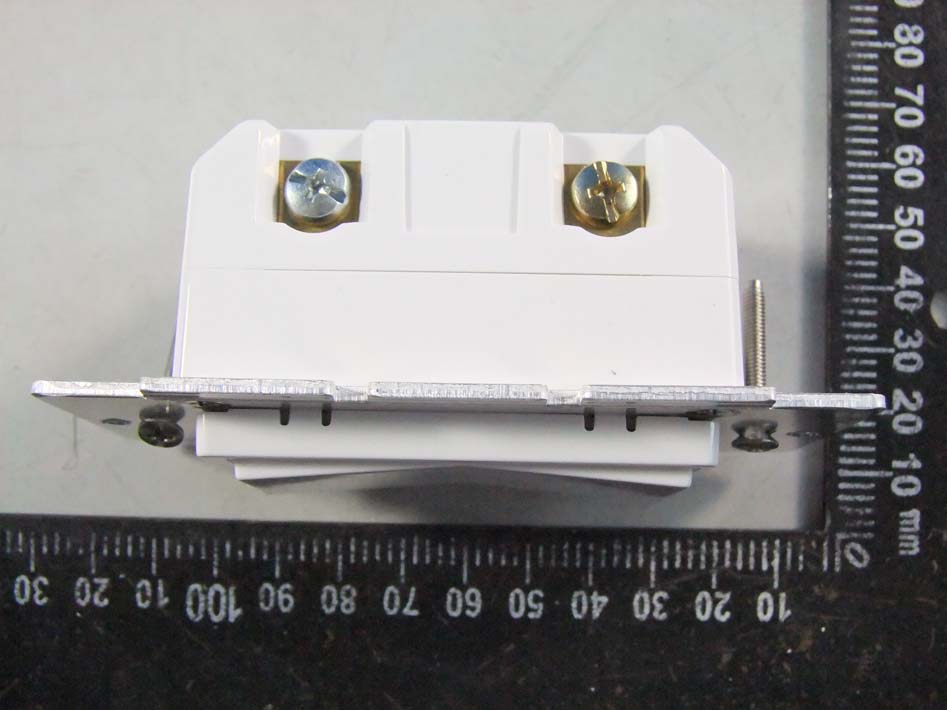

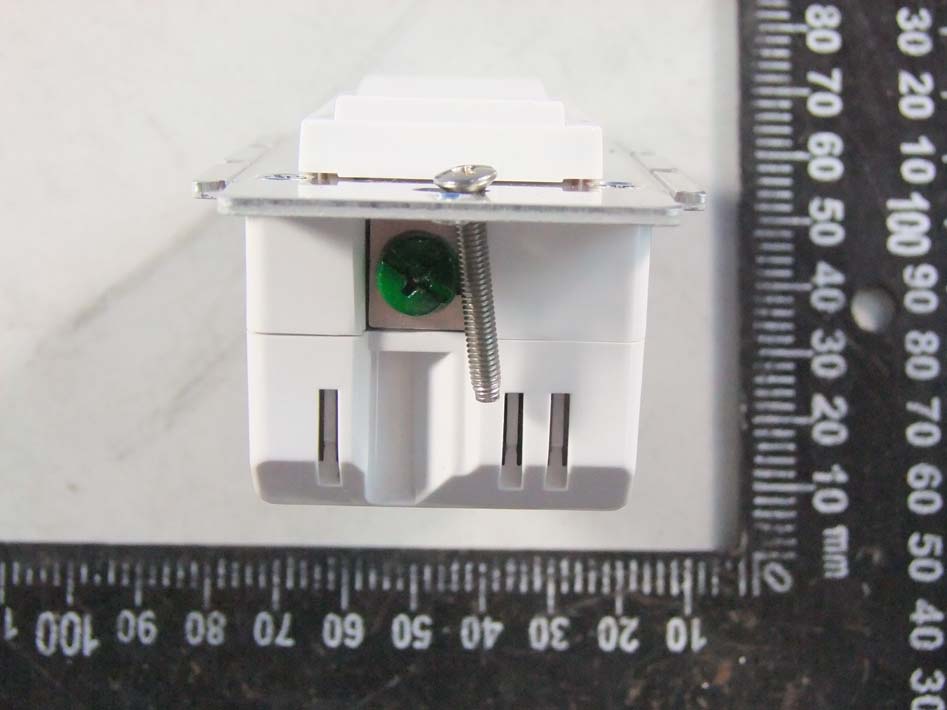

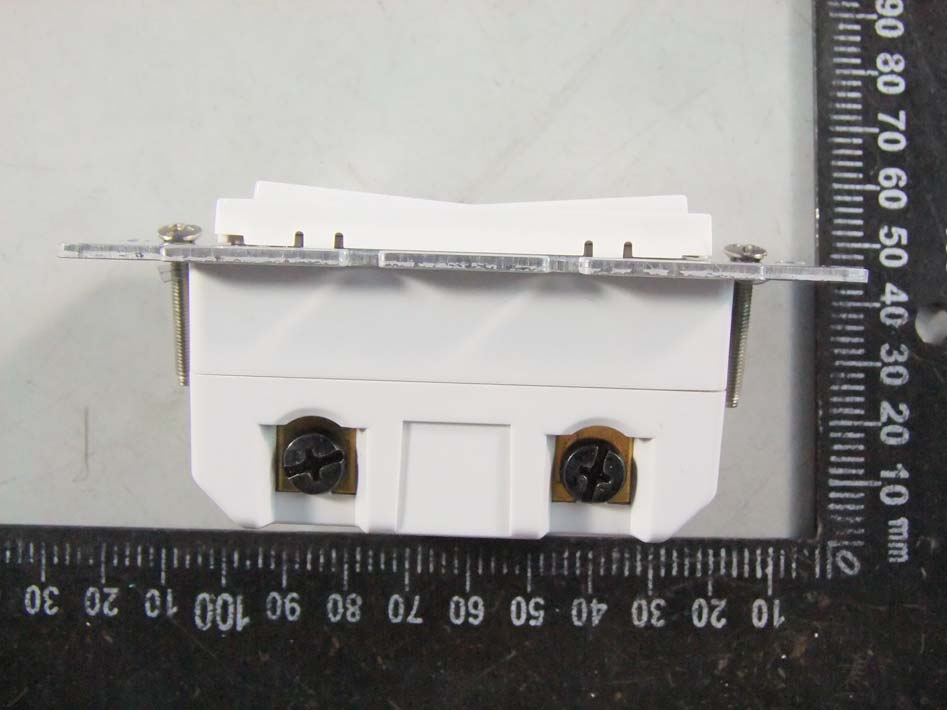

2ABWCWS100Wireless switch

This product speaks with other Z-Wave certified devices Wireless Appliance Control Module WS-100 In Wall Light Switch INTRODUCTION domitech™ WS-100 is a member of the Z-Wave® family and communicates with other Z- Wave certified devices in a control network. WS-100 replaces a standard in-wall light switch and turns it into a Z-Wave controlled network device. Each Z-Wave device serves as a node to repeat the signal in the network, thus, extending the overall Z-Wave mesh wireless network range. Different types and brands of Z-Wave devices can be associated with domitech in your system and they will work together to optimize and expand the coverage of your Z-Wave network. Once setup is completed, you can enjoy the convenience and leisure which WS-100 offers. FEATURES Works with incandescent, florescent (CFL), or LED lighting and appliance ON/OFF status and location LED indicator Can be controlled wirelessly or manually Fits into standard single or multiple gang junction box and standard wall plates GROUP/SCENE/ALL enabled Decorative keypad can be replaced manually to match color with other wall switches Over-The-Air firmware upgrade available with compatible gateway, Z-Wave static controller, PC and software Z-Wave 500 Series module inside Internal resettable fuse to protect from surge current Manual reset capability ! WARNING ! RISK OF FIRE, ELECTRICAL SHOCK & BURNS DO NOT USE WITH MEDICAL AND LIFE SUPPORT INSTRUMENT No user serviceable parts are in this module The appliance connected to WS-100 must not exceed 900W incandescent, 200W CFL/LED, ½ horsepower motor and 15A, 1800W resistive load. The color of the switch keypad is changeable by the following method, Push side tabs in and lift the cover plate up to release Align the tabs of the replacement cover plate and push to snap in SETUP Step 1. Identifying the wiring terminals on the module Step 2. ! WARNING ! RISK OF SHOCK ! Make sure power if OFF before wiring ! Step 3. Remove the wall plate and the existing switch(if mounted) at your preferred installation location. You may label the wires connected to the screw terminals before disconnecting the switch. Please check that the wiring configuration below is present in the wall switch box, otherwise consult a qualified electrician. 4 wires for 2-way circuit 5 wires for 3-way circuit 1. Line(Hot) - Black 2. Neutral - White 3. Ground – Green or Bare 4. Traveler (3-way) Red or Other 5. Load - Black Wiring Information Use copper wires only UL specification: the tightening torque for the screws is 14 Kgf-cm (12 lbf-in) Strip insulation 5/8" (16mm) Wire connection can be made either to 14 AWG or larger rated at least 80°C 14 AWG rated at least 80°C 2-way circuit Making connections The Traveler terminal is not used in a 2-way circuit. Do not remove the insulation tape on the Traveler terminal in this application 3-way circuit Making connections Please refer to WA-100 user manual for wiring instructions of the associating switch. The maximum length of Traveler wire may not exceed 250ft. Gang Box To install the WS-100 in a gang or J box, the tabs on the sides of the metal yoke may need to be removed. The electrical rating of the module is unchanged. For single gang switch, no changes should be required. For dual or higher gang configuration where switches are next to each other, the tabs need to be removed. Simply take a pair of pliers, grab the tabs and wiggle until the tabs break off. Step 4. When proper wiring is completed, secure the module to the wall box. Restore power to the circuit to test if the connected load can be turned ON/OFF manually by the rocker on the module before remounting the wall plate. Also observe the status change of the LED indicator to ensure the module is in normal operating mode. If WA-100 Auxiliary Switch is used for a 3-way connection, please also test if it can control the load Step 5. Add(Include) the module into your network by a Z-Wave certified controller. Please refer to the controller’s instructions manual for details. Manual Reset Note: If Inclusion still fails after the 2 nd attempt, you need to first reset the module before repeating the above steps. The manual reset method is as follows, Quickly tap the top side (ON) of the rocker 3 times Then, quickly press the bottom side (OFF) of the rocker 3 times If you see the LED indicator blinks, it means that the module has been reset successfully and you may retry Step. 5 above to add the module into your network. Otherwise, please repeat the manual reset procedures. Note: If the module was previously Added(Included) in your network, resetting it locally does not mean it has been removed from your network. You may still need to Delete(Exclude) the module from the network by your controller if desired. BASIC OPERATION The connected appliance can be controlled manually with a push button OR Wirelessly with a remote controller A Z-Wave certified controller of either portable or static is capable of setting up domitech products in your desired network. Once the module is added, you may assign it to a Group or Scene, change its reaction when the All ON or OFF command is received. Furthermore, it can be set in Association with another Z-Wave device to perform a specific function. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these settings can be done. Please note that the module will be OFF after a power failure About the rocker switch: There is only 1 rocker switch on this module for manual operation that allows you to 1.Turn the connected appliance ON/OFF by tapping the switch. Tapping and releasing the upper part of the rocker turns the appliance ON. Tapping and releasing the lower part of the rocker turns the appliance OFF. 2.Add(Include) or Delete(Exclude) the module to/from your Z-Wave network with your primary controller. Please refer to the instructions manual of your gateway or remote controller for details and procedures on how these a…
