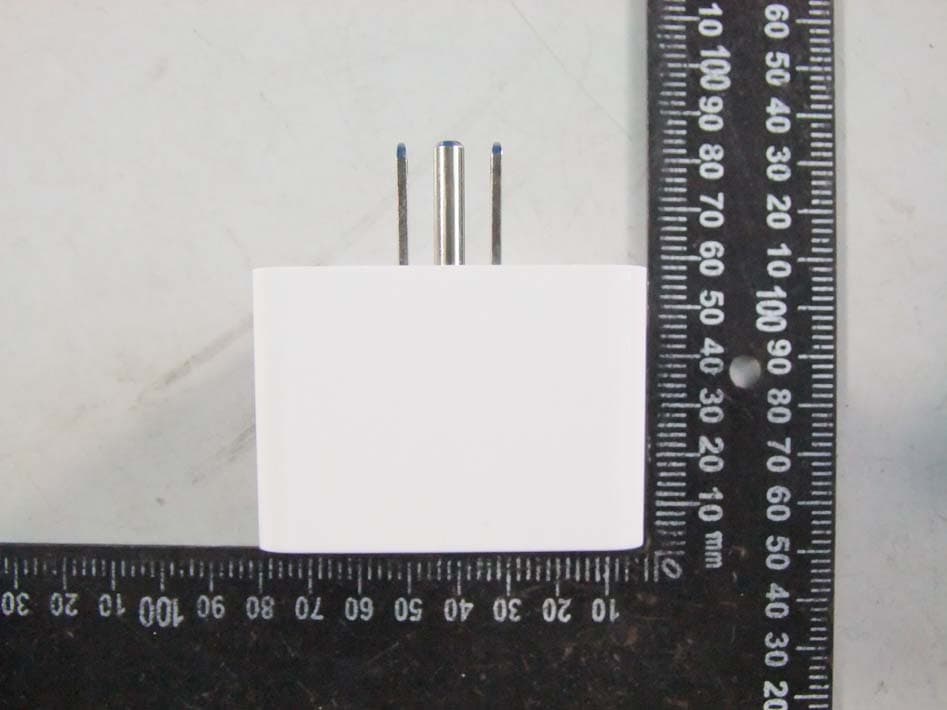

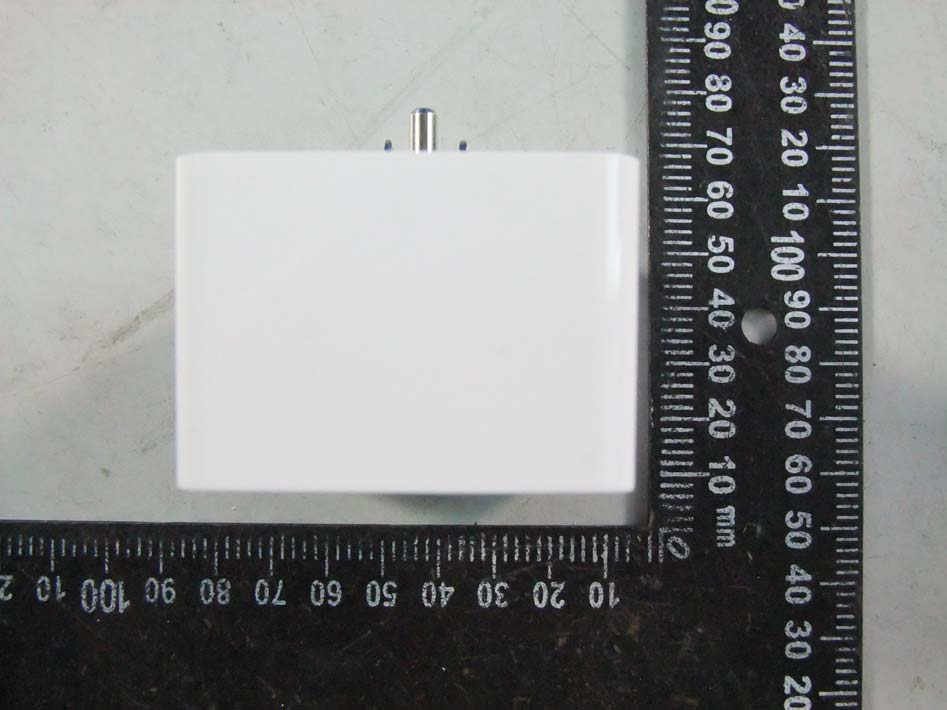

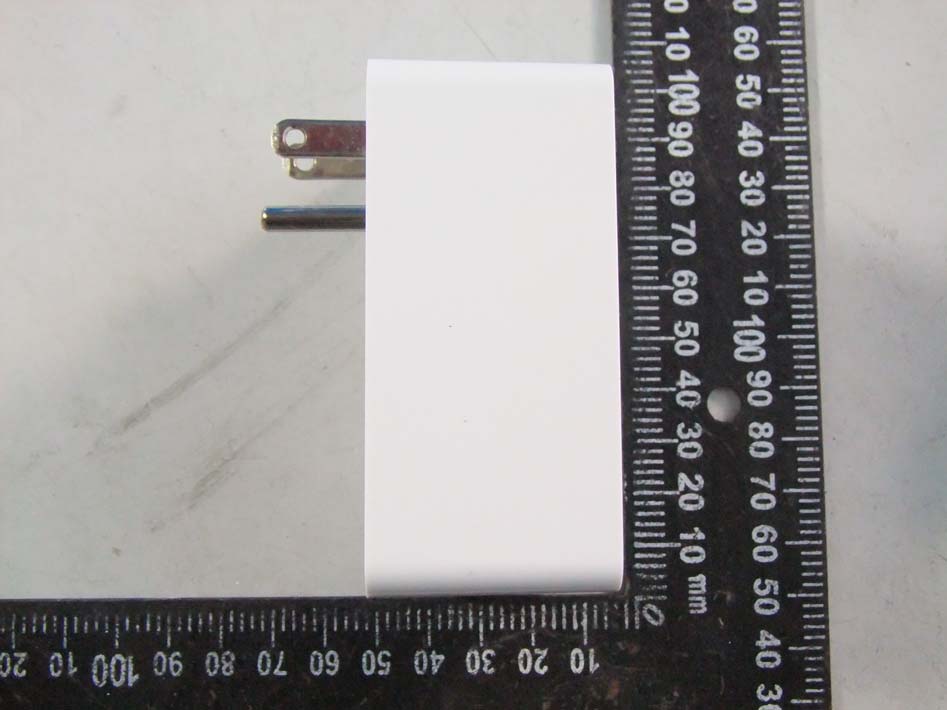

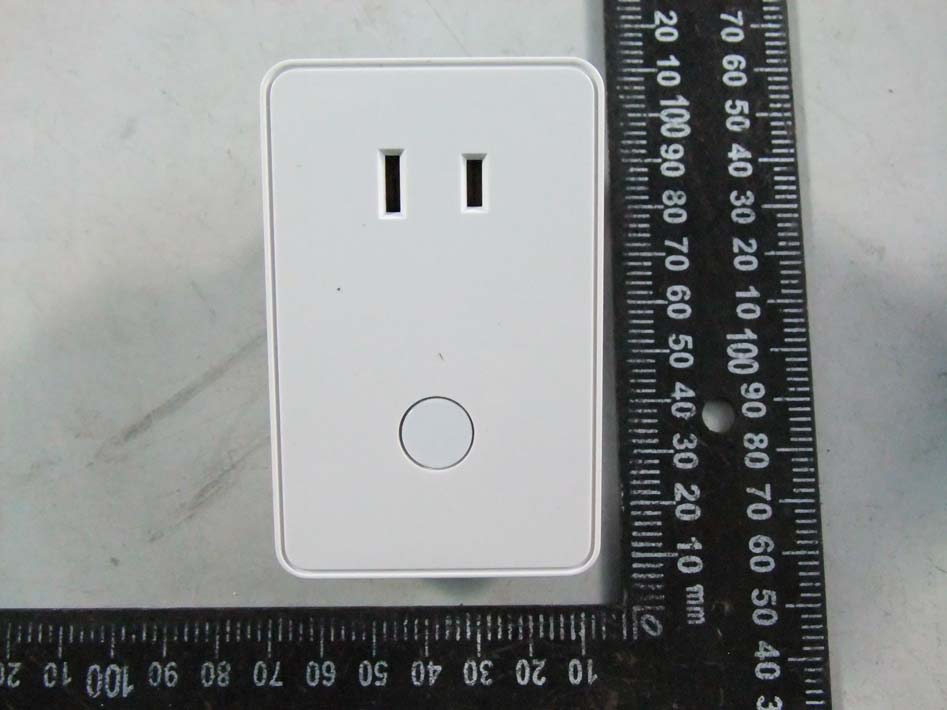

2ABWCPD100Wireless dimmer

This product speaks with other Z-Wave certified devices Wireless Lighting Control Module PD-100 Plug In Dimmer/Lamp Module INTRODUCTION domitech™ PD-100 is a member of the Z-Wave® family and communicates with other Z- Wave certified devices in a control network. PD-100 can be used to turn any plug in lamps On, Off, or control dimming of any lamps with dimmable light bulbs. Each Z-Wave device also serves as a node to repeat the signal in the network, thus, extending the overall Z-Wave mesh wireless network range. Different types and brands of Z-Wave devices can be associated with domitech PD-100 in your system and they will work together to optimize and expand the coverage of your Z-Wave network. Once setup is completed, you can enjoy the convenience and leisure which PD-100 offers. FEATURES Works with any AC operated lamps with incandescent and dimmable florescent(CFL) or LED light bulbs ON/OFF status and location LED indicator Can be controlled wirelessly or manually Tamper resistant screws GROUP/SCENE/ALL enabled Plug and play, simple setup Lightweight and compact. Does not block the second AC outlet. Grounded 3-pin AC power plug to enhance safety Over-The-Air firmware upgrade available with compatible gateway, Z-Wave static controller, PC and software Z-Wave 500 Series module inside Internal resettable fuse to protect from surge current Manual reset capability Adjustable dimming rate ! WARNING ! RISK OF FIRE, ELECTRICAL SHOCK & BURNS DO NOT USE WITH MEDICAL AND LIFE SUPPORT INSTRUMENT No user serviceable parts are in this module To minimize the risk of electric shock, the power plug of this module has a grounding pin which only fits into a grounding 3-prong electrical outlet. Please call a qualified electrician to replace the outlet if the plug does not fit into it. Do not attempt to change the plug in any way. The lighting devices connected to this Z-Wave module must not exceed 2.5A, 300W incandescent, 100W dimmable CFL/LED. CAUTION: To Reduce the Risk of Overheating And Possible Damage To Other Equipment, Do Not Install To Control A Motor-Operated Appliance, A Non-Dimmable Fluorescent Lighting Fixture, Or A Transformer-Supplied Appliance SETUP Step 1. Plug the 2-pin AC power plugs of lighting device to the receptacle of PD-100 Step 2. Insert the module's 3-pin plug into an AC outlet of your preferred location. In normal operating mode, the LED on the front panel will be lit. Step 3. Add(Include) the module into your network by a Z-Wave certified controller. Please refer to your gateway’s or the controller’s instructions manual for details. Normally, the sequence is as follows: 1.Initiate software to add a new device on your controlling device 2.When the controller’s software is ready, single click the button on the front of PA- 100 3.The controller’s software should indicate that the new device was added successfully. If the controller’s software shows it was a fail, repeat the procedure. Note: If Inclusion still failed after the 2 nd attempt, you need to first reset the PD-100 before repeating the above step. The manual reset method is as follows, 1. Unplug the PD-100 from the AC outlet and also unplug the power plugs of the lighting from the module (if plugged in) 2. Press and hold the button on the PD-100 3. Plug the PD-100 back into the AC outlet with the button pressed After 3 seconds, release the button. If you see the button blinks, that means that the PD-100 has been reset successfully and you may retry Step 3 above to add the module into your network. Otherwise, please repeat the manual reset procedures. Note: if the PD-100 was previously Added(Included) in your network, resetting it locally does not mean it has been removed from your network. If you wish to remove PA-100 from your network you will need to Delete(Exclude) the module from the network by your controller. BASIC OPERATION The connected lighting devices can be controlled manually with a push button OR Wirelessly with a remote controller Once the PD-100 has been added to your network, you may assign it to a Group or Scene, change its status when the All ON or OFF command is received from the controller. It can also be set in Association with another Z-Wave device to perform a specific duty. Please refer to the instructions manual of your gateway or remote controller for detail procedures on how these functions can be set. About the push button: There is a single button on PD-100 for manual operation that: A. Manually turns the connected lighting ON/OFF by pressing the button. It functions as a toggle switch; if the light is ON, pressing the button turns the light OFF and vice a versa. B. Adjust the brightness level of the connected lighting by pressing and holding the button. Release the button when the desired level is reached. It functions as a toggle switch as well. The lighting keeps dimming until the minimum level is reached or the button is released. When you press the button again and hold, the brightness of the light will keep increasing until the maximum level is reached or when the button is released. C. Adds(Includes) or Deletes(Excludes) your PD-100 to/from your Z-Wave network. Please refer to the instructions manual of your gateway or remote controller for detail procedures on how these actions can be done. This push button is also backlit with an LED indicator that will be On when the connected appliance is Off, and vice versa. The module may be easily spotted even in a gloomy environment. By changing the following configuration with your primary controller(if supported), 2 more options are available. Parameter 3Length: 1 Byte Valid Values: 0, 1 or 2 (default = 0) When value = 1, the LED indicator will be ON when the connected appliance is ON, and the LED indicator will be OFF when the connected appliance is OFF When value = 2, the LED indicator is always OFF regardless of the load condition About dimming: The time interval of brightness change between dimming up and down can be adjuste…
