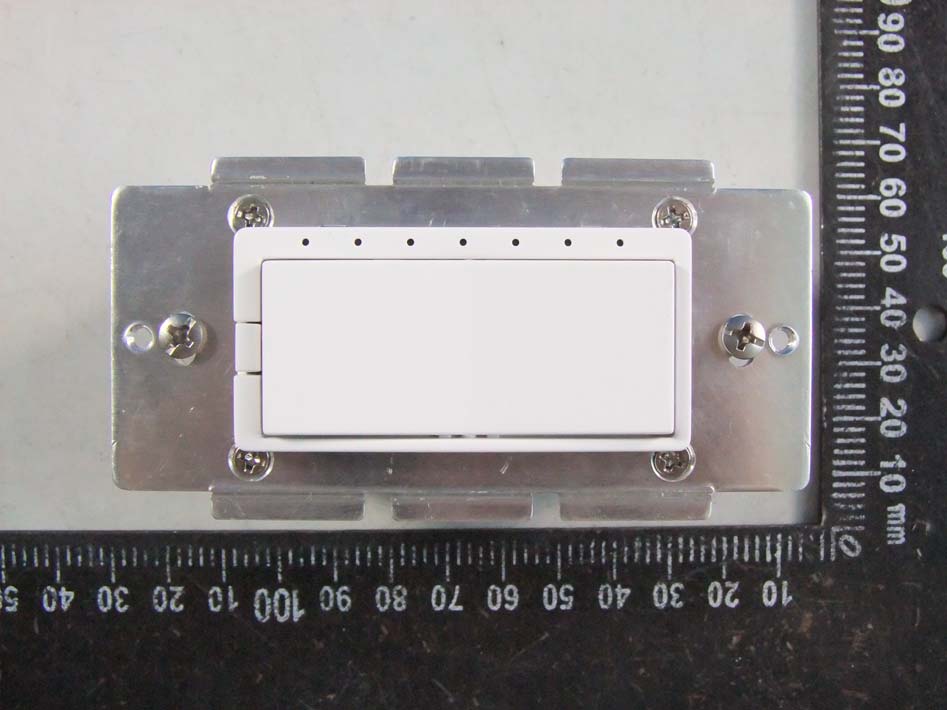

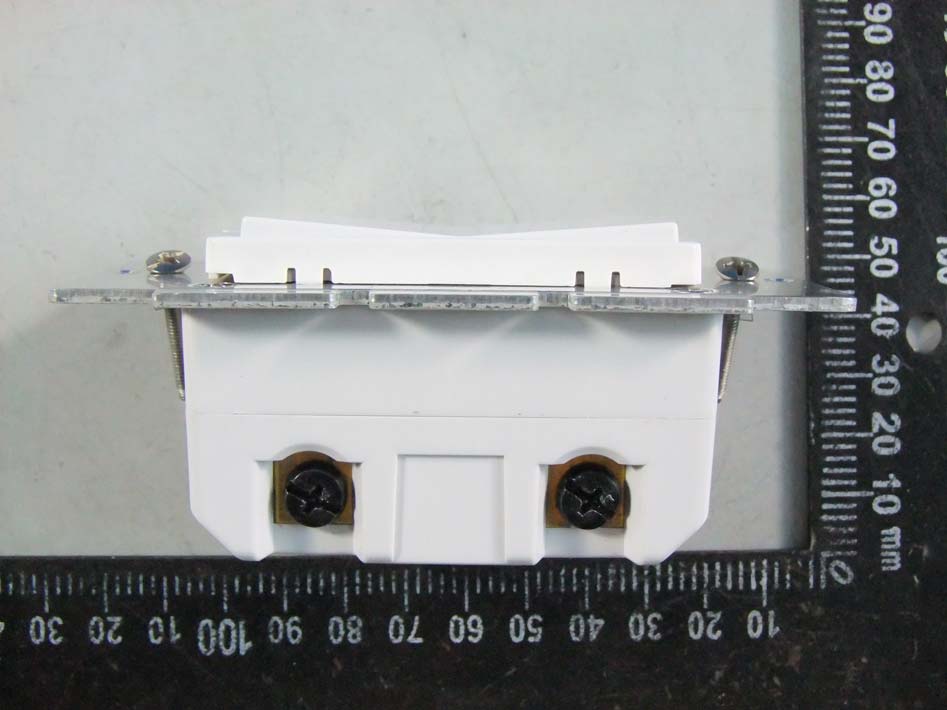

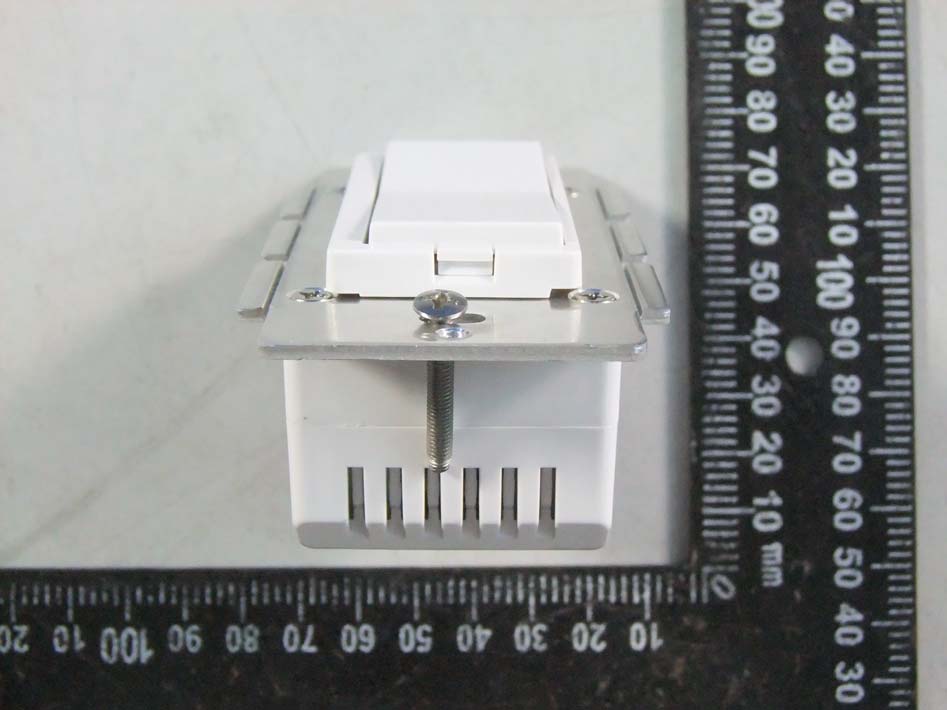

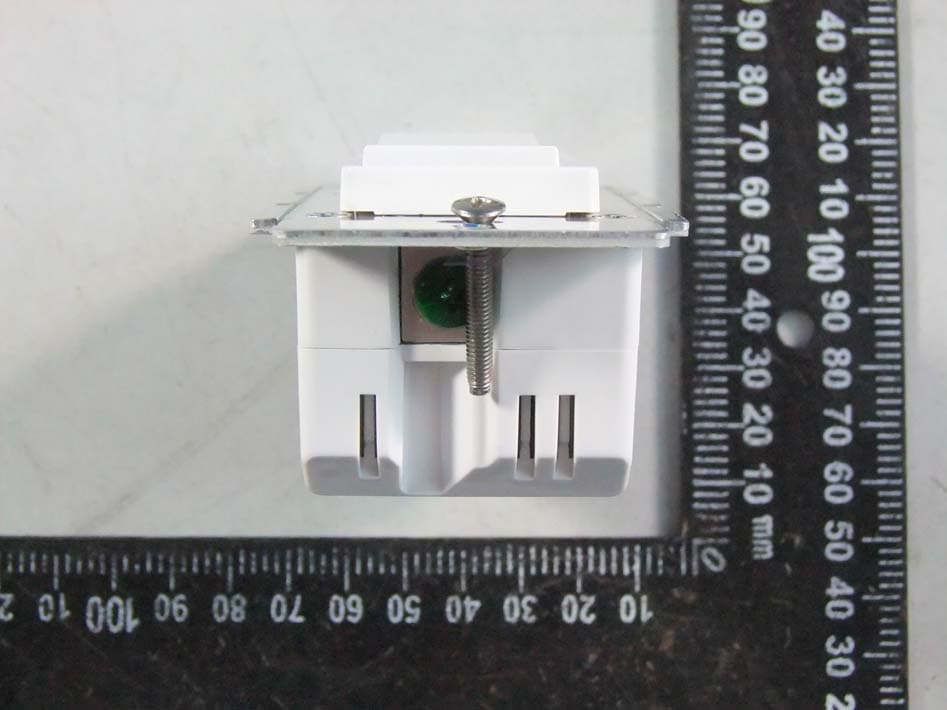

This product speaks with other Z-Wave certified devices Wireless Dimmer Module WD-100 In Wall Dimmer INTRODUCTION domitech™ WD-100 is a member of the Z-Wave® family and communicates with other Z- Wave certified devices in a control network. WD-100 replaces a standard in-wall light switch and turns it into a Z-Wave controlled network device with dimming and On/Off light control. Each Z-Wave device serves as a node to repeat the signal in the network, thus, extending the overall Z-Wave mesh wireless network range. Different types and brands of Z-Wave devices can be associated with Domitech WD-100 in your system and they will work together to optimize and expand the coverage of your Z-Wave network. Once setup is completed, you can enjoy the convenience and leisure which WD-100 offers. FEATURES Works with incandescent and dimmable florescent (CFL), or LED lighting 7 LED indicators for ON/OFF/Dimming level status Can be controlled wirelessly or manually Fits into standard single or multiple gang junction box and standard wall plates GROUP/SCENE/ALL enabled Decorative keypad can be replaced manually to match color with other wall switches Over-The-Air firmware upgrade available with compatible gateway, Z-Wave static controller, PC and software Z-Wave 500 Series module inside Internal resettable fuse to protect from surge current Manual reset capability ! WARNING ! RISK OF FIRE, ELECTRICAL SHOCK & BURNS DO NOT USE WITH MEDICAL AND LIFE SUPPORT INSTRUMENT No user serviceable parts are in this module The lighting connected to the WD-100 must not exceed 600W incandescent, 150W dimmable CFL/LED. CAUTION: To Reduce the Risk of Overheating And Possible Damage To Other Equipment, Do Not Install To Control A Receptacle, A Motor-Operated Appliance, A Non-Dimmable Fluorescent Lighting Fixture, Or A Transformer-Supplied Appliance The color of the keypad switch is changeable by the following method, 1. Lift the air gap switch up to avoid electrical shock 2. Push side tabs in and lift the cover plate up to release 3. Align the tabs of the replacement cover plate and push to snap in 4. Push the air gap switch back down SETUP Step 1. Identifying the wiring terminals on the module Step 2. ! WARNING ! RISK OF SHOCK ! Make sure power is OFF before wiring ! Step 3. Remove the wall plate and the existing switch(if mounted) at your preferred installation location. You may label the wires connected to the screw terminals before disconnecting the switch. Please check that the wiring configuration below is present in the wall switch box, otherwise consult a qualified electrician. 4 wires for 2-way circuit 5 wires for 3-way circuit 1. Line(Hot) - Black 2. Neutral - White 3. Ground – Green or Bare 4. Traveler (3-way) Red or Other 5. Load - Black Wiring Information Use copper wires only UL specification: the tightening torque for the screws is 14 Kgf-cm (12 lbf-in) Strip insulation 5/8" (16mm) Wire connection can be made either to 14 AWG or larger rated at least 80°C 14 AWG rated at least 80°C 2-way circuit Making connections The Traveler terminal is not used in a 2-way circuit. Do not remove the insulation tape on the Traveler terminal in this application 3-way circuit Making connections Please refer to WA-100 user manual for wiring instructions of the associating switch. The maximum length of Traveler wire may not exceed 250ft. Gang Box To install the WD-100 in a gang or J box, the tabs on the sides of the metal yoke may need to be removed. For single gang switch, no changes should be required. For dual or higher gang configuration where switches are next to each other, the tabs need to be removed. Simply take a pair of pliers, grab the tabs and wiggle until the tabs break off. This will lower the electrical rating of the module. Please refer to the following details 1x gang box rating: 600W incandescent 150W dimmable CFL/LED with 2 side tabs 2x gang box rating: 500W incandescent 125W dimmable CFL/LED with 1 side tabs 3x gang box rating: 400W incandescent 100W dimmable CFL/LED with no side tabs Step 4. When proper wiring is completed, secure the module to the wall box. Restore power to the circuit to test if the connected lighting can be turned ON/OFF/Dim manually by the rocker on the module before remounting the wall plate. Also observe the status change of the LED indicators to ensure the module is in normal operating mode. If WA-100 Auxiliary Switch is used for a 3-way connection, please also test if it can control the lighting. Step 5. Add(Include) the module into your network by a Z-Wave certified controller. Please refer to the controller’s instructions manual for details. Manual Reset Note: If Inclusion still fails after the 2 nd attempt, you need to first reset the module before repeating the above steps. The manual reset method is as follows, 1. Turn the connected lighting ON with the rocker 2. Quickly tap the top side(ON) of the rocker 3 times Then, quickly tap the bottom side(OFF) of the rocker 3 times If you see the lighting turns OFF, it means that the module has been reset successfully and you may retry Step. 5 above to add the module into your network. Otherwise, please repeat the manual reset procedures. Note: if the module is previously Added(Included) in your network, resetting it locally does not mean it has been removed from your network. You may still need to Delete(Exclude) the module from the network by your controller if desired. BASIC OPERATION The connected lighting can be controlled manually with a rocker OR Wirelessly with a remote controller A Z-Wave certified controller of either portable or static is capable of setting up Domitech products in your desired network. Once the module is added, you may assign it to a Group or Scene, change its reaction when the All command ON or OFF is received. Furthermore, it can be set in Association with another Z-Wave device to perform a specific function. Please refer to the instructions manual of your remote controller for details and procedur…
