2ABZJ-100-000145 GHz Point to Point Back Haul

Mimosa OS User Guide Mimosa OS User Interface Overview Accessing the Interface Logging In The Dashboard 2 2 3 Administration Password Services WiFi Console 18 18 19 w elcome to the User Guide for the Mimosa OS and User Interface. Device Info Device Link Remote Device Wireless Link Channel Power Tools Signal Meter Site Survey Spectrum Analyzer Device Discovery Ping Traceroute 5 6 7 9 10 11 13 14 15 16 16 16 Notifications Time and Location Network Update and Reset Configure File Diagnostics Watchdog Events Syslog Support About Mimosa Networks 20 21 22 23 23 25 25 25 26 This User Guide is intended to help set up the B5c as well as illustrate the benefits and details of the numerous tools available within the interface. Click the sections in this menu to navigate within the document. Table of Contents i User Interface Overview Cancel changes Log out or change user Return to the Home menu Use the side navigation pane to move between sections Changes to configuration will ONLY take effect after selecting Save Items marked in Orange can be configured Items in Black are fixed and cannot be configured on current screen by user Return to the Home menu User Interface Overview 1 Accessing the Interface Accessing the interface requires that the device is connected to a power source. The device has three separate modes of access to ensure easy set-up and management. The device can be accessed without connection to the LAN (via 2.4 GHz mobile device connection), through the local LAN (if the device is connected to the LAN) or from outside of the LAN via a public IP address. Logging In Access Method Via 2.4 GHz Wireless Connection Via Ethernet interface or in-band over the Wireless link Connecting to GUI On any device with an 802.11 2.4GHz connection, go to the wireless network listing and connect to the "mimosanetworks" wireless network (SSID). Once connected, type 192.168.1.1 (OR URL TBD LATER) into your mobile device browser. By default, the device IP address is 192.168.1.20 and can be accessed via the Ethernet port using this IP address in any standard Web browser. To access the device via a locally connected computer initially (on the same LAN or directly to the Ethernet port), the computer's IP address must be on the same subnet as the above address. After connecting via one of the above methods, the device will prompt you to log-in with a username and password. The default factory configured user accounts are: Once you have modified the IP address (static or DHCP) of the Device for remote management purposes (in-band over wireless or over the Ethernet interface), the new specified IP address Username Configure Password Mimosa Access Rights All modifiable elements can be configured By user must be used to access the device. This is Monitor Mimosa User cannot configure device important to do in order to avoid IP address conflicts with other devices on the network. Current IP addresses of different Mimosa devices on the network can be identified using the Mimosa Device Discovery tool. User Interface Overview 2 The Dashboard After logging into the interface, if the B5c is connected to another Mimosa B5c the home page will show a dashboard that reflects the current performance of the device and link information. You are now ready to explore the sections within the interface to setup, manage, and monitor your B5c. Estimated half-duplex IP throughput in Mbps (TCP based) Measured link distance in kilometers User Interface Overview 3 Device Info The Device Info tab contains status and current configuration summary about your device, remote devices, and the wireless link. Information and current configuration of the B5c All relevant specifications and send/receive info for the link between two Mimosa devices Information and current configuration of the remote B5c Device Info 4 Device Device Name Install Date IP Address Model Serial Number Firmware Country Temperature Last Reboot 2.4 GHz MAC 5 GHz MAC Ethernet MAC Wireless Mode Number antennas Use this to differentiate between devices. Use this to track the install dates of devices. IP address of the device. Mimosa device model name (e.g. B5, A5, etc.). Mimosa device serial number. Firmware version. Location of device. Temperature of device in degrees Celsius. Time since last reboot. MAC address for 2.4 GHz interface. MAC address for 5 GHz interface. MAC address for Ethernet interface. Current role of the device as AP (Access Point) or Station. If the device is in AP mode, it will act as the Access Point for the network. The Stations linked to the AP will act as children to the configuration setting of the parent AP. of Number of antennas in the device Antenna cable Length of cable attached to the device attenuation GPS Location GPS coordinates of device location. Device Info 5 Link Link Name Max Capacity Distance Frequency Bandwidth Packets Received Packets Sent Bytes Received Bytes Sent Use this to differentiate between devices. Maximum connection rate (Mbps). The distance between the two link endpoints. Frequency and (Channel) or auto (if auto channel mode is enabled). Width of channel (MHz). Number of packets received. Number of packets sent. Number of bytes received. Number of bytes sent. Device Info 6 Remote Device IP Address Model Serial Number Version Country Temperature Last Reboot WLAN MAC WAN MAC IP address of the remote end Mimosa remote device. Mimosa remote device model name (e.g. B5, A5, etc.). Mimosa remote device serial number. Firmware version. Location of device. Temperature of device in degrees Celsius. Time since last reboot. MAC address for WLAN interface. MAC address for WAN interface. Gigabit Ethernet MAC address for Gigabit Ethernet Port interface. Port MAC Wireless Mode Number of Antennas Antenna link cable length Current role of the Mimosa remote device as AP or Station. Number of antennas on the device Length of cable linked to the antenna Device Info 7 Wireless The Wireless tab contains all necessary components for configuring t…

Text truncated - open the document above for the full version.

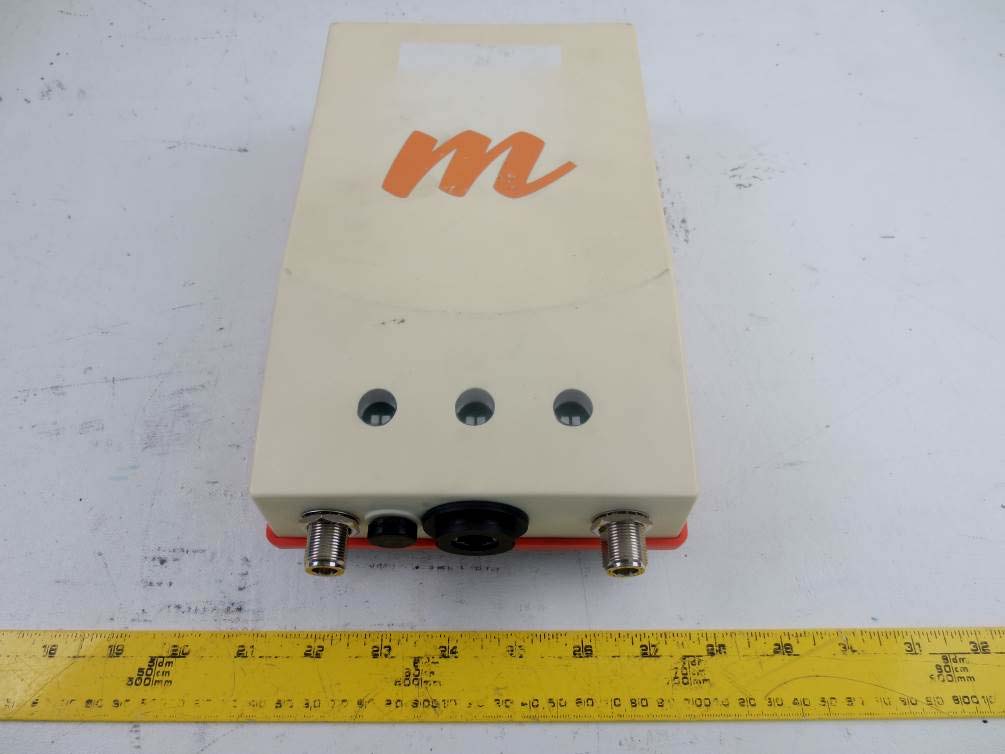

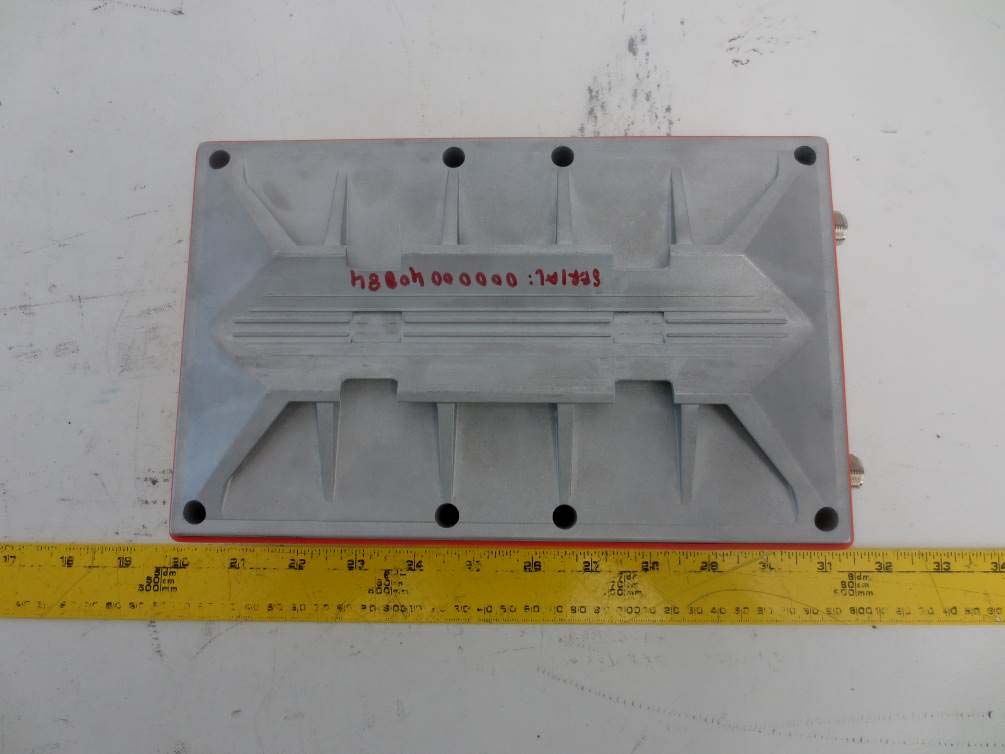

Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 258 of 263 FCC Part 15.407 Test Report 15 Exhibit C – EUT Photographs 15.1 EUT – Top View 15.2 EUT – Bottom View Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 259 of 263 FCC Part 15.407 Test Report 15.3 EUT – Side View 15.4 EUT – Antenna View-25 dBi Antenna Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 260 of 263 FCC Part 15.407 Test Report 15.5 EUT – Antenna View- 0 dBi Antenna 15.6 EUT – POE Top View

250.509.862 158.006.220 266.2710.483 73.93 2.911 1254.93 512.0512.0 PRODUCT LABEL GROUND LOCATION M5 THREAD CERTIFICATIONS LABEL REVISIONS REVDESCRIPTIONDATECHG BY A B C D E F G H F A C D E G H B 1 2 3 4 5 6 8 7 12345687 2 OF 2 PROPRIETARY & CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF MIMOSA NETWORKS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION OF MIMOSA NETWORKS IS PROHIBITED. 010-00027 1:1 SHEET: A SCALE: REV:DWG. NO.: D SIZE: DRAWN BY: FINISH: DESCRIPTION: WEIGHT: KG ANGULAR: 1 X: 1 [0.040" ] X.X: 0.3 [0.010" ] X.XX: 0.13 [0.005" ] X.XXX: 0.080 [0.003" ] HOLE TO HOLE: 0.13 [0.005" ] HOLE : +0.08/-0.05 [+0.003"/-0.002" ] MODEL-DERIVED FEATURES: 0.3 [0.010" ] DIMENSIONS ARE IN MILLIMETERS. INCH DIMENSIONS ARE IN BRACKETS [ ] C.RAMOS DRAWN IN ACCORDANCE WITH ASME Y14.5-2009 DO NOT SCALE DRAWING 1 2 ASSEMBLY, R5 RADIO THIRD ANGLE PROJECTION: MATERIAL: TOLERANCES: mimosa networks 300 Orchard City Drive, Suite 100A Campbell, CA 95008

Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 11 of 263 FCC Part 15.407 Test Report 4 FCC §15.407(f) & §2.1091 - RF Exposure 4.1 Applicable Standard According to FCC §15.407(f) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results For 25 dBi antenna 5.2 GHz Band: Maximum peak output power at antenna input terminal (dBm): 17.25 Maximum peak output power at antenna input terminal (mW): 53.09 Prediction distance (cm): 37 Prediction frequency (MHz): 5200 Maximum Antenna Gain, typical (dBi): 25 Maximum Antenna Gain (numeric): 316.227 Power density of prediction frequency at 37 cm (mW/cm 2 ): 0.975858 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 12 of 263 FCC Part 15.407 Test Report 5.8 GHz Band: Maximum peak output power at antenna input terminal (dBm): 21.90 Maximum peak output power at antenna input terminal (mW): 154.882 Prediction distance (cm): 63 Prediction frequency (MHz): 5785 Maximum Antenna Gain, typical (dBi): 25 Maximum Antenna Gain (numeric): 316.227 Power density of prediction frequency at 63 cm (mW/cm 2 ): 0.981994 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 For 0 dBi antenna: 5.2 GHz Band: Maximum peak output power at antenna input terminal (dBm): 29.8 Maximum peak output power at antenna input terminal (mW): 954.99 Prediction distance (cm): 20 Prediction frequency (MHz): 5200 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density of prediction frequency at 20 cm (mW/cm 2 ): 0.1899 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 5.8 GHz Band: Maximum peak output power at antenna input terminal (dBm): 29.85 Maximum peak output power at antenna input terminal (mW): 966.05 Prediction distance (cm): 20 Prediction frequency (MHz): 5785 Maximum Antenna Gain, typical (dBi): 0 Maximum Antenna Gain (numeric): 1 Power density of prediction frequency at 20 cm (mW/cm 2 ): 0.1921 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device meets FCC MPE requirement for uncontrolled exposure environment at 63 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 15.407 TEST AND MEASUREMENT REPORT For Mimosa Networks 300 Orchard City Dr., Suite 100, Campbell, CA 95008, USA FCC ID: 2ABZJ-100-00014 Report Type: Original Report Product Type: Point-to-Point Device Prepared By Ci pher Chu Report Number R1404042-407 W52 W58 Report Date 2014-08-12 Reviewed By Bo Li Test En gineer Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 2 of 263 FCC Part 15.407 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION ......................................................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................. 6 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 6 1.3 OBJECTIVE ............................................................................................................................................................... 6 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 6 1.5 TEST METHODOLOGY .............................................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................... 6 1.7 TEST FACILITY ........................................................................................................................................................ 7 2 EUT TEST CONFIGURATION .................................................................................................................................. 8 2.1 JUSTIFICATION ......................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE ...................................................................................................................................... 8 2.3 EQUIPMENT MODIFICATIONS ................................................................................................................................... 8 2.4 SPECIAL ACCESSORIES ............................................................................................................................................ 8 2.5 LOCAL SUPPORT EQUIPMENT .................................................................................................................................. 8 2.6 INTERFACE PORTS AND CABLING ............................................................................................................................ 8 2.7 POWER SUPPLY AND LINE FILTERS .......................................................................................................................... 8 2.8 EUT INTERNAL CONFIGURATIONS .......................................................................................................................... 9 3 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 4 FCC §15.407(F) & §2.1091 - RF EXPOSURE .......................................................................................................... 11 4.1 APPLICABLE STANDARD ........................................................................................................................................ 11 4.2 MPE PREDICTION .................................................................................................................................................. 11 4.3 MPE RESULTS ....................................................................................................................................................... 11 5 FCC §15.203 – ANTENNA REQUIREMENTS ........................................................................................................ 13 5.1 APPLICABLE STANDARD ........................................................................................................................................ 13 5.2 ANTENNA LIST ...................................................................................................................................................... 13 6 FCC §15.207 - AC POWER LINE CONDUCTED EMISSIONS ............................................................................ 14 6.1 APPLICABLE STANDARDS ...................................................................................................................................... 14 6.2 TEST SETUP ........................................................................................................................................................... 14 6.3 TEST PROCEDURE .................................................................................................................................................. 14 6.4 TEST SETUP BLOCK DIAGRAM ............................................................................................................................... 15 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................…

Text truncated - open the document above for the full version.

Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 252 of 263 FCC Part 15.407 Test Report 14 Exhibit B - EUT Setup Photographs 14.1 Radiated Emission - below 1 GHz Front View-25 dBi Antenna 14.2 Radiated Emission - below 1 GHz Front View-0 dBi Antenna Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 253 of 263 FCC Part 15.407 Test Report 14.3 Radiated Emission - below 1 GHz Rear View 14.4 Radiated Emission - above 1 GHz Front View- 25 dBi Antenna Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 254 of 263 FCC Part 15.407 Test Report 14.5 Radiated Emission - above 1 GHz Rear View-25 dBi Antenna 14.6 Radiated Emission - above 1 GHz Front View-0 dBi Antenna Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 255 of 263 FCC Part 15.407 Test Report 14.7 Radiated Emission - above 1 GHz Rear View -0 dBi Antenna 14.8 AC Line Conducted Emissions - Front View-25 dBi Antenna Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 256 of 263 FCC Part 15.407 Test Report 14.9 AC Line Conducted Emissions - Side View -25 dBi Antenna 14.10 AC Line Conducted Emissions - Front View -0 dBi Antenna Mimosa Networks FCC ID: 2ABZJ-100-00014 Report Number: R1404042-407 W52 W58 Page 257 of 263 FCC Part 15.407 Test Report 14.11 AC Line Conducted Emissions - Side View – 0 dBi Antenna
