2ABZJ-100-00107Flexible PTMP Access Point

Instructions, videos and help can be found at: mimosa.co/support The following additional items are required or recommended items for proper installation to meet applicable local or national electrical codes or safety standards: • Dual-polarization access point category antenna - the antenna must be cross-polarized • Minimum 10 AWG (5.26 mm 2 ) ground cable with pre-terminated ring terminal • Passive Gigabit Power over Ethernet injector supplying between 24-57 VDC to device input • Outdoor shielded CAT6/6A Ethernet cable • Recommended: One (1) hose clamp pole straps (if no integrated mount clips on your antenna) • Recommended: Mastic sealing tape 1. Mounting Using a hose clamp style pole strap, attach the A5x to the desired pole by inserting the straps through the slot in the mounting bracket, and tighten the strap. Alternatively, attach the device to any antenna which supports the integrated mounting clips shown below. 2. Grounding Use minimum 10 AWG (5.26 mm2) ground wire with a ring terminal style connector and attach to the provid- ed grounding lug on the A5x. The ground wire should be no longer than 1 m in length. Hose Clamp Mount Clips To ground 3. Antenna Connection Connect two (2) RP-SMA male type jumper cables between the chosen antenna and the A5x and tighten as shown below. It is recommended to optionally seal the connectors with mastic tape for weatherproofing. 4. Connect Ethernet Connect a shielded CAT6/6A Ethernet cable (not included) to the device, inserting it through the M25 cable sealing gland components and tighten as shown in the diagram below. Connect the other end of the Ethernet cable to a passive PoE power supply (the A5x supports passive 24-57 VDC PoE input). b a a b c d Safety, Warranty, & Compliance Export Control These commodities, technology, or software were exported from the United States in accordance with the Export Administration Regulations. Diversion contrary to U.S. law is prohibited. Important Safety and Handling Information Failure to follow any of the safety instructions in this guide, instructions on any Airspan Networks Inc. (“Airspan”) provided packaging, and heed WARNINGS (indicated by ), could result in fire, electric shock, other injury or death, and incur damage to this product or other proper- ty and void the product’s Limited Warranty. There are no End User serviceable parts inside the equipment. Read all operating and safety instructions contained herein and accom- panying the product as provided by Airspan: Safety Information Do not operate this product in any location that can be submerged by water. Do not install or maintain this product during the presence of an electrical storm to avoid risk of electric shock from lightning. Only use plastic (non-metallic) M25 cable sealing glands to ensure comfortable surface temperature. Failure to use shielded CAT6/6A Ethernet cabling AND to ground the device in compliance with local and national electrical codes could lead to serious injury or death. This device accepts passive Power over Ethernet 24-57 VDC powering. Connecting to any power source that does not meet the voltage, frequency and current requirements listed may damage the power supply or product, and pose a fire hazard. Maximum ambient operating temperature is +55ºC. Do not operate this product above +55ºC ambient temperature. End User Product Warranty Mimosa products purchased from Airspan are warranted against defects in material, and workmanship for a period of either (i) twelve (12) months from the date of activation, or (ii) thirty-six (36) months from the original date of shipment, whichever is earlier. Please go to www. mimosa.co/warranty to determine whether your product is in warranty. The sole responsibility of Airspan under this warranty shall be limited to the repair or replacement of in-warranty defective product, at Airspan’s sole option. Out of warranty products shipped to Airspan will not be returned. This warranty does not cover costs associated with the removal and/or reinstallation of the product for repair nor for any parts that are readily replaced in normal use. Airspan or its designated partner will repair or replace product found to be defective during the defined warranty period. The End User is responsible for delivering defective product in accordance with the Return Material Authorization (RMA) processes published at www.mimosa.co/legal/RMA Limitation of Warranty The contractual product warranty is invalidated if the product is altered or otherwise tampered with in a manner that modifies the product from its original shipping configuration and/or form factor, and could violate the regulatory authority to operate the equipment, unless said activity was performed by or with the written authorization of a Airspan representative. Modifications include: (a) External surfaces that have been painted, labeled, or otherwise modified from the original shipping condition. (b) Modifications of the product with third party hardware, firmware, and/or software. (c) Any product subjected to abnormal physical or electric stress, including, but not limited to, lightning strikes, negligence, accident, or misuse. (d) Any product damaged due to incorrect installation, including, but not limited to, mounting, grounding, cabling, connectors, or connection to power. (e) Failure induced by connected third party products. Failure to use minimum grade CAT6/6A shielded Ethernet cable, or violation of local and national electric code grounding and premises ESD protection requirements for outdoor installations will void the product warranty. FCC This device complies with part 15 of the FCC Rules. Operation is sub- ject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part …

Text truncated - open the document above for the full version.

469 El Camino Real • Suite 100 • Santa Clara, CA 95050 airspan.com LETTER OF ATTESTATION Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 December 16, 2019 To Whom it May Concern: We attest to the following: Per FCC 15.407(c), the device will automatically discontinue transmission in case of either absence of information to transmit or operational failure. This is done via the device utilizing the 802.11 MAC protocol in its communication with other modules. The 802.11 MAC provides for transmission only when information is present to transmit. When there is no information to transmit, no packets will be scheduled for transmission and the RF transmit circuitry will remain off. In the case that operational failure is detected, the module will be rebooted and transmission will cease until the processor verifies normal operation Sincerely, David Stiff VP Product Management, Fixed Wireless

469 El Camino Real • Suite 100 • Santa Clara, CA 95050 airspan.com LETTER OF ATTESTATION Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 December 16, 2019 To Whom it May Concern: We attest to the following: Mimosa Networks, Inc. was acquired by Airspan Networks, Inc. on November 20, 2018. Airspan continues to conduct business under the Mimosa brand. Sincerely, David Stiff VP Product Management, Fixed Wireless

469 El Camino Real • Suite 100 • Santa Clara, CA 95050 airspan.com LETTER OF ATTESTATION Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 January 3, 2020 To Whom it May Concern: We attest to the following: This is a letter of attestation to confirm that our radios require professional installation, and we expect installers and operators to follow all regulatory requirements set forth by the Federal Communications Commission. If you have any further questions or need additional information, please feel free to contact us. Sincerely, David Stiff VP Product Management, Fixed Wireless

469 El Camino Real • Suite 100 • Santa Clara, CA 95050 airspan.com LETTER OF ATTESTATION Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 January 3, 2020 To Whom it May Concern: We attest to the following: This is a letter of attestation to confirm the understanding of the requirement specified in Section 15.407(j): "Operator Filing Requirement: Before deploying an aggregate total of more than one thousand outdoor access points within the 5.15-5.25 GHz band, parties must submit a letter to the Commission acknowledging that, should harmful interference to licensed services in this band occur, they will be required to take corrective action. Corrective actions may include reducing power, turning off devices, changing frequency bands, and/or further reducing power radiated in the vertical direction. This material shall be submitted to Laboratory Division, Office of Engineering and Technology, Federal Communications Commission, 7435 Oakland Mills Road, Columbia, MD 21046. Attn: U-NII Coordination, or via Web site at https://www.fcc.gov/labhelp with the SUBJECT LINE: “U-NII-1 Filing”.” If you have any further questions or need additional information, please feel free to contact us. Sincerely, David Stiff VP Product Management, Fixed Wireless

FCC Confidential Authorization 2019/12/30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ABZJ-100-00107 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Airspan Networks Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description As well as short-term confidential treatment of information accompanying these applications as outlined below, with a : •Internal Photos •User’s Manual •External Photos •Test Set-up Photos The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing.The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sith Domrongkitchaiporn / Staff Engineer 469 El Camino Real, Suite 100, Santa Clara, CA 95050

LETTER OF APPOINTMENT December 30, 2019 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 This is a letter of authorization to accept Electro Magnetic Test, Inc. as an Agent for Airspan Networks, Inc., for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Airspan Networks, Inc. product: A5x (FCC ID: 2ABZJ-100-00107) under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither Airspan Networks nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti-Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, Airspan Networks will notify the Federal Communications Commission if, at any time, the situation changes causing Airspan Networks to be denied federal benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. If you have any further questions or need additional information, please feel free to contact us. Sincerely, Aon Mujtaba SVP Engineering & GM Santa Clara Design Center

469 El Camino Real • Suite 100 • Santa Clara, CA 95050 airspan.com SIGNATURE AUTHORIZATION Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 December 16, 2019 To Whom it May Concern: The following Airspan Networks, Inc. employees are authorized to sign and approve specs on behalf of Airspan Networks, Inc. Aon Mujtaba Sith Domrongkitchaiporn Sincerely, David Stiff VP Product Management, Fixed Wireless

January 17, 2020 RE: Airspan Networks, Inc. FCC ID: 2ABZJ-100-00107 IC: 11823A-100107 ATCB024637 Please note that, per Section 15.101(a), the digital device portion of the EUT (i.e., the digital circuitry not directly related to the transmit function) is subject to either certification (separate from the NII certification – it would be a composite device together with the NII radio, and require a separate test report only including the digital emissions below 1 GHz), or SDoC. Please indicate which type of authorization will be used for the digital device portion of the EUT. If certification will be used, please submit the new, separate test report (and note that there will also be an additional charge for this). If SDoC will be used, please note that the info to the user required by Section 2.1077(a) must be included in the User’s Manual provided with the device by the time that it is marketed, or on a separate sheet included with each device. The digital portion of the device is being set forth as a Self-Declaration of Conformity, the installation manual has been updated to include the necessary SDoC statement.

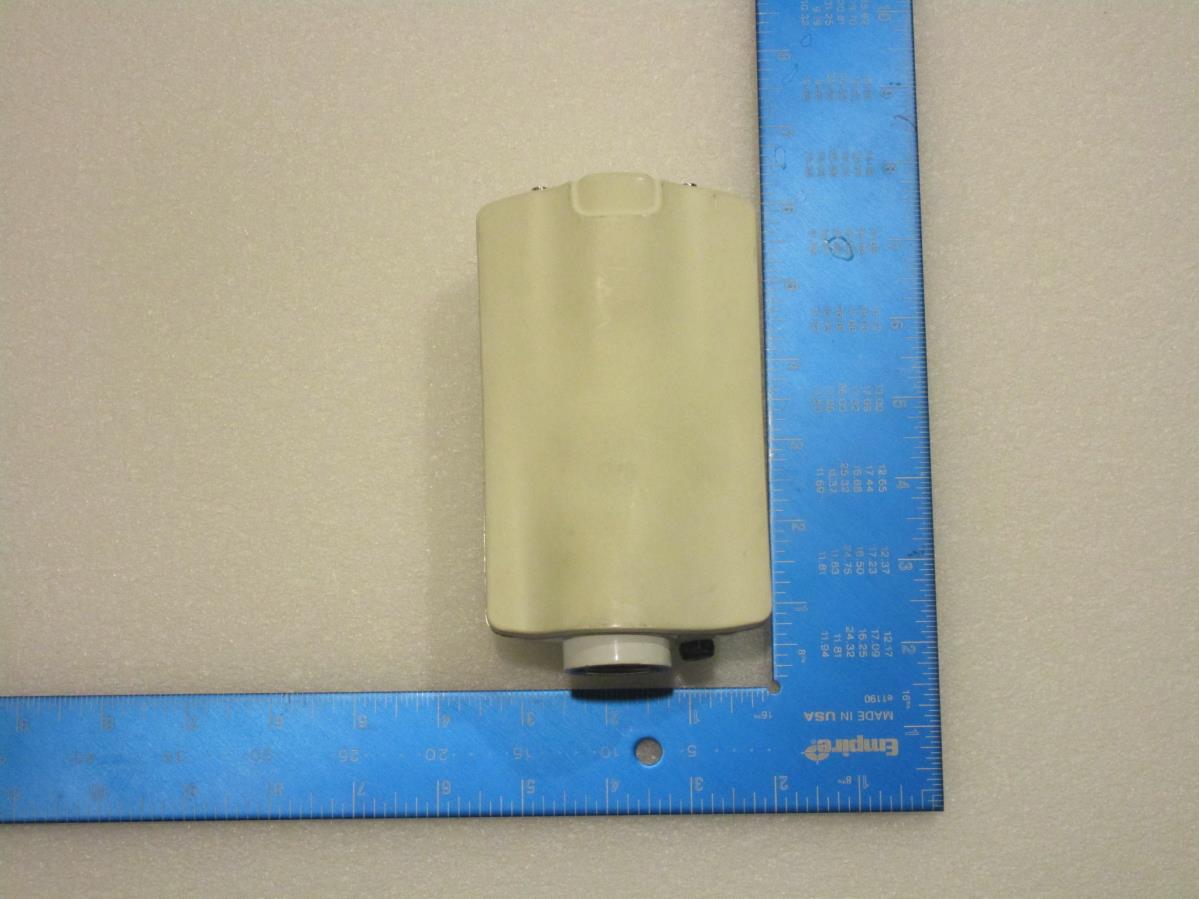

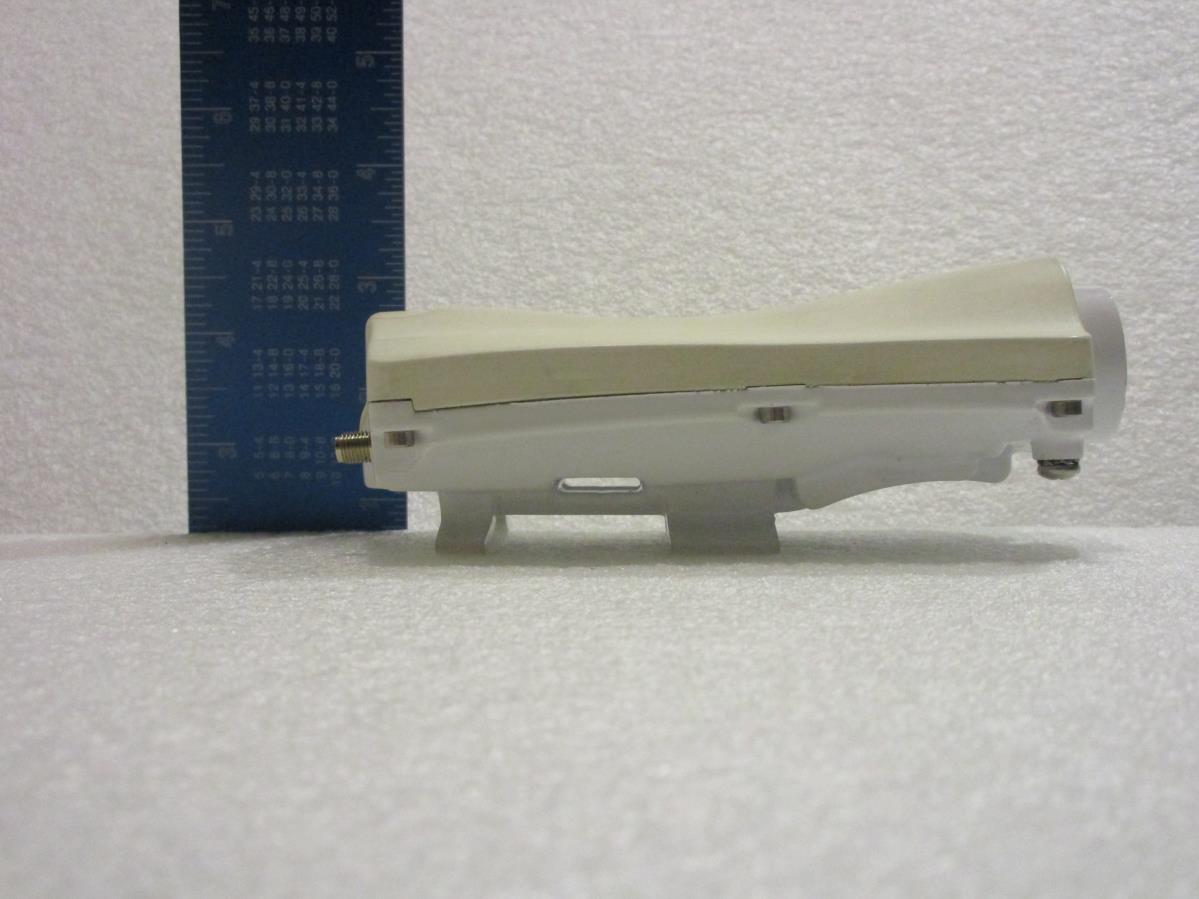

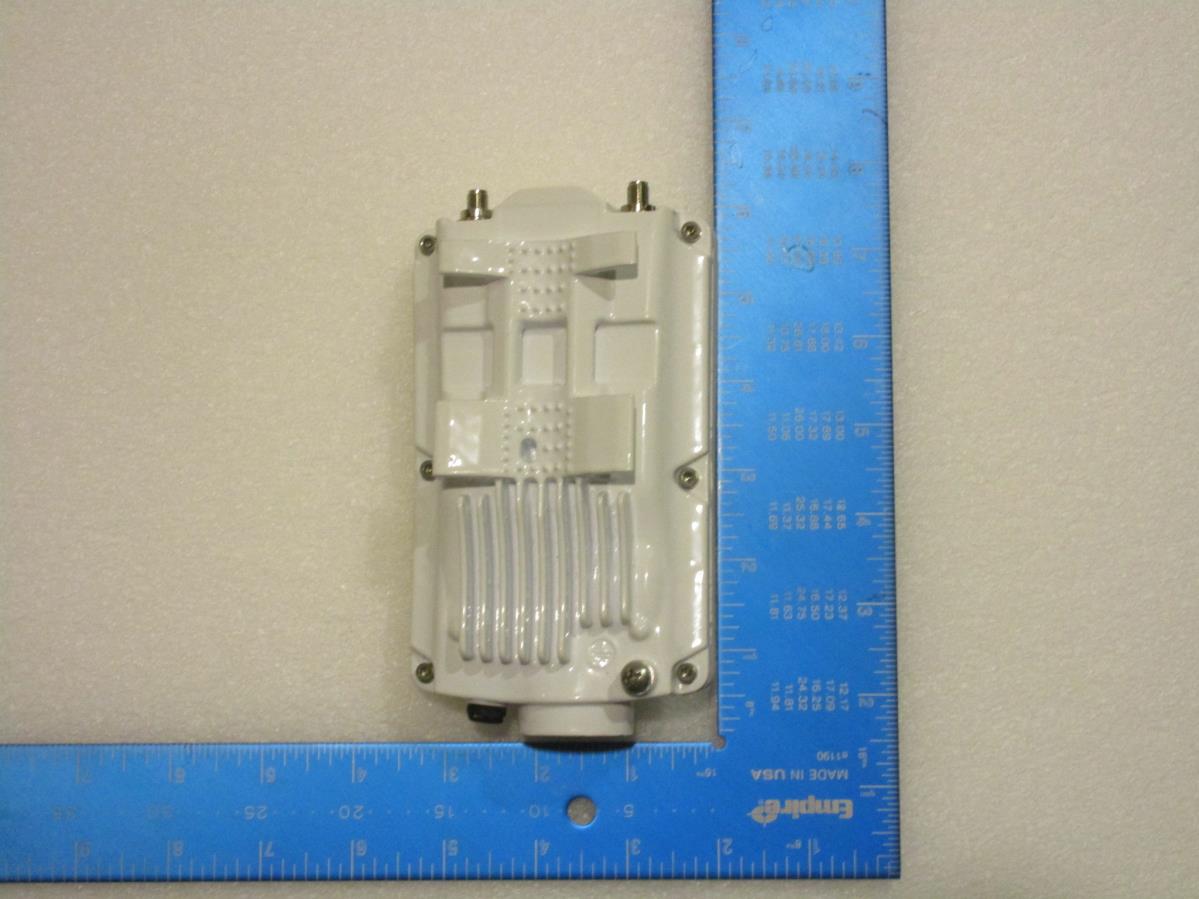

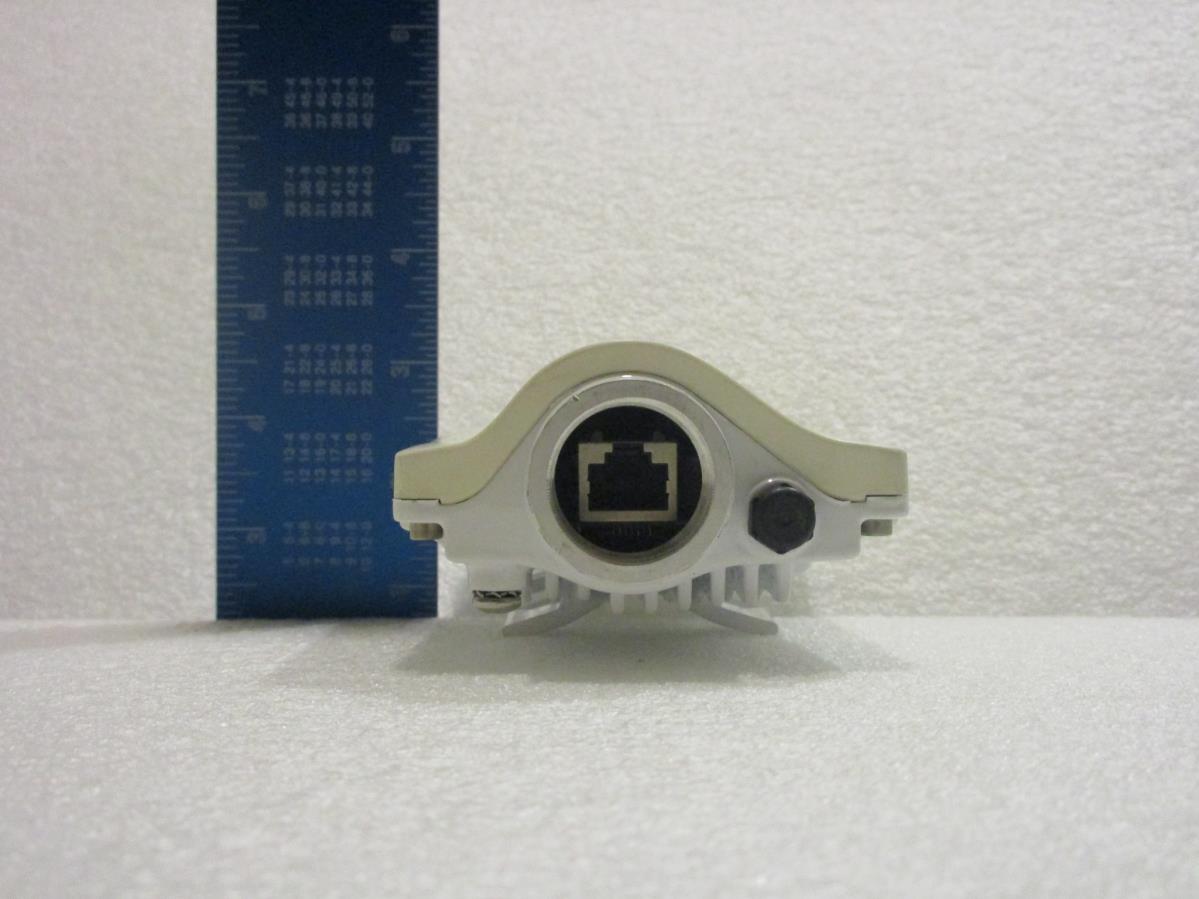

ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 EXTERNAL PHOTOS OF EUT ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 DIMENSIONS OF THE EUT: 5.91"H 3.35"W 2.06"D FRONT VIEW OF THE EUT Airspan Networks Access Point Model: A5x ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 LEFT SIDE VIEW OF EUT Airspan Networks Access Point Model: A5x ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 RIGHT SIDE VIEW OF EUT Airspan Networks Access Point Model: A5x ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 REAR SIDE OF-EUT Airspan Networks Access Point Model: A5x ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TOP SIDE OF-EUT Airspan Networks Access Point Model: A5x ELECTRO MAGNETIC TEST, INC. 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 BOTTOM SIDE OF-EUT Airspan Networks Access Point Model: A5x

Label Placement and Agency Label The FCC ID will be placed on the unit enclosure. Below is an agency label example. It will be placed at the following location:

Per FCC §1.1310 MPE Evaluation Formula: P d = (P r ) / (4πr 2 ) Where, P d = Power Density (mW/cm 2 ) P r = Output Power in EIRP (mW) = 1*10 ((P out +G)/10) P out = Conducted output power (dBm) G = gain of antenna (dBi) π = 3.141592654 r = distance between observation point and center of the radiator (cm) AntennaAntenna Type TxFrequency (MHz) dBmmW Separation Distance (cm)Worst Case (mW/cm^2) Threshold (mW/cm^2)Result 1 DipoleU-NII 1 5220 2 Dipole U-NII 1 5220 1 Horn U-NII 1 5220 2 HornU-NII 1 5220 1Dipole U-NII 3 5745 2 DipoleU-NII 3 5745 1Horn U-NII 3 5745 2 HornU-NII 3 5745 25.38345.16 7.29 Maximum Peak Output Power FCC 47 CFR 1.1310 MPE Ex cl usi on Cal cul ati on 23.89 244.71300 0.01 1.0 Pass by Exclusion; Threshold Value is le ss than 1.0. Pass by Exclusion; Threshold Value is le ss than 1.0. 5.363000.011.0 Pass by Exclusion; Threshold Value is le ss than 1.0. 3000.01 1.0 Pass by Exclusion; Threshold Value is le ss than 1.0. 7.05 5.07 3000.011.0 *Results are rounded to nearest 0.01 RSS-102 SAR exemption calculation Summary: Minimum typical separation distance between the antenna and the user = 3 Meters = 300 centimeters Exemption limit from RSS-102 for routine evaluation based on frequency and separation distance for ≥ 300MHz ≤ 6GHz = 4.5491W @ 5.22GHz & 4.857W @ 5.745GHz (see Appendix A) EUT’s EIRP with Dipole Antenna @ 5.22GHz= 0.8091 W (see EIRP calculation below) EUT’s EIRP with Horn Antenna @ 5.22Gz= 0.1366 W (see EIRP calculation below) EUT’s EIRP with Dipole Antenna @ 5.745GHz= 0.9863 W (see EIRP calculation below) EUT’s EIRP with Horn Antenna @ 5.745GHz= 0.1443 W (see EIRP calculation below) 0.8091W < 4.5491W, 0.1366W < 4.5491W, 0.9863W < 4.857W, and 0.1443W < 4.857W, therefore the EUT is exempt from routine SAR evaluation. EIRP Limit calculation: @5.22GHz = 1.31*10 -2 (5220 0.6834 ) = 4.5491 W @5.745GHz = 1.31*10 -2 (5745 0.6834 ) =4.857 W EIRP calculation: Dipole Antenna @5.22GHz 23.89dBm peak conducted RF output power as measured using a method compliant with RSS-210 5.19 dBi peak antenna gain EIRP = peak conducted RF power + peak antenna gain = 23.89dBm + 5.19 dBi = 29.08dBm = 0.8091W Horn Antenna @5.22GHz 7.05 dBm peak conducted RF output power as measured using a method compliant with RSS-210 14.3 dBi peak antenna gain EIRP = peak conducted RF power + peak antenna gain = 7.05dBm + 14.3dBi = 21.35dBm = 0.1366W Dipole Antenna @5.745GHz 25.38dBm peak conducted RF output power as measured using a method compliant with RSS-210 4.56dBi peak antenna gain EIRP = peak conducted RF power + peak antenna gain = 25.38dBm + 4.56 dBi = 29.94dBm = 0.9863W Horn Antenna @5.745GHz 7.29 dBm peak conducted RF output power as measured using a method compliant with RSS-210 14.3 dBi dBi peak antenna gain EIRP = peak conducted RF power + peak antenna gain = 7.29dBm + 14.3dBi = 21.59dBm = 0.1443 W Conclusion: For our EUT transmitting at 5220 MHz with the dipole antenna, if we evaluate the EUT against the exemption limits at a distance of 3m (typical use case), the power at this distance must be below 4.5491W. 4.5491W – 0.8091W = 3.7400W of margin (pass). For our EUT transmitting at 5220 MHz with the horn antenna, if we evaluate the EUT against the exemption limits at a distance of 3m (typical use case), the power at this distance must be below 4.5491W. 4.5491W – 0.1366W = 4.4125W of margin (pass). For our EUT transmitting at 5745 MHz with the dipole antenna, if we evaluate the EUT against the exemption limits at a distance of 3m (typical use case), the power at this distance must be below 4.857W. 4.857W – 0.9863W = 3.5628W of margin (pass). For our EUT transmitting at 5745 MHz with the Horn antenna, if we evaluate the EUT against the exemption limits at a distance of 3m (typical use case), the power at this distance must be below 4.857W. 4.857W – 0.1443W = 4.7127W of margin (pass). Appendix A: The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) From RSS-102

FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page 1 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 FCC PART 15.407, SUBPART E IC RSS-247 TEST REPORT for the Access Point Model: A5x Prepared for Airspan Networks 469 El Camino Real, Suite 100, Santa Clara, Ca. 95050 Prepared by: Andreas Davidsson Approved by: Kevin Bothmann Electro Magnetic Test, Inc. 1547 Plymouth Street Mountain View, California 94043 (650) 965-4000 Date: November 19, 2019 REPORT APPENDICES TOTAL BODY A B C D PAGES 29 140 3 2 3 177 This report shall not be reproduced except in full, without the written approval of Electro Magnetic Test, Inc. Electro Magnetic Test, Inc. (EMT) is accredited by NVLAP, Lab Code 200147-0 to perform the tests listed in this report, except where noted otherwise. This report and the information contained herein represent the test results related only to the sample tested. This report should not be relied upon as an endorsement or certification by EMT or NVLAP for the sample tested, nor does it represent any statement whatsoever as to its marketing status or fitness of the equipment for a particular purpose. FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page 2 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 REVISION HISTORY VERSION DATE COMMENTS MODIFIED BY 1.0 November 19, 2019 Original Document AD 2.0 December 30, 2019 Updated following comments from ACB Reviewer. AD 3.0 January 10, 2020 Updated following comments from ACB Reviewer. AD 3.1 January 17, 2020 Updated limits and data following comments from ACB Reviewer. AD 3.1.1 February 9, 2020 Updated following comments from ACB Reviewer. AD 3.1.2 February 18, 2020 Removed non-approved frequencies. AD FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page 3 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 TABLE OF CONTENTS SECTION TITLE PAGE REVISION HISTORY ......................................................................................................................................................... 2 GENERAL REPORT SUMMARY ...................................................................................................................................... 5 SUMMARY OF TEST RESULTS ....................................................................................................................................... 6 TECHNICAL DESCRIPTION OF THE EUT ..................................................................................................................... 7 1. PURPOSE ................................................................................................................................................................. 8 2. ADMINISTRATIVE DATA .................................................................................................................................... 9 2.1 Location of Testing ............................................................................................................................................................. 9 2.2 Traceability Statement......................................................................................................................................................... 9 2.3 Cognizant Personnel ........................................................................................................................................................... 9 2.4 Date Test Sample was Received .......................................................................................................................................... 9 2.5 Disposition of the Test Sample ........................................................................................................................................... 9 2.6 Abbreviations and Acronyms .............................................................................................................................................. 9 3. APPLICABLE DOCUMENTS .............................................................................................................................. 10 4. DESCRIPTION OF TEST CONFIGURATION .................................................................................................... 11 4.1 Description of Test Configuration - EMI .......................................................................................................................... 11 4.1.1 Cable Construction and Termination ............................................................................................................................... 12 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT .................................................................................. 13 5.1 EUT and Accessory List ................................................................................................................................................... 13 5.2 EMI Test Equipment ......................................................................................................................................................... 14 6. TEST SITE DESCRIPTION .................................................................................................................................. 16 6.1 Test Facility Description ................................................................................................................................................... 16 6.2 EUT Mounting, Bonding and Grounding ......................................................................................................................... 16 6.3 Facility Environmental Characteristics .........................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page A118 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 6/26 dB Bandwidth and Occupied Bandwidth Test Company: Airspan Networks Test Date: 10/17/2019 EUT Name: Access Point Test Engineer: Andreas Davidsson Model: A5x Test Result: PASS Operating Mode: TX Mode Mode Antenna Test CH Frequency (MHz) 6/26 dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) 6/26 dB Bandwidth Limit (MHz) Conclusion U-NII-1 1 36 5180 23.85 17.984 ≥ 0.5 PASS 2 36 5180 23.94 17.962 ≥ 0.5 PASS 1 44 5220 24.22 18.055 ≥ 0.5 PASS 2 44 5220 24.31 17.928 ≥ 0.5 PASS 1 48 5240 24.36 17.994 ≥ 0.5 PASS 2 48 5240 23.82 17.873 ≥ 0.5 PASS 1 38 5190 42.48 36.476 ≥ 0.5 PASS 2 38 5190 42.45 36.430 ≥ 0.5 PASS 1 46 5230 42.90 36.495 ≥ 0.5 PASS 2 46 5230 42.22 36.412 ≥ 0.5 PASS 1 42 5210 92.09 75.475 ≥ 0.5 PASS 2 42 5210 82.31 75.390 ≥ 0.5 PASS U-NII-3 1 149 5745 17.58 17.754 ≥ 0.5 PASS 2 149 5745 17.62 17.734 ≥ 0.5 PASS 1 157 5785 17.75 17.756 ≥ 0.5 PASS 2 157 5785 17.59 17.737 ≥ 0.5 PASS 1 165 5825 17.80 17.756 ≥ 0.5 PASS 2 165 5825 17.58 17.748 ≥ 0.5 PASS 1 151 5755 36.30 36.217 ≥ 0.5 PASS 2 151 5755 36.31 36.240 ≥ 0.5 PASS 1 159 5795 36.31 36.245 ≥ 0.5 PASS 2 159 5795 36.34 36.232 ≥ 0.5 PASS 1 155 5775 75.29 75.284 ≥ 0.5 PASS 2 155 5775 75.44 75.304 ≥ 0.5 PASS Test Equipment: Please refer to section 5.2 FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page A119 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 Antenna 1 + 2 Channel 36 (5180MHz) Antenna 1 + 2 Channel 44 (5220MHz) FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page A120 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 Antenna 1 + 2 Channel 48 (5240MHz) Antenna 1 + 2 Channel 38 (5190MHz) FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page A121 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 Antenna 1 + 2 Channel 46 (5230MHz) Antenna 1 + 2 Channel 42 (5210MHz) FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page A122 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 Antenna 1 + 2 Channel 149 (5745MHz) Antenna 1 + 2 Channel 157 (5785MHz) FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page A123 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 Antenna 1 + 2 Channel 165 (5825MHz) Antenna 1 + 2 Channel 151 (5755MHz) FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page A124 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 Antenna 1 + 2 Channel 159 (5795MHz) Antenna 1 + 2 Channel 155 (5775MHz) FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 Report Number: M191106E01 Page A125 E L E C T R O M A G N E T I C T E S T , I N C . 1547 Plymouth Street, Mountain View, CA 94043 Tel: (650) 965-4000 Fax: (650) 965-3000 Maximum Peak Output Power Test Data Company: Airspan Networks Test Date 10/17/2019 EUT Name Access Point Test Engineer Andreas Davidsson Model: A5x Test Result PASS Operating Mode TX Mode Mode Antenna Test CH Frequency (MHz) Raw Power (dBm) Peak Output Power (dBm) Limit (dBm) Conclusion U-NII-1 (Dipole Antenna Gain) 1 36 5180 20.89 23.43 ≤ 30 PASS 2 36 5180 19.89 1 44 5220 21.52 23.89 ≤ 30 PASS 2 44 5220 20.12 1 48 5240 21.54 23.87 ≤ 30 PASS 2 48 5240 20.06 1 38 5190 19.79 22.21 ≤ 30 PASS 2 38 5190 18.51 1 46 5230 20.93 23.37 ≤ 30 PASS 2 46 5230 19.71 1 42 5210 20.10 22.70 ≤ 30 PASS 2 42 5210 19.23 U-NII-1 (Horn Antenna Gain) 1 36 5180 4.29 7.05 ≤ 30 PASS 2 36 5180 3.78 1 44 5220 4.02 6.79 ≤ 30 PASS 2 44 5220 3.53 1 48 5240 3.40 6.15 ≤ 30 PASS 2 48 5240 2.87 1 38 5190 3.71 6.53 ≤ 30 PASS 2 38 5190 3.32 1 46 5230 3.33 6.15 ≤ 30 PASS 2 46 5230 2.94 1 42 5210 3.35 6.12 ≤ 30 PASS 2 42 5210 2.86 FCC ID: 2ABZJ-100-00107 IC ID: 11823A-100107 R…

Text truncated - open the document above for the full version.
