2AC6AC6000BMobile Data Terminal (with GSM, WCDMA, CDMA2000, LTE, NFC, Bluetooth, 2.4GHz WIFI and 5GHz WiFi)

SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD C6000 Pro User Manual FCCID:2AC6AC6000B 1 2 Statement 2013 by ShenZhen Chainway Information Technology Co., Ltd. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission written from Chainway. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice. The software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. Chainway grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Chainway. Chainway reserves the right to make changes to any software or product to improve reliability, function, or design. Chainway does not assume any product liability arising out of, or in connection with, the applicationor use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any Chainway intellectual property rights. An implied license only exists for equipment, circuits, and subsystems contained in Chainway products. 3 Contents Statement ........................................................................................................ 2 Chapter 1 Brief Instruction ........................................................................... 5 1.1 Brief Instruction .............................................................................. 5 1.2 Precaution Before Using Battery ................................................ 6 Chapter 2 Installation Guide ........................................................................ 8 2.1 Appearance .......................................................................................... 8 2.2 Buttons .................................................................................................. 9 2.3 Micro SD、SIM、PSAM Card Installation ................................... 10 2.4 Battery Charging ............................................................................... 10 2.5 Device Power on/off ......................................................................... 11 Chapter 3 Call Function ............................................................................. 12 3.1 Phone .................................................................................................. 12 3.2 Contacts ............................................................................................. 13 3.3 Messaging .......................................................................................... 14 Chapter 4 Barcode Reader ........................................................................ 15 Chapter 5 RFID Reader ............................................................................. 16 5.1 High Frequency ................................................................................. 16 5.1.1 14443A ........................................................................................ 16 5.1.2 14443B ........................................................................................ 17 5.1.3 15693 ........................................................................................... 18 5.2 NFC ..................................................................................................... 19 Chapter 6 Other Functions ........................................................................ 20 6.1 PING ................................................................................................... 20 6.2 Bluetooth ............................................................................................ 21 6.3 GPS ..................................................................................................... 22 4 6.4 Volume Settings ................................................................................ 23 6.5 Sensor ................................................................................................ 24 6.6 Keyboard ............................................................................................ 25 6.7 Network .............................................................................................. 25 Chapter 7 Device Specifications ............................................................... 26 5 Chapter 1 Brief Instruction 1.1 Brief Instruction Chainway C6000 is a series of Android powered smart terminals, with data capture, data processing, wireless communication. It is with high-reliability & high-expansibility. Auto & Accurate data collection is achieved in various business fields via a complete solution of premium options, the flexible solution among options and operators is suited-up. You will find out with C6000, much easier deployment, reduced complexity, decreasedmaintenance, are the benefits for enterprises. C6000 meets industrial level IP65 (IEC sealing), is sufficient to routine applications, eg, railway inspection, road parking toll, vehicle inspection, logistics express,power inspection, warehousing management, chain retail, etc. Whether the mobile operators are working indoor or outdoor, with Chainway C6000, your business is always &highly efficient on-line. Meeting industrial standards, designed to support various of mobile solutions. With th…

Text truncated - open the document above for the full version.

Declaration To whom it may concern: Model No:C6000 The equipment is constructed that settings (hardware and/or software) related to DFS is not be accessible to the user, include any prevention of the indirect access to the setting as currently configures. Signature : Job Title and Dept:Manager

Shenzhen Chainway Information Technology Co., Ltd. Date: 2020.11.20 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Shenzhen Chainway Information Technology Co., Ltd., the undersigned, hereby authorizesMrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Shenzhen Chainway Information Technology Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID:2AC6AC6000B including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd.on our behalf of the Shenzhen Chainway Information Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the Shenzhen Chainway Information Technology Co., Ltd.. Shenzhen Chainway Information Technology Co., Ltd. also hereby certify that no partyto this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name:chen shurong Title:Manager Tel:+86 755 23223301_8076 Email:[email protected] Company name:Shenzhen Chainway Information Technology Co., Ltd.

Shenzhen Chainway Information Technology Co., Ltd. Date:2020.11.20 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality forFCC ID:2AC6AC6000B To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act,Shenzhen Chainway Information Technology Co., Ltd.hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information notcustomarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality 180 days from grant date as outlined in Public Notice DA04-1705. This provision will giveShenzhen Chainway Information Technology Co., Ltd.temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1Block Diagram 2Operational Description 3Schematics 4BOM 5Tune up procedure SHORT-TERM 6External Photos 7Internal Photos 8Test-Setup Photos 9User Manual The Applicant understands that pursuantto Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory: Contact name:chen shurong Title:Manager Tel:+86 755 23223301_8076 Shenzhen Chainway Information Technology Co., Ltd. Email:[email protected] Company name:Shenzhen Chainway Information Technology Co., Ltd.

for the FCC SDoC Procedure The following Equipment adapt FCC SDoC Procedure according to FCC part 2.906 : Product Name: Mobile Data Terminal Brand Nam:CHAINWAY Model Number:C6000 Report Number:SZ20110290E01 FCC ID:2AC6AC6000B It’s herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. It is understood that each unit marketed is identical to the device as tested, and any changes to the device that could adversely affect the emission characteristics will require retest. The following importer / responsible party in United States: Not Available at Certification Stage Company Name: NA Company Address: NA Telephone:NA Fax: NA Person is responsible for marking this declaration: chen shurongManager __________________________________________________________________________ Name (Full name )Position / Title 2021.1.10 Shenzhen Chainway Information Technology Co., Ltd. ____________________________________ Legal Signature ______________________________________ Date

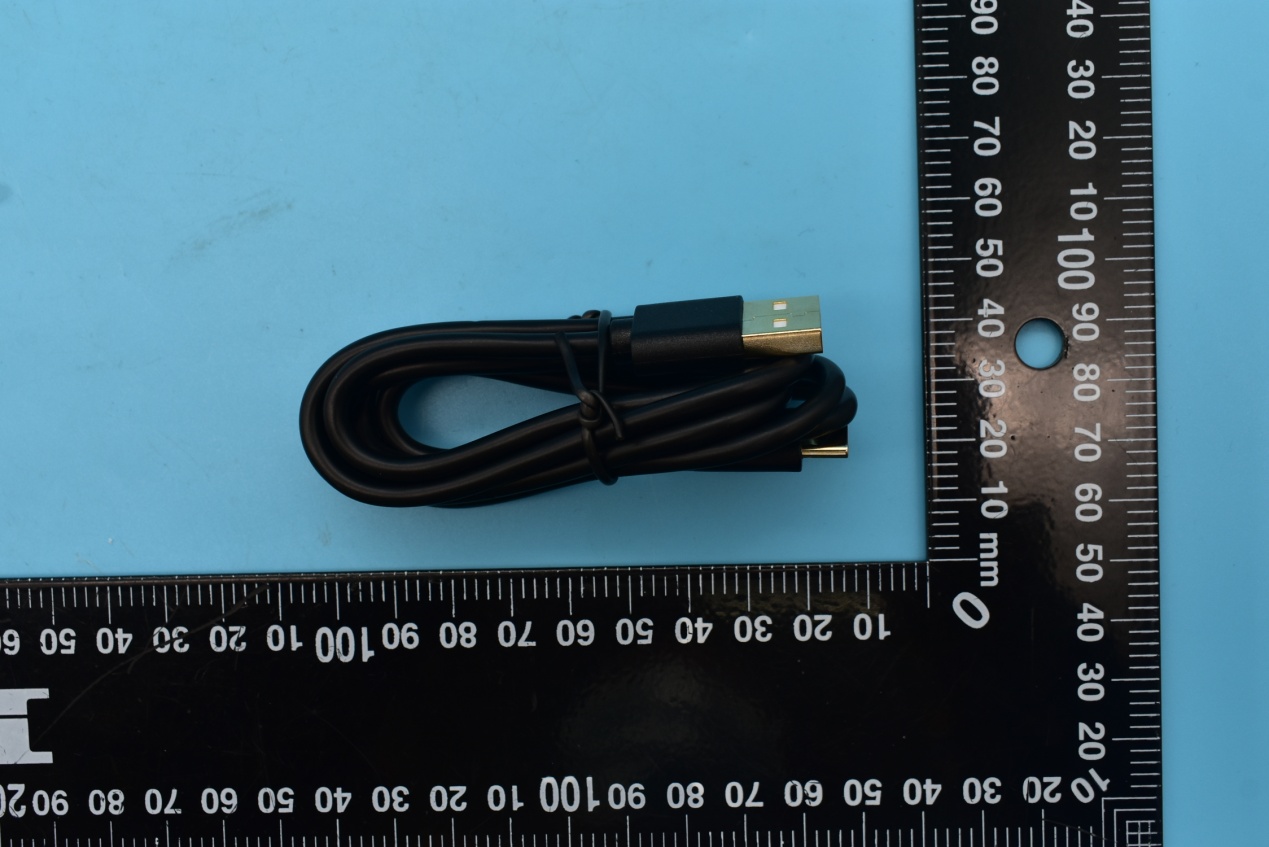

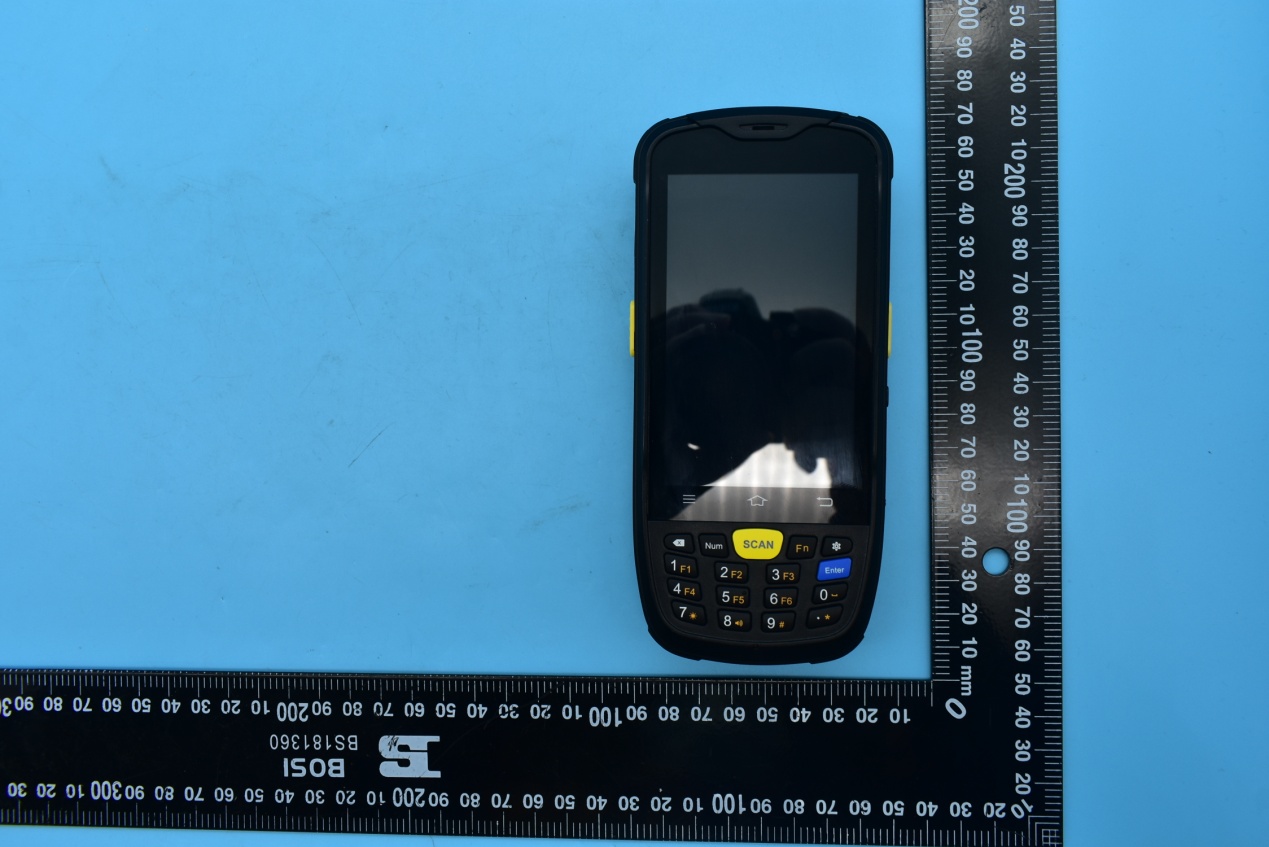

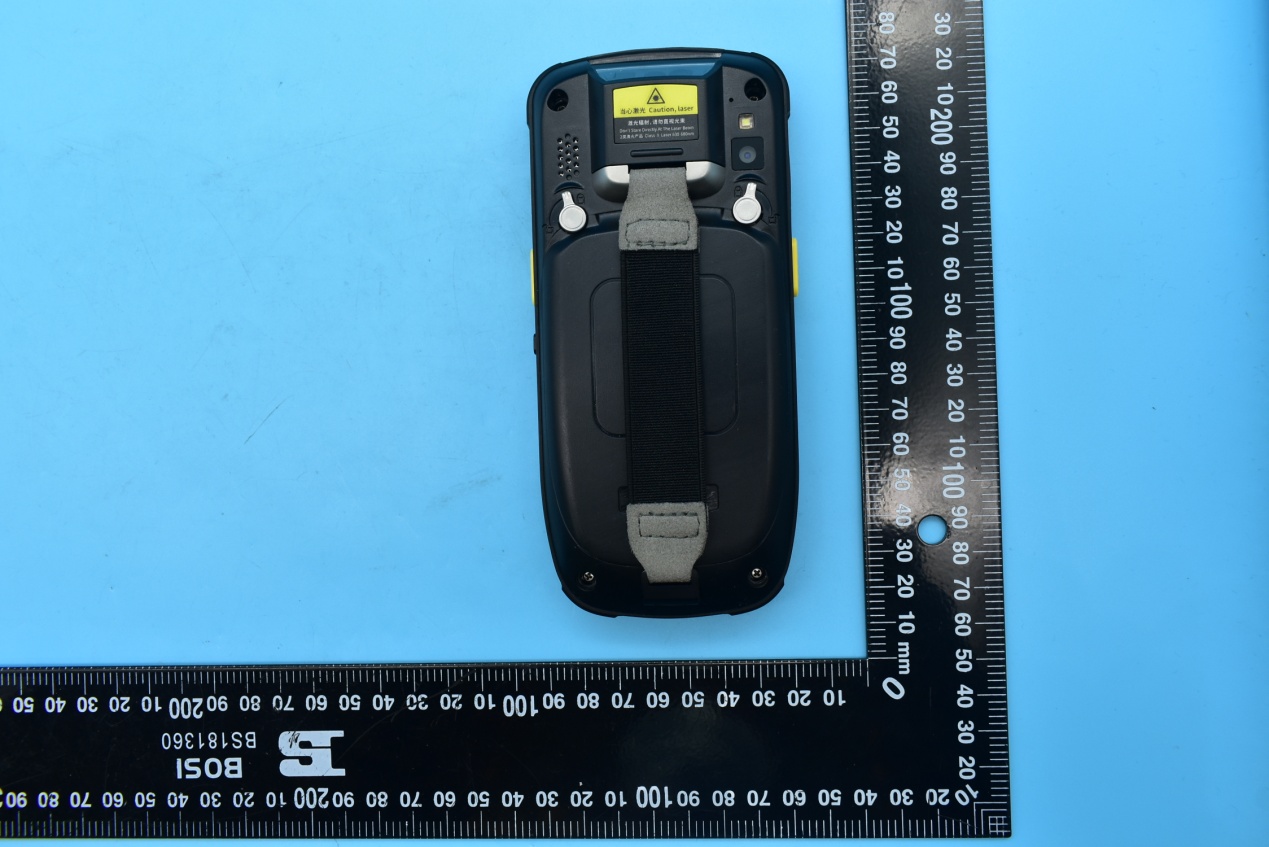

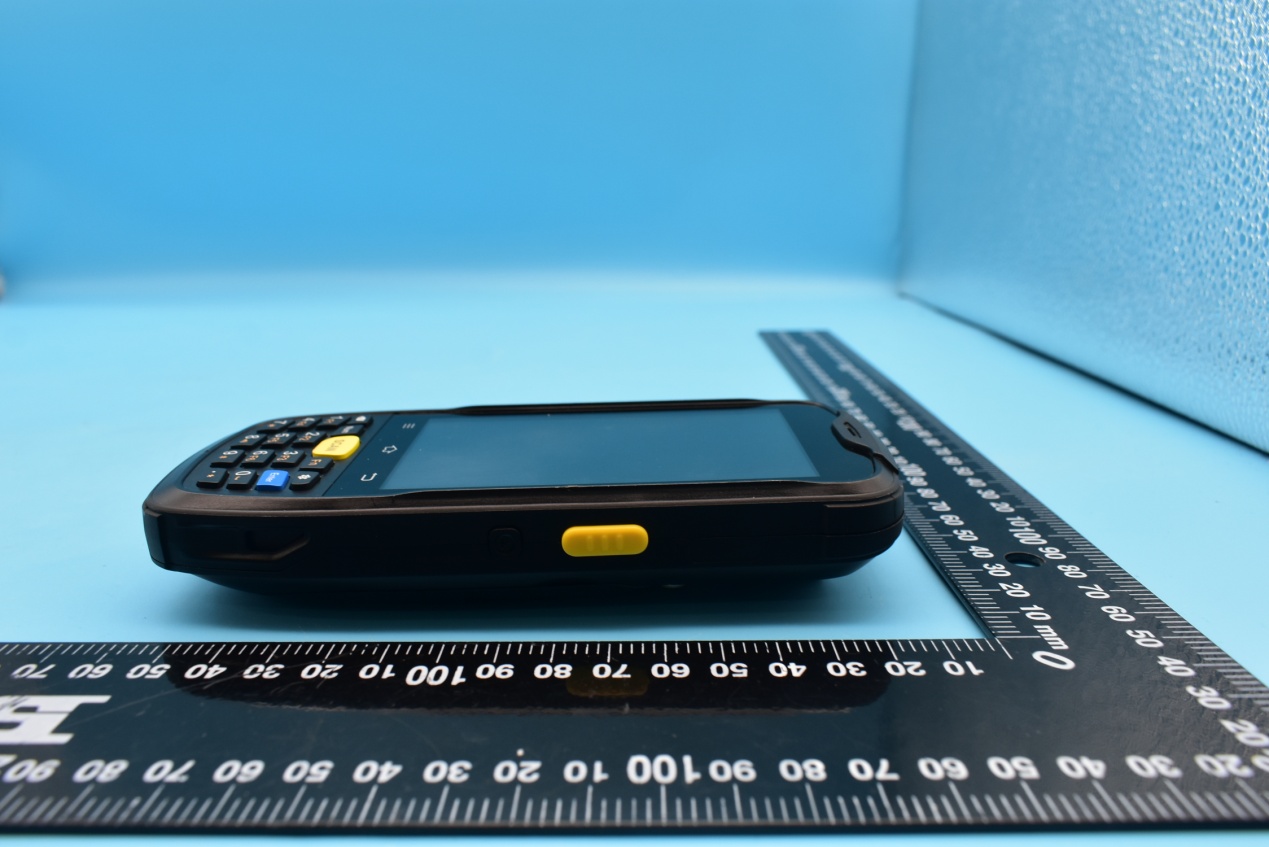

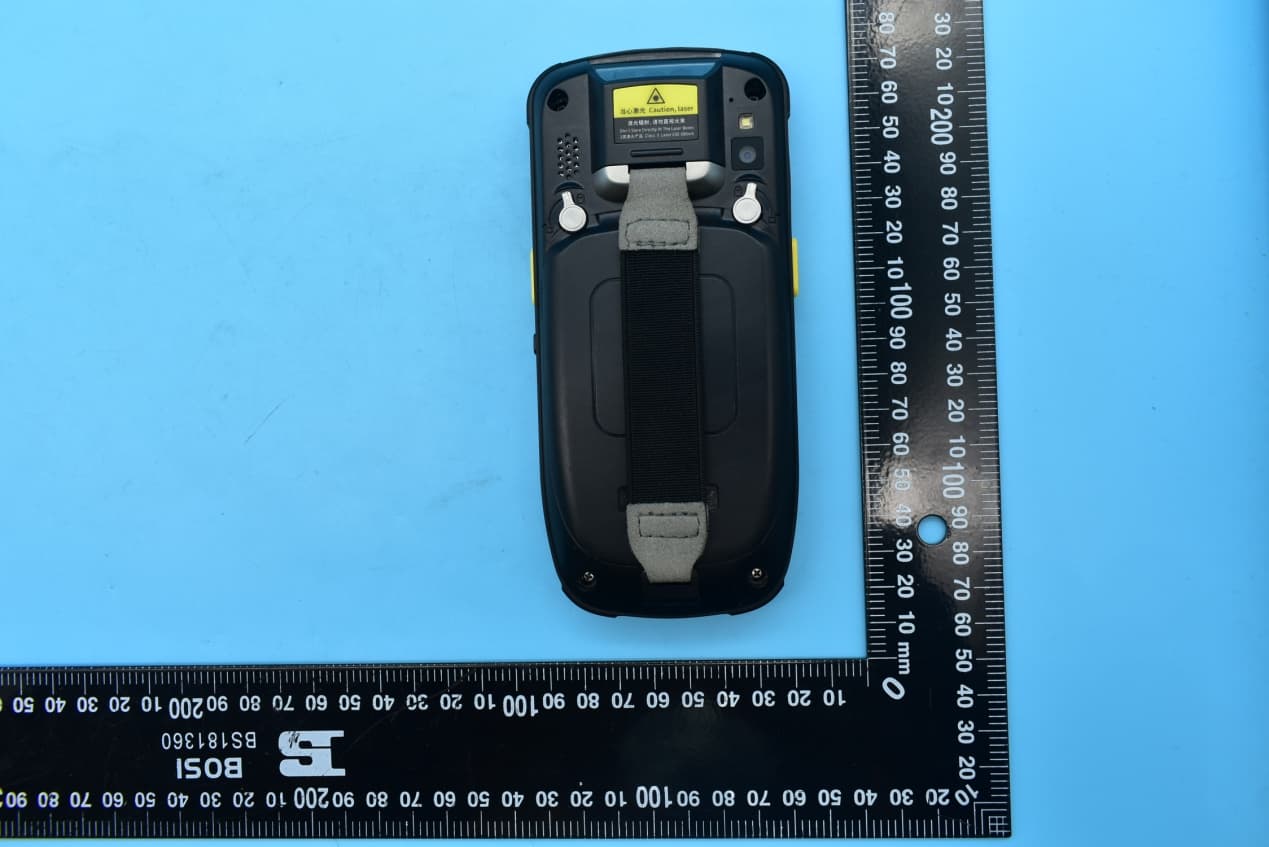

FCC ID:2AC6AC6000B External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1. Label 2. Label location In the bottom of battery

FCC ID:2AC6AC6000B Internal Photos 1. EUT uncover view 2. Antenna view NFC Antenna GPS/Bluetooth/Wi-Fi Antenna Diversity Antenna MAIN Antenna

REPORT No.：SZ20110290S01 Annex C Plots of System Performance Check MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.11 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.911 S/m; ε r = 42.192; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(10.09, 10.09, 10.09); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.86 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 64.30 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 5.48 W/kg SAR(1 g) = 2.02 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 3.84 W/kg 0 dB = 3.86 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.13 System Check_835MHz_Head Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 835 MHz; σ = 0.928 S/m; ε r = 42.764; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW835/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.76 W/kg CW835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.46 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 3.82 W/kg SAR(1 g) = 2.39 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (measured) = 2.78 W/kg 0 dB = 2.78 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.16 System Check_1750MHz_Head Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1750 MHz; σ = 1.411 S/m; ε r = 39.661; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.99, 7.99, 7.99); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW1750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 11.4 W/kg CW1750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.89 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 17.9 W/kg SAR(1 g) = 9.42 W/kg; SAR(10 g) = 4.94 W/kg Maximum value of SAR (measured) = 11.1 W/kg 0 dB = 11.4 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.17 System Check_1900MHz_Head Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1900 MHz; σ = 1.426 S/m; ε r = 39.826; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW1900/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 10.5 W/kg CW1900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.21 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 9.97 W/kg; SAR(10 g) = 5.18 W/kg Maximum value of SAR (measured) = 10.7 W/kg 0 dB = 10.7 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.22 System Check_2300MHz_Head Communication System: UID 0, CW (0); Frequency: 2300 MHz;Duty Cycle: 1:1 Medium: HSL_2300 Medium parameters used: f = 2300 MHz; σ = 1.682 S/m; ε r = 39.355; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.56, 7.56, 7.56); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW2300/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 12.2 W/kg CW2300/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 72.31 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 16.3 W/kg SAR(1 g) = 11.81 W/kg; SAR(10 g) = 5.73 W/kg Maximum value of SAR (measured) = 13.7 W/kg 0 dB = 12.2 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.23 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.833 S/m; ε r = 39.022; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(…

Text truncated - open the document above for the full version.

REPORT No.：SZ20110290S01 Annex D Plots of Maximum SAR Test Results MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Date: 2020.12.13 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. GSM850_GPRS(4 TX slots)_Right Cheek_Ch190 Communication System: UID 0, GSM850(class 12) (0); Frequency: 836.6 MHz;Duty Cycle: 1:2.08 Medium: HSL_835 Medium parameters used: f = 836.6 MHz; σ = 0.943 S/m; ε r = 42.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch190/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.621 W/kg Ch1890/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.962 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.720 W/kg SAR(1 g) = 0.584 W/kg; SAR(10 g) = 0.449 W/kg Maximum value of SAR (measured) = 0.612 W/kg 0 dB = 0.621 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.17 GSM1900_GPRS(4 TX slots)_Left Cheek_Ch810 Communication System: UID 0, PCS1900(class 12) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900 Medium parameters used: f = 1910 MHz; σ = 1.322 S/m; ε r = 39.646; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch810/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.238 W/kg Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.118 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.327 W/kg SAR(1 g) = 0.214 W/kg; SAR(10 g) = 0.134 W/kg Maximum value of SAR (measured) = 0.232 W/kg 0 dB = 0.238 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.17 WCDMA Band II_RMC 12.2Kbps_Left Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch9400/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.261 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.843 V/m; Power Drift = -0.28 dB Peak SAR (extrapolated) = 0.354 W/kg SAR(1 g) = 0.235 W/kg; SAR(10 g) = 0.148 W/kg Maximum value of SAR (measured) = 0.251 W/kg 0 dB = 0.261 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.16 WCDMA Band IV_RMC 12.2Kbps_Left Cheek_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1733 MHz; σ = 1.412 S/m; ε r = 39.814; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.99, 7.99, 7.99); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1413/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.228 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.534 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.297 W/kg SAR(1 g) = 0.197 W/kg; SAR(10 g) = 0.125 W/kg Maximum value of SAR (measured) = 0.208 W/kg 0 dB = 0.228 W/kg Date: 2020.12.13 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. WCDMA Band V_RMC 12.2Kbps_Right Cheek_Ch4182 Co mmunication System: UID 0, UMTS-FDD (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 837 MHz; σ = 0.945 S/m; ε r = 42.91; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch4182/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.488 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.099 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.577 W/kg SAR(1 g) = 0.463 W/kg; SAR(10 g) = 0.356 W/kg Maximum value of SAR (measured) = 0.485 W/kg 0 dB = 0.488 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.13 CDMA2000 BC0_RC3 SO55_Right Cheek_Ch777 Communication System: UID 0, CDMA 2000 (0); Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium…

Text truncated - open the document above for the full version.

REPORT No.：SZ20110290S01 Annex E DASY Calibration Certificate MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected]

RE PORT No.：SZ20110290S01 Annex E DASY Calibration Certificate MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected]

Add: No.5 1 Xueyuan Road, HaTel: +86-10-62304633-2079 dichna N CALIBRATION1In1` N411114 11191V CNAS L0570d' Fax '+86110-b23046002 04 China E-mail: cttlachinattl com http://www.chinattl.en C lient KEHU Certificate No: Z1860194 CAL-1Li1N CERTIFICATE Object D750V3-SN: 1173 Calibration Procedure(s) FF-Z11-003-01 Calibration Procedures for dipole validation kits Calibration date: June 21, 2018 This calibration Certificate documents the traceab ility to national standards, which real ize the physical un its of measurements(S I). The measurements and the uncertainties with confidence probabi-ity are g iven on the fo llowing pages and are part of the certificate. A ll cal ibrations have been conducted in the c losed laboratory facility: environment temperature(223)C and hum idity<70%. Cal ibration Equipment used (M&TE critica-for calibration) Primary Standards ID # Cal Date(Calibrated by, Certificate No.) Schedu ed Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, No.J17X08756) Oct-18 SN 7464 12-Sep1 7(S PEAG, No. EX3-7464-Sep17) Sep-18 SN 1525 02ct-17(SPEAG,No.DAE4-1525ctl7) Oct-18 ID # Ca Date(Ca librated by, Certificate No.) Schedu ed Ca libration S igna l Generator E4438C NetworkAnalyzer E5071 C MY49071430 23-Jan-18 (CTTL, No.JI8X00560) Jan-19 MY46110673 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Name Function . Signature Calibrated by Reviewed by Approved by Issued: June 26, 2018 Th is calibration certificate sha l l not be reproduced except in full without written approval of the laboratory. Certificate No: Z 18-60194 Page 1 of8 In Collaboration with CAUBRA71ON LABORATORY Add: N 51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinatti.cn Gssary: TSL tissue s-mu lating quid ConvF sensitivity in TSL I NORMx,y,z N/A not app licable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak SpatiaAveraged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techn ques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to rad io frequency fields from hand-held and body-mounted wireless communication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proxim ity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: . Measurement Conditions: Further deta i ls are avai lable from the Validation Report at the end of the certificate. Al l figures stated in the certificate are val id at the frequency ind cated. . Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented para l lel to the body axis. . Feed Point Impedance and Return Loss: These parameters are measured with the d ipole positioned under the liquid fi l led phantom The impedance stated s transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty requ ired . Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. SAmeasured: SAR measured at the stated antenna input power. SAnormalized: SAR as measured, normal ized to an input power of 1 W at the antenna connector. SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nom inal SAR resu lt. The reported uncertainty of measurement is stated as the standard uncerta inty of Measurement mu ltip lied by the coverage factor k=2, wh ich for a normal distribution Corresponds to a coverage probability of approximately 95% Certificate No: Z18-60194 Page 2 of 8 -n Collaboration win ;m1l Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-1062304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions 99Df1P99D9 DASY Version DASY52 52.10.1.1476 4 Extrapolation Advanced Extrapolation Phantom Triple F lat Phantom 5.1C 4 Distance Dipole Center - TSL 15 mm with Spacer 4 Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 750 MHz 1 MHz I I 1 Head TSL parameters SAR result with Head TSL SAR averaged over 1 cm3 (1 g) of Head TSL Cond ition SAR measured 250 mW input power 2.02mW/g SAR for nom ina l Head TSL parameters norma l ized to 1W 8.26mW/g18.8 % (k=2) SAR averaged over 10 cm3 (10 g) of Head TSL Condition SAR measured 250 mW input power 1.34mW/g SAR for nom inal Head TSL parameters normalized to 1W 5.45 mW /g18.7 % (k=2 Body TSL parameters SAR result with Body TSL SAR averaged over 1 Cm3 (1 g) of Body TSL Condition SARmeasured 25mW Inputpwer 2 13mWg SAR for nomina Body TSL parameters normalized to 1W 1 8.65 mW /g18.8 % (k=2) I SAR averaged over 10 cm3 (10 g) of Body TSL SAR measured 250 mW input power 1.41 mW / g SAR for nom ina l Body TSL parameters Certificate No: Z18-60194 Page 3 of 8 In Collaboration with cAu IA Add: No.5 1 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86 10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix (Additional assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL Impedance, transformed to feed point55.20-3.01j0 Return Loss -24.9dB Antenna Parameters with Body TSL Impedance, transformed to feed point52.30-4.51j0 Return Loss -26.1 dB General Antenna Parameters and Design Electrical Delay (one d irection) 900 ns After long ter…

Text truncated - open the document above for the full version.

3 Add: No.5 I Xueyuan Road, HaTel: +86-10-62304633-2079 dan District, Beijing, 100191, China vnuorvt i ivnFax: +86-10-62304633-2504 11111h, CNAS L0570 E-mail: [email protected] http://www.chinattl.cn Cl ient KEHU Certificate No: Z18-60195 CALIBRATN CERTIFICATE Object D835V2 SN: 4d…
