FCC Software Configuration Control Declaration Shenzhen Chainway Information Technology Co., Ltd. FCC Software Configuration Control Declaration Date: January 16, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Chen shurong Date: 2020/1/16 Title: manager Signature of applicant

Shenzhen Chainway Information Technology Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/1/16 Subject; Request for Confidentiality FCC ID: 2AC6AP80B To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Bom list Tune up procedure NII Software Security In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Chen shurong Title: Manager

Shenzhen Chainway Information Technology Co.,Ltd. Letter of Authorization Company: Shenzhen Chainway Information Technology Co.,Ltd. Address: 9/F, Building 2, Daqian Industrial Park, Longchang Rd., District 67, Bao’an, Shenzhen, China Product Name: Industrial tablet Model Number: P80 FCC Identifier: 2AC6AP80B We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: chen shurong Date: 2020/1/16 Title: Manager Signature of applicant:

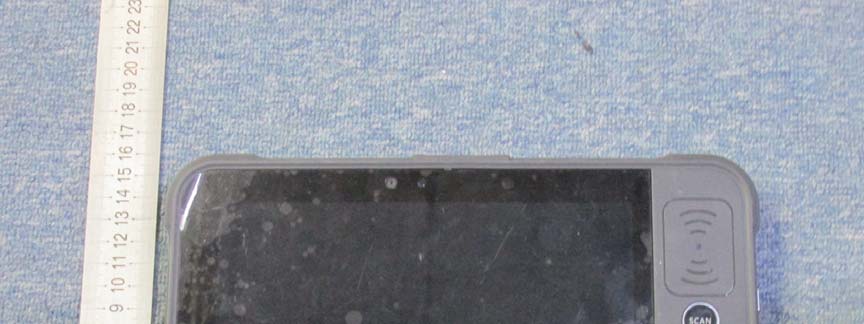

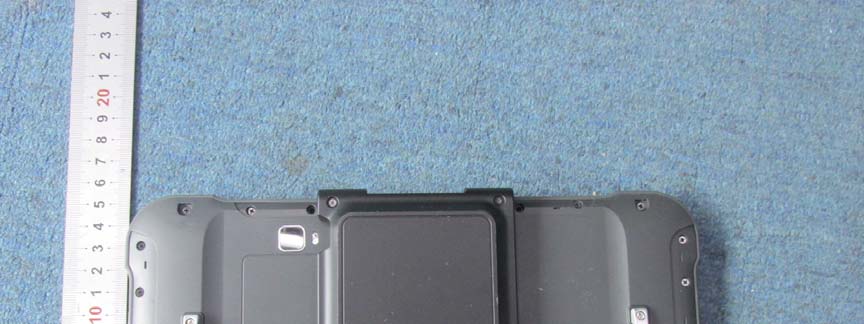

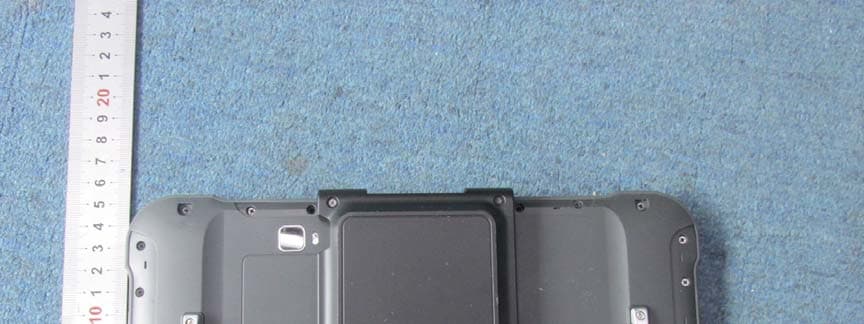

External Photo（Model：P80）

Internal Photo（Model： P80） RFID ANT GPS ANT WWAN ANT BT/WIFI ANT Sub ANT NFC ANT

Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 15 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Body 750 2019-12-15 System Check Body 835 2019-12-16 System Check Body 1800 2019-12-17 System Check Body 1900 2019-12-18 System Check Body 2450 2019-12-19 System Check Body 2600 2019-12-20 System Check Body 5200 2019-12-21 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 15 System Performance Check (Body, 750MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/15/2019 Measurement duration: 22 minutes 02 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 750MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 750 Relative permittivity (real part) 55.63 Relative permittivity 23.28 Conductivity (S/m) 0.97 Power drift (%) 1.48 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.93 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-6.00, Y=-5.00 SAR Peak: 0.13 W/kg SAR 10g (W/Kg) 0.054197 SAR 1g (W/Kg) 0.086997 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 15 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1257 0.0918 0.0609 0.0399 0.0257 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 15 System Performance Check (Body, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/16/2019 Measurement duration: 22 minutes 04 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 835 Relative permittivity (real part) 55.28 Relative permittivity 21.13 Conductivity (S/m) 0.98 Power drift (%) -2.16 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.99 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-13.00 SAR Peak: 0.15 W/kg SAR 10g (W/Kg) 0.059511 SAR 1g (W/Kg) 0.101892 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 15 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1498 0.1068 0.0678 0.0414 0.0240 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 15 System Performance Check (Body, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/17/2019 Measurement duration: 22 minutes 08 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1800 Relative permittivity (real part) 53.40 Relative permittivity 15.10 Conductivity (S/m) 1.51 Power Drift (%) -2.95 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.22 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=-10.00 SAR Peak: 0.72 W/kg SAR 10g (W/Kg) 0.195907 SAR 1g (W/Kg) 0.403010 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 15 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7173 0.4392 0.2268 0.1138 0.0572 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 15 System Performance Check (Body, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 12/18/2019 Measurement duration: 22 minutes 06 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1900 Relative permittivity (real part) 53.32 Relative permittivity 14.49 Conductivity (S/m) 1.53 Power Drift (%) -1.89 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.39 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=2.00, Y=-9.00 SAR Peak: 0.74 W/kg SAR 10g (W/Kg) 0.194266 SAR 1g (W/Kg) 0.408734 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 15 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.7410 0.4472 0.2253 0.1095 0.0529 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 15 S System Performance Check (Body, 2450MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=5mm, dy=5mm, dz=4mm Date of measurement: 12/19/2019 Measurement duration: 22 minutes 07 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 7x7x8,dx=5mm dy=5mm dz=4mm Device Position Dipole Band 2450MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 2450 Relative permittivity (real part) 52.76 Relative permittivity 14.40 Conductivity (S/m) 1.96 Power Drift (%) -2.97 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.46 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=-9.00 SAR Peak: 1.06 W/kg SAR 10g (W/Kg) 0.208463 SAR 1g (W/Kg) 0.508058 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 15 Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 1.0596 0.5663 0.2820 0.1320 0.0584 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 15 System Performance Check (Body, 2600MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=5mm, dy=5mm, dz=4mm Date of measurement: 12/20/2019 Measurement duration: 22 minutes 09 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 7x7x8,dx=5mm dy=5mm dz=4mm Device Position Dipole Band 2600MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_27/15_E…

Text truncated - open the document above for the full version.

Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 27 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 WCDMA1900 Edge A, Low ,10mm 2019/12/18 2 WCDMA1700 Edge A, High ,10mm 2019/12/17 3 WCDMA850 Edge A, Low ,10mm 2019/12/16 4 LTE Band2 Edge A, Middle ,10mm 2019/12/18 5 LTE Band4 Edge A, High ,10mm 2019/12/17 6 LTE Band5 Edge A, Middle ,10mm 2019/12/16 7 LTE Band7 Edge A, Middle ,10mm 2019/12/20 8 LTE Band12 Edge A, High ,10mm 2019/12/15 9 LTE Band13 Edge A, Middle ,10mm 2019/12/15 10 LTE Band17 Edge A, Middle ,10mm 2019/12/15 11 WIFI 2.4G 802.11b Edge D, Middle ,10mm 2019/12/19 12 WIFI 5G 802.11a Body Back, Middle ,10mm 2019/12/21 13 RFID Body Back, Low ,10mm 2019/12/16 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 27 Plot 1: WCDMA1900, Edge A, Low,10mm Type: Phone measurement Date of measurement: 12/18/2019 Measurement duration: 22 minutes 05 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge A Band Band2_WCDMA1900 Channels 9262 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1852.4 Relative permittivity (real part) 53.32 Relative permittivity (imaginary part) 14.49 Conductivity (S/m) 1.53 Variation (%) 0.05 ConvF: 2.39 SURFACE SAR VOLUME SAR Maximum location: X=-10.00, Y=-2.00 SAR Peak: 1.27W/kg SAR 10g (W/Kg) 0.356568 SAR 1g (W/Kg) 0.727218 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 27 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.2718 0.7953 0.4207 0.2127 0.1035 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 27 Plot 2: WCDMA1700, Edge A, High,10mm Type: Phone measurement Date of measurement: 12/17/2019 Measurement duration: 22 minutes 08 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge A Band Band2_WCDMA1700 Channels 1513 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1752.6 Relative permittivity (real part) 53.40 Relative permittivity (imaginary part) 15.10 Conductivity (S/m) 1.51 Variation (%) -4.09 ConvF: 2.22 SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=-1.00 SAR Peak: 1.50W/kg SAR 10g (W/Kg) 0.472695 SAR 1g (W/Kg) 0.915222 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 27 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.5003 0.9970 0.5781 0.3256 0.1785 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 27 Plot 3: WCDMA850, Edge A, Low,10mm Type: Phone measurement Date of measurement: 12/16/2019 Measurement duration: 22 minutes 09 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge A Band Band5_WCDMA850 Channels 4132 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 826.4 Relative permittivity (real part) 55.28 Relative permittivity (imaginary part) 21.13 Conductivity (S/m) 0.98 Variation (%) -2.27 ConvF: 1.99 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=27.00 SAR Peak: 0.48W/kg SAR 10g (W/Kg) 0.201412 SAR 1g (W/Kg) 0.327371 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 27 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.4759 0.3395 0.2186 0.1392 0.0879 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 27 Plot 4: LTE Band2, 20MHz, Edge A, Middle,10mm Type: Phone measurement Date of measurement: 12/18/2019 Measurement duration: 22 minutes 06 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge A Band LTE Band 2 Channels 18900 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1880 Relative permittivity (real part) 53.32 Relative permittivity (imaginary part) 14.49 Conductivity (S/m) 1.53 Variation (%) -2.07 ConvF: 2.39 SURFACE SAR VOLUME SAR Maximum location: X=-17.00, Y=-11.00 SAR Peak: 1.15W/kg SAR 10g (W/Kg) 0.323158 SAR 1g (W/Kg) 0.659134 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 27 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.1472 0.7212 0.3833 0.1933 0.0922 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 27 Plot 5: LTE Band4, 20MHz, Edge A, High,10mm Type: Phone measurement Date of measurement: 12/17/2019 Measurement duration: 22 minutes 04 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge A Band LTE Band 4 Channels 20300 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_27/15_EPG0261 Frequency (MHz) 1745 Relative permittivity (real part) 53.40 Relative permittivity (imaginary part) 15.10 Conductivity (S/m) 1.51 Variation (%) -0.65 ConvF: 2.22 SURFACE SAR VOLUME SAR Maximum location: X=3.00, Y=6.00 SAR Peak: 1.59W/kg SAR 10g (W/Kg) 0.487999 SAR 1g (W/Kg) 0.950421 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 27 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.5821 1.0391 0.5934 0.3300 0.1799 3D screen shot Hot spot position Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 27 Plot 6: LTE Band5, 10MHz, Edge A, Middle,10mm Type: Phone measurement Date of measurement: 12/16/2019 Measurement duration: 22 minutes 07 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge A Band LTE Band 5 Channels 20525 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Pro…

Text truncated - open the document above for the full version.

Report No. SET2019-13415 ANNEX C: Calibration Reports EP261 Probe Calibration Report SID750 Dipole Calibration Report SID835 Dipole Calibration Report SID1800 Dipole Calibration Report SID1900 Dipole Calibration Report SID2450 Dipole Calibration Report SID2600 Dipole Calibration Report SID5G Dipole Calibration Report Report No. SET2019-13415 EP261 Probe Calibration Report Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 SID750Dipole Calibration Report Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 SID835 Dipole Calibration Report Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 SID1800 Dipole Calibration Report Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 SID1900 Dipole Calibration Report Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415 Report No. SET2019-13415

Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) Page 1 of 52 FCC SAR TEST REPORT Report No.： SET2019-13415 Product： Industrial tablet Brand Name: CHAINWAY Model No.： P80 FCC ID： 2AC6AP80B Applicant： Shenzhen Chainway Information Technology Co.,Ltd. Address： 9/F, Building 2, Daqian Industrial Park, Longchang Rd., District 67, Bao’an, Shenzhen, China Issued by： CCIC Southern Testing Co., Ltd Lab Location： Electronic Testing Building, No. 43 Shahe Road Xili Street, Nanshan District，Shenzhen, Guangdong 518055，China Te l： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 52 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) Page 2 of 52 Te s t R e p o r t Product. ...................: Industrial tablet Model No. .................: P80 Brand Name..............: CHAINWAY FCC ID.......................: 2AC6AP80B Applicant....................: Shenzhen Chainway Information Technology Co.,Ltd. Applicant Address.......: 9/F, Building 2, Daqian Industrial Park, Longchang Rd., District 67, Bao’an, Shenzhen, China Manufacturer............: Shenzhen Chainway Information Technology Co.,Ltd. Manufacturer Address: 9/F, Building 2, Daqian Industrial Park, Longchang Rd., District 67, Bao’an, Shenzhen, China Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Test Result...............: Pass Test Date..................: Tested by ..............: 2020-01-16 Chun Mei, Test Engineer Reviewed by.............: 2020-01-16 You Xingjin, Senior Egineer Approved by...............: 2020-01-16 Shuangwen Zhang , Manager Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) Page 3 of 52 Contents Test Report ......................................................................................................................................... 2 1. Administrative Data ................................................................................................................... 4 2. Equipment Under Test (EUT) ................................................................................................... 5 3. SAR Summary ............................................................................................................................ 7 4. Specific Absorption Rate (SAR) ............................................................................................... 8 5. Tissue check and recommend Dielectric Parameters ........................................................... 12 6. SAR System validation ............................................................................................................ 15 7. SAR measurement procedure ................................................................................................. 17 8. Conducted RF Output Power ................................................................................................. 18 9. SAR test Exclusion and estimate SAR calculation: .............................................................. 36 10. Scaling Factor calculation ....................................................................................................... 39 11. Test Results ............................................................................................................................... 41 12. Simultaneous Transmissions Analysis .................................................................................... 46 13. Measurement Uncertainty ....................................................................................................... 47 14. Equipment List ........................................................................................................................... 51 ANNEX A: Appendix A: SAR System performance Check Plots..................................................... 52 ANNEX B: Appendix B: SAR Measurement results Plots................................................................ 52 ANNEX C: Appendix C: Calibration reports .................................................................................... 52 ANNEX D: Appendix D: SAR Test Setup ......................................................................................... 52 Report No. SET2019-13415 CCIC-SET/TRF:ISAR(2019-05-23) Page 4 of 52 1. Administrative Data 1.1 Testing Laboratory Te s t S i t e : CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd Address: Electronic Testing Building, No. 43 Shahe Road, Xili Jiedao, Nanshan District, Shenzhen, Guangdong, China NVLAP Lab Code: CCIC-SET is a third party testing organization accredited by NVLAP according to ISO/IEC 17025. The accreditation certificate number is 201008-0. FCC Registration: CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN5031, valid time is until December 31, 2020. ISED Registration: CCIC Southern …
