2AC88-G24G Free Roaming Hotspot

HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Sep 16, 2015
Application Purpose: Original Equipment
Date of Application: Sep 15, 2015
Equipment Note: 4G Free Roaming Hotspot
Company: HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

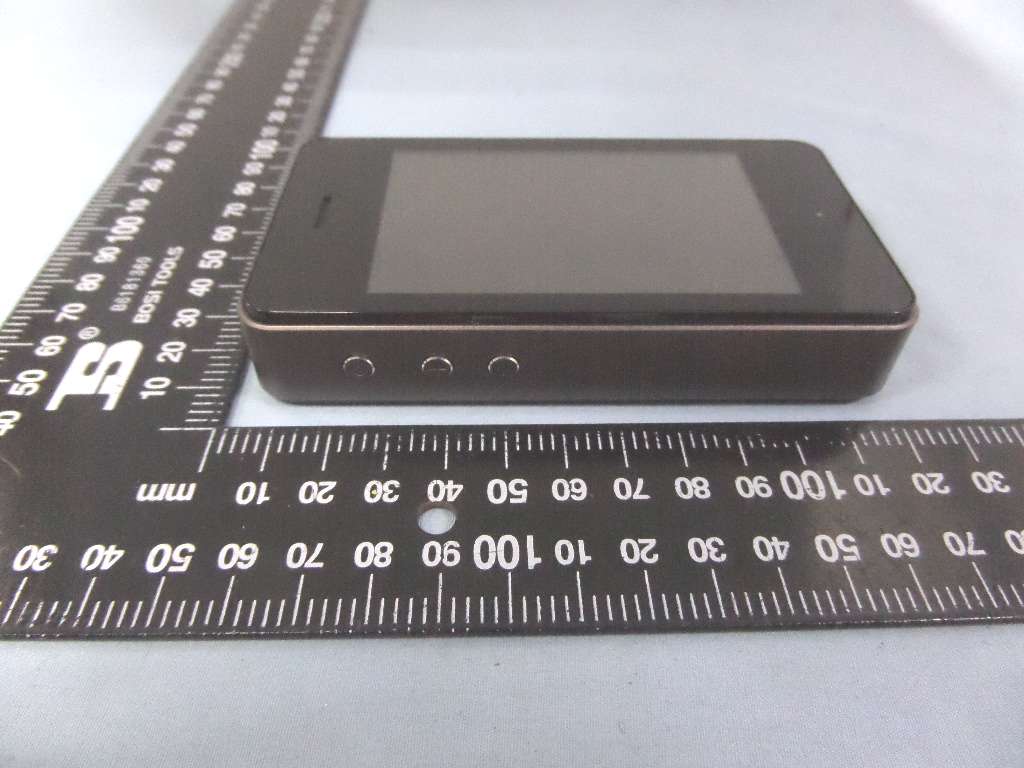

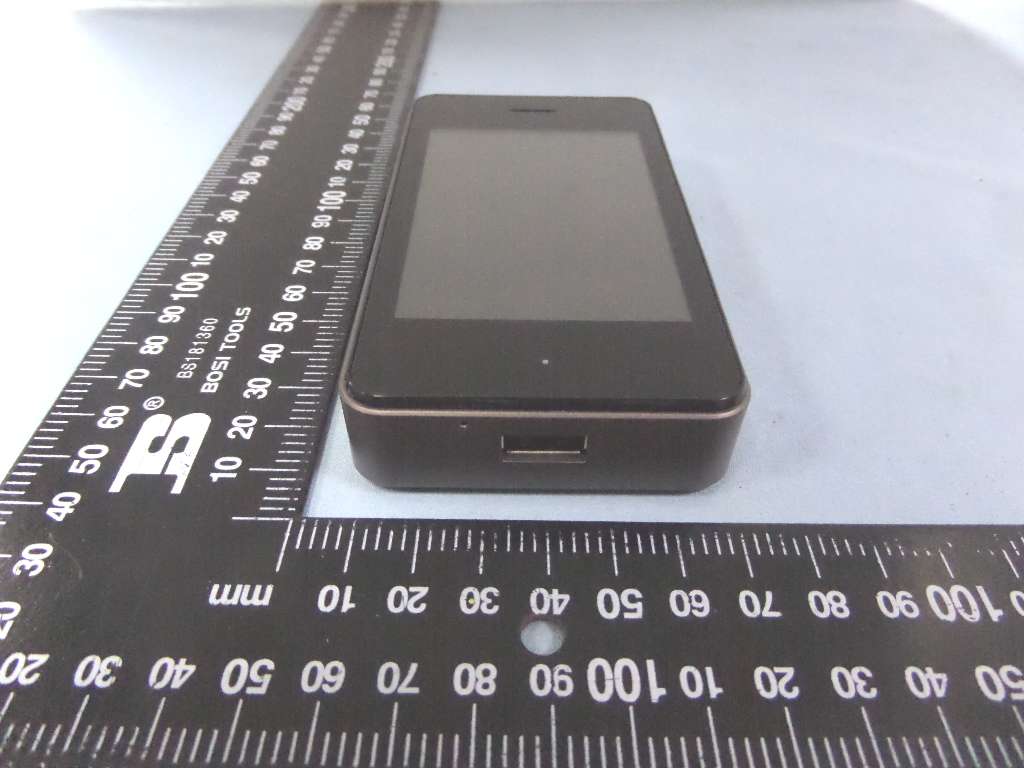

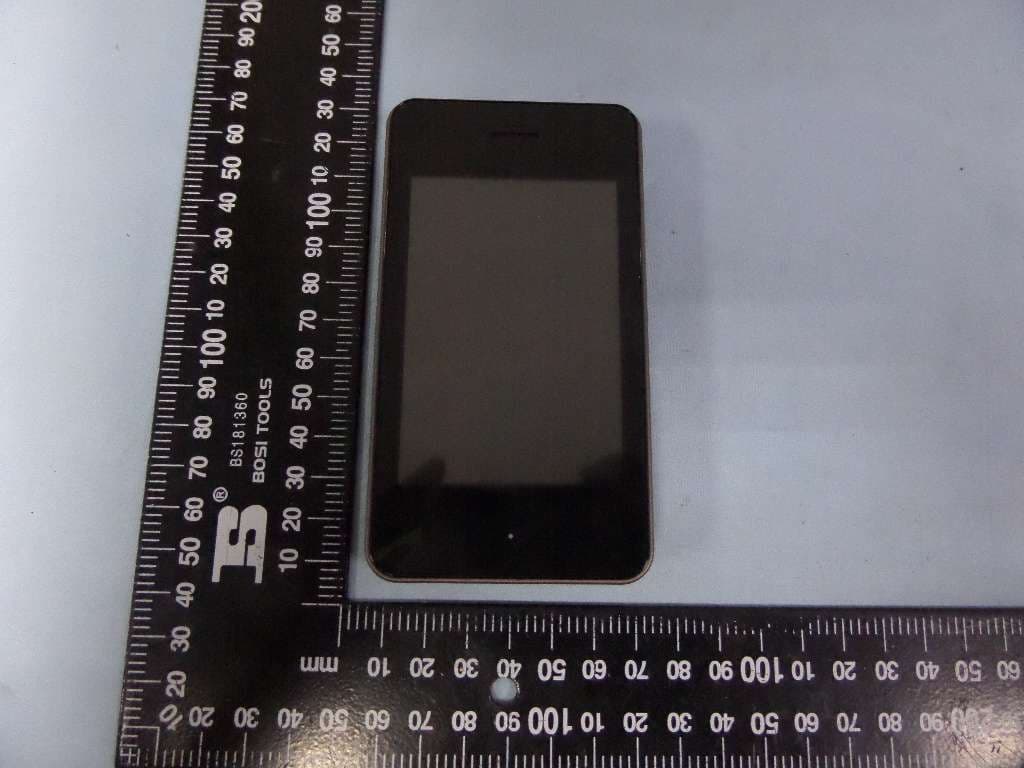

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 EUT View 3 EUT View 4 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 EUT View 5 EUT View 6 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 EUT View 7

ID Label/Location Info

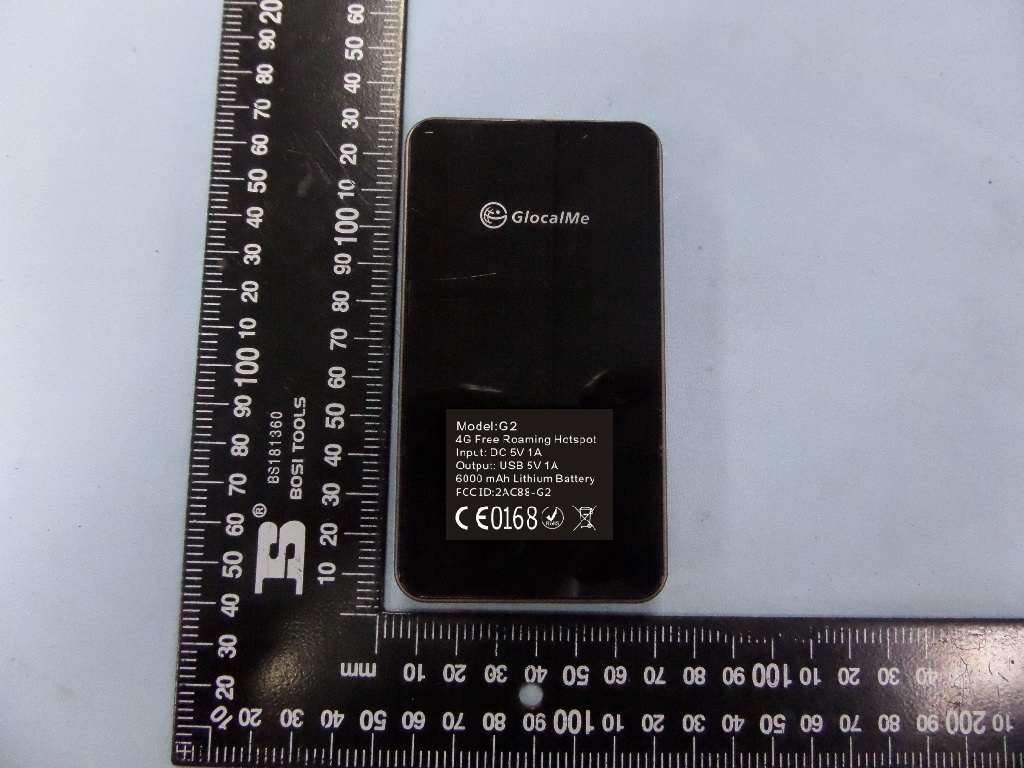

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AC88-G2 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Internal Photos

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 GSM/WCDMA/LTE Main Ant. Wi-Fi/BT/GPS Ant. LTE Diversity Ant. GSM/WCDMA Vice Ant. Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 EUT Housing and Board View 3 Solder Board-Component View 1 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 Solder Board-Component View 2 Solder Board-Component View 3 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 Solder Board-Component View 4 Solder Board-Component View 5 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-1/2 FCC PART 22H&24E&27 Solder Board-Component View 6 Solder Board-Component View 7

Test Report

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-6 PAGE 1 OF 16 FCC PART 15B FCC Part 15B Measurement and Test Report For HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Unit D. 16F, Chenknang plaza 250 Hennessy Road, wanchai HongKong FCC ID: 2AC88-G2 Test Rule(s): FCC Part 15 Subpart B Product Description: 4G Free Roaming Hotspot Tested Model: G2 Report No.: STRD1506066I-6 Tested Date: 2015-06-12 to 2015-07-25 Issued Date: 2015-07-31 Tested By: Silin Chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-6 PAGE 2 OF 16 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 P RODUCT D ESCRIPTION FOR E QUIPMENT U NDER T EST (EUT) ...............................................................................3 1.2 T EST S TANDARDS ...................................................................................................................................................4 1.3 T EST M ETHODOLOGY .............................................................................................................................................4 1.4 T EST F ACILITY .......................................................................................................................................................4 1.5 EUT S ETUP AND O PERATION M ODE ......................................................................................................................5 1.6 T EST E QUIPMENT L IST AND D ETAILS .....................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. CONDUCTED EMISSIONS ....................................................................................................................................7 3.1 M EASUREMENT U NCERTAINTY ..............................................................................................................................7 3.2 T EST P ROCEDURE ...................................................................................................................................................7 3.3 B ASIC T EST S ETUP B LOCK D IAGRAM .....................................................................................................................7 3.4 E NVIRONMENTAL C ONDITIONS ..............................................................................................................................8 3.5 S UMMARY OF T EST R ESULTS /P LOTS ......................................................................................................................8 3.6 C ONDUCTED E MISSIONS T EST D ATA ......................................................................................................................8 4. RADIATED EMISSIONS ....................................................................................................................................... 11 4.1 M EASUREMENT U NCERTAINTY ............................................................................................................................ 11 4.2 T EST P ROCEDURE ................................................................................................................................................. 11 4.3 T EST R ECEIVER S ETUP ......................................................................................................................................... 12 4.4 C ORRECTED A MPLITUDE & M ARGIN C ALCULATION ............................................................................................ 12 4.5 E NVIRONMENTAL C ONDITIONS ............................................................................................................................ 12 4.6 S UMMARY OF T EST R ESULTS /P LOTS .................................................................................................................... 12 Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-6 PAGE 3 OF 16 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Address of applicant: Unit D. 16F, Chenknang plaza 250 Hennessy Road, wanchai HongKong Manufacturer: Shenzhen Ukelink New Technology co., Ltd Address of manufacturer: 3rd Floor, A Part of Building 1, Shenzhen Software Industry Base, Nanshan district xuefu Road, Shenzhen City, Guangdong Province, P.R. China General Description of EUT Product Name: 4G Free Roaming Hotspot Trade Name: GlocalMe Model No.: G2 Hardware version: G2A_Main_Rev1.1 Software version: G2_HTSV1.1.001.017.150804 Main board: The EUT Main board support GSM850/900/DCS1800/PCS1900, WCDMA Band 1/2/5/8, LTE Band 1/3/5/7/8/17/20/39/40/41 function. It is intended for speech, Multimedia Message Service (MMS) transmission and 4G free roaming hotspot. It is equipped with GPRS/EDGE class 12 for GSM850/900/DCS1800/PCS1900, GPS, Bluetooth and Wi-Fi functions. For more information see the following datasheet Vice board: The EUT Vice board support GSM850/900/DCS1800/PCS1900, WCDMA Band 1/2/5/8. It is intended for system localization. It is equipped with GPRS/EDGE class 12 for GSM850/900/DCS1800/PCS1900 functions. For more information see the following datasheet Note: The test da…

Text truncated - open the document above for the full version.

Test Setup Photos

Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-6 FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (9 kHz to 30MHz) Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-6 FCC PART 15B Radiation Emission Test Setup (30MHz to 1GHz) Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-6 FCC PART 15B Radiation Emission Test Setup (above 1GHz) Shenzhen SEM.Test Technology Co., Ltd. REPORT NO.: STRD1506066I-6 FCC PART 15B
