GLMU20A01 User Manual Copyright © 2020 uCloudlink All Rights Reserved GLMU20A01 说明书 Copyright © 2020 uCloudlink All Rights Reserved 1. Signal LED Indicator2. Wi-Fi LED Indicator 3. Battery LED Indicator4. Power button 5. SIM Slot 6. Type-C(Input) 7. Reset button 1. 4G网络指示灯2. WIFI指示灯 3. 电池电量4. 电源按钮 5. SIM卡槽 6. Type-C接口 7. 恢复出厂设置 1. Type-C charging Function Introduction Local SIM Technical Specification: 2. Lightning charging 3. Micro charging Product Overview Product Overview 1. Power on: Press power button for 3 seconds. 2. Power off: Press power button for 5 seconds. 3. Reset: Press power button for 14 seconds. 4. Restore factory settingsPress reset button for 5 seconds. 5. Battery capacity and signal strength: Press the power button, the battery capacity will be shown in the first 3 seconds, then the signal strength will be shown afterwards. LED Indicator Type StatusRemarks Wi-Fi LED OnReady for internet connection OffNo internet connection FlashingService connecting 4G LED REDThe signal is bad YellowThe signal is normal GreenThe signal is Good Red flashing Connecting error Battery On The battery capacity is shown by strength LED indicator FlashingCharging 1. Local SIM is supported by GLMU20A01, Only insert Nano-SIM card (small card). 2. Use a needle to pull out the SIM cards as shown in the picture below. Please contact customer service if any issue encountered 3. GLMU20A01 device does not support SIM cards with PIN code, if you want to use this type of SIM cards, please unlock the PIN code first. 3. GLMU20A01 device does not support SIM cards with PIN code, if you want to use this type of SIM cards, please unlock the PIN code first.. Function Introduction Quick Start Guide BrandGlocalMeModel No.: GLMU20A01 Box content: Device, User manual, Type-C cable, SIM removal too • Size: 143*69*16mm LTE FDD • LTE TDD • WCDMA • GSM B1/2/3/4/5/7/8/9/12/13/ 18/19/20/26/28/66 B34/38/39/40/41(194M) B1/2/5/6/8/9/19 850/900/1800/1900 • Max upload speed: 50Mbps • Max download speed: 150Mbps • Wi-Fi:IEEE802. 11b/g/n • USB port:Type-C (input) • Battery Capacity: 7000mAh • Power Input:DC 5V 2A • Power output5V 2A (TYPE-C,Micro-USB lighting Note: Listed wireless data transfer rates are the theoretoical maximum. The actual data transfer rate may vary depending on the network environment and carrier’s coverage. 1. Register an AccountScan the QR code below to download the GlocalMe App. You can register for an account after installation. 2. Activate Device: Use the GlocalMe app to scan the QR code on the back panel of the device. 3. Purchase Package: Purchase package or top up through the GlocalMe app. 4. Power On: Press power button for 3 seconds. 5. Connect to GlocalMe: When the Wi-Fi LED indicator “ ” is staying on, turn on Wi-Fi on your cell phone, select GlocalMe Wi-Fi, enter the password to connect to the internet. (Wi-Fi name and password can be seen on the back panel. as shown below) 6. Device Management: Enter “192.168.43.1” in the address bar of web browser, and enter the username and password to login.(The initial username and password are admin/admin). 7. Use the device to charge the mobile phone and other devices: insert the charging head directly into the mobile phone and other devices, and press the power key once to activate the discharge. (if the device is idle for 5 minutes without external equipment, it will start to hibernate, press the power key to activate). WarningWarning Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram in countries that set the limit averaged over 1 gram of tissue and 2.0 watts per kilogram in countries that set the limit averaged over 10 grams of tissue. During testing, the device are set to their highest transmission levels in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. Type-C Lightning Micro 1 2 3 Type-C Lightning Micro 1 2 3 The device complies with RF specifications and when used with an accessory that contains no metal and that positions the device a minimum of 0.5 cm from the body. The SAR limit adopted is 2.0W/kg averaged over 10 grams of tissue. The highest SAR value reported for the device when properly worn on the body complies with the limit. EU Regulatory conformance For body worn operation, the device complies with FCC RF exposure guidelines and when used with an accessory that contains no metal and that positions the device a minimum of 1.0 cm from the body. The SAR limit adopted by the FCC is 1.6W/kg averaged over 1 gram of tissue. The highest SAR value reported for the device when properly worn on the body complies with the limit. FCC Regulatory conformance This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause. Undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and complies with the limits for a class B digital device, pursuantto part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur during installation. If the device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is suggested to try to correct the interfernce by the following measures: --Reorient or relocate …

Text truncated - open the document above for the full version.

QA-FR-170-B HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Add: Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Tel: 86-18688978835 Fax: 852-28911996 E-mail: [email protected] FCC Authorization Date: 2021-01-02 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, signature Printed Name: Zhu Tan Title:Manager

QA-FR-171-A HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Add: Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Tel: 86-18688978835 Fax: 852-28911996 E-mail: [email protected] FCC Confidential Authorization Date:2021-01-02 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AC88-GLMU20A01 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagra m Schematics O peration Descriptio n The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Zhu Tan Title:Manager  Parts List/Tune up procedure (for licensed devices)

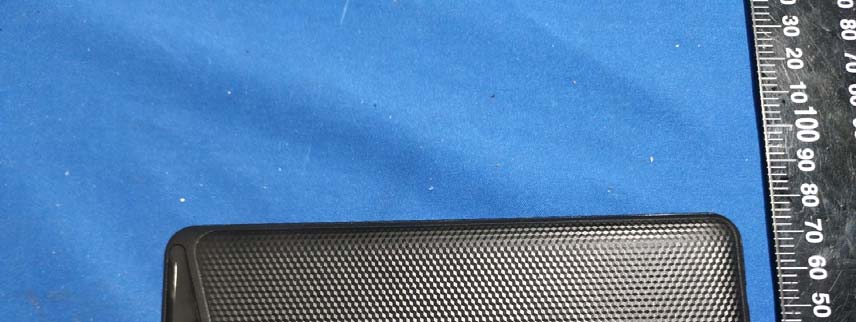

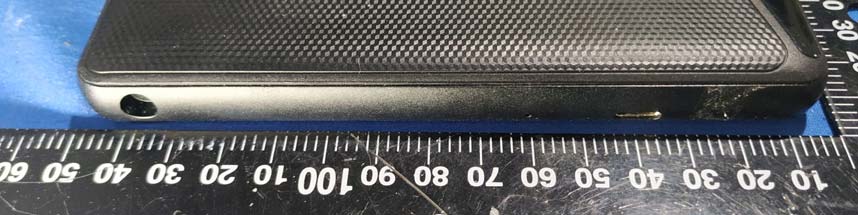

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

Label Location Label： 211-200926 D200035211

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS DIV Antenna MAIN Antenna Wi-Fi Antenna

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. SAR TEST REPORT For HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Suite 603 6/F, Laws Commercial Plaza, 788 Chueng Sha Wan Road, Kowloon Hong Kong FCC ID: 2AC88-GLMU20A01 Report Type: Original Report Product Type: TD-LTE Wireless Data Terminal Report Number: RDG200911002-SA Report Date: 2020-12-31 Reviewed By: Alvin Huang Lab Mana ger Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 2 of 94 Attestation of Test Results EUT Information EUT Description TD-LTE Wireless Data Terminal Tested Model GLMU20A01 FCC ID 2AC88-GLMU20A01 Serial Number RDG200911002-SA-S1 Test Date 2020/12/19 to 2020/12/23 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GPRS 850 1g Body SAR 0.23 1.6 GPRS 1900 1g Body SAR 0.46 WCDMA Band 2 1g Body SAR 0.79 WCDMA Band 5 1g Body SAR 0.31 LTE Band 2 1g Body SAR 1.05 LTE Band 7 1g Body SAR 1.15 LTE Band 12 1g Body SAR 0.61 LTE Band 13 1g Body SAR 0.30 LTE Band 26(Contains LTE Band 5) 1g Body SAR 0.79 LTE Band 40 Lower 1g Body SAR 0.58 LTE Band 40 Upper 1g Body SAR 0.59 LTE Band 41 (Contains LTE Band 38) 1g Body SAR 0.55 LTE Band 66(Contains LTE Band 4) 1g Body SAR 1.39 WIFI 2.4G 1g Body SAR 0.19 Simultaneous 1g Body SAR 1.42(Hotspot) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 3 of 94 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802.11 Wi-Fi SAR v02 r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 4 of 94 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION ................................................................................................................................................... 6 TECHNICAL SPECIFICATION ............................................................................................................................................. 6 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 7 SAR LIMITS ..................................................................................................................................................................... 8 FACILITIES ................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION ........................................................................................................ 16 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 17 LIQUID VERIFICATION ................................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ............................................................................................................................... 20 SAR SYSTEM VALIDATION DATA ......................................................................................................................... 21 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 29 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ....................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 1 of 49 APPENDIX C PROBE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 2 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 3 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 4 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 5 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 6 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 7 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 8 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 9 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 10 of 49 APPENDIX D DIPOLE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 11 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 12 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 13 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 14 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 15 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 16 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 17 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 18 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 19 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 20 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 21 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 22 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 23 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 24 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 25 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 26 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 27 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 28 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 29 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 30 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 31 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 32 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 33 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 34 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 35 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 36 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 37 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 38 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 39 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 40 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 41 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 42 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 43 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 44 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 45 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 46 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 47 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 48 of 49 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA SAR Test Report 49 of 49

Bay Area C Test Plot 1 DUT: TD- Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Compliance L 1#: GSM 850 -LTE Wireles cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (71x101x1): value of SA R an (5x5x7)/Cu Value = 15.17 (extrapolated = 0.201 W/kg value of SAR 0 dB = 0. Laboratories C 0_Body Front ss Data Term m: Generic GPR d: f = 836.6 M ection V4 - SN7522; C e: 4mm (Mech AE4 SN1562; M-Twin V8.0 P SW: DASY52 Interpolated R (interpolated ube 0: Measur 7 V/m; Power d) = 0.251 W/k g; SAR(10 g) R (measured) = .209 W/kg = - Corp. (Shenzhe t_Middle minal; Type: G RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.92, 9 hanical Surfac Calibrated: 3/ P1aP2a; Type: , Version 52.1 grid: dx=1.50 d) = 0.219 W/k rement grid: d r Drift = -0.06 kg = 0.156 W/k g = 0.209 W/kg -6.80 dBW/kg en) GLMU20A01 requency: 836 93 S/m; ε r = 40 9.92, 9.92) @ ce Detection) /3/2020 : QD 000 P41 10 (2) ; 00 mm, dy=1.5 kg dx=8mm, dy=8 6 dB g g g 1; Serial: RD 6.6 MHz;Duty 0.642; ρ = 100 836.6 MHz; AA; Serial: 1 500 mm 8mm, dz=5mm Repo DG200911002- Cycle: 1:4 00 kg/m 3 ; 1962 m ort No.: RDG2 -SA-S1; 200911002-SA Page 1 of 13 A 36 Bay Area C Test Plot 2 DUT: TD- Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Compliance L 2#: GSM 850 -LTE Wireles cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (71x101x1): value of SA R an (5x5x7)/Cu Value = 12.48 (extrapolated = 0.147 W/kg value of SAR 0 dB = 0. Laboratories C 0_Body Back_ ss Data Term m: Generic GPR d: f = 836.6 M ection V4 - SN7522; C e: 4mm (Mech AE4 SN1562; M-Twin V8.0 P SW: DASY52 Interpolated R (interpolated ube 0: Measur 8 V/m; Power d) = 0.187 W/k g; SAR(10 g) R (measured) = .151 W/kg = - Corp. (Shenzhe _Middle minal; Type: G RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.92, 9 hanical Surfac Calibrated: 3/ P1aP2a; Type: , Version 52.1 grid: dx=1.50 d) = 0.152 W/k rement grid: d r Drift = -0.13 kg = 0.112 W/k g = 0.151 W/kg -8.21 dBW/kg en) GLMU20A01 requency: 836 93 S/m; ε r = 40 9.92, 9.92) @ ce Detection) /3/2020 : QD 000 P41 10 (2) ; 00 mm, dy=1.5 kg dx=8mm, dy=8 3 dB g g g 1; Serial: RD 6.6 MHz;Duty 0.642; ρ = 100 836.6 MHz; AA; Serial: 1 500 mm 8mm, dz=5mm Repo DG200911002- Cycle: 1:4 00 kg/m 3 ; 1962 m ort No.: RDG2 -SA-S1; 200911002-SA Page 2 of 13 A 36 Bay Area C Test Plot 3 DUT: TD- Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Compliance L 3#: GSM 850 -LTE Wireles cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (61x101x1): value of SA R an (5x5x7)/Cu Value = 12.58 (extrapolated = 0.148 W/kg value of SAR 0 dB = 0. Laboratories C 0_Body Left_M ss Data Term m: Generic GPR d: f = 836.6 M ection V4 - SN7522; C e: 4mm (Mech AE4 SN1562; M-Twin V8.0 P SW: DASY52 Interpolated R (interpolated ube 0: Measur 8 V/m; Power d) = 0.195 W/k g; SAR(10 g) R (measured) = .156 W/kg = - Corp. (Shenzhe Middle minal; Type: G RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.92, 9 hanical Surfac Calibrated: 3/ P1aP2a; Type: , Version 52.1 grid: dx=1.50 d) = 0.156 W/k rement grid: d r Drift = -0.02 kg = 0.108 W/k g = 0.156 W/kg -8.07 dBW/kg en) GLMU20A01 requency: 836 93 S/m; ε r = 40 9.92, 9.92) @ ce Detection) /3/2020 : QD 000 P41 10 (2) ; 00 mm, dy=1.5 kg dx=8mm, dy=8 2 dB g g g 1; Serial: RD 6.6 MHz;Duty 0.642; ρ = 100 836.6 MHz; AA; Serial: 1 500 mm 8mm, dz=5mm Repo DG200911002- Cycle: 1:4 00 kg/m 3 ; 1962 m ort No.: RDG2 -SA-S1; 200911002-SA Page 3 of 13 A 36 Bay Area C Test Plot 4 DUT: TD- Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Compliance L 4#: GSM 850 -LTE Wireles cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (61x101x1): value of SA R an (5x5x7)/Cu Value = 9.312 (extrapolated = 0.090 W/kg value of SAR 0 dB = 0. Laboratories C 0_Body Right ss Data Term m: Generic GPR d: f = 836.6 M ection V4 - SN7522; C e: 4mm (Mech AE4 SN1562; M-Twin V8.0 P SW: DASY52 Interpolated R (interpolated ube 0: Measur 2 V/m; Power d) = 0.117 W/k g; SAR(10 g) R (measured) = .0935 W/kg = Corp. (Shenzhe t_Middle minal; Type: G RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.92, 9 hanical Surfac Calibrated: 3/ P1aP2a; Type: , Version 52.1 grid: dx=1.50 d) = 0.0941 W rement grid: d r Drift = -0.12 kg = 0.068 W/k g = 0.0935 W/k -10.29 dBW/ en) GLMU20A01 requency: 836 93 S/m; ε r = 40 9.92, 9.92) @ ce Detection) /3/2020 : QD 000 P41 10 (2) ; 00 mm, dy=1.5 W/kg dx=8mm, dy=8 2 dB g kg /kg 1; Serial: RD 6.6 MHz;Duty 0.642; ρ = 100 836.6 MHz; AA; Serial: 1 500 mm 8mm, dz=5mm Repo DG200911002- Cycle: 1:4 00 kg/m 3 ; 1962 m ort No.: RDG2 -SA-S1; 200911002-SA Page 4 of 13 A 36 Bay Area C Test Plot 5 DUT: TD- Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum Compliance L 5#: GSM 850 -LTE Wireles cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (71x71x1): I value of SAR an (5x5x7)/Cu Value = 7.276 (extrapolated = 0.047 W/kg value of SAR 0 dB = 0. Laboratories C 0_Body Top_M ss Data Term m: Generic GPR d: f = 836.6 M ection V4 - SN7522; C e: 4mm (Mech AE4 SN1562; M-Twin V8.0 P SW: DASY52 Interpolated g R (interpolated ube 0: Measur 6 V/m; Power d) = 0.0790 W g; SAR(10 g) R (measured) = .0505 W/kg = Corp. (Shenzhe Middle minal; Type: G RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.92, 9 hanical Surfac Calibrated: 3/ P1aP2a; Type: , Version 52.1 grid: dx=1.500 d) = 0.0513 W rement grid: d r Drift = 0.07 W/kg = 0.034 W/k g = 0.0505 W/k -12.97 dBW/ en) GLMU20A01…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA Page 1 of 3 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm • Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962 Body Front Setup Photo(10mm) 10 mm Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA Page 2 of 3 Body Back Setup Photo(10mm) Body Left Setup Photo(10mm) 10mm 10mm Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200911002-SA Page 3 of 3 Body Right Setup Photo(10mm) Body Top Setup Photo (10mm) 10 mm 10mm

FCC PART 15.247 TEST REPORT For HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Suite 603 6/F, Laws Commercial Plaza, 788 Chueng Sha Wan Road, Kowloon Hong Kong Report Type: Original Report Product Name: TD-LTE Wireless Data Terminal Re port Number: RDG200911002-00A Re port Date: 2020-12-01 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2AC88-GLMU20A01 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200911002-00A Page 2 of 51 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 FCC §15.247 (i) & §1.1310 & §2.1093- RF Exposure ............................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ....................................…
