2AC88-GLMT23A01Revolutionary Intelligent KeyChain

KeyConnect User Manual Copyright © 2023 uCloudlink All Rights Reserved 1. Wi-Fi LED Indicator 2. Battery LED Indicator 3. Hanging rope 4. Power button 5. Find item button 6. Micro USB port Function Introduction 1. Power on: Press power button for 3 seconds. 2. Power off : Press power button for 3 seconds. 3. Forced Shutdown: Press power button for 10 seconds. 4. End sleep mode: Press the power button for 1 second to turn on WiFi. 5. Mute: Press the find item button for 1 second. When searching for TagFi, the buzzer will beep three times for 1 second with an interval of 1 second LED Indicator Type Status Remarks Wi-Fi LED Indicator Green light flashing Network connecting Green light on Network is normal Red light on Network exception is irrecoverable, please restart the device Battery LED Indicator Green light on Battery level >50%, charging (battery fully charged) Orange light on Battery level 20%~50% Red light on Battery level≤20% Green light flashing Charging (battery level >50%) Orange light flashing Charging （battery level≤50%） Combination light WiFi light off， Battery LED Indicator on Device is in sleep mode Local SIM 1. Local SIM is supported by T10, Only insert Nano-SIM card (small card). 2. Use a needle to pull out the SIM cards as shown in the picture below. Please contact customer service if any issueencountered 3. T10 device does not support SIM cards with PIN code, if you want to use this type of SIM cards, please unlock the PIN code first. Function Introduction Brand：GlocalMe Model No.: GLMT23A01 Box content: device, User Manual, Micro USB cable Technical Specification: • Size: 84*46*9.2mm • LTE FDD: B1/2/3/5/8/12/13/17/18/19/20/25/26/28 • Wi-Fi: IEEE802. 11b/g/n • Micro USB (Input) • Battery Capacity: 960 mAh(TYP) • Power Input: DC 5V 500mAh Quick Start Guide 1. Turn On T10 • Press and hold the power button for 3 seconds .(if you cannot turn on the new T10, please charge the device and wait for device to be fully charged). • Once the light of Wi-Fi stays on, it means your device is ready to connect. 2. Connect To Wi-Fi • Find the Wi-Fi network name and password at the back of T10 • On your mobile device(s) under Wi-Fi settings search for the network and connect） Warning Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram in countries that set the limit averaged over 1 gram of tissue and 2.0 watts per kilogram in countries that set the limit averaged over 10 grams of tissue. During testing, the device are set to their highest transmission levels in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. EU Regulatory conformance The device complies with RF specifications and when used with an accessory that contains no metal and that positions the device a minimum of 0.5 cm from the body. The SAR limit adopted is 2.0W/kg averaged over 10 grams of tissue. The highest SAR value reported for the device when properly worn on the body complies with the limit. Hereby, HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED declares that this device is in compliance with the essential requirements and other relevant provisions of Directive (RED) 2014/53/EU. FCC Regulatory conformance For body worn operation, the device complies with FCC RF exposure guidelines and when used with an accessory that contains no metal and that positions the device a minimum of 1.0 cm from the body. The SAR limit adopted by the FCC is 1.6W/kg averaged over 1 gram of tissue. The highest SAR value reported for the device when properly worn on the body complies with the limit. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause. Undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and complies with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur during installation. If the device does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is suggested to try to correct the interference by the following measures: --Reorient or relocate the receiving antenna. --Increase the distance between the equipment and receiver. --Connect the equipment to an outlet on a different circuit to the receiver. --Consult the manufacturer or an experienced radio/TV technician for help. Information on the disposal and recycling of the device This symbol (with or without a solid bar) on the device, batteries (if included), and/or the packaging, indicates that the device and its electrical accessories (for example, a headset, adapter, or cable) and batteries should not be disposed of as household garbage. These items should not be disposed of as unsorted municipal waste and should be taken to a certified collection point for recycling or proper disposal. For detailed information about device or battery recycling, contact your local city office, household waste disposal service, or retail store. Disposal of the device and batteries (if included) is subject to WEEE. Directive Recast (Directive 2012/19/EU) and Battery Directive (Directive 2006/66/EC). The purpose of separating WEEE and batteries from other waste is t…

Text truncated - open the document above for the full version.

Rev 1/26/2023 HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date:06-30-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: (2AC88-GLMT23A01) HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED (Li Min) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, _________________________ Contact Person: Zhu Tan E-mail: [email protected] Rev 1/26/2023 (HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED) Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-30-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: (2AC88-GLMT23A01) HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED (Li Min) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, __________________________ Contact Person: Zhu Tan E-mail: [email protected]

Rev 11/20/07 HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (2AC88- GLMT23A01). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Part List Operational Description Tune up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for a period of 180days: External Photos, Internal Photos, Test Setup Photos User Manual Sincerely, _______________________ Contact Person: Zhu Tan E-mail: [email protected]

HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Power of Attorney Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: June 30, 2023 SUBJECT: FCC Application for (2AC88-GLMT23A01) To Whom It May Concern: We, the undersigned, hereby authorize Neil Gao at SGS-CSTC STANDARDS TECHNICAL SERVICES (XI 'AN) CO., LTD. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SGS- CSTC STANDARDS TECHNICAL SERVICES (XI 'AN) CO., LTD. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Must be signed by the person that is listed on the FCC Website) __________________________ Contact Person: Zhu Tan E-mail: [email protected]

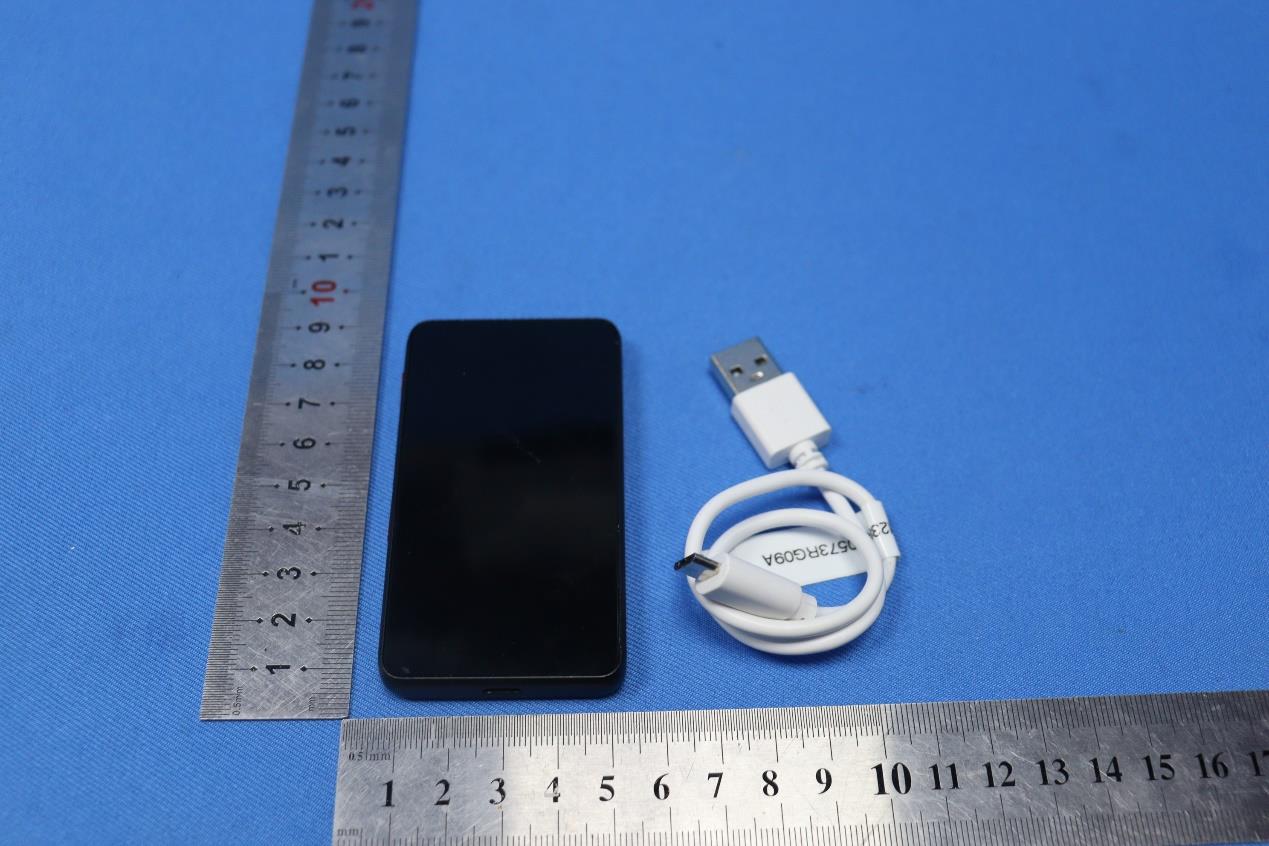

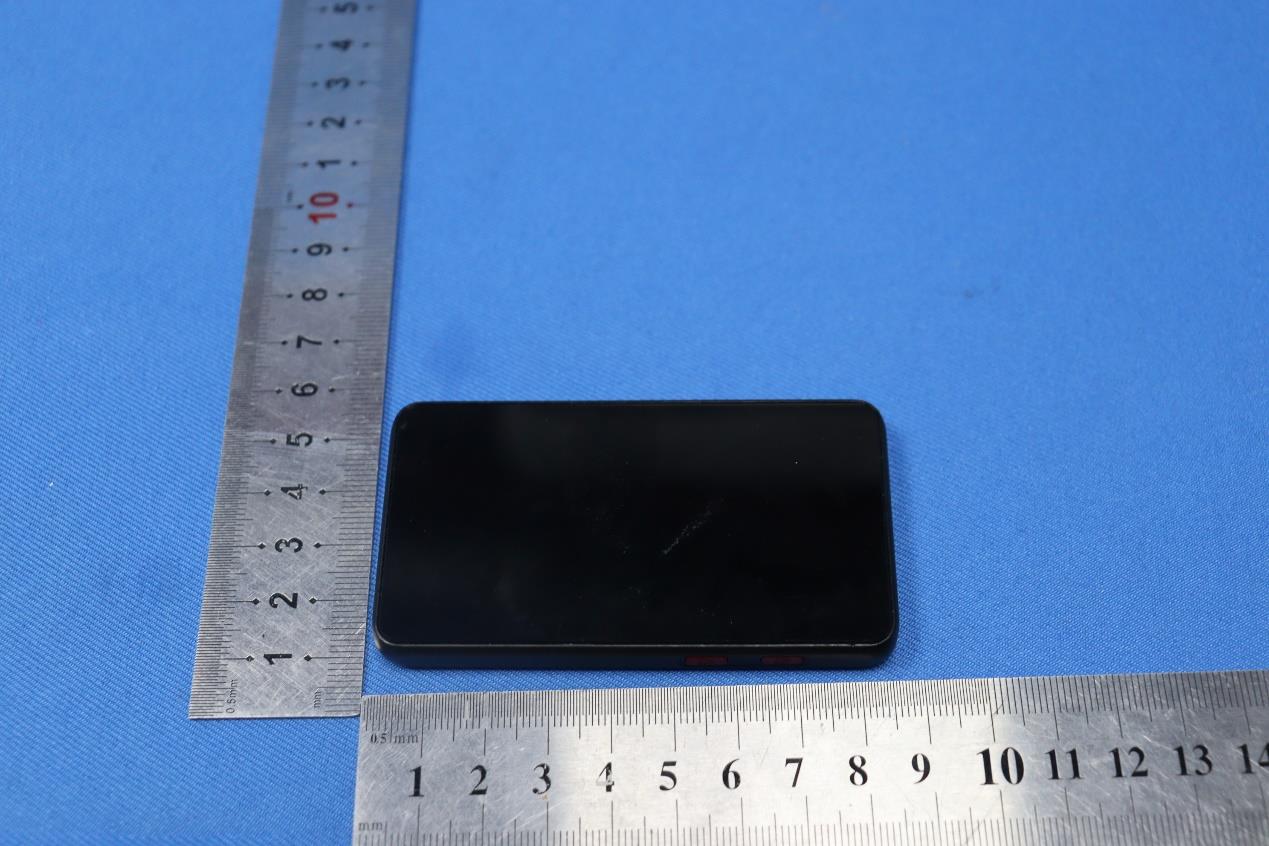

External photos

Revolutionary Intelligent KeyChain FCC ID: 2AC88-GLMT23A01 HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Made in China ModelGLMT23A01 217-230958 D230023217 Input: DC 5V 500mA

Internal photos

Report No.: XEWM2305000213RG06 Appendix A Detailed System Check Results 1.System Performance Check System Performance Check 750 MHz Head System Performance Check 835 MHz Head System Performance Check 1950 MHz Head System Performance Check 2450 MHz Head Date: 2023/7 /22 Test Laboratory: SGS-SAR Lab System Performance Check 750MHz DUT: D750V3; Type: Dipole; Serial: 1214 Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL750;Medium parameters used: f = 750 MHz; σ = 0.857 S/m; ε r = 43.711; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(10.75, 10.75, 10.75); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=15mm, Pin=250mW/Area Scan (5x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.62 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.83 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.02 W/kg SAR(1 g) = 1.97 W/kg; SAR(10 g) = 1.29 W/kg Maximum value of SAR (measured) = 2.64 W/kg 0 dB = 2.62 W/kg = 4.18 dBW/kg Date: 2023/7/24 Test Laboratory: SGS-SAR Lab System Performance Check 835MHz DUT: D835V2; Type: Dipole; Serial: 4d161 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.908 S/m; ε r = 43.146; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(10.35, 10.35, 10.35); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=15mm, Pin=250mW/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.77 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.72 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.28 W/kg; SAR(10 g) = 1.5 W/kg Maximum value of SAR (measured) = 2.90 W/kg 0 dB = 2.77 W/kg = 4.43 dBW/kg Date: 2023/7/24 Test Laboratory: SGS-SAR Lab System Performance Check 1950MHz DUT: D1950V3; Type: Dipole; Serial: 1218 Communication System: UID 0, CW (0); Frequency: 1950 MHz;Duty Cycle: 1:1 Medium: HSL1950;Medium parameters used: f = 1950 MHz; σ = 1.42 S/m; ε r = 40.047; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(8.41, 8.41, 8.41); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 13.9 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.16 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 16.7 W/kg SAR(1 g) = 9.31 W/kg; SAR(10 g) = 4.92 W/kg Maximum value of SAR (measured) = 14.1 W/kg 0 dB = 13.9 W/kg = 11.44 dBW/kg Date: 2023/6/23 Test Laboratory: SGS-SAR Lab System Performance Check 2450MHz DUT: D2450V2; Type: Dipole; Serial: 922 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450;Medium parameters used: f = 2450 MHz; σ = 1.813 S/m; ε r = 38.495; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(7.95, 7.95, 7.95); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Body/d=10mm, Pin=250mW/Area Scan (6x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 20.8 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.28 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 25.5 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 6.32 W/kg Maximum value of SAR (measured) = 20.8 W/kg 0 dB = 20.8 W/kg = 13.19 dBW/kg

Report No.: XEWM2305000213RG06 A ppendix B Detailed Test Results LTE Band 12 for Body LTE Band 13 for Body LTE Band 25 for Body LTE Band 26 for Body WIFI 2.4G for Body BT for Body Date: 2023/7/22 Test Laboratory: SGS-SAR Lab GLMT23A01 LTE Band 12 10M QPSK 1RB25 23130CH Front side 5mm DUT: GLMT23A01; Type: Revolutionary Intelligent KeyChain; Communication System: UID 0, LTE-FDD BW 10MHZ (0); Frequency: 711 MHz;Duty Cycle: 1:1 Medium: HSL750;Medium parameters used: f = 711 MHz; σ = 0.835 S/m; ε r = 43.898; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(10.75, 10.75, 10.75); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (6x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.791 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.29 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.868 W/kg SAR(1 g) = 0.552 W/kg; SAR(10 g) = 0.339 W/kg Maximum value of SAR (measured) = 0.760 W/kg 0 dB = 0.791 W/kg = -1.02 dBW/kg Date: 2023/7/22 Test Laboratory: SGS-SAR Lab GLMT23A01 LTE Band 13 10M QPSK 1RB25 23230CH Front side 5mm DUT: GLMT23A01; Type: Revolutionary Intelligent KeyChain; Communication System: UID 0, LTE-FDD BW 10MHZ (0); Frequency: 782 MHz;Duty Cycle: 1:1 Medium: HSL750;Medium parameters used: f = 782 MHz; σ = 0.873 S/m; ε r = 43.56; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(10.75, 10.75, 10.75); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (6x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.449 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.52 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.505 W/kg SAR(1 g) = 0.336 W/kg; SAR(10 g) = 0.226 W/kg Maximum value of SAR (measured) = 0.443 W/kg 0 dB = 0.449 W/kg = -3.48 dBW/kg Date: 2023/7/24 Test Laboratory: SGS-SAR Lab GLMT23A01 LTE Band 25 20M QPSK 1RB50 26140CH Front side 5mm DUT: GLMT23A01; Type: Revolutionary Intelligent KeyChain; Communication System: UID 0, LTE-FDD BW 20MHz (0); Frequency: 1860 MHz;Duty Cycle: 1:1 Medium: HSL1900;Medium parameters used: f = 1860 MHz; σ = 1.345 S/m; ε r = 40.324; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(8.41, 8.41, 8.41); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.470 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.959 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.874 W/kg SAR(1 g) = 0.429 W/kg; SAR(10 g) = 0.187 W/kg Maximum value of SAR (measured) = 0.727 W/kg 0 dB = 0.470 W/kg = -3.28 dBW/kg Date: 2023/7/24 Test Laboratory: SGS-SAR Lab GLMT23A01 LTE Band 26 15M QPSK 1RB38 26865CH Front side 5mm DUT: GLMT23A01; Type: Revolutionary Intelligent KeyChain; Communication System: UID 0, LTE-FDD BW 15MHz (0); Frequency: 831.5 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 831.5 MHz; σ = 0.906 S/m; ε r = 43.179; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(10.35, 10.35, 10.35); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (6x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.511 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.91 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.608 W/kg SAR(1 g) = 0.414 W/kg; SAR(10 g) = 0.284 W/kg Maximum value of SAR (measured) = 0.530 W/kg 0 dB = 0.511 W/kg = -2.91 dBW/kg Date: 2023/6/23 Test Laboratory: SGS-SAR Lab GLMT23A01 WIFI 2.4G 802.11b 6CH Back side 5mm DUT: GLMT23A01; Type: Revolutionary Intelligent KeyChain; Communication System: UID 0, WI-FI(2.4GHz) (0); Frequency: 2437 MHz;Duty Cycle: 1:1.005 Medium: HSL2450;Medium parameters used: f = 2437 MHz; σ = 1.796 S/m; ε r = 38.542; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(7.95, 7.95, 7.95); Calibrated: 2023/2/28 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1327; Calibrated: 2022/11/18 Phantom: SAM 7; Type: SAM; Serial: 1702 DASY52 52.10.4(1527); SEMCAD X 14.6.14(7483) Configuration/Body/Area Scan (7x10x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.15 W/kg Configuration/Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.67 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.71 W/kg SAR(1 g) = 0.805 W/kg; SAR(10 g) = 0.392 W/kg Maximum value of SAR (measured) = 1.37 W/kg 0 dB = 1.15 W/kg = 0.60 dBW/kg Date: 2023/6/23 Test Laboratory: SGS-SAR Lab GLMT23A01 Bluetooth DH5 0CH Back side 5mm DUT: GLMT23A01; Type: Revolutionary Intelligent KeyChain; Communication System: UID 0, Bluetooth (0); Frequency: 2402 MHz;Duty Cycle: 1:3.448 Medium: HSL2450;Medium parameters used: f = 2402 MHz; σ = 1.766 S/m; ε r = 38.658; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3923; ConvF(7.95, 7.95, 7.95); Calibrated: 2023/2/28 Senso…

Text truncated - open the document above for the full version.

Report No.: XEWM2305000213RG06 Appendix C Calibration certificate 1. Dipole D750V3-SN 1214 D835V2-SN 4d161 D1950V3-SN 1218 D2450V2-SN 922 2. DAE DAE4-SN 1327 3. Probe EX3DV4-SN 3923

Dipole D750V3 SN 1214 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2022-02-07 -28.3 / 53.2 / 2023-0 2-06 -28.1 0.71% 52.9 0.3Ω Dipole D835V2 SN 4d161 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-08-28 -27.1 / 52.8 / 2022-08-27 -27.6 1.85% 52.1 0.7Ω Dipole D2450V2 SN 922 Head Liquid Date of Measurement Return Loss(dB) Δ % Impedance (Ω) ΔΩ 2020-08-27 -24.7 / 56.0 / 2022-08-27 -25.2 2.02% 55.2 0.8Ω

SGS-CSTC Standards Technical Services (Xi’an) Co., Ltd. Report No.: XEWM2305000213RG06 Page : 1 of 115 Authorized Signature: Peter Tan Regulatory Technical Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. FCC SAR TEST REPORT Application No.: XEWM2305000213RG Applicant: HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Manufacturer: HONG KONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Product Name: Revolutionary Intelligent KeyChain Model No.(EUT): GLMT23A01 Trade Mark: GlocalMe FCC ID: 2AC88-GLMT23A01 Standards: FCC 47CFR §2.1093 Date of Receipt: 2023-05-09 Date of Test: 2023-06-23 to 2023-07-26 Date of Issue: 2023-07-27 Test Result: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Xi’an) Co., Ltd. Report No.: XEWM2305000213RG06 Page: 2 of 54 REVISION HISTORY Report Number Revision Description Issue Date XEWM2305000213RG06 01 Original 2023-07-27 Prepared By Yuan Zhao Reviewed by Mark Liu SGS-CSTC Standards Technical Services (Xi’an) Co., Ltd. Report No.: XEWM2305000213RG06 Page: 3 of 54 TEST SUMMARY Frequency Band Test position Max Report SAR1-g (W/kg) SAR limit (W/kg) LTE Band 2 Body 0.49 1.60 LTE Band 5 Body 0.45 1.60 LTE Band 12 Body 0.58 1.60 LTE Band 13 Body 0.40 1.60 LTE Band 17 Body 0.58 1.60 LTE Band 25 Body 0.49 1.60 LTE Band 26 Body 0.45 1.60 WI-FI (2.4GHz) Body 0.86 1.60 BT Body 0.20 1.60 Maximum Simultaneous Transmission SAR (W/kg) Scenario Body Sum SAR 1.59 SPLSR / SPLSR Limited 0.04 Note: 1) According to TCB workshop October,2014 RF Exposure Procedures Update (Overlapping Bands): SAR for LTE Band2(Frequency range:1850 - 1910 MHz)/LTE Band 5(Frequency range:824 - 849 MHz MHz)/LTE Band 17(Frequency range:704 - 716 MHz MHz) is respectively covered by LTE Band 25 (Frequency range:1850 - 1915 MHz)/LTE Band 26 (Frequency range:814 - 849 MHz)/LTE Band 12 (Frequency range: 699 - 716 MHz) due to similar frequency range, same maximum tune up limit and same channel bandwidth. 2) The Simultaneous transmission SAR is the same test position of the WIFI antenna + BT antenna. SGS-CSTC Standards Technical Services (Xi’an) Co., Ltd. Report No.: XEWM2305000213RG06 Page: 4 of 54 CONTENTS 1 GENERAL INFORMATION .....................................................................................................................................6 1.1 Details of Client .................................................................................................................................................... 6 1.2 Test Location ........................................................................................................................................................ 6 1.3 Test Facility ........................................................................................................................................................... 7 1.4 General Description of EUT ............................................................................................................................... 8 1.5 Test Specification ................................................................................................................................................ 9 1.6 RF exposure limits ............................................................................................................................................. 10 2 SAR MEASUREMENTS SYSTEM CONFIGURATION ...................................................................................... 11 2.1 The SAR Measurement System ...................................................................................................................... 11 2.2 Isotropic E-field Probe EX3DV4 ...................................................................................................................... 12 2.3 Data Acquisition Electronics (DAE) .............................................................................................................. 13 2.4 SAM Twin Phantom ........................................................................................................................................... 13 2.5 ELI Phantom ........................................................................................................................................................ 14 2.6 Device Holder for Transmitters ...................................................................................................................... 15 2.7 Measurement procedure .................................................................................................................................. 16 2.7.1 Scanning procedure ........................................................................................................................................ 16 2.7.2 Data Storage .................................................................................................................................................... 18 2.7.3 Data Evaluation by SEMCAD ........................................................................................................................ 18 3 DESCRIPTION OF TEST POSITION ................................................................................................................... 20 3.1 The Body Test Position .................................................................................................................................... 20 4 SAR SYSTEM V…

Text truncated - open the document above for the full version.

` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2305000213RG01 Rev.: 01 Page: 1 of 56 Appendix B.1 LTE Band 2 ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2305000213RG01 Rev.: 01 Page: 2 of 56 Effective (Isotropic) Radiated Power Output Data Test Result Band Bandwidth Modulation Channel RB Configuration Result (dBm) EIRP (dBm) Limit (dBm) Verdict Band2 1.4MHz QPSK 18607 1RB#0 22.34 24.32 33 PASS Band2 1.4MHz QPSK 18607 1RB#2 23.00 24.98 33 PASS Band2 1.4MHz QPSK 18607 1RB#5 22.22 24.2 33 PASS Band2 1.4MHz QPSK 18607 6RB#0 21.73 23.71 33 PASS Band2 1.4MHz QPSK 18900 1RB#0 22.23 24.21 33 PASS Band2 1.4MHz QPSK 18900 1RB#2 22.92 24.9 33 PASS Band2 1.4MHz QPSK 18900 1RB#5 22.19 24.17 33 PASS Band2 1.4MHz QPSK 18900 6RB#0 21.70 23.68 33 PASS Band2 1.4MHz QPSK 19193 1RB#0 22.12 24.1 33 PASS Band2 1.4MHz QPSK 19193 1RB#2 22.66 24.64 33 PASS Band2 1.4MHz QPSK 19193 1RB#5 21.85 23.83 33 PASS Band2 1.4MHz QPSK 19193 6RB#0 21.23 23.21 33 PASS Band2 1.4MHz 16QAM 18607 1RB#0 21.40 23.38 33 PASS Band2 1.4MHz 16QAM 18607 1RB#2 22.15 24.13 33 PASS Band2 1.4MHz 16QAM 18607 1RB#5 21.38 23.36 33 PASS Band2 1.4MHz 16QAM 18607 6RB#0 20.87 22.85 33 PASS Band2 1.4MHz 16QAM 18900 1RB#0 21.35 23.33 33 PASS Band2 1.4MHz 16QAM 18900 1RB#2 22.09 24.07 33 PASS Band2 1.4MHz 16QAM 18900 1RB#5 21.30 23.28 33 PASS Band2 1.4MHz 16QAM 18900 6RB#0 20.57 22.55 33 PASS Band2 1.4MHz 16QAM 19193 1RB#0 20.84 22.82 33 PASS Band2 1.4MHz 16QAM 19193 1RB#2 21.52 23.5 33 PASS Band2 1.4MHz 16QAM 19193 1RB#5 20.67 22.65 33 PASS Band2 1.4MHz 16QAM 19193 6RB#0 20.21 22.19 33 PASS Band2 3MHz QPSK 18615 1RB#0 21.70 23.68 33 PASS Band2 3MHz QPSK 18615 1RB#8 23.02 25 33 PASS Band2 3MHz QPSK 18615 1RB#14 21.39 23.37 33 PASS ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2305000213RG01 Rev.: 01 Page: 3 of 56 Band2 3MHz QPSK 18615 15RB#0 21.60 23.58 33 PASS Band2 3MHz QPSK 18900 1RB#0 21.76 23.74 33 PASS Band2 3MHz QPSK 18900 1RB#8 23.14 25.12 33 PASS Band2 3MHz QPSK 18900 1RB#14 21.59 23.57 33 PASS Band2 3MHz QPSK 18900 15RB#0 21.71 23.69 33 PASS Band2 3MHz QPSK 19185 1RB#0 21.74 23.72 33 PASS Band2 3MHz QPSK 19185 1RB#8 22.96 24.94 33 PASS Band2 3MHz QPSK 19185 1RB#14 21.30 23.28 33 PASS Band2 3MHz QPSK 19185 15RB#0 21.34 23.32 33 PASS Band2 3MHz 16QAM 18615 1RB#0 20.71 22.69 33 PASS Band2 3MHz 16QAM 18615 1RB#8 22.19 24.17 33 PASS Band2 3MHz 16QAM 18615 1RB#14 20.56 22.54 33 PASS Band2 3MHz 16QAM 18615 15RB#0 20.83 22.81 33 PASS Band2 3MHz 16QAM 18900 1RB#0 20.86 22.84 33 PASS Band2 3MHz 16QAM 18900 1RB#8 22.28 24.26 33 PASS Band2 3MHz 16QAM 18900 1RB#14 20.70 22.68 33 PASS Band2 3MHz 16QAM 18900 15RB#0 20.65 22.63 33 PASS Band2 3MHz 16QAM 19185 1RB#0 20.51 22.49 33 PASS Band2 3MHz 16QAM 19185 1RB#8 21.87 23.85 33 PASS Band2 3MHz 16QAM 19185 1RB#14 20.04 22.02 33 PASS Band2 3MHz 16QAM 19185 15RB#0 20.24 22.22 33 PASS Band2 5MHz QPSK 18625 1RB#0 21.96 23.94 33 PASS Band2 5MHz QPSK 18…
