2AC88-R102FG4G LTE Wireless Router

R102FG QUICK INSTALLATION GUIDE Thank you for purchasing R102FG . Application to 4G wireless router,this installation guide provides a Web-based configuration guide method and procedure. In this guide, Windows 10 is used as an example. Interfaces Conventions Adapter voltage ：in put AC100V~240V，output DC12V/2A Supply voltage ： DC 12V Working temperature ：-10~+°C65 °C Storage humidity：5%~95%RH non-condensing Therefore,in order to ensure the normal operation of the device,the recommended working environment of the device is as follows: Keep away from heat and keep ventilated Place the device in a ash-free and dry environment interface Interface DescriptionFunctional description Power interface Battery version DC power input interface power supply DCIN battery-less version DC power input interface, no battery version uses 12V/2A power adapter Network port WAN 1 RJ45 network port, used in gateway mode LAN1/LAN2 2 RJ45 network ports, used to connect terminal CPE such as computer Built-in antenna interface 2*2.4G Wi-Fi antennas 2*5.8G Wi-Fi antennas 2*4G antennas Responsible for sending and receiving electromagnetic radiation from the air button Power button Self-locking switch, press to turn on, pop up to shut down RST restart button Long press to restart the system or restart CPE SIM card slot Standard SIM card slotConnect 4G wireless Internet Working Environment Specifications equipm surfa c Inter Pow SY 4 Wi LED Equ In thund ment to av Accordin ce R102FG 4G antenn rfaces wer P o Ind YS 4G i-Fi D Ligh uipment derstorm w void dama ng t the in ✖1 na✖2 Inter ower dicator Ba ver B Syste Sign L E ts Indi t List weather,pl age by ligh nstallation 2.4 DC 12V rfaces descr attery rsion Pow No batt Battery-less em indicato nal indicatio Long bright Flashing Extinguish icators lease rem htning. n method(h 4G Wi-Fi a Power ad ription wer supply o external tery power supply s version or on s move the handing e antenna✖2 dapter✖1 Steady charged, Blue ligh blue light Three lig is normal Steady on Steady lig the 4G is The wire working c D Wi- power su ears or rai 2 5.8G Wi Q u Fu blue light and flashing ht indicates t indicates th hts always l n means the ght means t offline or p eless functio condition Data is bein -Fi is not av upply and il clips),p -Fi antenn uick start unctional d t indicates g blue light that the ba hat the batte on indicate e system net the 4G sign plugged in t on is enabl g sent and r vailable wit d all conn place the d na✖2 guide✖1 description that the t indicates c attery is fu ery is in a lo e that the CP twork conne nal is norma o the Intern ed, and Wi received via hout wirele nections device on battery is harging ully charged ow battery s PE power s ection is no al, and off m net i-Fi is in n a WLAN ess function of the n a flat fully d, and state supply rmal means ormal If you need to manage and configure this device, you can connect to the 4G LTE CPE wireless or by wire. The default 4G LTE CPE address of this device is 192.168.169.1 and the sub-net mask is 255.255.255.0. These network parameters can be modified according to the actual situation, which will be explained with default values. Log in to the background management interface After the R102FG dev ice is powered on, users can use their mobile phones or tablets to connect to the device’s wireless Wi-Fi. The Wi-Fi name is ”LTE-2.4GHz-××××× × Device Configuration instructions /L TE- conn e netwo 1 the ad 2 passw N ad mi n 3 interfa 5GHz-× ect the LA ork cable. 1.Open th ddress bar, 2.In the word and p NOTE：T nistrator pa 3.After en ace “ Ove r ×××× AN p ort o he IE of th ,and press pop-up l press Enter The initia assword a ntering th rview” vie ×”,and th of the R1 he com pu t Enter . ogin wi n r directly t al ad min i after enteri he correct ew. he W i-Fi 102FG ter o r sm a ndow ,ente r to enter). istrator p ing the con t passwor factory pa CPE dev art-phone/t r the pas passwords nfiguratio rd, you c a ssword is vice to th tablet, typ sword :ad are all on system . can enter s7wks68q. he co mpu t pe the add dmi n;the n “adm in” , the devi Users c ter networ dress bar:1 n click ” L , users c ce’ s WE B can also d rk port u 92.168.16 Login”(or can chang B configu directl y using a 69.1 in r ent er ge the uration T can be param requir S S local o P setting Se This router e automati meters with rements, p Step 1: Co Step 2: Co operators. Please clic gs. Then e et up 3 r supports ically con hout manu please follo onfirm that onfirm whe The spec ck "APN C enter the u G/4G I s the funct figured f o ual configu ow the ste t the SIM ether the 3 ific operat Customiza user name, Intern tion of aut or more tha uration by eps below card is v a 3G/4G dia tion proce ation" on t , password et omaticall y an 95% of y users. If y : alid and ca al-up settin ess is as fo the homep d, dial num y configur f global op you have an be used ngs of this ollows: page to exp mber, and A ring 3G/4G perators' 3 special AP d normally s router m pand and e APN para G dialing 3G/4G net PN custom y; eet the re q enter 3G/4 ameters pr parameter twork dial mization quirement 4G dialing rovided by rs. It ing ts of g y the 3G/4G T Config PPPO The d "Netw the "C G L LAN Wo G ISP, an d The R102 guration OE(point-to default ext work WA Connection Gatewa Like other ports. T orking d clic k O K 2FG Protocol)I o-point Pr ternal netw AN" in th n Type" d r ay Mode r home ro The conn Mode K. s u Internet, rotocol Ov work conn e navigati rop-down e uters .It’s nection m e Settin upports f Wir ed B r ver Ethern nection m ion bar to button to WAN p o methods i ng five Inter ridge, STA net), Wi rel mode is "w enter the select th e ort is conn include D rnet acces TATIC(Stat wireless 2.4 extra-net e Internet m nected to b DHCP dy ss modes tic Host ess 2.4G master, W i 4GHz acc connectio mode that broadband ynamic In s:DHCP ( Configura ireless 5 cess". Use on settings they wan d, and the nternet a (Dynamic ation Pro G master,4 G ers can cli s, and then nt. e other thr access(…

Text truncated - open the document above for the full version.

QA-FR-170-B HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Add: Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Tel: 86-18688978835 Fax: 852-28911996 E-mail: [email protected] FCC Authorization Date: 2020-11-05 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Zhu Tan Title:Manag er

QA-FR-171-A HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Add: Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Tel: 86-18688978835 Fax: 852-28911996 E-mail: [email protected] FCC Confidential Authorization Date:2020-11-05 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AC88-R102FG In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagra m Schematics O peration Descriptio n The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Zhu Tan Title:Manager

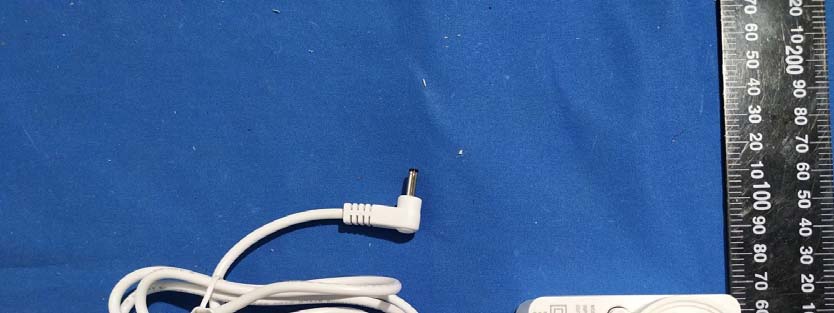

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

76MM 36MM MAC:123456123456 SN:123456123456 IMEI:123456123456 Made in China 4G LTE wireless router Model: R102FG Input: 12V 2A IP: 192. 168. 169. 1 User/Key: admin SSID: LTE-2.4/5GHZ-07F8D0 Password: s7wks68q FCC ID: 2AC88-R102FG Contain FCC ID:2AC88-GLMM18A02 HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS 5G Antenna 0 5G Antenna 1 2.4G Antenna 0 2.4 Antenna 1 WWAN Main Antenna WWAN Aux Antenna

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918003-00A Page 11 of 63 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculation formula: Prediction of power density at the distance of the applicable MPE limit S = PG/4R² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918003-00A Page 12 of 63 Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted output power including Tune- up Tolerance Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) WLAN-2.4G 2412-2462 2.5 1.78 23199.53 25.00 0.05 1.00 WLAN-5.2G 5150-5250 2.5 1.78 1425.12 25.00 0.01 1.00 WLAN-5.8G 5725-5850 2.5 1.78 1531.62 25.00 0.01 1.00 GSM850 824-849 1.75 1.50 331995.26 25.00 0.38 0.55 PCS1900 1850-1910 -0.24 0.95 311258.93 25.00 0.15 1.00 WCDMA Band 2 1850-1910 -0.24 0.95 24.5281.84 25.00 0.03 1.00 WCDMA Band 4 1710-1755 1.05 1.27 23.5223.87 25.00 0.04 1.00 WCDMA Band 5 824-849 1.75 1.50 25316.23 25.00 0.06 0.55 LTE Band 2 1850-1910 -0.24 0.95 23199.53 25.00 0.02 1.00 LTE Band 4 1710-1755 1.05 1.27 24251.19 25.00 0.04 1.00 LTE Band 5 824-849 1.75 1.50 24251.19 25.00 0.05 0.55 LTE Band 7 2500-2570 0.29 1.07 24251.19 25.00 0.03 1.00 LTE Band 12 699-716 -1.71 0.67 24251.19 25.00 0.02 0.47 LTE Band 13 777-787 0.12 1.03 24251.19 25.00 0.03 0.52 LTE Band 17 704-716 -1.71 0.67 24251.19 25.00 0.02 0.47 LTE Band 26 814-849 1.75 1.50 22158.49 25.00 0.03 0.54 LTE Band 38 2570-2620 -1.37 0.73 24251.19 25.00 0.02 1.00 LTE Band 40 2305-2315 0.69 1.17 22158.49 25.00 0.02 1.00 LTE Band 41 2535-2655 -1.37 0.73 24251.19 25.00 0.02 1.00 Note: the device contains a WWAN module, FCC ID: 2AC88-GLMM18A02. The WLAN 2.4G ,5G and WWAN can transmit simultaneously: =S 2.4 /S limit-2.4 + S 5 /S limit-5 + S WWAN /S limit-WWAN =0.05/1+0.01/1+0.38/0.55 =0.75 < 1.0 Result: The device meet FCC MPE at 25 cm distance

FCC PART 15.247 TEST REPORT For HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED Suite 603, 6/F, Laws Commercial Plaza, 788 Cheung Sha Wan Road, Kowloon, Hong Kong Report Type: Original Report Product Name: 4G LTE Wireless Router Re port Number: RDG200918003-00A Re port Date: 2020-10-30 Reviewed By: Ivan Cao Assistant Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:2AC88-R102FG Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200918003-00A Page 2 of 63 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 9 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS ........................................................................................................ 9 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 FCC §15.247 (i) & §1.1310 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 15 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 18 APPLICABLE STANDARD ............................................................................................................................................ 18 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 19 TEST PROCEDURE .........................................................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
